Frigidaire FRS6HF5J Mode d’emploi

N58L00002.eps N58FFDEAA0.eps N58RFCBBC11.eps N58BAAAAA0.eps

N58SJCABA2.eps N58TAAAAA7.eps N58CAAAAA10.eps N58XDAAAA1.eps

N58YBAAAA5.eps N58I1151-1.eps W241970401.eps S241970401.eps

Product No. FRS6KR5JSB5

Series R134a

Color stain/blk

Volts 115

Wiring Diagram 241970401

Owner's Guide 241856000

Market North America

Energy Guide 241615445

Service Data Sheet 240389636

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995537809

09/04/13

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6KR5J

Publication No: 5995537809 FRS6KR5JSB5

04/09 2

FREEZER DOOR

22C

13A

22A

21A

N58FFDEAA0

79 80

FRS6KR5JSB5 Publication No: 5995537809

# Functional Parts 3 04/09

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 241786006 Gasket-frzr door, black, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

11 241837128 Door-frzr, stainless, complete assy

13A 240581906 Door Stop, black, frzr

18 240536818 Handle-door, stainless steel, with insert, & set screw

18* 241601001 Wrench, allen

21A 240598402 Screw, 10-32 x 1/2

22A 242000502 Bearing-hinge, black, lower

22C 240328404 Bearing-hinge, black, upper

68 241525101 Chute-ice

79 218755402 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

* 240552101 Harness-wiring, door

* 241806601 Connector-water, straight

* 5303918256 Dispenser heater kit

Publication No: 5995537809 FRS6KR5JSB5

04/09 4

REFRIGERATOR DOOR

21A

22B

N58RFCBBC11

FRS6KR5JSB5 Publication No: 5995537809

# Functional Parts 5 04/09

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 241786005 Gasket-refr door, black, magnetic

4 240323001 Bin-door, pseudo, bottom

7 240326203 Door-dairy

13 240581905 Door Stop, black, ref

15 241837222 Door-refr, stainless, complete assy

18 240536818 Handle-door, stainless steel, with insert, & set screw

18* 241601001 Wrench, allen

21A 240598402 Screw, 10-32 x 1/2

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

49 240356401 Bin-door, gallon

79 218755402 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995537809 FRS6KR5JSB5

04/09 6

CABINET

FRS6KR5JSB5 Publication No: 5995537809

# Functional Parts 7 04/09

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435912 Cover-air duct

10A 241719711 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402702 Screw-#10-32 x 1/4 flat hd

28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 Bracket-lower hinge, ref

30A 241603704 Bracket-lower hinge

37 240337610 Trim-cabinet corner, black, (2)

38 240327207 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578902 Screw, hex head, 1/4-20 x 5/8

43 240335006 Roller Assy, front, (2)

45 241500303 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781101 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324411 Grille/Kickplate, black

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 Cover-access, w/label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes

* 5303321321 Paint, touch-up, black

Publication No: 5995537809 FRS6KR5JSB5

04/09 8

SHELVES

126

25A

47A

N58SJCABA2

11B

39B

11A

39B

140

101

26A

FRS6KR5JSB5 Publication No: 5995537809

# Functional Parts 9 04/09

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 241657602 Shelf, flip up, wire

11A 241657502 Shelf, fixed, freezer

11B 241657504 Shelf, fixed, upper, freezer

21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625

24 240373108 Frame-shelf, cantilever

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351005 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240362201 Control-humidity

26A* 241595202 Clip-slide, pan-crisper

27 240351205 Pan-crisper, lower

29 240357706 Trim-shelf, front

39 240430706 Trim-shelf, 11.21", front

39B 240430702 Trim-shelf, 12.39", front

40 240350623 Glass-shelf, 16.76" x 17.60"

41 240357806 Trim-shelf, rear

47 240350633 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240564401 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545308 Water Tank

101 218493101 Screw, hex washer head, 8-18AB x 1-3/4

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

* 241615445 Energy Guide

Publication No: 5995537809 FRS6KR5JSB5

04/09 10

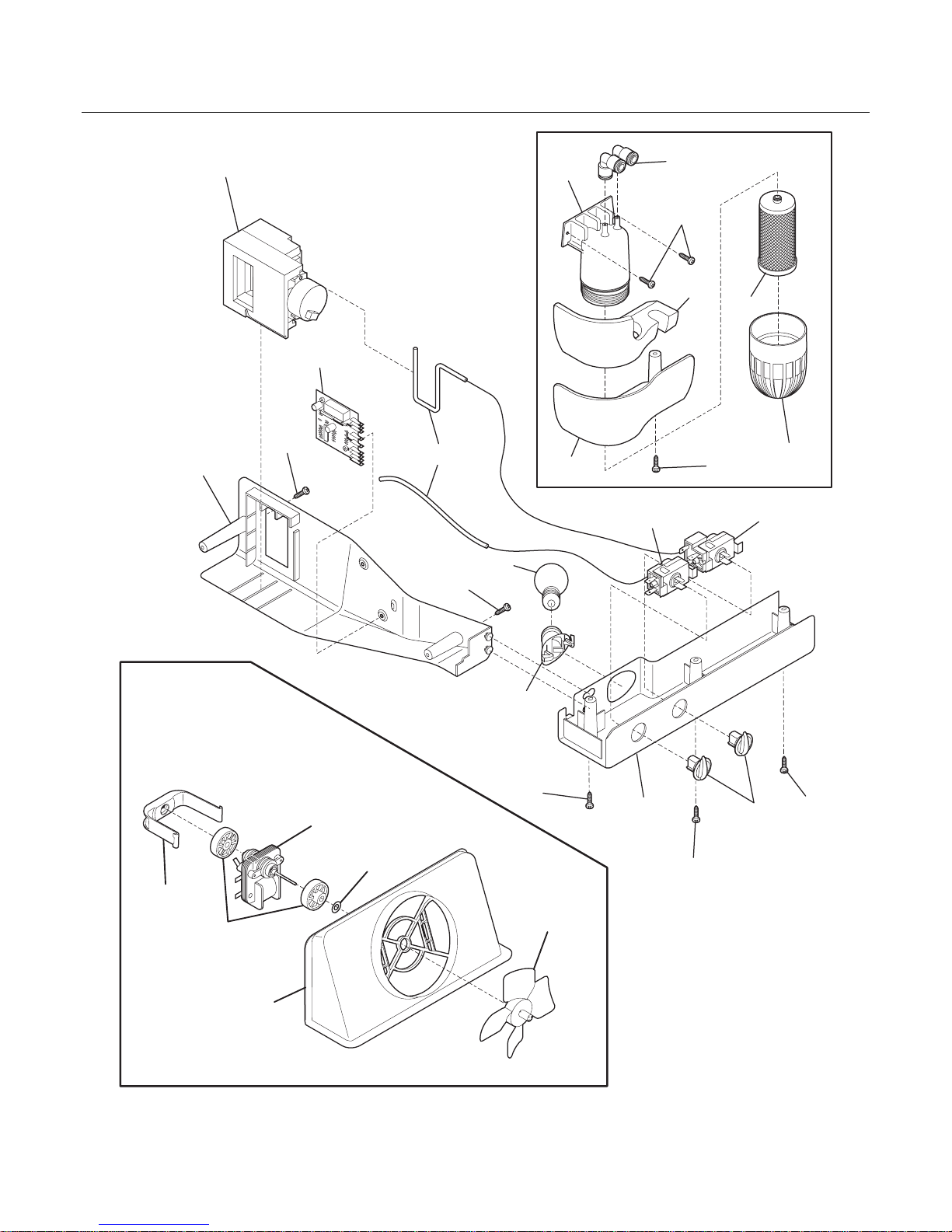

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA7

149
