Frigidaire FRS26SM4A Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS26SM4AW0 FRS26SM4A R134a white 115

FRS26SM4AW2 FRS26SM4A R134a white 115

FRS26SM4AW3 FRS26SM4A R134a white 115

MARKET

North America

Publication No.

5995366241

020219

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS26SM4A

WIRING DIAGRAM - 0 & 2 = 240389604 3 = 240389607

OWNER’S GUIDE - 0 = 240389302 2&3=240389304

SERVICE DATA SHEET-0&2=240389604 3 = 240389607

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

02/02 2

Publication No. FRS26SM4A

5995366241

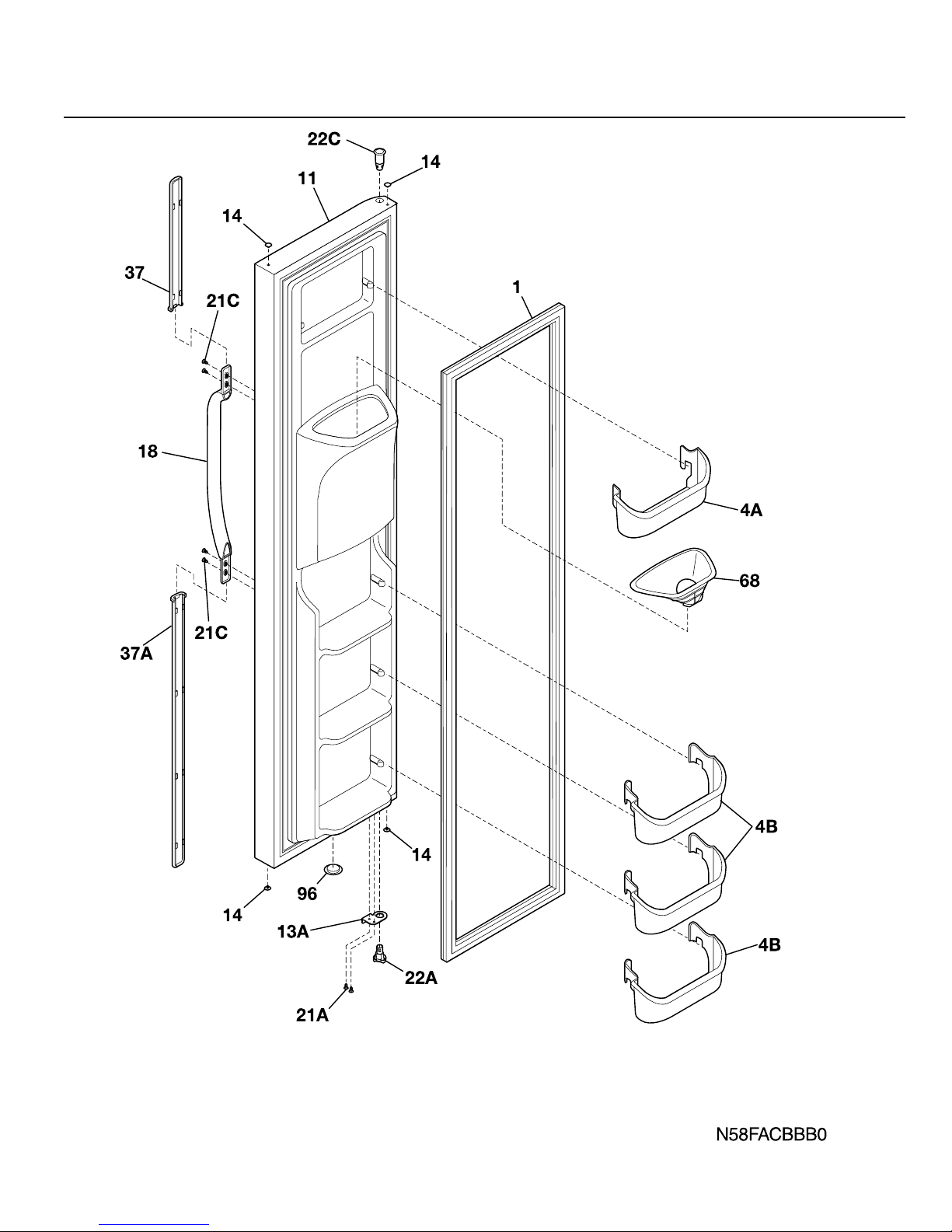

FREEZER DOOR

# = Fast-moving Parts 3 02/02

* = Non-Illustrated Parts

FRS26SM4A Publication No.

5995366241

FREEZER DOOR

A = FRS26SM4A (FRS26SM4AW0)

B = FRS26SM4A (FRS26SM4AW2)

C = FRS26SM4A (FRS26SM4AW3)

POS. NO PART NO DESCRIPTION

1 # 240390602 A B C Gasket-frzr door,white ,magnetic

4A 240334201 A B C Bin-door,frzr-upper

4B 240351601 A B C Bin-door

11 240451879 A B C Door-frzr,white ,complete assy

13A 240456902 A B C Door Stop,white ,frzr

18 218762701 A B C Handle-door,white

21A 5308016566 A B C Screw,hex washer hd,8-15A x 0.625, low profile

21C 218781100 A B C Screw,pan head ,8-18 x 0.625

22A 240328202 A B C Bearing-hinge,closer

22C 240328402 A B C Bearing-hinge,upper

37 218811618 A B C Trim-handle,white ,upper

37A 218811615 A B C Trim-handle,white ,lower

37A* 215782300 A B C Lock-handle trim,snap-in

37A* 218676004 A B C Band-decorative,satin aluminum, handle trim

68 240467701 A B C Chute-ice

96 240345505 A B C Plug,door foam hole ,white

* 240323201 A B C Wiring Harness

* 240352101 A B C Connector-water,straight

* 5303918256 A B C Dispenser heater kit

02/02 4

Publication No. FRS26SM4A

5995366241

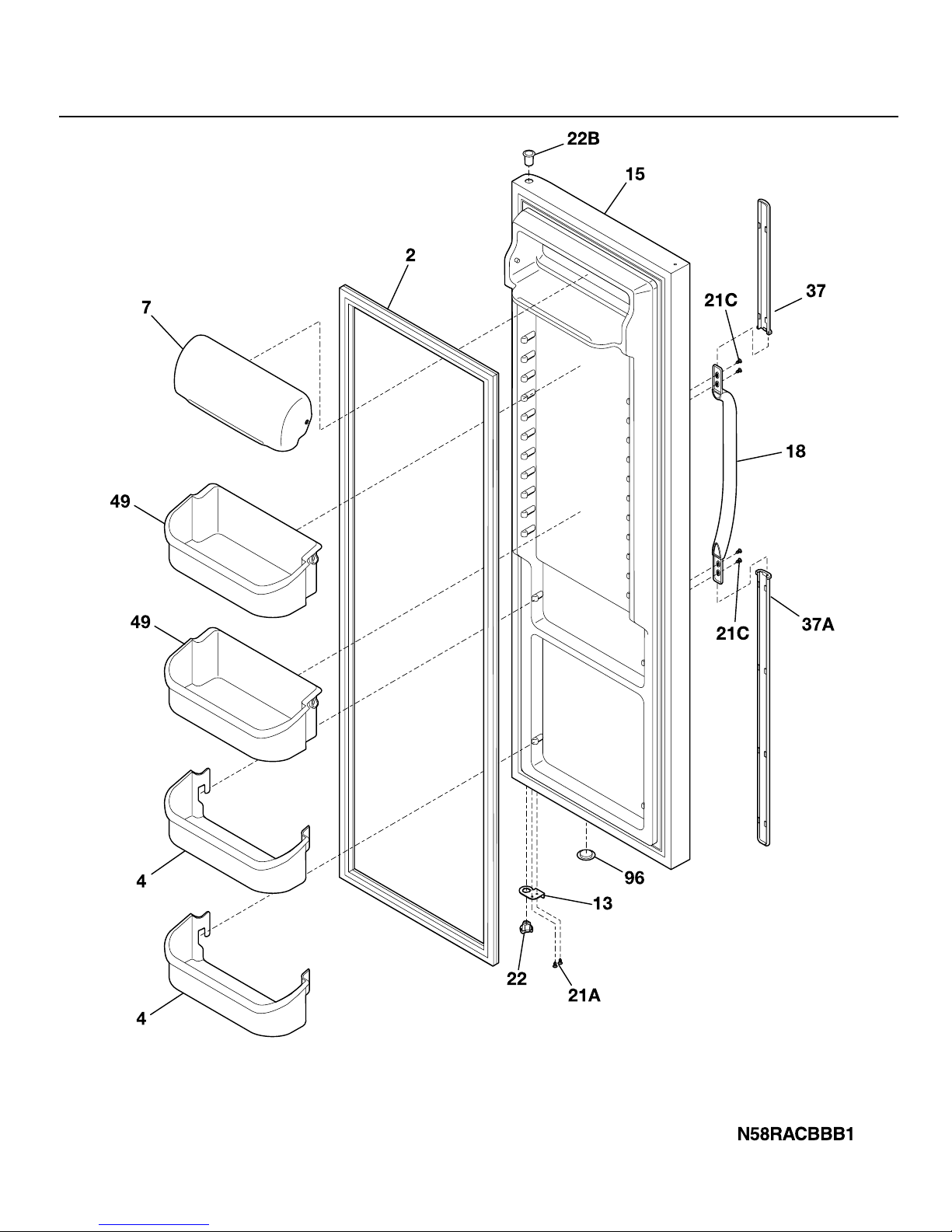

REFRIGERATOR DOOR

# = Fast-moving Parts 5 02/02

* = Non-Illustrated Parts

FRS26SM4A Publication No.

5995366241

A = FRS26SM4A (FRS26SM4AW0)

B = FRS26SM4A (FRS26SM4AW2)

C = FRS26SM4A (FRS26SM4AW3)

POS. NO PART NO DESCRIPTION

2 # 240390601 A B C Gasket-refr door,white ,magnetic

4 240323001 A B C Bin-door,pseudo ,bottom

7 240326203 A B C Door-dairy

13 240456901 A B C Door Stop,white ,ref

15 240451946 A B C Door-refr,white ,complete assy

18 218762701 A B C Handle-door,white

21A 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile

21C 218781100 A B C Screw, pan head, 8-18 x 0.625

22 240328201 A B C Bearing-hinge, closer

22B 240328401 A B C Bearing-hinge, upper

37 218811618 A B C Trim-handle, white, upper

37A 218811615 A B C Trim-handle, white, lower

37A* 215782300 A B C Lock-handle trim, snap-in

37A* 218676004 A B C Band-decorative, satin aluminum, handle trim

49 240356401 A B C Bin-door,gallon

96 240345505 A B C Plug,door foam hole ,white

REFRIGERATOR DOOR

02/02 6

Publication No. FRS26SM4A

5995366241

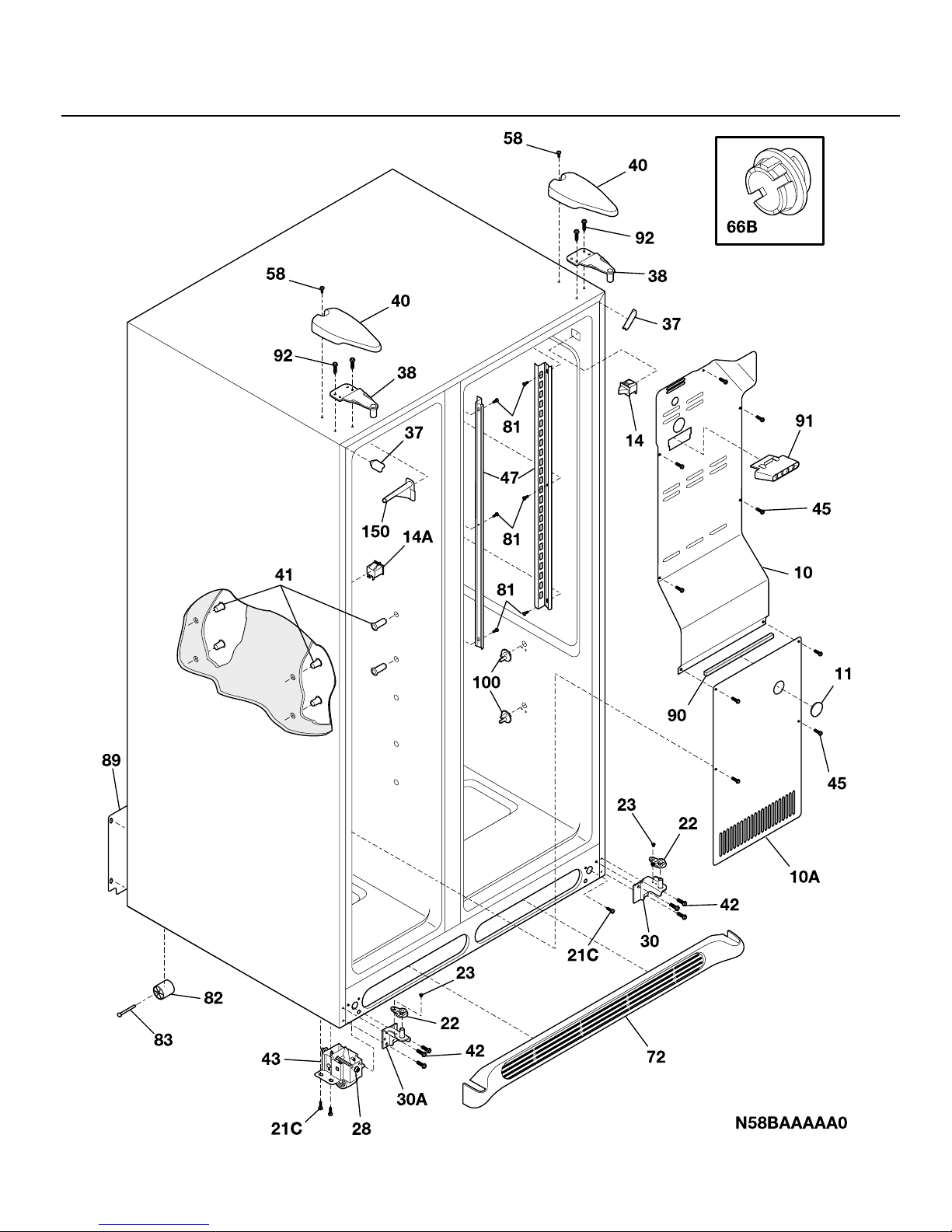

CABINET

# = Fast-moving Parts 7 02/02

* = Non-Illustrated Parts

FRS26SM4A Publication No.

5995366241

A = FRS26SM4A (FRS26SM4AW0)

B = FRS26SM4A (FRS26SM4AW2)

C = FRS26SM4A (FRS26SM4AW3)

POS. NO PART NO DESCRIPTION

10 240435902 A B C Cover-air duct

10A 240475902 A B C Cover-evap coil,lower

11 5303208309 A B C Plug-hole,factory test

14 # 240413601 A B C Switch,light/lamp ,rocker

14A# 215486600 A B C Switch-light/lamp

21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 A B C Plate-door closer

23 240402701 A B C Screw-#10-32 x 1/4 flat hd

28 240335501 A B C Bolt-roller adj,hex wshr hd,1/4-20 x 4.020, (2), special

30 240419103 A B C Bracket-lower hinge, ref

30A 240419104 A B C Bracket-lower hinge

37 240337601 A B C Trim-cabinet corner,white ,(2)

38 240327202 A B C Bracket-upper hinge

40 240327001 A B C Cover-hinge

41 240358701 A B C Grommet-shelf mtg,1.40" long

41* 240358801 A B C Grommet-shelf mtg,.875" long

42 240315301 A B C Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B C Roller Assy,front ,(2)

45 241500301 A B C Screw,hex washer head ,8-18AB x 0.500

47 218659500 A B C Channel-shelf mtg,side ,(2)

58 218749600 A B C Screw,#10 pan hd ,8-18 x .5

66B 240374301 A B C Diffuser-air

66B* 240518802 A B C Pin-push,push-in ,plastic

72 240324402 A B C Grille/Kickplate,white

81 5308016566 A B C Screw, hex washer hd, 8-15A x 0.625, low profile

82 5304418225 A B C Roller,compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326104 A B C Cover,access ,system compt ,with label

90 218249808 A B C Seal-coil cover

91 240380101 A B C Duct-ice maker

92 5303001479 A B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 A B C Support,crisper cover ,front ,(4)

100* 240350802 A B C Support,crisper cover ,rear ,(4)

150 240368701 A B C Guide-control bulb

* 240479601 A B C Plug,button ,cab liner holes

* 240396801 A B C Clamp,tube/wiring ,nylon ,black/natural

* 5303305324 A B C Paint,touch-up ,white

CABINET

02/02 8

Publication No. FRS26SM4A

5995366241

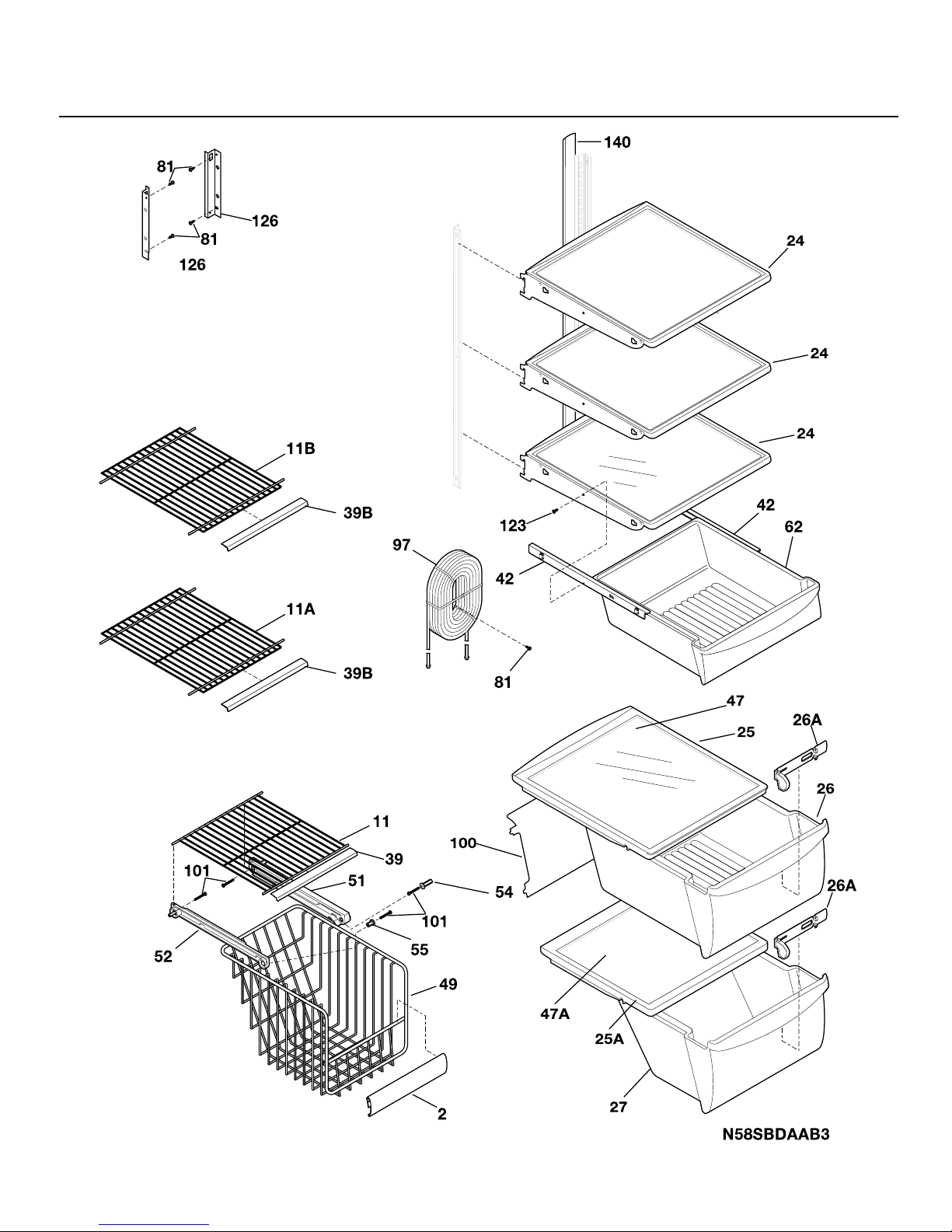

SHELVES

# = Fast-moving Parts 9 02/02

* = Non-Illustrated Parts

FRS26SM4A Publication No.

5995366241

A = FRS26SM4A (FRS26SM4AW0)

B = FRS26SM4A (FRS26SM4AW2)

C = FRS26SM4A (FRS26SM4AW3)

POS. NO PART NO DESCRIPTION

2 240434602 A B - Trim-basket

2 240434604 - - C Trim-basket

11 240338802 A B C Shelf-freezer,flip-up

11A 240338702 A B C Shelf-freezer,fixed wire

11B 240338704 A B C Shelf-freezer,fixed wire

24 240355208 A B C Shelf-"Spill-Safe",fixed

25 240350701 A - - Cover-crisper pan,upper

25 240350702 - B C Cover-crisper pan,upper

25* 240362101 A B C Clip-slide,cover-crisper

25A 240350901 A - - Cover-crisper pan,lower

25A 240350902 - B C Cover-crisper pan,lower

26 240351005 A B C Pan-crisper,upper

26* 240349801 A B C Clip-slide,pan-crisper

26A 240362201 A B C Control-humidity

27 240351206 A B C Pan-crisper,lower

39 240430706 A B C Trim-shelf,11.21" ,front

39B 240430702 A B C Trim-shelf,12.39" ,front

42 240356501 A B C Hanger-meat pan,RH

42 240365401 A B C Hanger-meat pan,LH

47 240350633 A B C Insert-pan cover,glass

47A 240350603 A B C Insert-pan cover,glass

49 240338402 A B - Basket-sliding

49 240530402 - - C Basket-sliding

51 240343002 A B C Hanger-basket,RH

52 240343102 A B C Hanger-basket,LH

54 240351901 A B C Plug-hanger,right hand

55 240352001 A B C Plug-hanger,left hand

62 240342806 A B C Pan-meat

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

97 240453002 A B C Water Tank Assy, coiled tubing, rear filter

100 240326302 A B C Cover-water tank

101 218493100 A B C Screw,hex washer head ,8-18AB x 1-3/4

123 215005100 A B C Screw-roller/hanger,8-10 x 0.438

126 218867401 A B C Channel,auger mtg ,LH

126 218867402 A B C Channel,auger mtg ,RH

140 240430501 A B C Channel,water tube cvr

SHELVES

02/02 10

Publication No. FRS26SM4A

5995366241

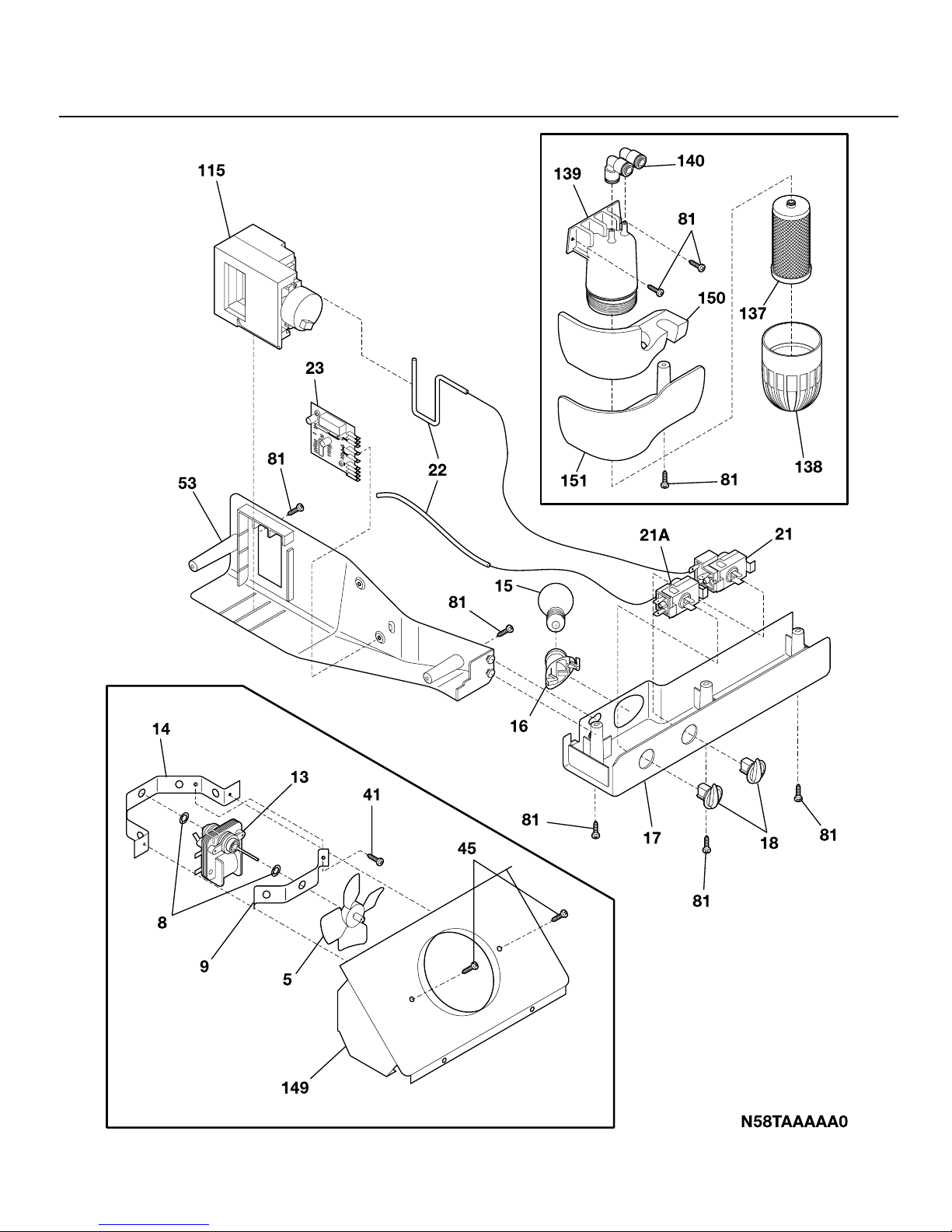

CONTROLS
