Frigidaire FRT21S6J Mode d’emploi

N05L00003.eps N05DCDBCA2.eps N05BBAAAA9.eps N05SACAFI17.eps

N05CAAAAA27.eps 115-1.eps W241582401.eps S241582801.eps

Product No. FRT21IS6JK0 FRT21IS6JS0

Series R134a R134a

Color stainless (LH) stainless (RH)

Volts 115 115

Wiring Diagram 241582401 241582401

Owner's Guide 241857201 241857201

Market North America North America

Energy Guide 241615456 241615456

Service Data Sheet 241588203 241588203

Installation Instructions 240568303 240568303

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995511762

08/04/14

(EN/SERVICE/DCS)

137

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT21IS6J

Publication No: 5995511762 FRT21IS6J

04/08 2

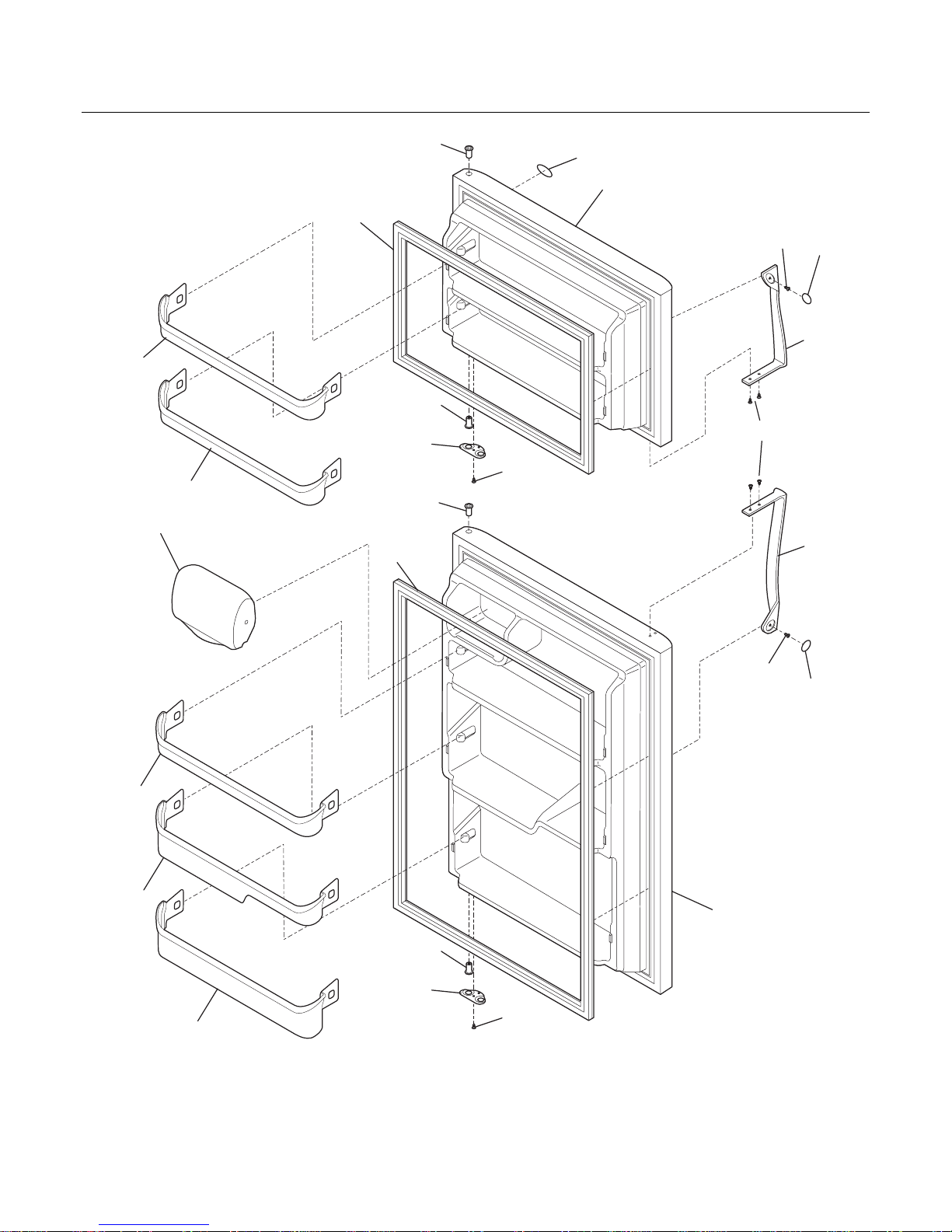

DOOR

48A

48B

13A

21C

N05DCDBCA2

21 14B

14B

18A

FRT21IS6J Publication No: 5995511762

# Functional Parts 3 04/08

* Non-Illustrated Parts

DOOR

Model Index: AFRT21IS6J (FRT21IS6JK0)

BFRT21IS6J (FRT21IS6JS0)

POS. NO PART NO. DESCRIPTION

1 # 241872511 A B Gasket-frzr door, black, magnetic

2 # 241872514 A B Gasket, refr door seal, black, magnetic

7 240337703 A B Door-dairy, w/o graphics, clear

11 240450365 A - Door, frzr, stainless steel, LH

11 240450366 - B Door, frzr, stainless steel

12 241808601 A B Label-nameplate

15 240450479 A - Door, refr, stainless steel, LH

15 240450478 - B Door, refr, stainless steel, RH

13 240312405 A B Door Stop, black, refr

13A 240312406 A B Door Stop, black, frzr

14B 240383603 A B Plug-button, black, door handle

18 240339203 A B Handle-door, black, refr-LH/frzr-RH

18A 240339208 A B Handle-door, black, refr-RH/frzr-LH

21 240383406 A B Screw, truss hd quad, #10-16 x .500, zinc

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A B Bearing-hinge, black

48 240338101 A B Bin-door, pseudo, bottom

48A 240337901 A B Bin-door, refr

48B 240338001 A B Bin-door, pseudo, gallon, refr

49 240495804 A B Bin-door, pseudo, frzr

Publication No: 5995511762 FRT21IS6J

04/08 4

CABINET

35A 36

N05BBAAAA9

21C

FRT21IS6J Publication No: 5995511762

# Functional Parts 5 04/08

* Non-Illustrated Parts

CABINET

Model Index: AFRT21IS6J (FRT21IS6JK0)

BFRT21IS6J (FRT21IS6JS0)

POS. NO PART NO. DESCRIPTION

1 240355402 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303212803 A B Nut

4 241523701 A B Damper-fan cover

5 # 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 240313612 A B Cover-evap coil, w/o light

10* 240524701 A B Wiring Harness, freezer section

10* 240568606 A B Seal-coil cover

11 5303208309 A B Plug-hole, factory test

13 # 240369702 A B Motor-evap fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

14 5303292397 A B Bracket-motor mtg, rear

14* 240433204 A B Screw, hex washer head, 8-18 x 5/16

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 A B Plug-button, black, upr hinge holes

28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 A B Bracket-lower hinge, black

34 240311303 A B Washer, hinge, nylon, (2)

35 240313803 A B Bracket-ctr hinge, black

35A 240336803 A B Spacer-hinge, center, black

36 240516402 A B Pin-center hinge

37 240337610 A B Trim-cabinet corner, black, (2)

38 240313701 A B Bracket-upper hinge

40 240354404 A B Cover-upper hinge, black

41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 A B Screw, hex head, 1/4-20 x 5/8

43 240335005 A B Roller Assy, adjustable, front, (2)

56 240516502 A B Pin-lower hinge

58 5304456287 A B Screw, hex washer head, 8-15A x 0.500

59 240442707 A B Screw-#10-32 X 3/4, black

72 241839407 A B Grille/Kickplate, black

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733907 A B Cover-access, with label

89* 241500303 A B Screw, hex washer head, 8-18AB x 0.500

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 5303321321 A B Paint, touch-up, black

Publication No: 5995511762 FRT21IS6J

04/08 6

SHELVES

24A

22A

25B

25C

N05SACAFI17

FRT21IS6J Publication No: 5995511762

# Functional Parts 7 04/08

* Non-Illustrated Parts

SHELVES

Model Index: AFRT21IS6J (FRT21IS6JK0)

BFRT21IS6J (FRT21IS6JS0)

POS. NO PART NO. DESCRIPTION

11 240358006 A B Shelf, freezer, full-width, wire

12 240545901 A B Diffuser-air, top

13 240362601 A B Diffuser, air, bottom

14 # 241554901 A B Switch-light/lamp

15 241555401 A B Light Bulb

16 241559801 A B Socket-light

17 240368102 A B Control Box

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 # 5304445058 A B Control-temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 A B Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5304455649 A B Screw, pan hd, 6-20 x 0.438

24 240358909 A B Shelf-"Spill-Safe", sliding

24A 240358910 A B Shelf-"Spill-Safe", sliding, meat pan track

25 240364718 A B Cover-crisper pan

25B 241613501 A B Control-humidity, RH

25C 241613502 A B Control-humidity, LH

26 240343803 A B Pan, crisper, (2)

31 240530803 A B Pan-meat, w/o graphics, clear

34 240385201 A B Container, ice bin

47 240350654 A B Insert-pan cover, glass

58 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

* 241615456 A B Energy Guide

Publication No: 5995511762 FRT21IS6J

04/08 8

SYSTEM

17 21

N05CAAAAA27

FRT21IS6J Publication No: 5995511762

# Functional Parts 9 04/08

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT21IS6J (FRT21IS6JK0)

BFRT21IS6J (FRT21IS6JS0)

POS. NO PART NO. DESCRIPTION

1 # 241682903 A B Condenser, dynamic

4 # 218944001 A B Drier-filter, R134a System

6 # 241607001 A B Harness-wiring, machine compt

6* # 240388701 A B Wiring Harness, control box

6* # 240524701 A B Wiring Harness, freezer section

14 # 240356217 A B Heater-defrost

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241801301 A B Trough-drain

20 241551902 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241602010 A B Base-compressor

22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22* 218709101 A B Screw, hex head, 10-32 x 0.500

23 241659701 A B Grommet, compressor

25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)

26 241637401 A B Pan-defrost

29 # 5303918352 A B Compressor Kit

30 241707705 A B Starter-PTC

32 216954300 A B Clip, controller

34 240405201 A B Grommet, rubber, black, cond tube/wire

41 240555002 A B Screw-#8-32 X 3/8

44 215174700 A B Clamp-service cord, strain relief, galv steel

45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad

57 240542601 A B Clip-wiring harness

58 218897004 A B Screw, hex washer head, 8-32 x 0.375

59 241681101 A B Shroud-cond fan

59* 240346701 A B Tape-foam seal, shroud

59* 240359403 A B Screw-fan shroud, (2)

60 # 241696602 A B Motor-condenser fan

61 # 240524101 A B Fan Blade, galv steel, condenser fan

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 241844501 A B Tube-connector, suction

* # 5303918330 A B Heat Exchanger Kit, suction line, service

* # 5304421289 A B Hot Tube Repair Kit, service

Publication No: 5995511762 FRT21IS6J

04/08 10

ICE MAKER
