Frigidaire FPHI2187KR - Professional Top Freezer Mode d’emploi

N05L00017.eps N05DPDDBA0.eps N05BAAAAC2.eps N05SACAFL12.eps

N05CAAAAC9.eps 1151-1Flurida.eps W241582401.eps S241582801.eps

Product No. FPHI2187KF0 FPHI2187KR0

Series Professional Professional

Color stainless RH stainless lh

Volts 115 115

Wiring Diagram 241582401 241582401

Owner's Guide 242008000 242008000

Market North America North America

Energy Guide 241935555 241935555

Service Data Sheet 241588203 241588203

Installation Instructions 240568304 240568304

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995535357

09/03/12

(EN/SERVICE/DCS)

137

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FPHI2187K

Publication No: 5995535357 FPHI2187K

03/09 2

DOOR

13A

48A

21C

N05DPDDBA0

49A

18A

FPHI2187K Publication No: 5995535357

# Functional Parts 3 03/09

* Non-Illustrated Parts

DOOR

Model Index: AFPHI2187K (FPHI2187KF0)

BFPHI2187K (FPHI2187KR0)

POS. NO PART NO. DESCRIPTION

1 241872505 A B Gasket-frzr door, white, magnetic

2 # 241872513 A B Gasket, refr door seal, white, magnetic

7 240338303 A B Door, dairy, clear

11 240450394 A - Door-frzr, stainless, complete assy

11 240450393 - B Door-frzr, stainless, complete assy

12 242015101 A B Label-nameplate

13 240312405 A B Door Stop, black, refr

13A 240312406 A B Door Stop, black, frzr

15 241837285 A - Door-refr, stainless, complete assy

15 241837284 - B Door-refr, stainless, complete assy

18 241977601 A B Handle-door, refr-LH/frzr-RH

18* 241601001 A B Wrench, allen

18* 241701901 A B Screw Driver

18A 241977602 A B Handle-door, refr-RH/frzr-LH

21 240383406 A B Screw, truss hd quad, #10-16 x .500, zinc

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A B Bearing-hinge, black

48 240338101 A B Bin-door, pseudo, bottom

48A 241808227 A B Bin-door, gallon

48A* 241779603 A B Liner, bin

49 240495805 A B Bin-door, pseudo, frzr

49A 241801401 A B Bin-tilt out, tilt-out

79 218755401 A B Screw-set, 10-32 x 0.375

80 218755504 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995535357 FPHI2187K

03/09 4

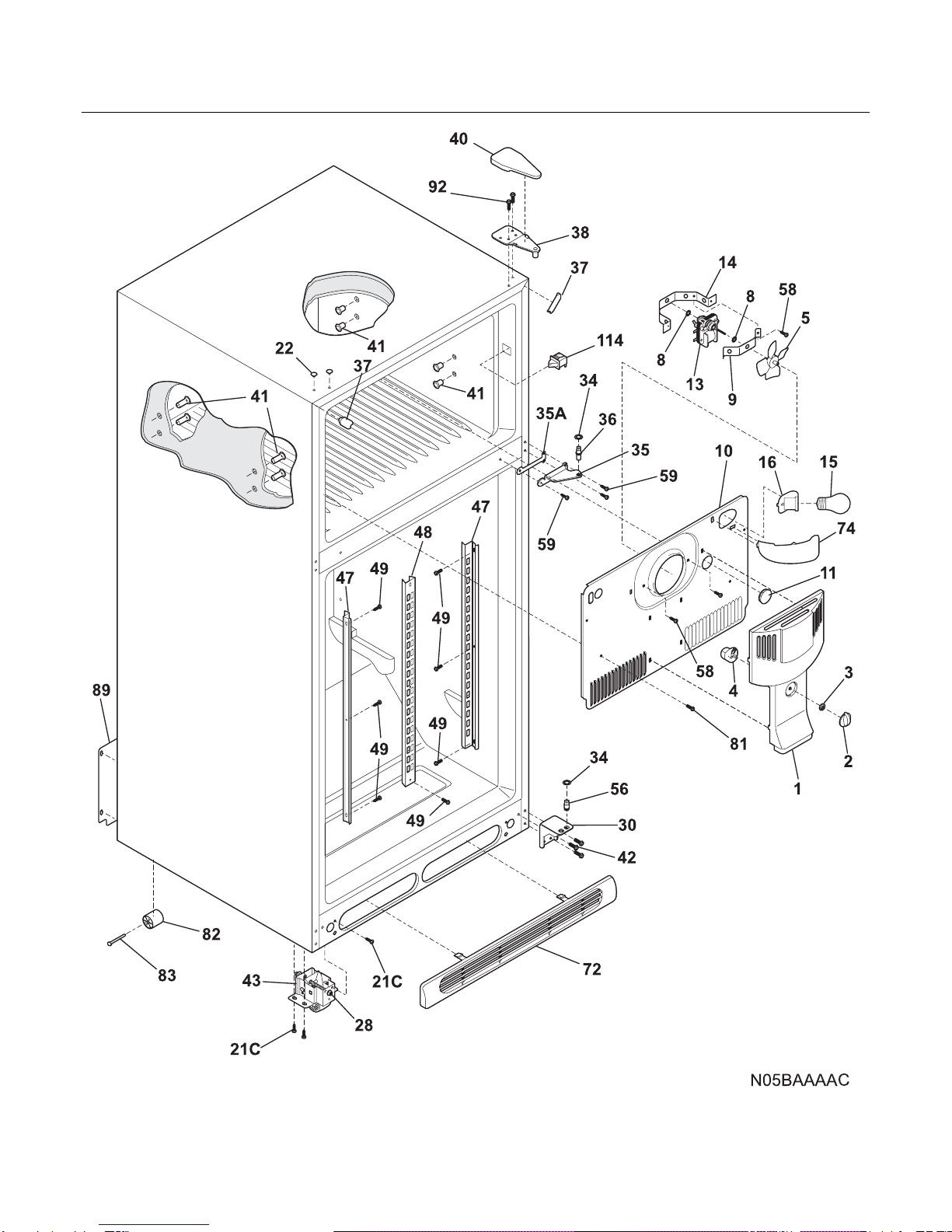

CABINET

FPHI2187K Publication No: 5995535357

# Functional Parts 5 03/09

* Non-Illustrated Parts

CABINET

Model Index: AFPHI2187K (FPHI2187KF0)

BFPHI2187K (FPHI2187KR0)

POS. NO PART NO. DESCRIPTION

1 240355402 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303212803 A B Nut

4 240367401 A B Damper-fan cover

5 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 240313611 A B Cover-evap coil, w/light

10* 240568606 A B Seal-coil cover

11 5303208309 A B Plug-hole, factory test

13 # 241854501 A B Motor-evap fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

14 5303292397 A B Bracket-motor mtg, rear

14* 240433204 A B Screw, hex washer head, 8-18 x 5/16

15 241560701 A B Light Bulb

16 241513901 A B Socket-light

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774920 A B Plug button, silver mist

28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 A B Bracket-lower hinge, black

34 240311303 A B Washer, hinge, nylon, (2)

35 240313802 A B Bracket-ctr hinge, white

35A 240336802 A B Spacer-hinge, center

36 240516402 A B Pin-center hinge

37 240337614 A B Trim-cabinet corner, silver mist, (2)

38 240313701 A B Bracket-upper hinge

40 240354405 A B Cover-upper hinge, silver mist

41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 A B Screw, hex head, 1/4-20 x 5/8

43 240335006 A B Roller Assy, front, (2)

47 218233301 A B Channel-shelf mtg, side, (2)

48 241566901 A B Channel-shelf mtg, center (mll)

49 218362501 A B Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

56 240516502 A B Pin-lower hinge

58 5304456287 A B Screw, hex washer head, 8-15A x 0.500

59 240442708 A B Screw-#10-32 X 3/4, white

72 241839411 A B Grille/Kickplate, silver metallic

74 240354302 A B Shield-light, frzr

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733907 A B Cover-access, with label

89* 241500303 A B Screw, hex washer head, 8-18AB x 0.500

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

114# 240505801 A B Switch, light/lamp

Publication No: 5995535357 FPHI2187K

03/09 6

SHELVES

25 25B

25C

N05SACAFL12

24A

123

136

22A

141

142

15A

16A

15A

FPHI2187K Publication No: 5995535357

# Functional Parts 7 03/09

* Non-Illustrated Parts

SHELVES

Model Index: AFPHI2187K (FPHI2187KF0)

BFPHI2187K (FPHI2187KR0)

POS. NO PART NO. DESCRIPTION

11 240358006 A B Shelf, freezer, full-width, wire

12 240545901 A B Diffuser-air, top

13 240362601 A B Diffuser, air, bottom

14 # 241554901 A B Switch-light/lamp

15 241555401 A B Light Bulb

15A 241552802 A B Light Bulb

16 240364201 A B Socket-light/lamp, dual

16A 241507803 A B Socket-light

16A* 241593901 A B Harness-wiring

17 240368101 A B Control Box

17* 241566801 A B Harness-wiring, c/box M/Level

18 240360801 A B Knob, temp control

21 # 5304445058 A B Control-temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 A B Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5304455649 A B Screw, pan hd, 6-20 x 0.438

24 240350143 A B Shelf-"Spill-Safe", cantilever, sliding

24A 240355261 A B Shelf-"Spill-Safe", fixed

25 240364790 A B Cover-crisper pan

25B 241613501 A B Control-humidity, RH

25C 241613502 A B Control-humidity, LH

26 240343803 A B Pan, crisper, (2)

31 240530803 A B Pan-meat, w/o graphics, clear

34 240385201 A B Container, ice bin

42 240356501 A B Track, meat pan hanger, RH

42 240365401 A B Track, meat pan hanger, LH

47 240350609 A B Insert-pan cover, glass

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

123 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16

136 241657701 A B Dispenser-can, white

141 241562101 A B Shield-heat, Mid Level

142 241562202 A B Shield-light Mid Level

* 241935555 A B Energy Guide

Publication No: 5995535357 FPHI2187K

03/09 8

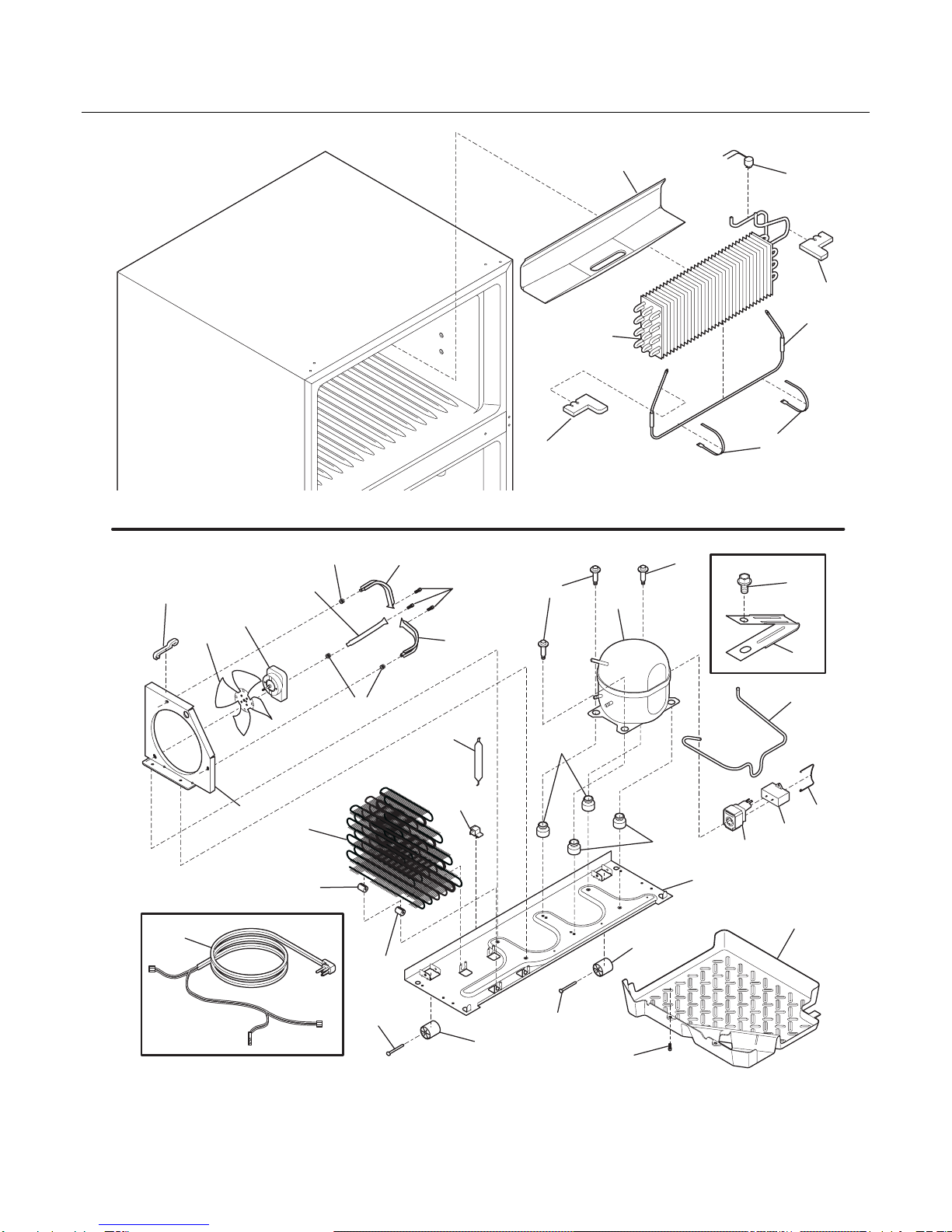

SYSTEM

59B

59A

59A 58

N05CAAAAC9

FPHI2187K Publication No: 5995535357

# Functional Parts 9 03/09

* Non-Illustrated Parts

SYSTEM

Model Index: AFPHI2187K (FPHI2187KF0)

BFPHI2187K (FPHI2187KR0)

POS. NO PART NO. DESCRIPTION

1 241965001 A B Condenser, dynamic

4 # 218944001 A B Drier-filter, R134a System

6 # 241607001 A B Harness-wiring, machine compt

6* # 241566801 A B Harness-wiring, c/box M/Level

14 # 241940103 A B Heater-defrost

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241801301 A B Trough-drain

20 241551902 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241602010 A B Base-compressor

22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22* 218709101 A B Screw, hex head, 10-32 x 0.500

23 241659701 A B Grommet, compressor

25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)

26 241637401 A B Pan-defrost

29 # 5303918359 A B Compressor, w/o electricals

30 # 241707701 A B Starter, PTC

32 241650901 A B Clamp, elec cont mtg, compressor

34 240405201 A B Grommet, rubber, black, cond tube/wire

41 240555002 A B Screw-#8-32 X 3/8

44 215174700 A B Clamp-service cord, strain relief, galv steel

45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad

57 240542601 A B Clip-wiring harness

58 240433203 A B Screw, hex washer head, 8-18 x 3/8

59 240315502 A B Shroud-cond fan

59* 240346701 A B Tape-foam seal, shroud

59* 240359403 A B Screw-fan shroud, (2)

59A 240346501 A B Bracket-support, cond mtr, (3)

59B 240346601 A B Grommet-bracket, (3)

60 241584301 A B Motor-condenser fan

61 241639501 A B Blade-condenser fan

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 241844801 A B Tube-connector, suction

86 240409302 A B Spacer-cond tube, black

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* # 5303918330 A B Heat Exchanger Kit, suction line, service

* # 5304421289 A B Hot Tube Repair Kit, service

Publication No: 5995535357 FPHI2187K

03/09 10

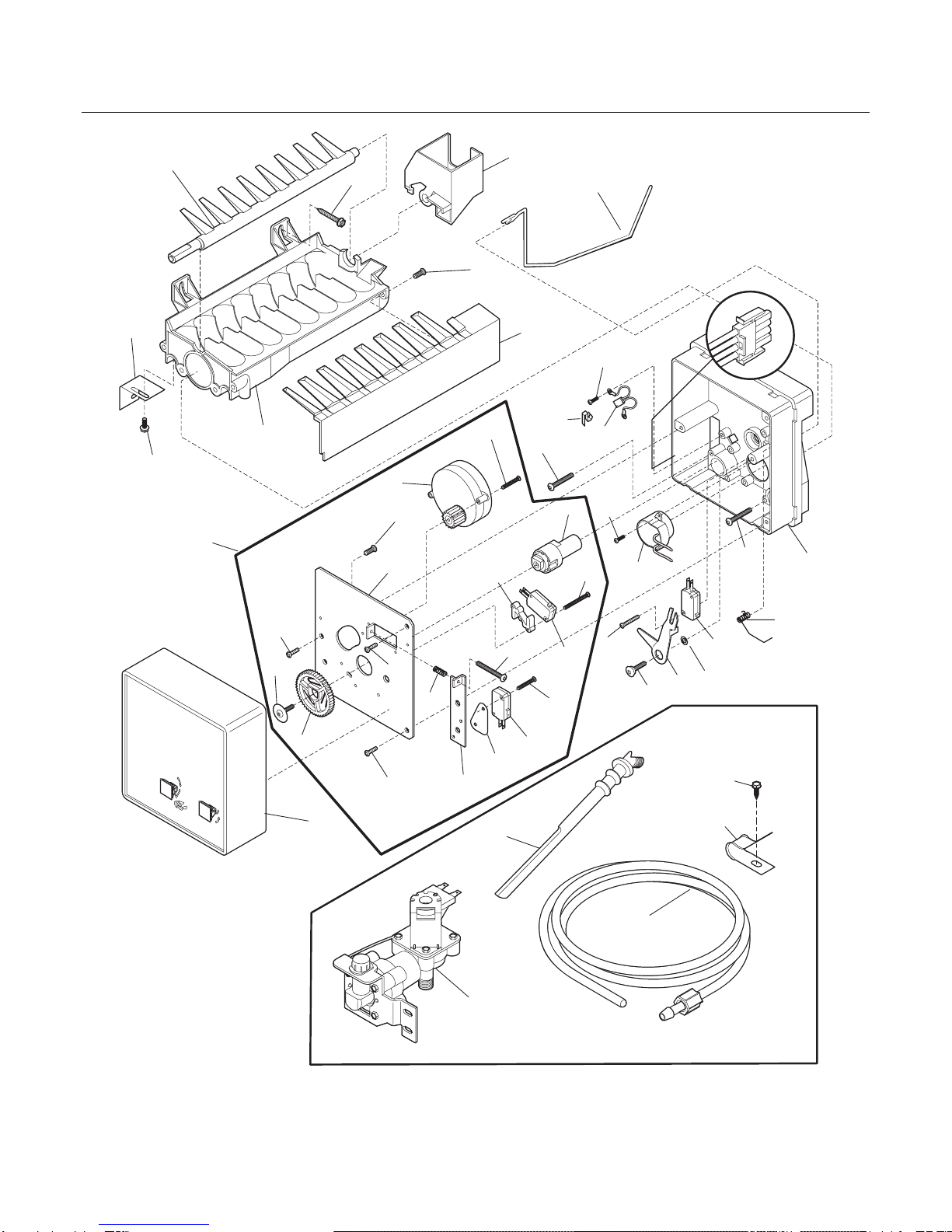

ICE MAKER

ON OFF

MOVE ARM UP UNTIL

LOCKED INTO PLACE

MOVE ARM UP UNTIL

LOCKED INTO PLACE

29A

27 13

15A 15

INSTALLATION PARTS

N05I1151-1Flurida
