Frigidaire FRT18PCGW0 Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT18PCGW0 FRT18PCG R134a white 115

Publication No.

5995307153

980514

-EN/SERVICE /JLT

390

REFRIGERATOR

Model No.

FRT18PCGW0

FACTORY PARTS CATALOG

REFRIGERATOR

WIRING DIAGRAM - # 218758400

OWNER’S GUIDE - # 218613700

SERVICE DATA SHEET - # 218758400

101 Masters Blvd.

Anderson, SC 29624

05/98 2

Publication No. FRT18PCGW0

5995307153

P05D0574

14A

21C

13A 14

14A

21A

21C

21C 37A

37A

21C

DOOR

# = Fast-moving Parts 3 05/98

* = Non-Illustrated Parts

FRT18PCGW0 Publication No.

5995307153

DOOR

POS. NO PART NO DESCRIPTION

1 # 215608916 Gasket-frzr door,white ,magnetic

2 # 218730605 Gasket-refr door,white ,magnetic

3 218360002 Panel-inner door,refr

4 218763614 Rack-door,(2)

5 218809701 Support-door rack,LH

5 218809801 Support-door rack,RH

5A 218758601 Support-door rack,RH/LH

7 218287906 Door-dairy,10.71" wide

8 218763613 Rack-door,(2)

9 218360101 Panel-inner door,frzr

10 5308000134 Plug-button,white ,hinge brg hole

11 5303917805 Panel-frzr door,white ,w/insulation

12 218364001 Frame-nameplate,white

12 218425004 Nameplate Assy,white

12* 215008607 Label-nameplate,white

12* 215518000 Magnet-nameplate

12* 5315340712 Tape,adhesive ,12" long ,foam ,

double-faced

12* 5315340760 Tape,adhesive ,60"lg ,foam ,

trim/nameplate,double faced

13 218800300 Door Stop,plated

13A 218249001 Door Stop,white ,frzr section

14 5308000090 Plug-button,white

14A 218110901 Plug-button,white ,refr door front ,

upper

15 5303917806 Panel-refr door,white ,w/insul & brace

18 218668001 Handle-door,white

21A 218251900 Screw,#8 oval head ,10-32CA x .625 ,

cross recessed

21C 218252200 Screw,#8 truss hd ,10-32CA x .5

22 218519300 Bearing-hinge

26 3204522 Container-egg

37A 215870619 Trim-handle,2.47" ,white ,w/chrome band

58 218699800 Screw,truss head ,8-15A x 0.500

* 5303917276 Insulation-door,fiberglass ,(bulk)

05/98 4

Publication No. FRT18PCGW0

5995307153

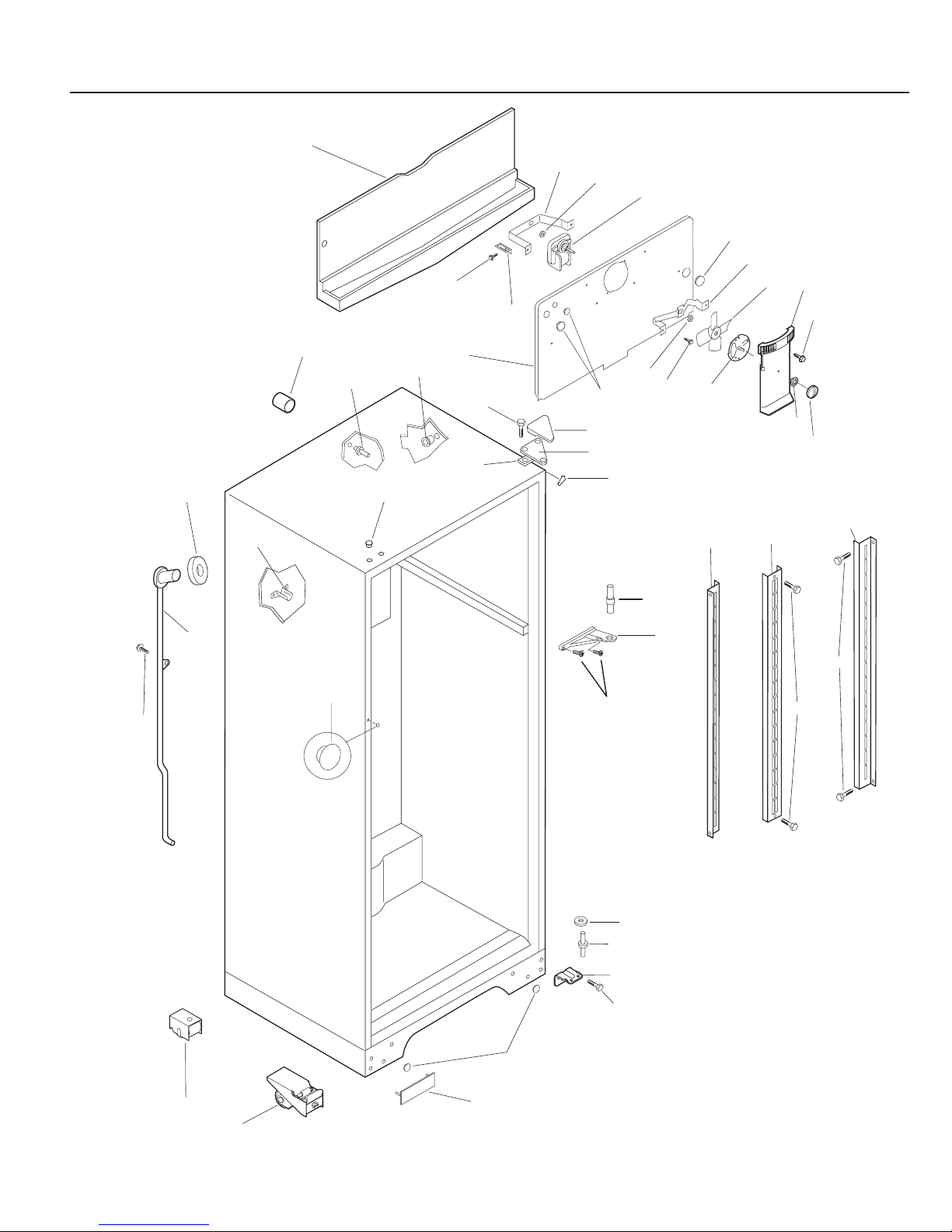

CABINET

858

44 6

P05B0365

# = Fast-moving Parts 5 05/98

* = Non-Illustrated Parts

FRT18PCGW0 Publication No.

5995307153

POS. NO PART NO DESCRIPTION

1 218672501 Cover-fan

2 5303307351 Knob-damper control

3 5303001028 Nut,push-on

4 218722200 Damper-fan cover,black

5 # 218649000 Fan Blade,black

6 218448301 Cover,white ,lwr hinge hole

8 5300157666 Bushing-motor mtg,(2)

9 5303205118 Bracket-motor mtg,front

10 3206451 Cover-evap coil

10* 5303209814 Nut,"U" type ,8-15(A) ,fan mtr mtg

11 5303208309 Plug-hole,factory test

12 215079000 Plug-harness hole,round

12 215079100 Plug-wtr inlet tube,round

13 # 5303310100 Motor-evap fan

14 5303322992 Bracket-motor mtg,rear

17 218725700 Trough-drain

18 215245000 Support-evap cover,(2)

19 5303001198 Tube,rubber

22 215774901 Plug-button,white ,upr hinge holes

22* 3051070 Screw,hex washer head ,10-24 x 7/16 ,

special

23 5303269702 Tube-drain,w/seal ring

24 5303207353 Seal Ring,drain tube

25 215774100 Spout-drain tube,w/mounting pins

29 5308000007 Washer,.34 x .62 x .05 ,nylon

30 3206136 Bracket-lower hinge

30* 215882300 Tapping Plate,lower hinge ,(2)

30* 218368500 Shim-lower hinge

32 215217701 Plug-button,white ,cabinet base ,(2)

35 218220101 Bracket-ctr hinge,light grey

36 218251300 Pin-center hinge

37 5303321081 Trim-cabinet corner,white

38 3206100 Bracket-upper hinge

39 5303001037 Shim-upper hinge

40 3206101 Cover-upper hinge,white

41 5303001609 Grommet,shelf/rod mtg ,RH

41* 5308009759 Grommet,shelf mtg ,LH

42 215880100 Screw-hinge mtg,hex washer head ,

1/4-20 x 0.685,(2)

3 218724000 Roller Assy,front ,complete

3* 218703002 Roller

43* 5308009761 Bolt-roller adj

43* 5308009790 Spring-roller adj

44 5303283014 Roller Assy,metal housing

5 5303001343 Screw,hex wshr hd ,8-15A x .5 ,spec

7 218233300 Channel-shelf mtg,side ,(2)

48 5303292395 Channel-shelf mtg,center

49 218362500 Screw,hex washer head ,8-18AB x 1-1/4

56 218220300 Pin-lower hinge

58 5308002748 Screw,hex wshr hd ,8-15A x .5 ,special

59 218188000 Screw,pan hd ,10-32 x .625 ,

hinge/mullion,thread forming

78 5308000039 Screw,hex wshr hd ,8-32CA x .5 ,

serrated head

81 5308016566 Screw,hex wshr hd ,8-15A x .625 ,

low profile

83 5308000107 Bracket-connector

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x .875

98 215099701 Plug-button,white ,ctr hinge hole

* 5303305324 Paint,touch-up ,white

CABINET

05/98 6

Publication No. FRT18PCGW0

5995307153

P05S0719

26 46

36 42

123

31 67

44 43

22A

145

22B

16A

SHELVES

# = Fast-moving Parts 7 05/98

* = Non-Illustrated Parts

FRT18PCGW0 Publication No.

5995307153

POS. NO PART NO DESCRIPTION

1 218874301 Mullion,white ,1

5 # 3018900 Harness-wiring,control/divider

5 # 218781003 Heater-mullion

6 218279800 Tapping Plate,mullion mtg ,(2)

7 218814800 Top Panel-refr,HASC

7* 5303001380 Screw,truss head ,8-10 x 1.750

8 218814600 Divider,styrofoam

9 218814700 Bottom Panel-frzr

10 215667501 Tray-ice,plastic

11 5303288242 Shelf-freezer,fixed/flat ,full width ,

wire

12 218730000 Deflector-air

12* 5303001449 Seal-air deflector,foam plastic ,(2)

13 218631001 Cover-air deflector

14 # 5309918806 Switch-light/lamp

15 5303001179 Light Bulb/Lamp,40 W

16A# 5308000815 Socket-light/lamp

17 5303321455 Control Box

17* 5308016567 Nut-anchor

18 5303311079 Knob-temp control

19 # 5303286905 Switch-energy saver,rocker type

21 5304404821 Control-temperature

21* 5303001260 Screw-control mtg,pan hd ,6-32 x .25

22A 5303916855 Tube,plastic ,clear ,sensor sleeve

22B 218731104 Tube,PVC ,white ,@ air deflector ,

insulator

23 # 215267800 Timer

23* 5303001259 Screw-timer mtg,pan hd ,6-20 x .438

24 215919161 Frame-full shelf,cantilever

25 5303207340 Cover-crisper pan,with beam ,

less insert

26 3206438 Pan-crisper

28 3201150 End Cap-shelf,protector ,

upper fzr shelf

29 218830303 TRIM-GLASS SHELF,FRONT,29

31 215742602 Pan-meat

34 5303212918 Container-ice

36 215919160 Frame-half shelf,cantilever

37 218830309 TRIM-GLASS SHELF,FRONT,37

40 218390520 Glass-shelf,24.88" x 14.57"

41 215919803 Trim-glass shelf,24.92" ,rear

42 5304404462 Hanger-meat pan,LH

42 5304404463 Hanger-meat pan,RH

43 218390517 Glass-shelf,12.09" x 14.57"

44 215919809 Trim-glass shelf,12.13" ,rear

46 215357606 Front-crisper pan

47 218390516 Insert-pan cover,glass

81 218362500 Screw,hex washer head ,8-18AB x 1-1/4

59 218188000 Screw,pan hd ,10-32 x .625 ,

hinge/mullion,thread forming

61 215781501 Shelf-ice tray,wire67

215357809 Front-meat pan

123 215005100 Screw-roller/hanger,8-10 x .438

145 218660800 Clip,plastic ,temp sensor mtg ,snap-in

SHELVES

05/98 8

Publication No. FRT18PCGW0

5995307153

45 43

41 21

15 14

P05C0102

32 30

SYSTEM

# = Fast-moving Parts 9 05/98

* = Non-Illustrated Parts

FRT18PCGW0 Publication No.

5995307153

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 218173900 Condenser

2 5308000296 Bracket,condenser mtg ,(4)

2* 5308009617 Washer,ext tooth lock ,#10

4 # 218541000 Drier-filter

5 # 3018900 Harness-wiring,control/divider

6 215257004 Harness-wiring,compressor

7 # 5316254901 Cord-electric power

7* 218843800 Screw,hex wshr hd ,#8 14 x 1/2 ,

svc cord clamp

8 5303001197 Cover-wiring

13 # 218429306 Heat Exchanger,suction line

14 # 3206453 Heater-defrost

15 # 3206452 Evaporator

16 5308000110 Strap-evap/heater,aluminum

17 5303207493 Insulator-evap,plastic

18 5308013648 Insulation Block,RH

19 5303007287 Insulation Plug,RH

20 5308017227 Insulation Block,LH

21 # 5316269001 Thermostat-defrost

22 218802500 Plate-compr mtg,with rail

22* 3051070 Screw,hex washer head ,10-24 x 7/16 ,

special

23 218254500 Grommet-compr mtg,(4)

24 5308003633 Washer-compr mtg

25 5308003596 Clip-compressor mtg

26 215372500 Pan-defrost drain

27 5303001348 Nut-lock,1/4-20 ,drain pan mtg

28 5303916001 Pan Retainer Kit,Service

29 # 218846901 Compressor,R134a ,W/O ELECTRICALS

30 # 218721103 Starter/Overload Assy

32 218740800 Wire-bale

41 5308000039 Screw,hex wshr hd ,8-32CA x .5 ,

serrated head

43 5303001199 Clamp-wiring harness,strain relief ,

galv steel

44 5308000133 Clamp,nylon ,.75 OD tube

45 5303001343 Screw,hex wshr hd ,8-15A x .5 ,spec

45* 5300141713 Screw,hex wshr hd ,8-32 x .625 ,spec

45* 5303207328 Screw,hex wshr hd ,8-15A x 1

55 # 216236200 Capacitor-run

55 # 218719201 Capacitor-run

* # 3916557 Hot Tube Repair Kit,Service
