Frigidaire FRT18S6A Manuel utilisateur

Product No. FRT18S6AWR FRT18S6AWS

Series R134a R134a

Color white white

Volts 115 115

Wiring Diagram 240398801 240398801

Owner's Guide 240400113 240400113

Market North America North America

Energy Guide 218791400 218791400

Service Data Sheet 240379017 240379018

Installation Instructions 240568301 240568301

N05L00003.eps N05DCDBCA1.eps N05BBAABA22.eps N05SAAAFI19.eps

N05CAAAAA20.eps 240398801.eps 240398601.eps

u x Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995456778

05/12/20

(EN/SERVICE/RF)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18S6A

Publication No: 5995456778 FRT18S6A

12/05 2

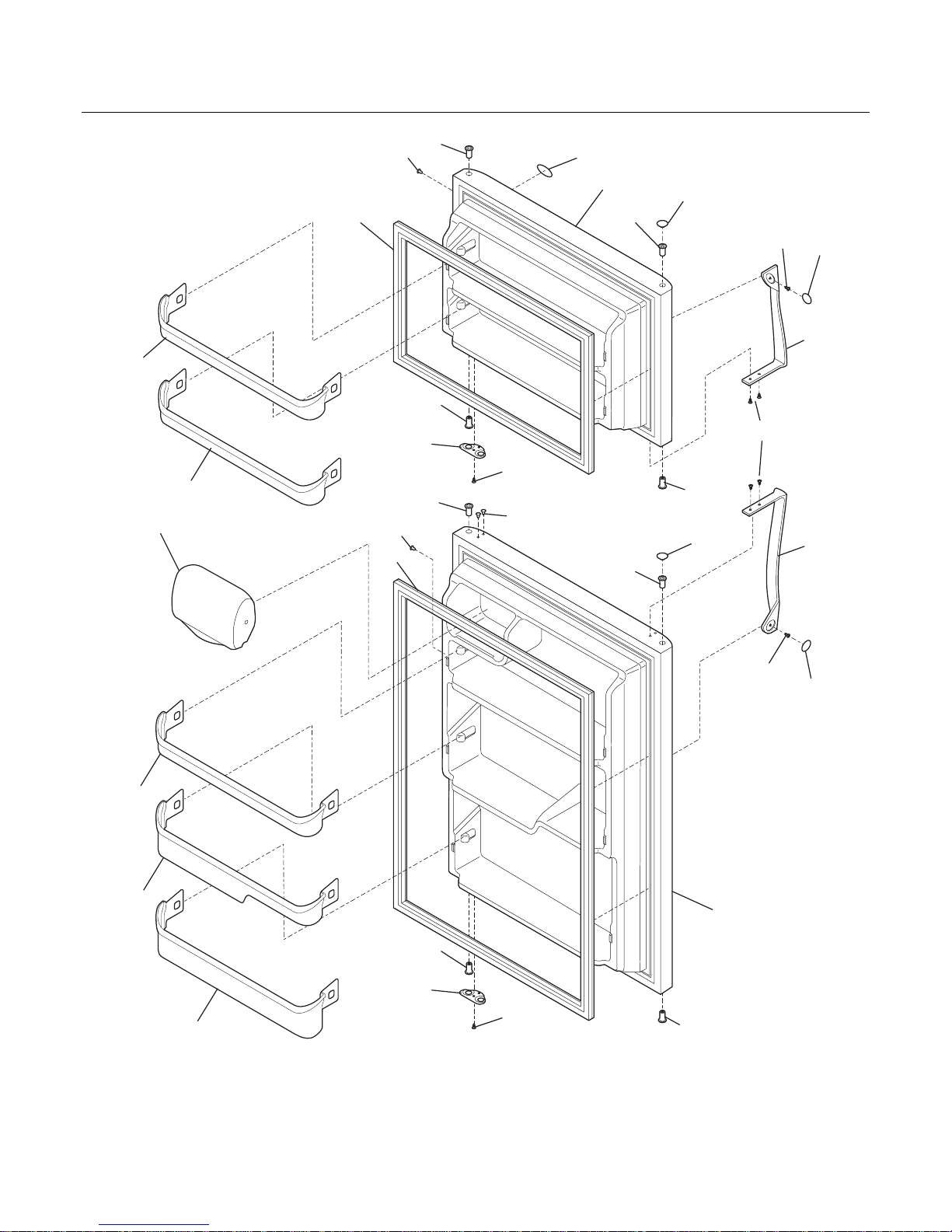

DOOR

48A

48B

13A

21C

N05DCDBCA1

21 14B

14B

18A

FRT18S6A Publication No: 5995456778

# Functional Parts 3 12/05

* Non-Illustrated Parts

DOOR

Model Index: AFRT18S6A (FRT18S6AWR)

BFRT18S6A (FRT18S6AWS)

POS. NO PART NO. DESCRIPTION

1 240542115 A B Gasket-frzr door, white, magnetic

2 240542118 A B Gasket-refr door, white, magnetic

7 240337703 A B Door-dairy, w/o graphics, clear

10 240381301 A B Plug-button, white, hinge brg hole, (2)

11 240409901 A B Door-frzr, white, complete assy

12 240416301 A B Label-nameplate, white

13 240312403 A B Door Stop, white, ref

13A 240312404 A B Door Stop, white, frzr

14 240494001 A B Plug-button, white

14B 240383601 A B Plug-button, white, door handle

15 240410001 A B Door-refr, white, complete assy

18 240339201 A B Handle-door, white, refr-LH/frzr-RH

18A 240339206 A B Handle-door, white, refr-RH/frzr-LH

21 240383401 A B Screw, truss hd quad, #10-16 x .500

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 A B Bearing-hinge, natural color

48 240338101 A B Bin-door, pseudo, bottom

48A 240337901 A B Bin-door, refr

48B 240338001 A B Bin-door, pseudo, gallon, refr

49 240495804 A B Bin-door, pseudo, frzr

Publication No: 5995456778 FRT18S6A

12/05 4

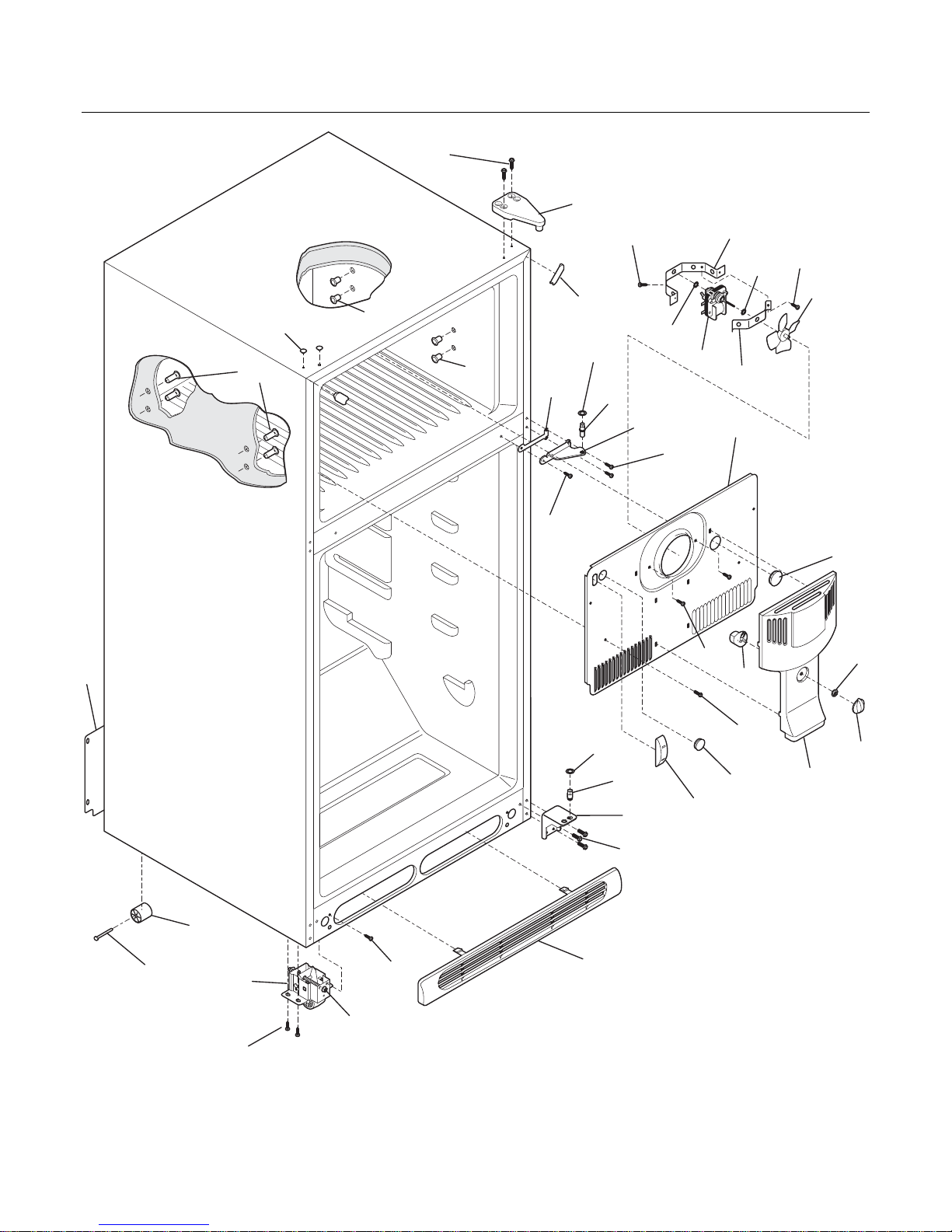

CABINET

12A

35A 36

N05BBAABA22

43 21C

21C

FRT18S6A Publication No: 5995456778

# Functional Parts 5 12/05

* Non-Illustrated Parts

CABINET

Model Index: AFRT18S6A (FRT18S6AWR)

BFRT18S6A (FRT18S6AWS)

POS. NO PART NO. DESCRIPTION

1 241652301 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut, push-on

4 241523701 A B Damper-fan cover

5 # 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 241652210 A B Cover-evap coil

10* 240568601 A B Seal-coil cover

10* 241520701 A B Harness-wiring, freezer

11 5303208309 A B Plug-hole, factory test

12 241557601 A B Plug-ice maker harness, rectangular

12A 240374401 A B Plug-wtr inlet tube, round, 1"

12A* 241586701 A B Plug-foam-wtr-inlet, round

13 240369702 A B Motor-evap fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg, rear

14* 5303274237 A B Screw, hex washer head, 8-32CA x 0.500, motor bracket

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 A B Plug-button, white, upr hinge holes

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314001 A B Bracket-lower hinge, zinc

34 240311303 A B Washer, hinge, nylon, (2)

35 240313801 A B Bracket-ctr hinge, zinc

35A 240336802 A B Spacer-hinge, center

36 240516401 A B Pin-center hinge

37 241611301 A B Trim-cabinet corner, white, (2)

38 241622601 A B Bracket-upper hinge, plastic, white

41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, adjustable, front, (2)

56 240516501 A B Pin-lower hinge

58 240433202 A B Screw, hex washer head, 8-18 x 5/16

59 240442701 A B Screw-#10-32 X 3/4, zinc

72 240368205 A B Grille/Kickplate, white

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 A B Cover-access, w/label

89* 241500302 A B Screw, hex washer head, 8-18AB x 0.625

92 241624301 A B Screw-hinge mtg, hex head, 1/4-20 x 1.00

* 240479601 A B Plug, button, cab liner holes, (2)

* 5303305324 A B Paint, touch-up, white

Publication No: 5995456778 FRT18S6A

12/05 6

SHELVES

11 10

24A

22A

25B

25C

N05SAAAFI19

FRT18S6A Publication No: 5995456778

# Functional Parts 7 12/05

* Non-Illustrated Parts

SHELVES

Model Index: AFRT18S6A (FRT18S6AWR)

BFRT18S6A (FRT18S6AWS)

POS. NO PART NO. DESCRIPTION

10 215667501 A B Tray, ice cube, plastic

11 240358005 A B Shelf, freezer, full-width, wire

11* 5303299664 A B Spacer, shelf

12 241542001 A B Diffuser, air, top

13 240362601 A B Diffuser, air, bottom

14 # 241554901 A B Switch-light/lamp

15 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 241559801 A B Socket-light

17 240352701 A B Control Box

17* 240568607 A B Seal

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 # 5304421256 A B Control, temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 A B Timer-defrost

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240358905 A B Shelf-"Spill-Safe", sliding

24A 240358906 A B Shelf-"Spill-Safe", sliding, w/pan hanger

25 240364714 A B Cover-crisper pan

25B 241613501 A B Control-humidity, RH

25C 241613502 A B Control-humidity, LH

26 240337107 A B Pan-crisper, clear, (2), no graphics

31 240530810 A B Pan, meat bin

47 240350643 A B Insert-pan cover, glass

58 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995456778 FRT18S6A

12/05 8

SYSTEM

17 21

N05CAAAAA20

FRT18S6A Publication No: 5995456778

# Functional Parts 9 12/05

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT18S6A (FRT18S6AWR)

BFRT18S6A (FRT18S6AWS)

POS. NO PART NO. DESCRIPTION

1 241665701 A - Condenser, dynamic

1 # 241682901 - B Condenser, dynamic

4 # 218944001 A B Drier-filter, R134a System

6 # 241607001 A B Harness-wiring, machine compt

6* 241520701 A B Harness-wiring, freezer

6* # 240388701 A B Wiring Harness, control box

14# 240356214 A B Heater-defrost

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241551801 A B Trough-drain

20 241551901 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241665501 A B Base-compressor

22* 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B Grommet-compr mtg, (4)

25 240491501 A B Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332608 A B Pan-defrost drain

29 # 5303918326 A - Compressor, w/electricals

29 # 5303918325 - B Compressor, w/electricals

30A# 241667501 A - Relay Combo

30 216954201 - B Controller, compressor

32 216954300 - B Clip, controller

34 240405201 A B Grommet, rubber, black, cond tube/wire

41 240433202 A B Screw, hex washer head, 8-18 x 5/16

44 5303001199 A B Clamp-wiring harness, strain relief, galv steel

45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

55 218909913 - B Capacitor, run, 220 VAC, 15 microfarad

57 240542601 A B Clip-wiring harness

58 218897002 A B Screw, hex washer head, 8-32 x 0.375

59 5304430246 A B Bracket-cond motor assy

59* 240346701 A B Tape-foam seal, shroud

59* 240359401 A B Screw-fan shroud, (2)

60 # 240525402 A B Motor, condensor fan

61 # 240524101 A B Fan Blade, galv steel, condenser fan

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 A B Tube-drain, rubber, lower

85 240493101 A - Tube-connector, suction

85 241665801 - B Tube-connector, suction

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 5303918222 A B Hot Tube Repair Kit, service

* # 5303918263 A B Heat Exchanger Kit, suction line

Publication No: 5995456778 FRT18S6A

12/05 10

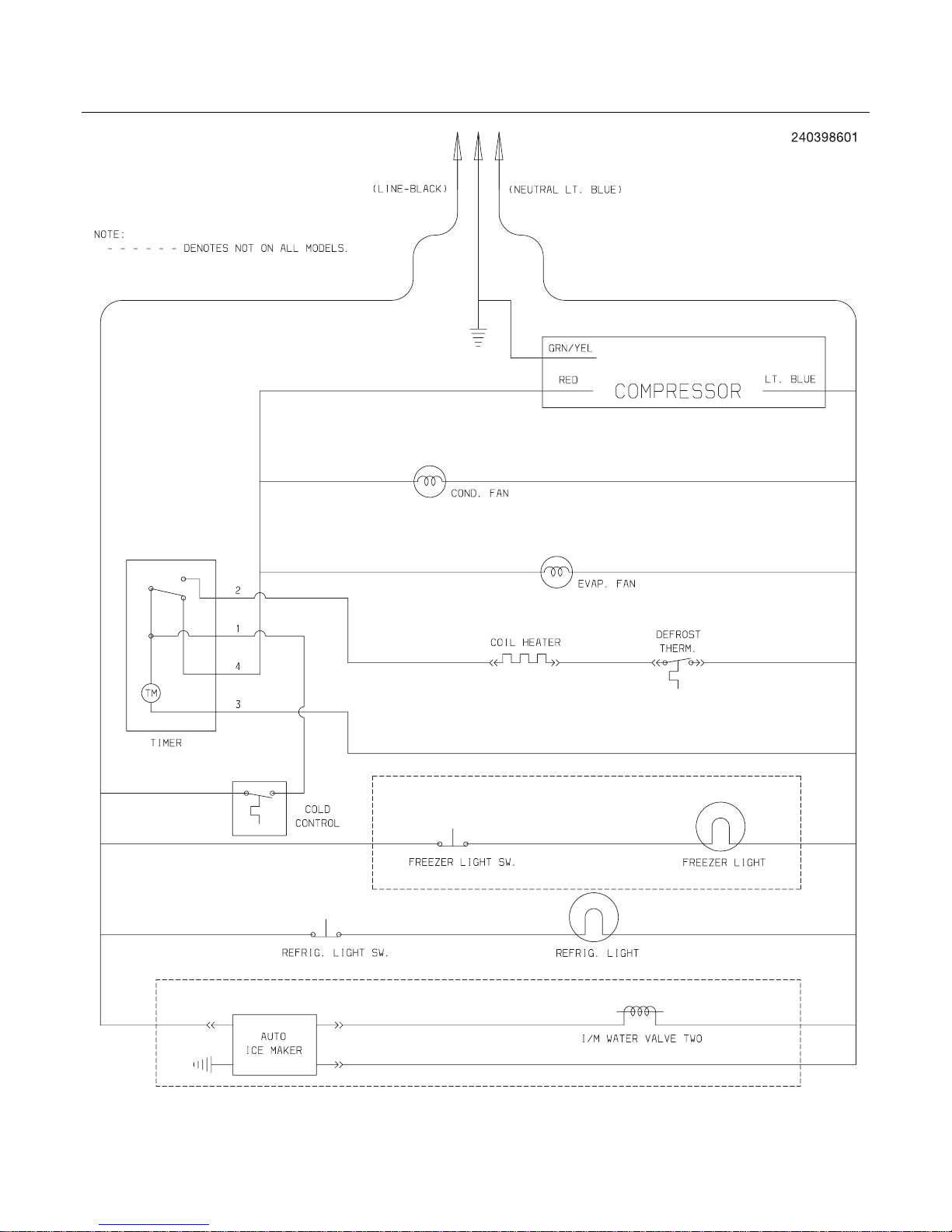

WIRING SCHEMATIC
