Frigidaire FRS20ZSH Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS20ZSHB0 FRS20ZSH PRO-GALLERY black/stainless 115

MARKET

North America

Publication No.

5995323937

990528

-EN/SERVICE/KB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS20ZSH

FACTORY PARTS CATALOG

SIDE BY SIDE

REFRIGERATOR

WIRING DIAGRAM - # 218875901

OWNER’S GUIDE - # 218910000

SERVICE DATA SHEET - # 218909400

101 Masters Blvd.

Anderson, SC 29624

05/99 2

Publication No. FRS20ZSH

5995323937

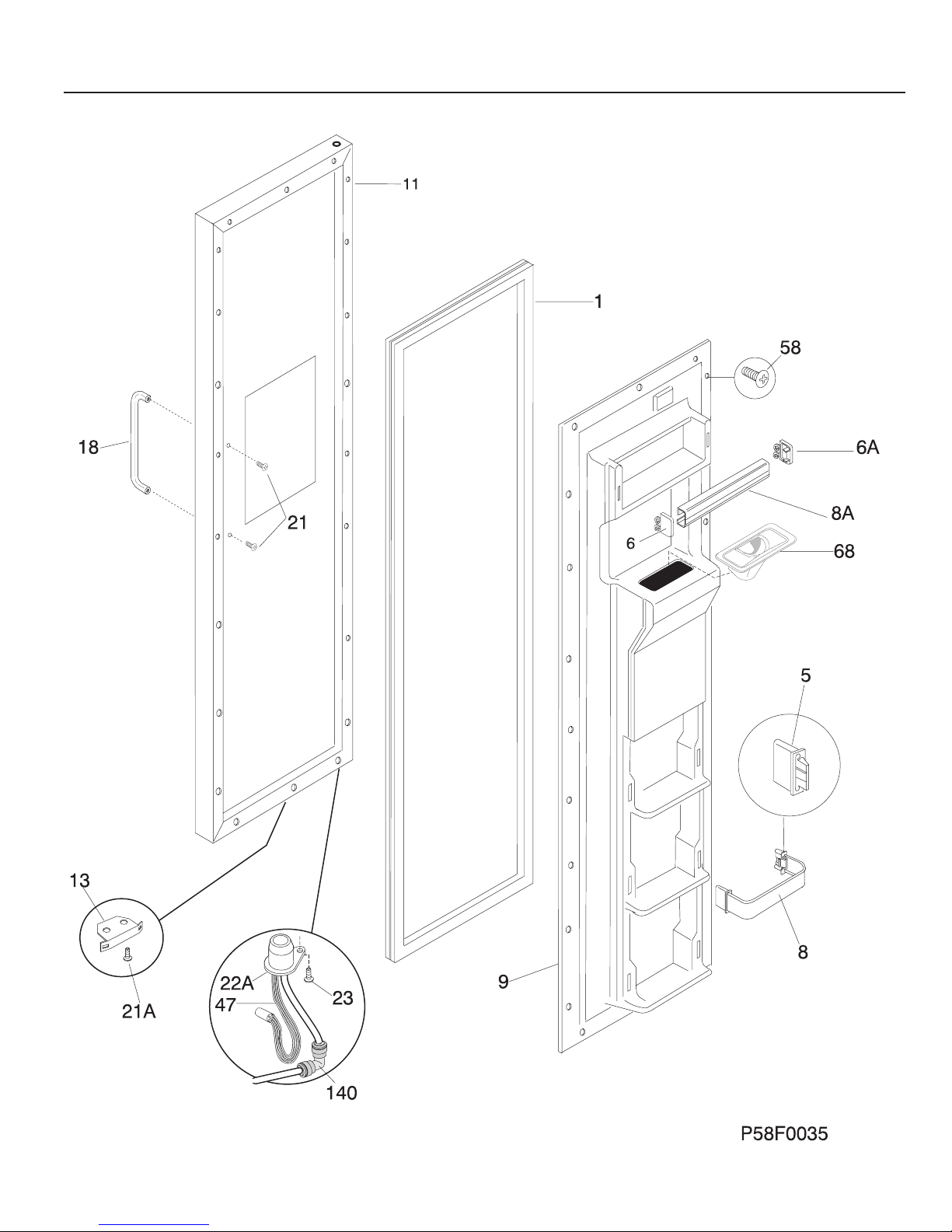

FREEZER DOOR

# = Fast-moving Parts 3 05/99

* = Non-Illustrated Parts

FRS20ZSH Publication No.

5995323937

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 215734321 Gasket-frzr door,black ,magnetic

5 5303288950 Support-door rack,RH/LH

6 5303323484 Support-door rack,white ,LH

6A 5303323485 Support-door rack,white ,RH

8 218807017 Rack-door,w/end caps

8A 215474047 Rack-door

9 218748601 Panel-inner door,frzr

11 218619097 Panel-frzr door,stainless steel, w/foam insulatn

13 5303289522 Door Stop

18 218756501 Handle-door,stainless steel, with insert

21 218709100 Screw-handle mtg,hex head, 10-32 x 0.500

21A 218578600 Screw-door stop mtg,phl truss hd, 10-16 x 3/4

22A 215615300 Bushing-door,bronze

23 5303001020 Screw,cr flat head ,8-32D x 1/2

47 218896201 Harness-wiring,frzr door

58 218781100 Screw,pan head ,8-18 x 0.625

68 218020600 Chute-ice

140 218518700 Elbow-water tube

* 215598900 Washer-flat, .691x1x.05, zinc, I&W hinge brkt

* 218789501 Heater-lower flange

* 218490900 Cleaner,stainless steel

* 5303917276 Insulation-door,fiberglass, (bulk)

05/99 4

Publication No. FRS20ZSH

5995323937

REFRIGERATOR DOOR

# = Fast-moving Parts 5 05/99

* = Non-Illustrated Parts

FRS20ZSH Publication No.

5995323937

POS. NO PART NO DESCRIPTION

2 # 215734322 Gasket-refr door,black ,magnetic

3 218749301 Panel-inner door,refr

4 218807016 Rack-door,(2)

5 5303288950 Support-door rack,RH/LH

7 5303308347 Door-dairy,12.96" wide

12 218395401 Nameplate,black

13 5303289522 Door Stop

15 218618962 Panel-refr door,stainless steel, w/foam insulatn

18 218756501 Handle-door,stainless steel, with insert

21 218709100 Screw-handle mtg, hex head, 10-32 x 0.500

21A 218578600 Screw-door stop mtg,phl truss hd, 10-16 x 3/4

22 5303289320 Bearing-hinge

26 215817806 Tray-egg

49 218592305 Bin-door,gallon ,with trim

58 218781100 Screw,pan head ,8-18 x 0.625

* 218490900 Cleaner,stainless steel

* 5303917276 Insulation-door,fiberglass ,(bulk)

REFRIGERATOR DOOR

05/99 6

Publication No. FRS20ZSH

5995323937

CABINET

# = Fast-moving Parts 7 05/99

* = Non-Illustrated Parts

FRS20ZSH Publication No.

5995323937

POS. NO PART NO DESCRIPTION

10 218748901 Cover-air duct

10* 5308009617 Washer,ext tooth lock ,#10 ,grounding

10A 218751301 Cover-evap coil,lower

11 5303208309 Plug-hole,factory test

12 215230400 Plug-harness hole

18 5303289043 Support-air duct cvr,2.55" long

18* 5303289044 Support-air duct cvr,1.83" long

28 5303289062 Bolt-roller adj,hex head ,5/16-24 x 7/8

29 215314301 Washer,.40 x .75 x .06 ,nylon

29 215598900 Washer-flat,.691x1x.05,zinc, I&W hinge brkt

29* 218871201 Washer,nylon ,0.363 ID w/nibs

30 5303289060 Bracket-lower hinge,RH ,w/hinge pin

30* 218730800 Tapping Plate,RH

30A 215009000 Bracket-lower hinge,LH ,w/hinge pin

30A* 218730700 Tapping Plate,LH

37 5303321083 Trim-cabinet corner,black

38 218215214 Bracket-upper hinge,with closer ,black, RH

38 218215216 Bracket-upper hinge,with closer ,black, LH

40 5303323268 Cover-upper hinge,black

41 5303001609 Grommet,shelf/rod mtg ,RH

41* 5308009759 Grommet,shelf mtg ,LH

43 218615300 Roller Assy,front ,(2)

43* 5308017044 Screw-roller mtg,spcl ind hex hd, 5/16-18(23)x7/8

44 218738300 Roller Assy,rear ,(2)

47 218659500 Channel-shelf mtg,side ,(2)

52 215454600 Tube-water inlet

58 5308002748 Screw,hex wshr hd ,8-15A x 0.500, special

66 215050201 Damper-meat keeper

66A 218171301 Cover-meat kpr dmpr

72 218359615 Grille/Kickplate,black

77 5303001216 Washer-nylon,3/16 x 5/8 OD

78 5303274237 Screw-bracket,hex wshr hd, 8-32CA x 0.500

80 218249802 Seal-coil cover,(2)

81 5308016566 Screw,hex wshr hd ,8-15A x 0.625, low profile

85 218359805 Cover-lower hinge,black

89 215741407 Cover-machine compt,w/caution label

90 215022602 Seal-foam

90* 218154003 Gasket-air duct cvr

90* 5303322647 Tape-foam

91 218769900 Deflector-air,air duct cover

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875, (6)

101 218663103 Gasket-air duct cvr

* 218515401 Clip-grille

* 218902101 Cap-protector, lower hinge

* 5303305345 Paint,touch-up ,black

CABINET

05/99 8

Publication No. FRS20ZSH

5995323937

SHELVES

# = Fast-moving Parts 9 05/99

* = Non-Illustrated Parts

FRS20ZSH Publication No.

5995323937

POS. NO PART NO DESCRIPTION

2 5303300707 Trim-basket

11 218298005 Shelf-freezer,sliding ,wire

11* 218159700 Spacer-shelf

11B 5304405990 Shelf-freezer,fixed wire

24 218746001 Shelf-"Spill-Safe",sliding ,(3)

25A 218015301 Trim-storage pan cvr,snap-on ,front

25C 218015401 Trim-storage pan cvr,snap-on ,rear

26 5303306579 Pan-storage,upper

26A 5303288968 Pan-storage,lower

28 08013638 End Cap-shelf, protector, lower fzr shelf

39 215217562 Trim-frzr shelf

39A 215217563 Trim-frzr shelf

46 218278301 Front-storage pan,upper

46A 218278302 Front-storage pan,lower

47 218498118 Insert-pan cover,glass ,w/graphics

47A 215723551 Insert-pan cover,glass ,clear ,lower

49 5303288957 Basket-sliding

51 5303288960 Hanger-basket,RH

52 215162501 Hanger-basket,LH,with/spring

57 5303271653 Ferrule-inner

66 5304402116 Rack-wine, optional accessory

81 5308016566 Screw,hex wshr hd ,8-15A x 0.625, low profile

96 215192600 Support-water tank

97 218871301 Water Tank

100A 218015501 Support-pan cover,LH

100B 218015601 Support-pan cover,RH

101 215005000 Screw,hex wshr hd ,8-18AB x 0.750, gusset/hanger

126 218867401 Channel,auger mtg ,LH

126 218867402 Channel,auger mtg ,RH

* 215328300 Clip-shelf

SHELVES

05/99 10

Publication No. FRS20ZSH

5995323937

CONTROLS
