Frigidaire FRT18IL6D Manuel utilisateur

Product No. FRT18IL6DS2 FRT18IL6DS4 FRT18IL6DS6

Series R134a R134a R134a

Color stainless stainless stainless

Volts 115 115 115

Wiring Diagram 240398801 240398801 240398801

Owner's Guide 240400111 240400112 240400112

Market North America North America North America

Energy Guide 240598682 240598682 240598682

Service Data Sheet 240379015 240379015 240379015

Installation Instructions 240568300 240568300 240568300

N05L00003.eps N05DCDBBA11.eps N05BBAAAA9.eps N05SACAFI13.eps

N05CABBAB5.eps 115.eps 240398801.eps 240398601.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995421632

04/11/10

(EN/SERVICE/WC)

390

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT18IL6D

Publication No: 5995421632 FRT18IL6D

11/04 2

DOOR

21 14B

14B

13A

48A

21C

18A

N05DCDBBA11

FRT18IL6D Publication No: 5995421632

# Functional Parts 3 11/04

* Non-Illustrated Parts

DOOR

Model Index: AFRT18IL6D (FRT18IL6DS2)

BFRT18IL6D (FRT18IL6DS4)

CFRT18IL6D (FRT18IL6DS6)

POS. NO PART NO. DESCRIPTION

1 # 240542109 A B C Gasket-frzr door, black, magnetic

2 # 240542112 A B C Gasket-refr door, black, magnetic

7 240338303 A B C Door, dairy, clear

11 240409905 A B - Panel-frzr door, RH, stainless, complete assy

11 241623305 - - C Door, frzr, stainless, RH, complete assy

12 240572601 A B C Label-nameplate

13 240312405 A B C Door Stop, black, refr

13A 240312406 A B C Door Stop, black, frzr

14B 240383603 A B C Plug-button, black, door handle

15 240410105 A B - Panel-refr door, RH, stainless, complete assy

15 241623405 - - C Door, refr, stainless steel, stainless, RH

18 240339203 A B C Handle-door, black

18A 240339208 A B C Handle-door, black

21 240383401 A B C Screw, truss hd quad, #10-16 x .500

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A B C Bearing-hinge, black

48 240338101 A B C Bin-door, pseudo, bottom

48A 240338201 A B C Bin-door, gallon

49 240495804 A B C Bin-door, pseudo, frzr

* 218490901 A B C Cleaner, stainless steel

Publication No: 5995421632 FRT18IL6D

11/04 4

CABINET

35A 36

N05BBAAAA9

21C

FRT18IL6D Publication No: 5995421632

# Functional Parts 5 11/04

* Non-Illustrated Parts

CABINET

Model Index: AFRT18IL6D (FRT18IL6DS2)

BFRT18IL6D (FRT18IL6DS4)

CFRT18IL6D (FRT18IL6DS6)

POS. NO PART NO. DESCRIPTION

1 240355401 A B C Cover-fan

2 240367001 A B C Knob-damper control

3 5303001028 A B C Nut, push-on

4 241523701 A B C Damper-fan cover

5 # 5308000010 A B C Fan Blade, red, evaporator fan

8 5300157666 A B C Bushing-motor mtg, (2)

9 5303292396 A B C Bracket-motor mtg, front

10 240462010 A B C Cover-evap coil

10* 240568601 A B C Seal-coil cover

10* 241520701 A B C Harness-wiring, freezer

11 5303208309 A B C Plug-hole, factory test

13 # 240369701 A - - Motor-evap fan

13 240369702 - B C Motor-evap fan

13* 215474201 A B C Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B C Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B C Bracket-motor mtg, rear

14* 240433201 A B C Screw, hex washer head, 8-18 x 0.375

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 A B C Plug-button, black, upr hinge holes

28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 A B C Bracket-lower hinge, black

34 240311303 A B C Washer, hinge, nylon, (2)

35 240313803 A B C Bracket-ctr hinge, black

35A 240336802 A B C Spacer-hinge, center

36 240516401 A B C Pin-center hinge

37 241611303 A B C Trim-cabinet corner, black, (2)

38 240313701 A B C Bracket-upper hinge

40 240354404 A B C Cover-upper hinge, black

41 5303001609 A B C Grommet, shelf mtg, 0.69", RH

41* 5308009759 A B C Grommet, shelf mtg, 1.25", LH

42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B C Roller Assy, front, (2)

56 240516501 A B C Pin-lower hinge

58 5303001343 A B C Screw, hex washer head, 8-15A x 0.500

59 240442703 A B C Screw-#10-32 X 3/4, black

72 240368207 A B C Grille/Kickplate, black

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 A B C Cover-access, w/label

89* 241500302 A B C Screw, hex washer head, 8-18AB x 0.625

92 5303001479 A B C Screw-hinge mtg, hex hd, 1/4-20 x 0.875

* 5303305345 A B C Paint, touch-up, black

Publication No: 5995421632 FRT18IL6D

11/04 6

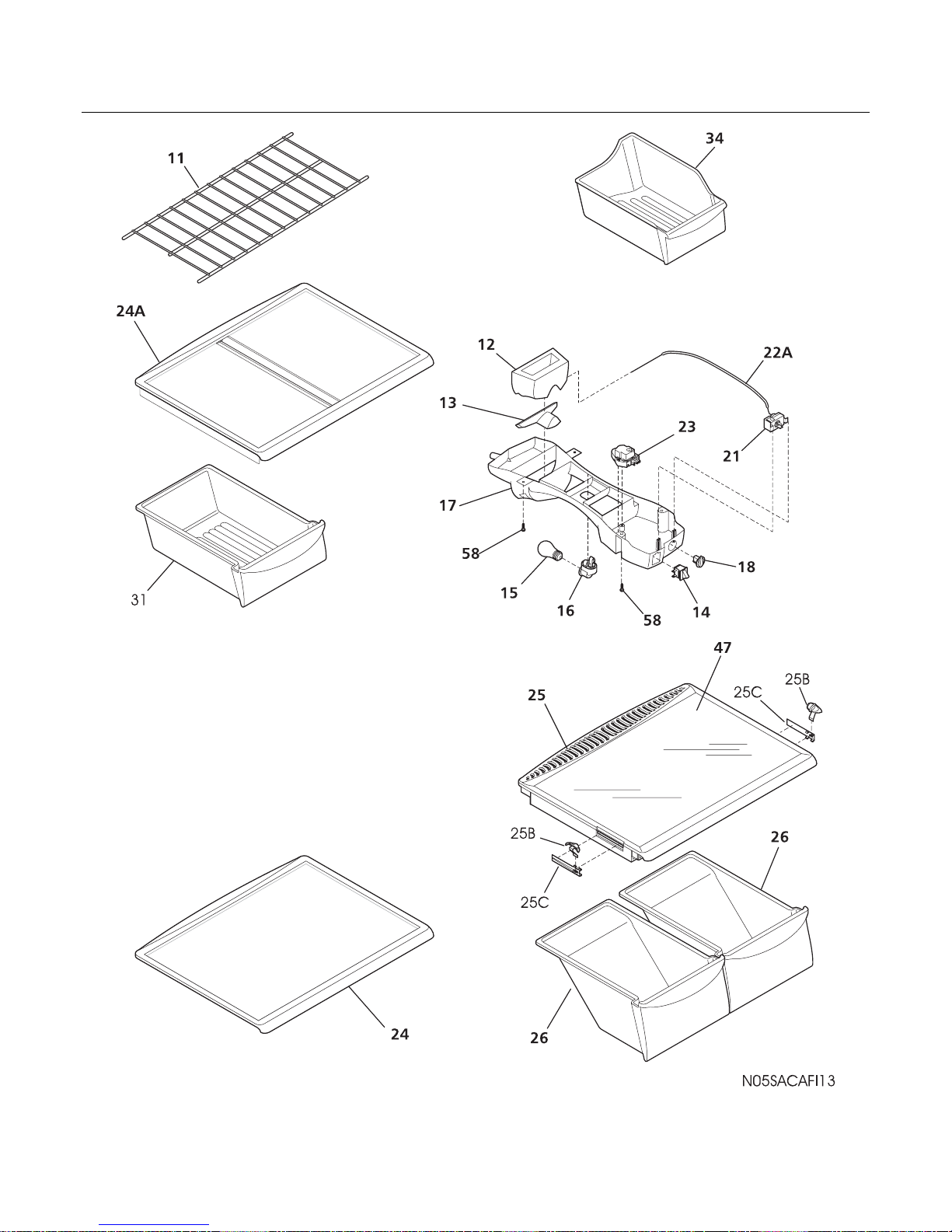

SHELVES

FRT18IL6D Publication No: 5995421632

# Functional Parts 7 11/04

* Non-Illustrated Parts

SHELVES

Model Index: AFRT18IL6D (FRT18IL6DS2)

BFRT18IL6D (FRT18IL6DS4)

CFRT18IL6D (FRT18IL6DS6)

POS. NO PART NO. DESCRIPTION

11 240358002 A B C Shelf-freezer, full width

11 5303299664 A B C Spacer, shelf

12 241542001 A B C Diffuser, air, top

13 240362601 A B C Diffuser, air, bottom

14 # 241554901 A B C Switch-light/lamp

15 241555401 A B C Light Bulb

16 241559801 A B C Socket-light

17 240352701 A B C Control Box

17* 240568607 A B C Seal

17*# 240388701 A B C Wiring Harness, control box

18 240360801 A B C Knob, temp control

21 # 5304421256 A B C Control, temperature

22A 240468201 A B C Tube, sensor sleeve, 31 inch, plastic, white

23 # 240371001 A - - Timer-defrost

23 # 241621501 - B C Timer-defrost

23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240358905 A B C Shelf-"Spill-Safe", sliding

24A 240358906 A B C Shelf-"Spill-Safe", sliding, w/pan hanger

25 240364714 A B C Cover-crisper pan

25B 240361201 A B C Control-humidity

25C 240361301 A B C Damper, humidity cont.

26 240337103 A - - Pan-crisper, clear, (2), no graphics

26 240337107 - B C Pan-crisper, clear, (2), no graphics

31 240530803 A - - Pan-meat, w/o graphics, clear

31 240530810 - B C Pan, meat bin

34 240385201 A B C Container, ice bin

47 240350643 A B C Insert-pan cover, glass

58 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995421632 FRT18IL6D

11/04 8

SYSTEM

N05CABBAB5

FRT18IL6D Publication No: 5995421632

# Functional Parts 9 11/04

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT18IL6D (FRT18IL6DS2)

BFRT18IL6D (FRT18IL6DS4)

CFRT18IL6D (FRT18IL6DS6)

POS. NO PART NO. DESCRIPTION

1 # 240444401 A B C Condenser, dynamic

4 # 218944001 A B C Drier-filter, R134a System

6 # 240581701 A B C Harness-wiring, machine compt

6* # 240581801 - B C Harness-wiring, compressor

6* 241520701 A B C Harness-wiring, freezer

6* # 240388701 A B C Wiring Harness, control box

14 # 5303918208 A B C Defrost Heater Kit

15 # 5303918274 A B C Evaporator Kit

16 5308000110 A B C Strap-evap/heater, aluminum, (2)

17 241551801 A B C Trough-drain

20 241551901 A B C Insulation Block

21 # 5303918202 A B C Thermostat-defrost, kit

22 240330001 A - - Plate-compr mtg

22 241602001 - B C Base-compressor

22* 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B C Grommet-compr mtg, (4)

25 240491501 A B C Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332605 A B C Pan-defrost drain

29 # 5303918310 A - - Compressor, w/electricals

29 # 5303918297 - B C Compressor, w/electricals

30 216596800 A - - Starter, relay

30 # 5304433579 - B C Relay

31 # 216100106 A - - Overload Protector

31 # 5304433578 - B C Overload Protector

34 240405201 A B C Grommet, rubber, black, cond tube/wire

41 240433202 A B C Screw, hex washer head, 8-18 x 5/16

44 5303001199 A B C Clamp-wiring harness, strain relief, galv steel

45 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

56 216347800 A - - Cover terminal, cover-comp term

56 240582001 - B C Cover-terminal

57 240542601 A B C Clip-wiring harness

58 218897002 A B C Screw, hex washer head, 8-32 x 0.375

59 5304430246 A B C Bracket-cond motor assy

59* 240346701 A B C Tape-foam seal, shroud

59* 240359401 A B C Screw-fan shroud, (2)

60 # 240525401 A - - Motor-condenser fan

60 # 240525402 - B C Motor, condensor fan

61 # 240524101 A B C Fan Blade, galv steel, condenser fan

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 A B C Tube-drain, rubber, lower

85 241611501 A - - Tube-connector, suction

85 240493101 - B C Tube-connector, suction

* 5303918222 A B C Hot Tube Repair Kit, Service

* # 5303918263 A B C Heat Exchanger Kit, suction line

Publication No: 5995421632 FRT18IL6D

11/04 10

ICE MAKER
