Product No. FGTC2349KS1

Series counter depth

Color stainless

Volts 115

Wiring Diagram 241638600

Owner's Guide 241857500

Market North America

Energy Guide 241935573

Service Data Sheet 241639000

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995536389

09/03/25

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FGTC2349K

Publication No: 5995536389 FGTC2349KS1

03/09 2

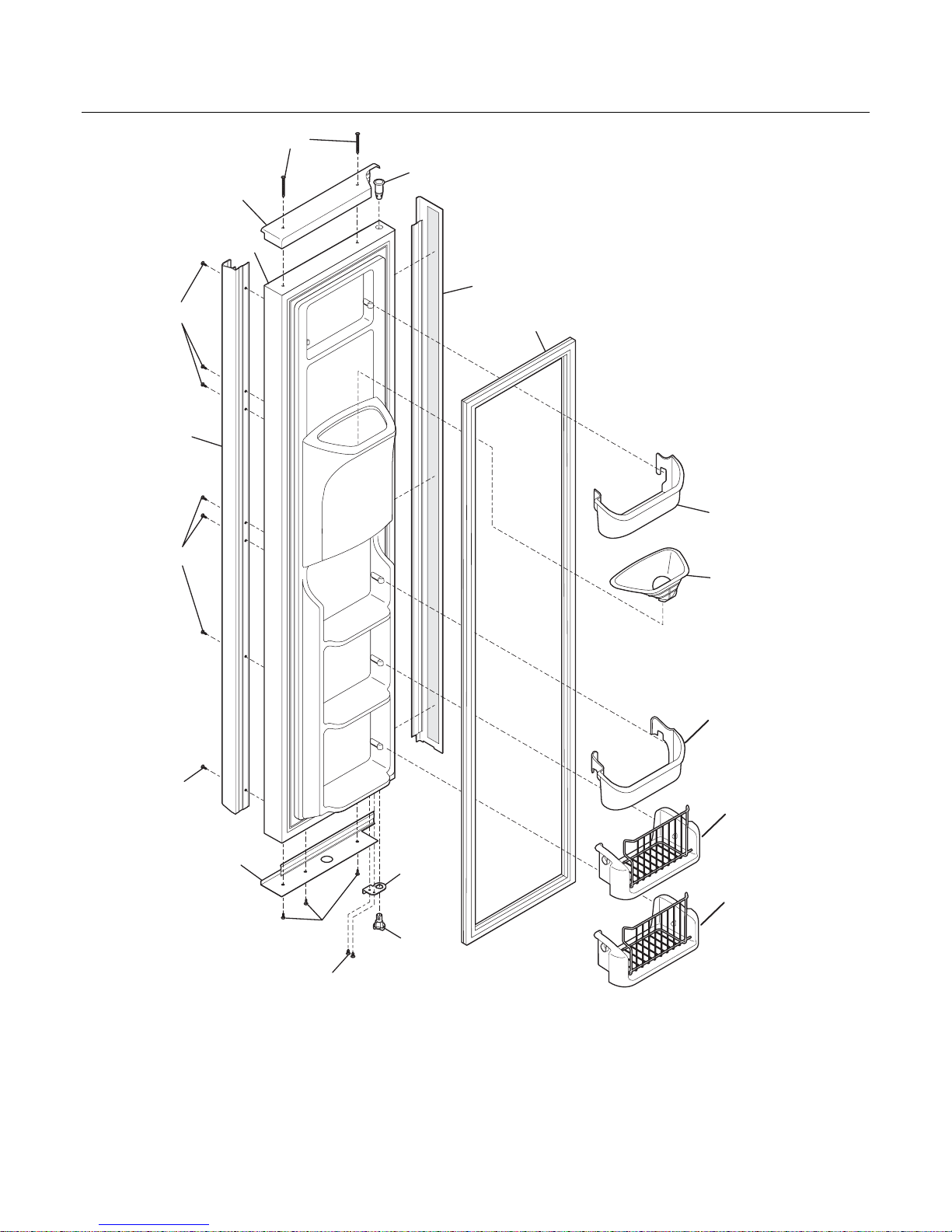

FREEZER DOOR

21B

37A

37B

22C

13A

22A

21A

N58FKGBGA0

FGTC2349KS1 Publication No: 5995536389

# Functional Parts 3 03/09

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 241510204 Gasket-frzr door, black, magnetic

4B 241808225 Bin-door, pseudo, frzr

5 241545001 Bin-tilt out, tilt-out

11 241615189 Door-frzr, black, complete assy

13A 240581906 Door Stop, black, frzr

18 241533607 Handle-frzr door, aluminum

21 218781101 Screw, pan head, 8-18 x 0.625

21A 240598402 Screw, 10-32 x 1/2

21B 241543202 Screw, #10-16 x 2

22A 240328202 Bearing-hinge(frz), closer

22C 240328404 Bearing-hinge, black, upper

37 241533707 Trim-door, brushed aluminu, side

37A 241534207 Trim-door, aluminum, top

37B 241533807 Trim-door, aluminum, bottom

68 241525101 Chute-ice

* 240411502 Clip-dispenser cover

* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

* 240552102 Harness-wiring, door

* 241806601 Connector-water, straight

* 5303918256 Dispenser heater kit

Publication No: 5995536389 FGTC2349KS1

03/09 4

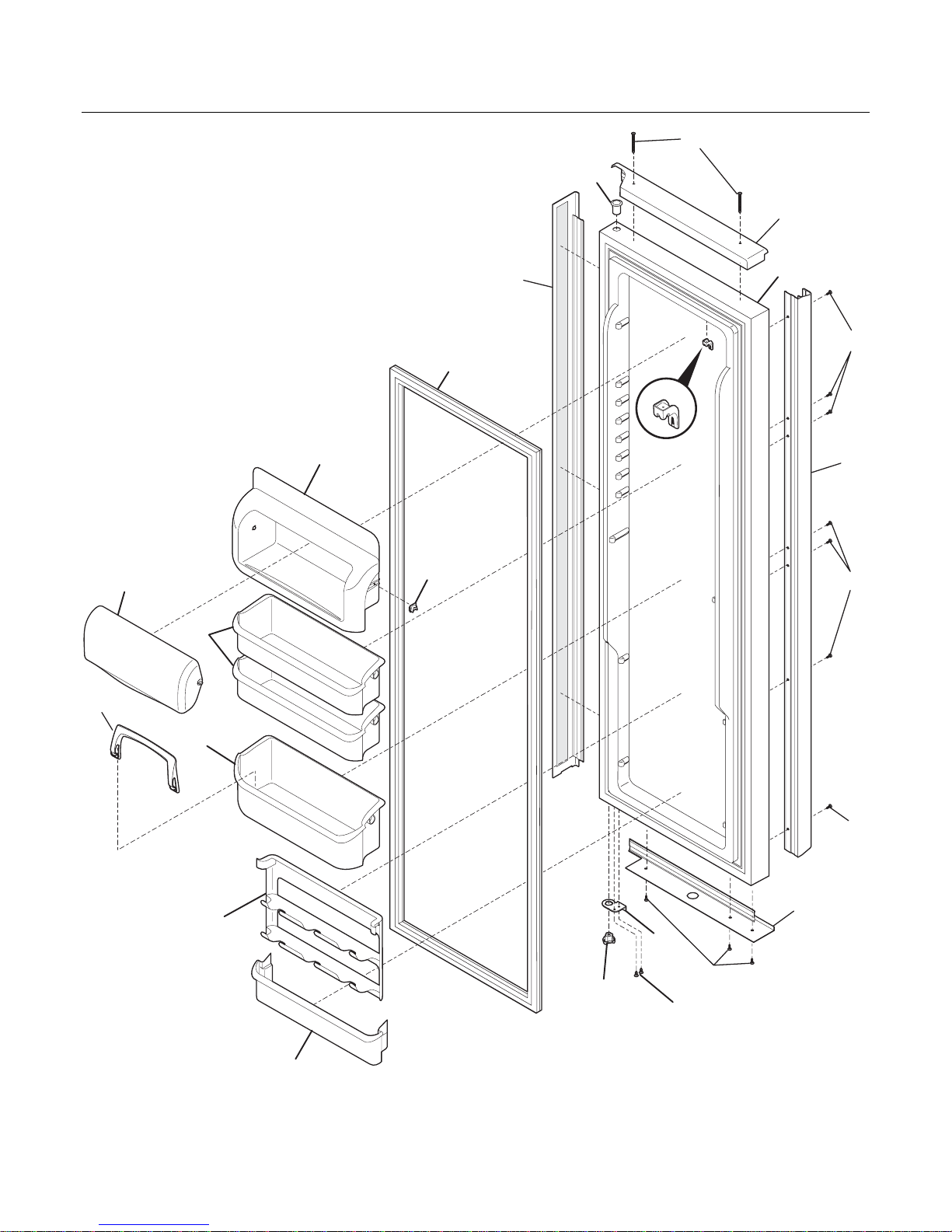

REFRIGERATOR DOOR

N58RKGCHB0

49A

22B

21A

37B

21B

37A

27A

FGTC2349KS1 Publication No: 5995536389

# Functional Parts 5 03/09

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241510203 Gasket-refr door, black, magnetic

5 241516102 Rack-can

6 241515901 Lug-dairy compartment

7 241515601 Door-dairy

13 240581905 Door Stop, black, ref

15 241534515 Door-refr, black, complete assy

18 241533608 Handle-refr door, aluminum

21 218781101 Screw, pan head, 8-18 x 0.625

21A 240598402 Screw, 10-32 x 1/2

21B 241543202 Screw, #10-16 x 2

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

27A 241812702 Retainer, tall bottle

37 241533708 Trim-door, aluminum, side

37A 241534208 Trim-door, aluminum, top

37B 241533808 Trim-door, aluminum, bottom

48 241808224 Bin-door, ref

49 241808222 Bin-door, 2 liter

49* 241779903 Liner, bin, 2 liter

49A 241808223 Bin-door, gallon, w/trim

49A* 241780003 Liner, bin, gallon

50 241508401 Cover-magnet

70 241515801 Compartment-dairy, removable

Publication No: 5995536389 FGTC2349KS1

03/09 6

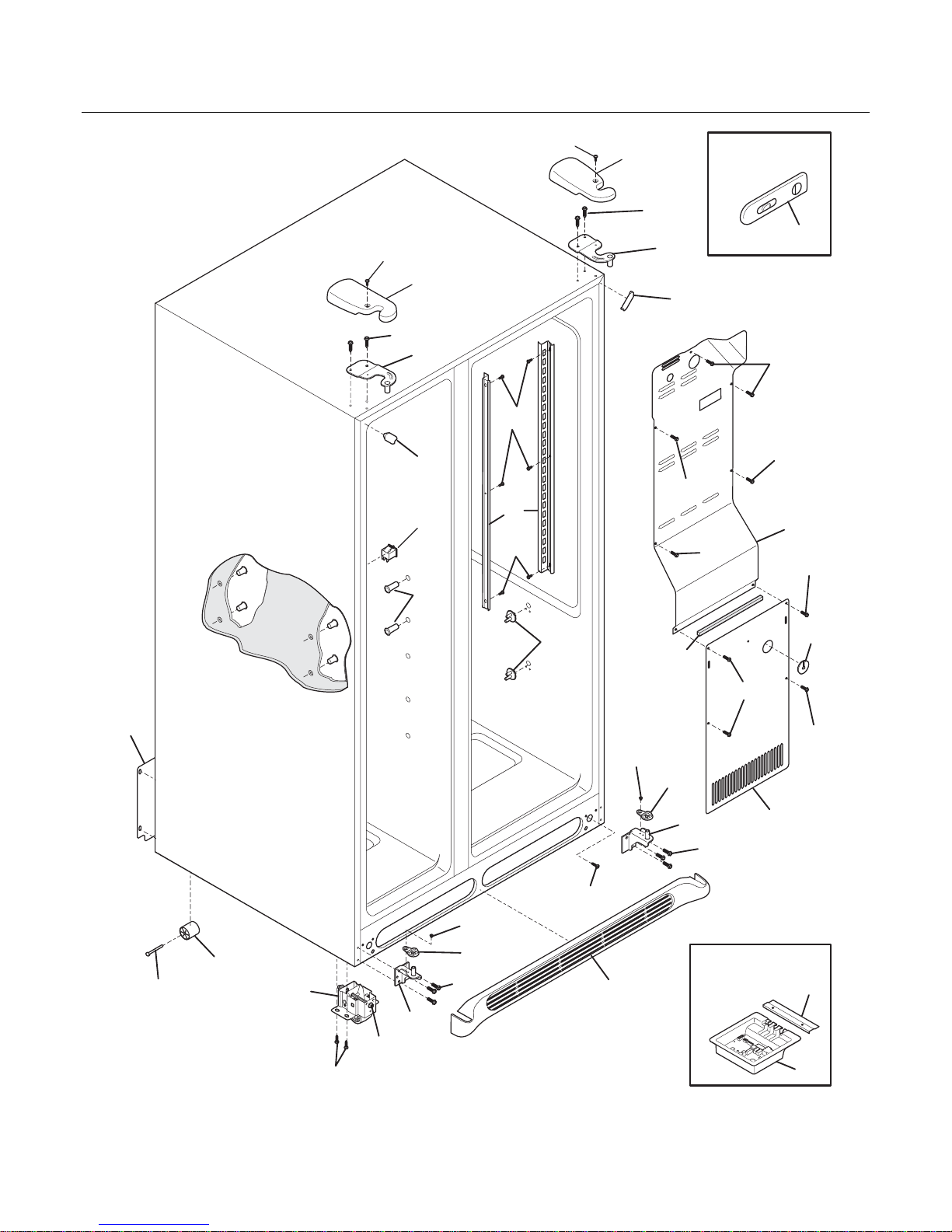

CABINET

100

38A

30A

21C

10A

N58BABAAD4

14A

21C

40A

FGTC2349KS1 Publication No: 5995536389

# Functional Parts 7 03/09

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 241509804 Cover-air duct

10A 241719711 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14A 241547901 Switch-light/lamp, frzr door

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402702 Screw-#10-32 x 1/4 flat hd

28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 Bracket-lower hinge, ref

30A 241603704 Bracket-lower hinge

37 240337610 Trim-cabinet corner, black, (2)

38 241617905 Bracket-upper hinge

38A 241617906 Bracket-upper hinge

40 241519208 Cover-upper hinge, silver metallic

40A 241519207 Cover-upper hinge, silver metallic

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578902 Screw, hex head, 1/4-20 x 5/8

43 240335006 Roller Assy, front, (2)

45 241500303 Screw, hex washer head, 8-18AB x 0.500

47 241513001 Channel-shelf mtg, side, (2)

50 241511112 Board-main power

50* 241524802 Seal, housing

50* 241532501 Clip-harness

54 241532401 Channel

66 241513601 Damper Assy

72 240324414 Grille/Kickplate, metallic gray

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 Cover-access, w/label

90 218249808 Seal-coil cover

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

* 5303321321 Paint, touch-up, black

* 241591701 Louver

Publication No: 5995536389 FGTC2349KS1

03/09 8

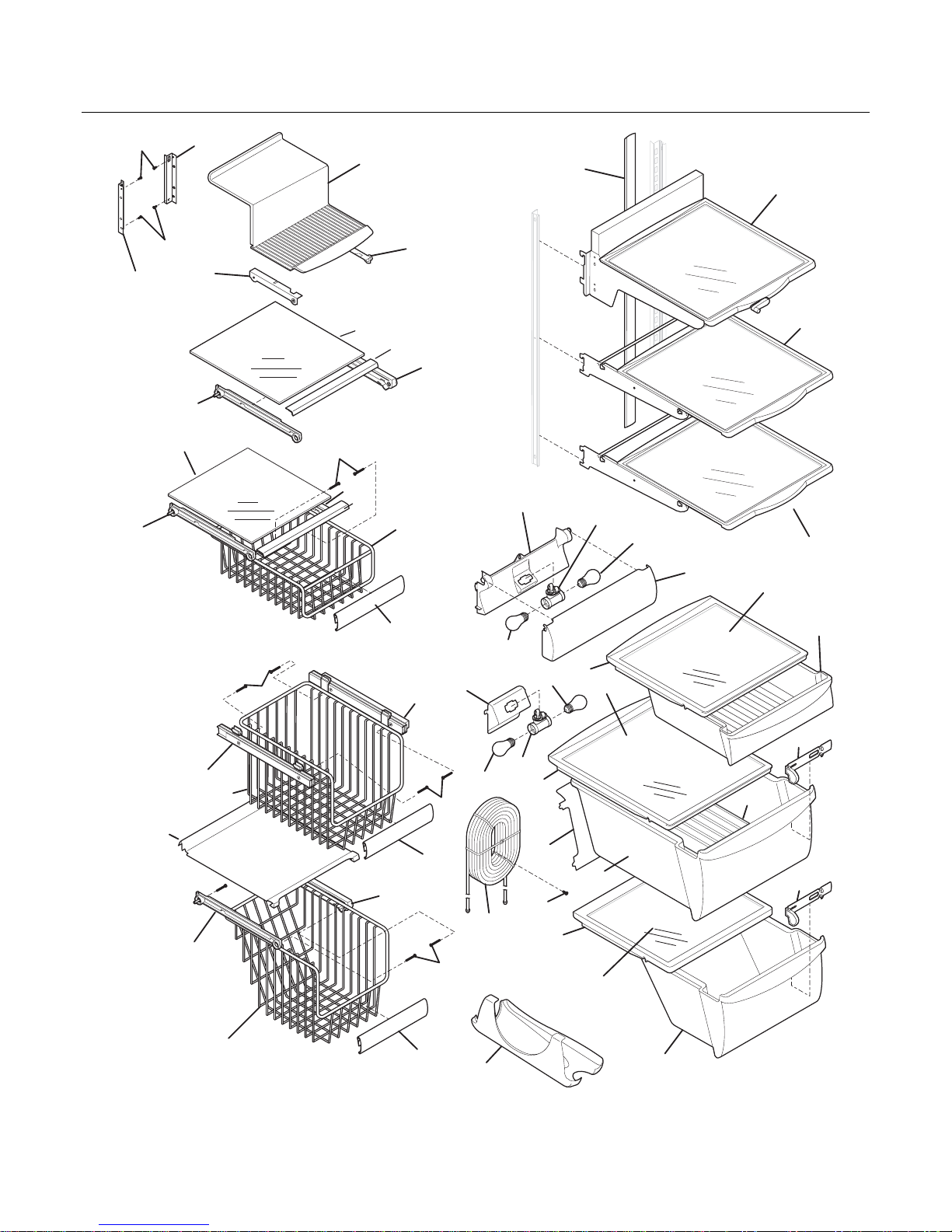

SHELVES

51A

140

136

126

122

121

120

109

108

107

101

100

52B

52A

51B

49B

49A

47B

47A

27A

26A

143

25B

25A

24C

N58SDDLEH12

11A

FGTC2349KS1 Publication No: 5995536389

# Functional Parts 9 03/09

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510608 Trim-basket

11 240443357 Shelf-freezer, glass, lower

11A 240443358 Shelf-freezer, glass, upper

15 241552801 Light Bulb

16 241622802 Socket-light, frz light

16* 241513101 Harness-wiring

21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625

24 240350137 Shelf-"Spill-Safe", cantilver, sliding

24C 240424615 Shelf-"Spill-Safe", "Aspect", complete

25 240599302 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

25B 240599801 Cover-meat pan

26 240351062 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26* 241595202 Clip-slide, pan-crisper

26A 241638201 Control-humidity

26A* 241638101 Frame-humidity control

27 240351241 Pan-crisper, lower

27A 240362201 Control-humidity

39 240367603 Trim-shelf, 11.65", front

41 241637601 Baffle-air

47 240350649 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

47B 240443356 Insert-pan cover, glass

49 241515001 Basket-sliding

49A 241528001 Basket-sliding, upper, half

49B 241514901 Basket-sliding, upper, full

51 241514501 Hanger-basket, RH

51A 241514701 Hanger-shelf glass, RH

51B 240579803 Hanger-basket, RH

52 241514601 Hanger-basket, LH

52A 241514801 Hanger-shelf glass, LH

52B 240579804 Hanger-basket, LH

60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

62 240599718 Pan-meat

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

97 241532005 Water Tank

100 240326304 Cover-water tank

101 218493101 Screw, hex washer head, 8-18AB x 1-3/4

107 241513402 Shield-light, meat pan

108 241513301 Cover-wiring, meat pan light

109 241513202 Base-crisper light socket

120 241691701 Shelf-ice cream

121 241504701 Rail-ice cream shelf, LH

122 241504702 Rail-ice cream shelf, RH

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

136 241657701 Dispenser-can, white

140 240430505 Channel, wtr tube cover

143 240423301 Divider-crisper pan

* 241935573 Energy Guide

Publication No: 5995536389 FGTC2349KS1

03/09 10

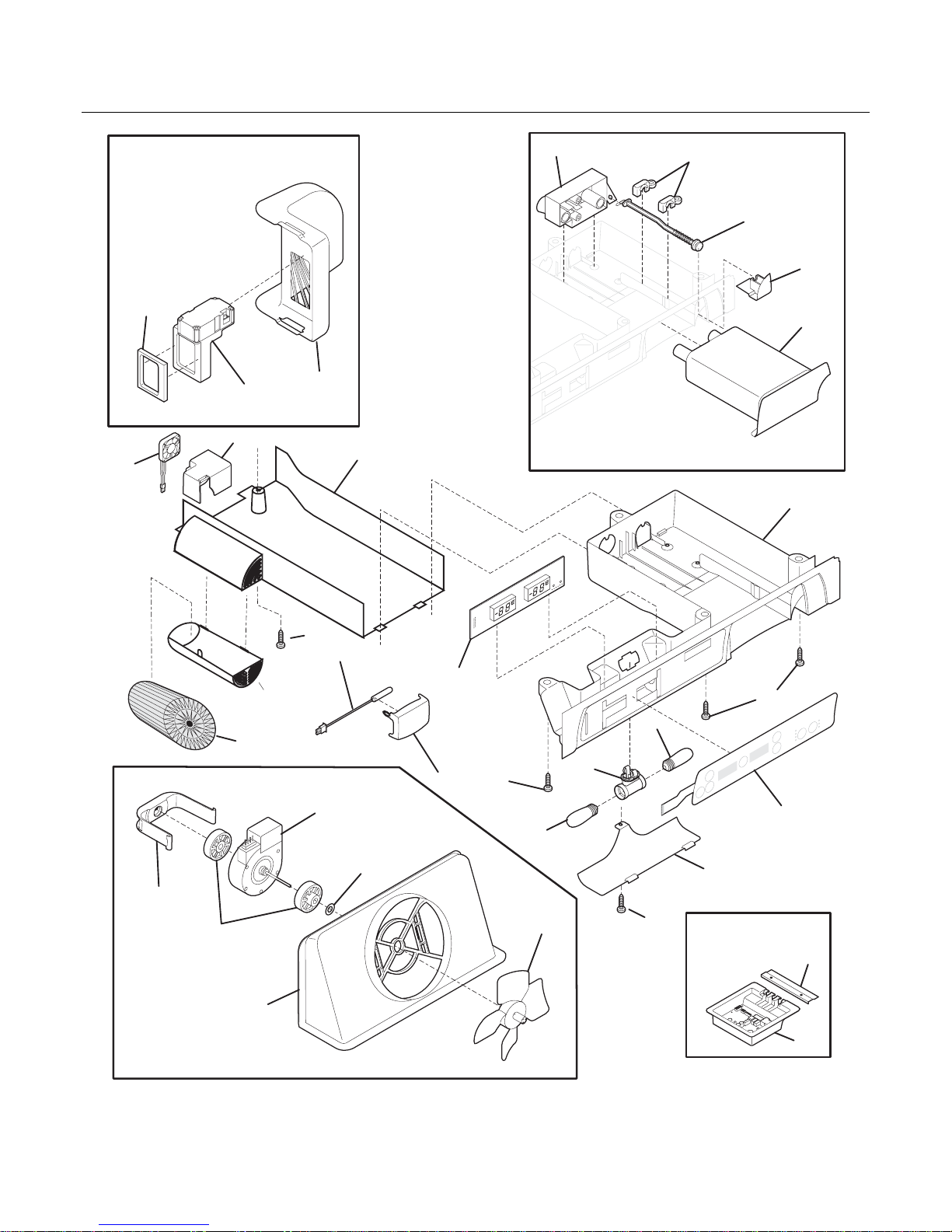

CONTROLS

201

199

198

151

155

154

206

149

139

138

137

116

115

205

N58TBBAAB5

75A
