Frigidaire FRS6L7G Mode d’emploi

N58L00002.eps N58FFDBBB1.eps N58RFDAAB2.eps N58BAAAAB3.eps

N58SKBCBD12.eps N58TCAAAB4.eps N58CAAAAA10.eps N58XBAAAB1.eps

N58YAAAAA4.eps N58I1151.eps W241725001.eps S241725001.eps

Product No. FRS6LF7GS0 FRS6LF7GS1

Series 134A 134A

Color stain/blk stain/blk

Volts 115 115

Wiring Diagram 241725001 241725001

Owner's Guide 241812900 241812901

Market North America North America

Energy Guide 241768172 241768172

Service Data Sheet 240389633 240389633

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995491809

07/05/30

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6L7G

Publication No: 5995491809 FRS6L7G

05/07 2

FREEZER DOOR

22C

13A

22A

21A

N58FFDBBB1

79 80

FRS6L7G Publication No: 5995491809

# Functional Parts 3 05/07

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS6LF7G (FRS6LF7GS0)

BFRS6LF7G (FRS6LF7GS1)

POS. NO PART NO. DESCRIPTION

1 # 241674806 A B Gasket-frzr door, black, magnetic

4A 240334201 A B Bin-door, frzr-upper

4B 240351601 A B Bin-door

11 241615160 A B Door, frzr, stainless steel, RH

13A 240581906 A B Door Stop, black, frzr

18 240536818 A B Handle-door, stainless steel, with insert, & set screw

18* 241601001 A B Wrench, allen

21A 240598402 A B Screw, 10-32 x 1/2

22A 240328204 A B Bearing-hinge(frz), black, closer

22C 240328404 A B Bearing-hinge, black, upper

68 241525101 A B Chute-ice

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755504 A B Screw-shoulder, #10 AB, handle mounting

* 240552102 A B Harness-wiring, door

* 241806601 A B Connector-water, straight

* 5303918256 A B Dispenser heater kit

Publication No: 5995491809 FRS6L7G

05/07 4

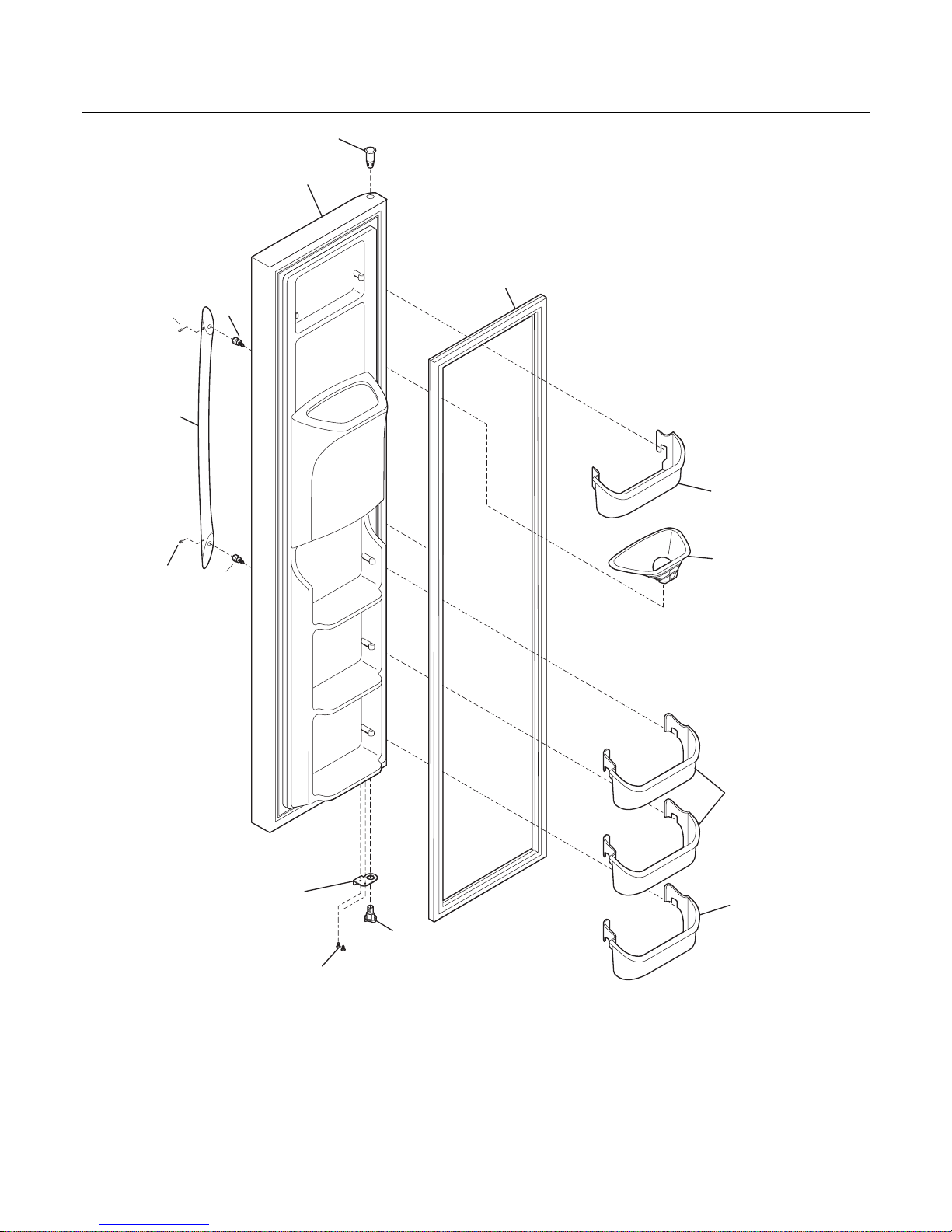

REFRIGERATOR DOOR

21A

22B

N58RFDAAB2

FRS6L7G Publication No: 5995491809

# Functional Parts 5 05/07

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS6LF7G (FRS6LF7GS0)

BFRS6LF7G (FRS6LF7GS1)

POS. NO PART NO. DESCRIPTION

2 # 241674805 A B Gasket-refr door, black, magnetic

4 240323002 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

13 240581905 A B Door Stop, black, ref

15 241629333 A B Door-refr, stainless, complete assy

18 240536818 A B Handle-door, stainless steel, with insert, & set screw

18* 241601001 A B Wrench, allen

21A 240598402 A B Screw, 10-32 x 1/2

22 240328203 A B Bearing-hinge, black, closer

22B 240328404 A B Bearing-hinge, black, upper

49 240356402 A B Bin-door, gallon

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755504 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995491809 FRS6L7G

05/07 6

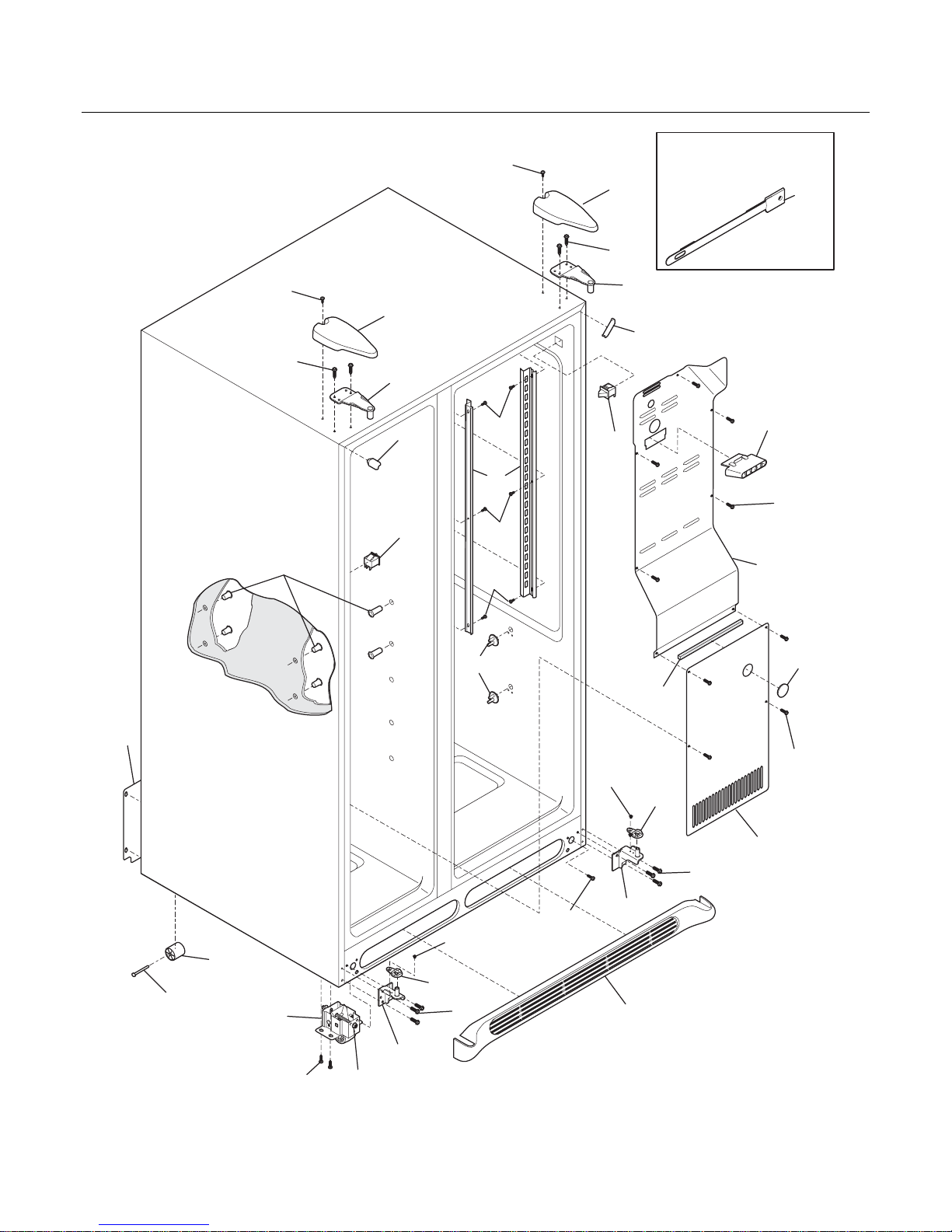

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB3

FRS6L7G Publication No: 5995491809

# Functional Parts 7 05/07

* Non-Illustrated Parts

CABINET

Model Index: AFRS6LF7G (FRS6LF7GS0)

BFRS6LF7G (FRS6LF7GS1)

POS. NO PART NO. DESCRIPTION

10 240435912 A B Cover-air duct

10A 240475911 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B Plate-door closer

23 240402702 A B Screw-#10-32 x 1/4 flat hd

28 240335502 A - Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

28 241708801 - B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 A B Bracket-lower hinge, ref

30A 241603704 A B Bracket-lower hinge

37 240337610 A B Trim-cabinet corner, black, (2)

38 240327207 A B Bracket-upper hinge

40 240327007 A B Cover-upper hinge, black

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578902 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335005 A - Roller Assy, adjustable, front, (2)

43 241709301 - B Roller Assy, adjustable, front, (2)

45 241500303 A B Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B Channel-shelf mtg, side, (2)

58 218781101 A B Screw, pan head, 8-18 x 0.625

66 5304424968 A B Damper Cover Assy

66* 240518802 A B Pin-push, push-in, plastic

72 240324411 A B Grille/Kickplate, black

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 A B Cover-access, w/label

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes

* 5303321321 A B Paint, touch-up, black

Publication No: 5995491809 FRS6L7G

05/07 8

SHELVES

24B

126

49B

101

N58SKBCBD12

100

25A

47A

26A

42A

123

24B

140

120

11C

11A

39A

109

16A

15A

FRS6L7G Publication No: 5995491809

# Functional Parts 9 05/07

* Non-Illustrated Parts

SHELVES

Model Index: AFRS6LF7G (FRS6LF7GS0)

BFRS6LF7G (FRS6LF7GS1)

POS. NO PART NO. DESCRIPTION

2 241510604 A B Trim-basket

11 241657602 A B Shelf, flip up, wire

11A 241657504 A B Shelf, fixed, upper, freezer

11C 240324101 A B Shelf-pizza

15A 241555401 A B Light Bulb

16A 241513901 A B Socket-light

16A* 241537603 A B Harness-wiring

21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625, 21

24 240355207 A B Shelf-"Spill-Safe", cantilever, half width, fixed

24B 240350108 A B Shelf-"Spill-Safe", cantilever, sliding

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

26 240351005 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26* 241595202 A B Clip-slide, pan-crisper

26A 240362201 A B Control-humidity

27 240351205 A B Pan-crisper, lower

39 240430706 A B Trim-shelf, 11.21", front

39A 240430702 A B Trim-shelf, 12.39", front

42 240356501 A B Track, meat pan hanger, RH

42A 240349701 A B Hanger-meat pan, LH

42A* 240349901 A B Block-meat pan rail, LH

42A* 240350001 A B Spring-meat pan rail

42A* 240356702 A B Seal-meat pan

47 240350633 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

49 240564401 A B Basket-sliding

49B 240530504 A B Basket-sliding, upper, full

51 240343002 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

62 240342805 A B Pan-meat

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B Water Tank Assy, coiled tubing, front filter

100 240326304 A B Cover-water tank

101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B Base-crisper light socket

120 240342901 A B Shelf-ice cream

123 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16

126 241674401 A B Channel, auger mtg, LH

126 241674402 A B Channel, auger mtg, RH

140 240430501 A B Channel, wtr tube cover

* 241768172 A B Energy Guide

Publication No: 5995491809 FRS6L7G

05/07 10

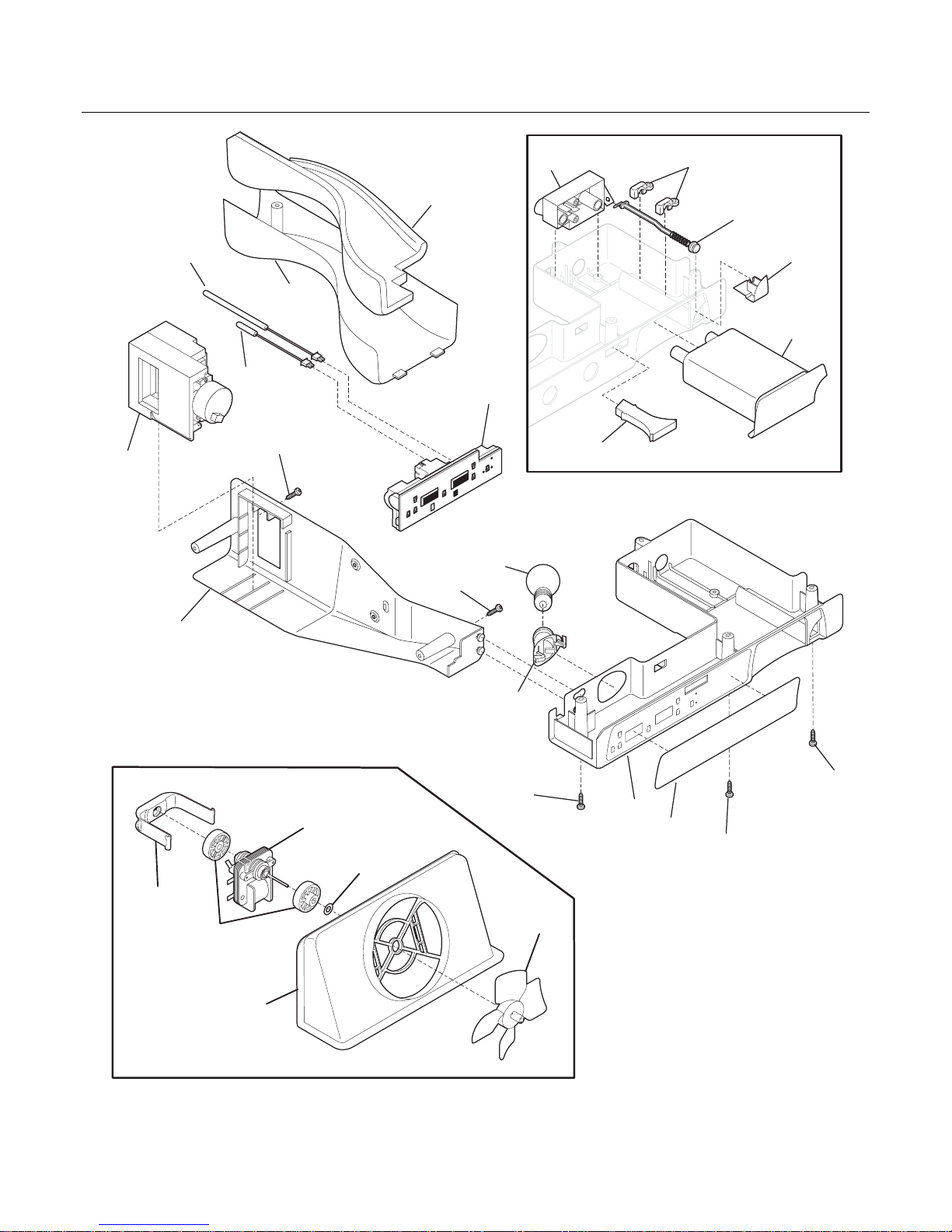

CONTROLS

149

139

138

198

199

137

200

151

150

21A

115

101

N58TCAAAB4
