Frigidaire FRT21LR7D Manuel utilisateur

Product No. FRT21LR7DS7

Series R134a

Color stainless rh

Volts 115

Wiring Diagram 240398801

Owner's Guide 240400112

Market North America

Energy Guide 241538744

Service Data Sheet 241643300

Installation Instructions 240568300

N05L00003.eps N05DCDBBA11.eps N05BAAAAC2.eps N05SACAFX13.eps

N05CAAAAC5.eps 115-1S.eps 240398801.eps 240398601.eps

u x Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995434254

05/04/14

(EN/SERVICE/RF)

357

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT21LR7D

Publication No: 5995434254 FRT21LR7DS7

04/05 2

DOOR

21 14B

14B

13A

48A

21C

18A

N05DCDBBA11

FRT21LR7DS7 Publication No: 5995434254

# Functional Parts 3 04/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 # 240514611 Gasket, seal, black, frzr door, magnetic

2 # 240514612 Gasket, seal, black, refr door, magnetic

7 240338303 Door, dairy, clear

11 240450366 Door, frzr, stainless steel

12 240572601 Label-nameplate

13 240312405 Door Stop, black, refr

13A 240312406 Door Stop, black, frzr

14B 240383603 Plug-button, black, door handle

15 240450475 Door, refr, stainless steel, RH

18 240339203 Handle-door, black

18A 240339208 Handle-door, black

21 240383401 Screw, truss hd quad, #10-16 x .500

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 Bearing-hinge, black

48 240338101 Bin-door, pseudo, bottom

48A 240338201 Bin-door, gallon

49 240495804 Bin-door, pseudo, frzr

* 218490901 Cleaner, stainless steel

Publication No: 5995434254 FRT21LR7DS7

04/05 4

CABINET

FRT21LR7DS7 Publication No: 5995434254

# Functional Parts 5 04/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 240355402 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240313609 Cover-evap coil, w/light

10* 240568606 Seal-coil cover

10*# 241537701 Wiring Harness, freezer section, with light

11 5303208309 Plug-hole, factory test

13 240369702 Motor-evap fan

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433201 Screw, hex washer head, 8-18 x 0.375

15 241560701 Light Bulb

16 241513901 Socket-light

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 Plug-button, black, upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 Bracket-lower hinge, black

34 240311303 Washer, hinge, nylon, (2)

35 240313803 Bracket-ctr hinge, black

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240313701 Bracket-upper hinge

40 240354404 Cover-upper hinge, black

41 5303001609 Grommet, shelf mtg, 0.69", RH

41* 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

47 218233300 Channel-shelf mtg, side, (2)

48 5303292395 Channel-shelf mtg, center

49 218362500 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

56 240516501 Pin-lower hinge

58 5303001343 Screw, hex washer head, 8-15A x 0.500

59 240442703 Screw-#10-32 X 3/4, black

72 240368207 Grille/Kickplate, black

74 240354301 Shield-light, frzr

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 Cover-access, w/label

89* 241500301 Screw, hex washer head, 8-18AB x 0.500

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

114# 241554901 Switch-light/lamp

* 218990901 Clip-wire

* 5303305345 Paint, touch-up, black

Publication No: 5995434254 FRT21LR7DS7

04/05 6

SHELVES

25B

25C

N05SACAFX13

123

22A

24A

123

FRT21LR7DS7 Publication No: 5995434254

# Functional Parts 7 04/05

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 240358003 Shelf, freezer, full-width, wire

11* 5303299664 Spacer, shelf

12 240545901 Diffuser-air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 240364201 Socket-light/lamp, dual

17 240368101 Control Box

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304445058 Control-temperature

22A 5303916855 Tube, sensor sleeve, plastic, clear

23 # 215846606 Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240355214 Shelf-"Spill-Safe", cantilever, fixed

24A 240408903 Shelf-"Spill-Safe", cantilever fixe

25 240364718 Cover-crisper pan

25B 240361201 Control-humidity

25C 240361301 Damper, humidity cont.

26 240343803 Pan, crisper, (2)

31 240530803 Pan-meat, w/o graphics, clear

34 240385201 Container, ice bin

42 240356501 Track, meat pan hanger, RH

42 240365401 Track, meat pan hanger, LH

47 240350654 Insert-pan cover, glass

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

Publication No: 5995434254 FRT21LR7DS7

04/05 8

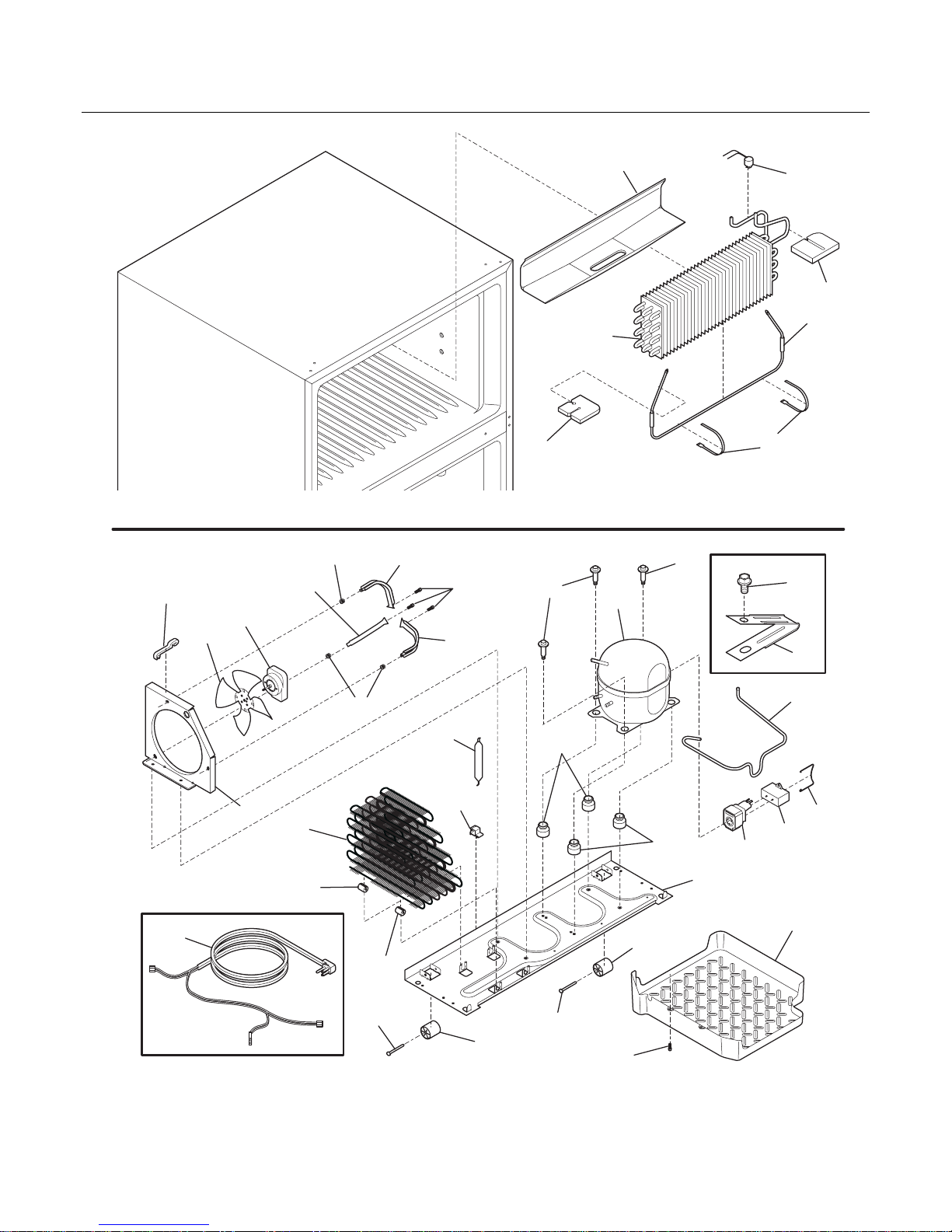

SYSTEM

59B

59A

59A 58

N05CAAAAC5

FRT21LR7DS7 Publication No: 5995434254

# Functional Parts 9 04/05

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 240444401 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 # 241607001 Harness-wiring, machine compt

6* # 240388701 Wiring Harness, control box

6* # 241537701 Wiring Harness, freezer section, with light

14 # 5303918247 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 241551902 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241602001 Base-compressor

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332602 Pan-defrost drain

29 # 5303918312 Compressor Kit

30 # 241527804 Starter

32 241527901 Clamp, elec cont mtg, compressor

34 240405201 Grommet, rubber, black, cond tube/wire

41 240555001 Screw-#8-32 X 3/8

44 215174700 Clamp-service cord, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

55 218909915 Capacitor-run, 220 VAC, 15 microfarad

57 240542601 Clip-wiring harness

58 240569201 Screw, 8-18 x 0.500

59 240315501 Shroud-cond fan

59* 240346701 Tape-foam seal, shroud

59* 240359401 Screw-fan shroud, (2)

59A 240346501 Bracket-support, cond mtr, (3)

59B 240346601 Grommet-bracket, (3)

60 # 241584301 Motor-condenser fan

60* 240569501 Screw, 8-18 X 1 3/4, (2)

61 241536201 Blade-condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 240553501 Tube-connector, suction

86 240409302 Spacer-cond tube, black

* 240396801 Clamp, tube/wiring, nylon, black/natural

* # 5303918210 Heat Exchanger Kit, suction line

* 5304421289 Hot Tube Repair Kit, service

Publication No: 5995434254 FRT21LR7DS7

04/05 10

ICE MAKER

15 15

INSTALLATION PARTS

N05I115-1S
