Signature Features

26 Cu. Ft. Standard-Depth

SpaceWise®

Organization System

Our SpaceWise® organization system

makes it easy to keep food organized

and easy to find when you need it.

SpillSafe® Shelves

Designed to keep spills contained, mak-

ing cleanup a breeze.

Express-Select® Controls

Easily select options with the touch of

a button.

PureSource 3® Ice &

Water Filtration

Offers cleaner, better-tasting water

and ice at your fingertips.

Product Dimensions

Height 69-3/8"

(Including Hinges & Rollers)

Width (Doors) 36"

Depth (Including Door) 33"

More Easy-To-Use Features

Energy Saver Plus Technology1

Our refrigerator will automatically go into

an energy-saving mode if not opened for

24 hours.

Quiet Pack

Cool Zone™ Drawer

Gallon Door Storage

Full Freezer Basket

ENERGY STAR® Maximum Eciency2

Sabbath Mode (Star-K® Certiﬁed)

Available in:

1If this refrigerator door is not opened for 24 hours

AND the refrigerator system is set to the 12-hour

defrost cycle, then the system automatically goes

to a 96-hour compressor run time defrost cycle to

conserve electricity.

2Exceeds minimum ENERGY STAR® standard by at

least 30%.

Side-by-Side Refrigerators

FGUS2632L P / E

Pearl

(P)

Ebony

(E)

Specifications

subject to change.

Overall Exterior Dimensions

A - Height (Incl. Hinges and Rollers)

B - Cabinet Width / Door Width

C - Depth (Incl. Door)

Depth with Door Open 90˚

69-3/8"

35-5/8" / 36"

33"

49-7/8"

NOTE: For planning purposes only. Always consult local and national

electric and plumbing codes. Refer to Product Installation Guide for

detailed installation instructions on the web at frigidaire.com.

1Exceeds minimum ENERGY STAR® standard by at least 30%.

2For use on adequately wired 120V, dedicated circuit having 2-wire service with a

separate ground wire. Appliance must be grounded for safe operation.

Features

Door Design

Door Handle Design

Cabinet Finish

Door Stops / Door Closers

Door Hinge Covers

Rollers – Front / Rear

Energy Saver Plus Technology

Water Filter Location

Sound Package

Dispenser

Controls

Dispenser Design

Number of Dispenser Buttons

Crushed Ice / Cube Ice / Chilled Water

Ice Option

Freeze Option

Display On / O Option

Lock / Light

Temp / Door Ajar / Power Failure Alerts

Water Filter Change Indicator Light

Air Filter Change Indicator Light

Refrigerator Features

Interior Lighting

Water Filter Type

Air Filter Type

Fixed Shelves

Sliding Shelves

Cool Zone™ Drawer

Wine / Can Rack

Upper Crisper / Lower Crisper

Humidity Controls

Dairy Compartment

Fixed Door Bins

Adjustable Door Bins

Non-Slip Bin Liner / Bottle Retainers

Condiment Bin

Freezer Features

Door Bins / Tilt-Out Wire Door Bins

Fixed Shelves

Full Extension Baskets

Full Freezer Baskets

Half Freezer Baskets

Ice Cream Shelf / Pizza Shelf

SpaceSaver™ Shelf

Lighting

Certiﬁcations

ENERGY STAR® Maximum Eciency1

Sabbath Mode (Star-K® Certiﬁed)

Speciﬁcations

Total Capacity (Cu. Ft.)

Refrigerator Capacity (Cu. Ft.)

Freezer Capacity (Cu. Ft.)

Power Supply Connection Location

Water Inlet Connection Location

Voltage Rating

Connected Load (kW Rating)

@ 120 Volts2

Amps @ 120 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Accessories information available

on the web at frigidaire.com

Standard-Depth SxS Refrigerators

Frigidaire Gallery

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Soft-Arc

Color-Coordinated

Yes / Yes

Hidden

Adjustable / Yes

Yes

Top Right Rear

Quiet Pack

Express-Select®

Tall, Single Paddle

Yes / Yes / Yes

Yes

Yes / Yes

Yes

Standard

PureSource 3®

2 SpillSafe®

1 SpillSafe®

1 Clear Hanging

1 Clear / 1 Clear

1 Clear

2 Two-Liter Clear

2 One-Gallon Clear

4 White / No

1 Flip-Out / 2 Wire

1 Plastic

No / Yes

Yes

16.5

9.5

Right Bottom Rear

Left Bottom Rear

120V / 60Hz / 15 or 20A

1.02

8.5

300 Lbs.

Side-by-Side Refrigerators

FGUS2632L P / E 26 Cu. Ft. Standard-Depth

Specifications

subject to change.

Standard-Depth Refrigerator - 26 Cu. Ft.

Gallery

Side-by-Side Refrigerator Specifications

•Product Shipping Weight (approx.) – 300 Lbs.

•Voltage Rating – 120V / 60 Hz / 15 or 20 Amps

•Connected Load (kW Rating) @ 120 Volts = 1.02 kW

(For use on adequately wired 120V, dedicated circuit having 2-wire

service with a separate ground wire. Appliance must be grounded

for safe operation.)

•Amps @ 120 Volts = 8.5 Amps

•Always consult local and national electric & plumbing codes.

•Floor should be level surface of hard material, capable of supporting

fully loaded refrigerator.

•When installing refrigerator adjacent to wall, cabinet or other appliance

that extends beyond front edge of unit, 20" minimum clearance

recommended to allow for optimum 120° to 180° door swing, providing

complete drawer / crisper access and removal. (Absolute 4-1/2"

minimum clearance will ONLY allow for 90° door swing which will

provide drawer / crisper access with restricted removal.)

•To ensure optimum performance, avoid installing in direct sunlight or

close proximity to range, dishwasher or other heat source.

•For proper ventilation, front grille MUST remain unobstructed.

•Recess electrical outlet when possible.

•Water recess on rear wall recommended to prevent water line damage.

•Water Pressure – Cold water line must provide between 30 and 100

pounds per square inch (psi).

•Copper tubing with 1/4" O.D. recommended for water supply line

with length equal to distance from rear of unit to household water

supply line plus 7 additional feet. Optional Water Supply Installation

Kits available.

•Adjustable front rollers to assist with door alignment.

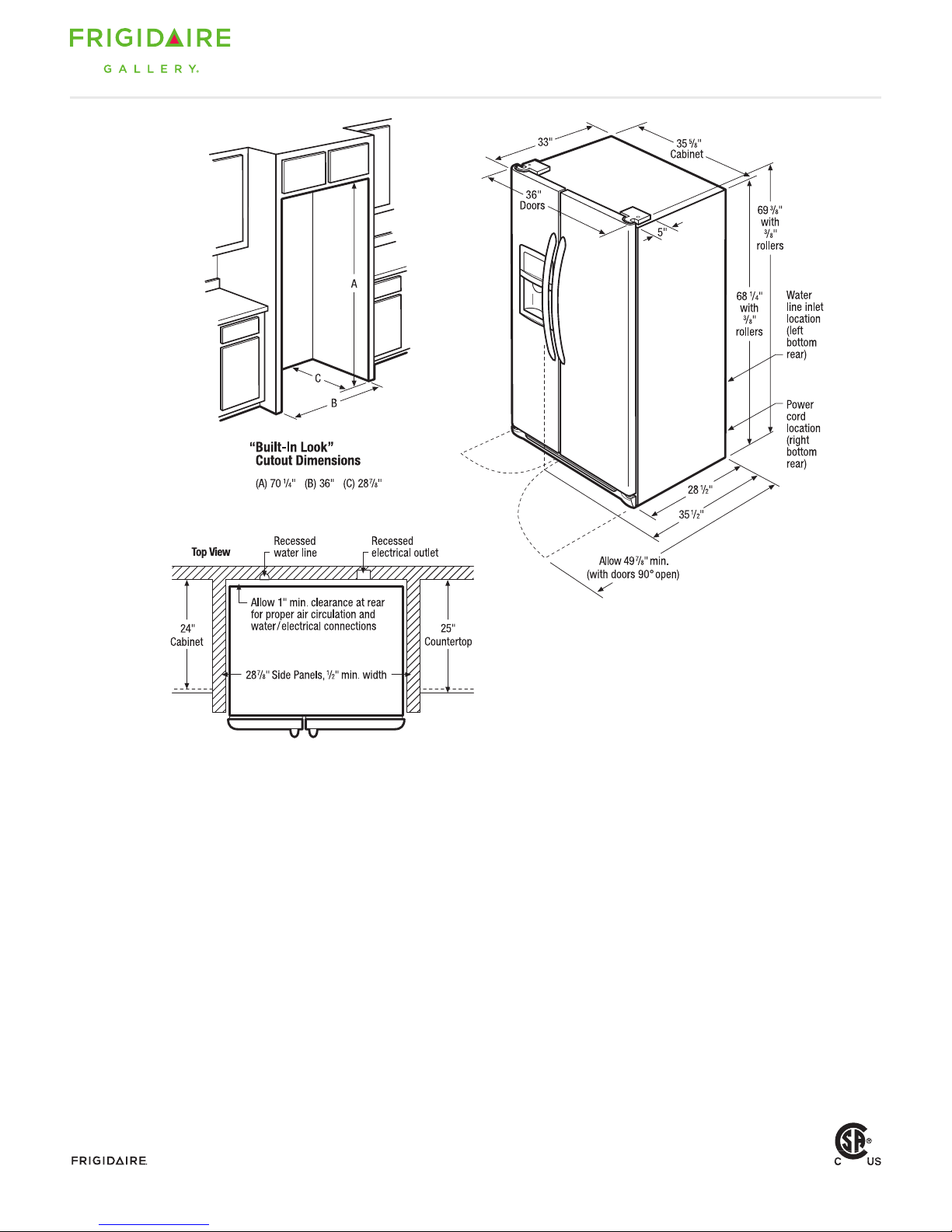

“Built-In Look” Specifications

•Minimum opening of 70-1/4" H x 36" W x 28-7/8" D required to allow

for ease of installation, proper air circulation, and plumbing / electrical

connections.

•Remove all wall / floor molding prior to installation.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Side-by-Side Refrigerators

FGUS2632L P / E 26 Cu. Ft. Standard-Depth

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front
