Frigidaire PLHS237ZC Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

PLHS237ZCB0 PLRS237ZC R134a Gallery white 115

MARKET

North America

Publication No.

5995391223

030528

-EN/SERVICE /DCS

357

SIDE BY SIDE

REFRIGERATOR

Model No.

PLHS237ZC

WIRING DIAGRAM - 240389610

OWNER’S GUIDE - 240389311

SERVICE DATA SHEET - 240389610

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

05/03 2

Publication No. PLHS237ZCB0

5995391223

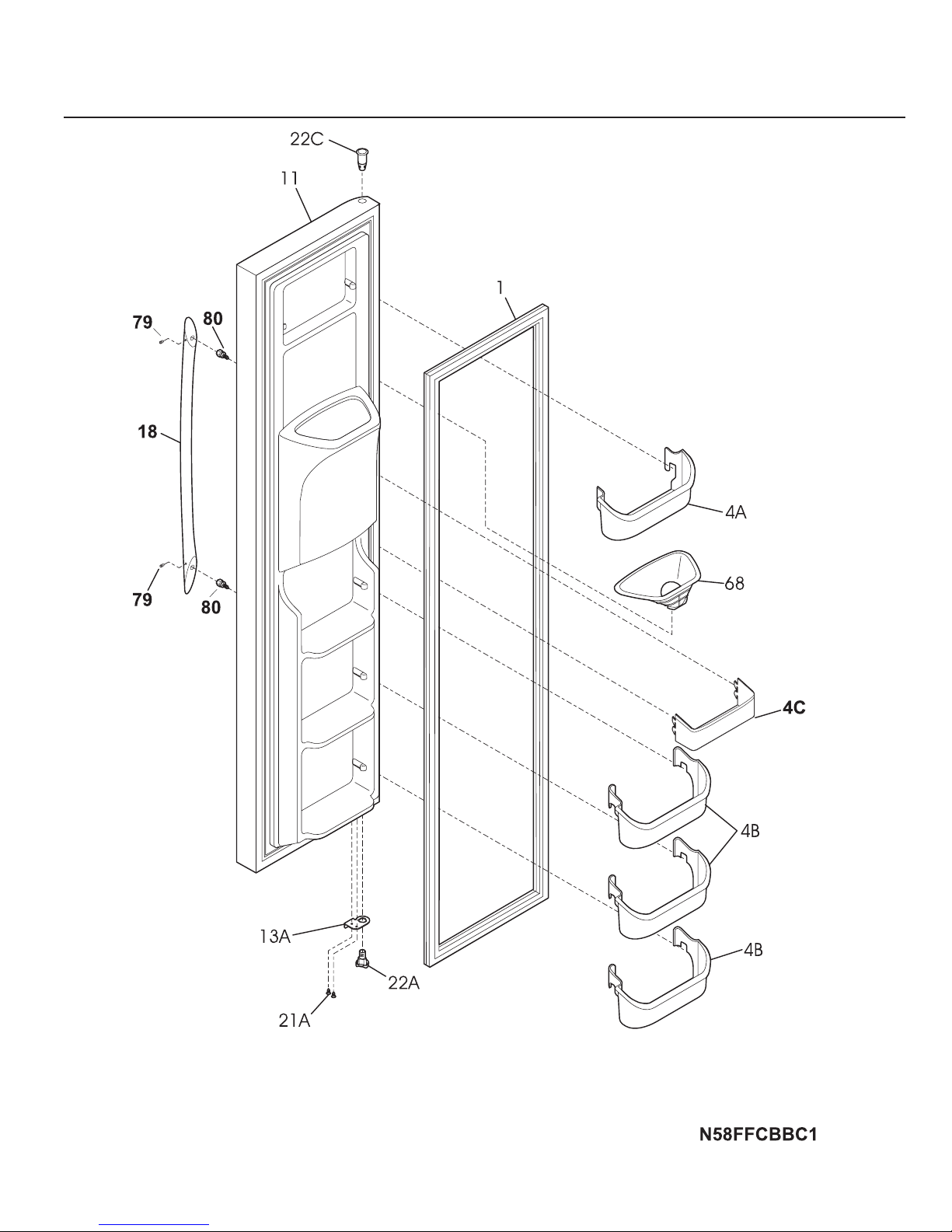

FREEZER DOOR

# = Fast-moving Parts 3 05/03

* = Non-Illustrated Parts

PLHS237ZCB0 Publication No.

5995391223

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 240390608 Gasket-frzr door,black ,magnetic

4A 240367301 Bin-door,frzr-upper

4B 240359001 Bin-door

4C 240358401 Bin-door,frzr-dispenser

11 240554226 Door-frzr,stainless steel ,complete assy

13A 240581906 Door Stop,black ,frzr

18 240536801 Handle-door,stainless steel ,with insert

21A 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

22A 240328202 Bearing-hinge,closer

22C 240328404 Bearing-hinge,black ,upper

68 240465801 Chute-ice

79 218755402 Screw-set,10-32 x 0.375

80 218755503 Screw-shoulder,#10 AB ,handle mounting

* 240470401 Connector-amp

* 240545101 Connector-water,straight

* 240552102 Harness-wiring,door

* 5303918256 Dispenser heater kit

* 218490900 Cleaner,stainless steel

05/03 4

Publication No. PLHS237ZCB0

5995391223

REFRIGERATOR DOOR

# = Fast-moving Parts 5 05/03

* = Non-Illustrated Parts

PLHS237ZCB0 Publication No.

5995391223

POS. NO PART NO DESCRIPTION

2 # 240390607 Gasket-refr door,black ,magnetic

4 240363702 Bin-door,2-liter

7 240338303 Door,dairy ,clear

12 240558801 Nameplate,aluminum

13 240581905 Door Stop,black ,ref

15 240451979 Door-refr,stainless steel ,complete assy

18 240536801 Handle-door,stainless steel ,with insert

21A 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

22 240328201 Bearing-hinge,closer

22B 240328403 Bearing-hinge,upper

27A 240396102 Retainer,tall bottle

49 240430313 Bin-door,gallon

79 218755402 Screw-set,10-32 x 0.375

80 218755503 Screw-shoulder,#10 AB ,handle mounting

* 218490900 Cleaner,stainless steel

REFRIGERATOR DOOR

05/03 6

Publication No. PLHS237ZCB0

5995391223

CABINET

# = Fast-moving Parts 7 05/03

* = Non-Illustrated Parts

PLHS237ZCB0 Publication No.

5995391223

POS. NO PART NO DESCRIPTION

10 240435901 Cover-air duct

10A 240475901 Cover-evap coil,lower

11 5303208309 Plug-hole,factory test

14 # 240505801 Switch,light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner,black ,(2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge,black

41 240358701 Grommet-shelf mtg,1.40" long

41* 240358801 Grommet-shelf mtg,.875" long

42 240578901 Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 Roller Assy,front ,(2)

45 241500301 Screw,hex washer head ,8-18AB x 0.500

47 240349402 Channel-shelf mtg,side ,(2)

58 218749600 Screw,#10 pan hd ,8-18 x .5

66 240504901 Cover-damper

66A 240505001 Damper-meat keeper

66B 240355901 Insulation-damper

66B* 240518802 Pin-push,push-in ,plastic

72 240324405 Grille/Kickplate,black

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

89 240326103 Cover,access ,system compt ,with label

89* 240345702 Screw,truss hd,drill ,#10-16 x 0 .500 ,#2 Pozi-drive

90 218249807 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw,hex washer hd ,1/4 x 7/8 ,hinge mtg

100 240423701 Support,crisper cover ,front ,(4)

100* 240350802 Support,crisper cover ,rear ,(4)

150 240368701 Guide-control bulb

* 218515401 Clip

* 240396801 Clamp,tube/wiring ,nylon ,black/natural

* 240479601 Plug,button ,cab liner holes

* 240481601 Shim-lower hinge

* 5303305345 Paint,touch-up ,black

CABINET

05/03 8

Publication No. PLHS237ZCB0

5995391223

SHELVES

# = Fast-moving Parts 9 05/03

* = Non-Illustrated Parts

PLHS237ZCB0 Publication No.

5995391223

POS. NO PART NO DESCRIPTION

2 240434603 Trim-basket

11 240350648 Shelf-freezer,glass ,lower

11A 240350647 Shelf-freezer,glass ,upper

15A 240436702 Light Bulb/Lamp,A-15 ,clear ,40 W ,120 V,miniature

16A 218906801 Socket-light/lamp

16A* 240323102 Harness-wiring

24 240355201 Shelf-"Spill-Safe",fixed ,(1)

24B 240350103 Shelf-"Spill-Safe",sliding ,(2)

25 240354502 Cover-crisper pan,upper

25* 240362101 Clip-slide,cover-crisper

25A 240354602 Cover-crisper pan,lower

26 240354717 Pan-crisper,upper

26* 240349801 Clip-slide,pan-crisper

26A 240351101 Control-humidity

27 240354818 Pan-crisper,lower

39 240367601 Trim-shelf,front

42 240356501 Track,meat pan hanger ,RH

42A 240349701 Hanger-meat pan,LH

42A* 240349901 Block-meat pan rail,LH

42A* 240350001 Spring-meat pan rail

47 240350613 Insert-pan cover,glass

47A 240350614 Insert-pan cover,glass

49 240564301 Basket-sliding

49B 240530503 Basket-sliding,upper ,full

51 240343002 Hanger-basket,RH

51A 240395502 Hanger-basket,RH

52 240343102 Hanger-basket,LH

52A 240395602 Hanger-basket,LH

62 240355518 Pan-meat

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

97 240545303 Water Tank Assy,coiled tubing ,front filter

100 240326301 Cover-water tank

101 218493100 Screw,hex washer head ,8-18AB x 1-3/4

109 240351301 Base-crisper light socket

120 240342902 Shelf-ice cream

123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438

126 218867405 Channel,auger mtg ,LH

126 218867406 Channel,auger mtg ,RH

136 240424501 Dispenser-can,white

140 240430501 Channel,wtr tube cover

* 240592238 Energy Guide

SHELVES

05/03 10

Publication No. PLHS237ZCB0

5995391223

CONTROLS
