Frigidaire FRT17L3F Manuel utilisateur

N05L00001.eps n05dbdbca1.eps N05BBAABA26.eps N05SADDCA21.eps

N05CBBBAC3.eps 240398801.eps 240398601.eps

Product No. FRT17L3FW0

Color white

Volts 115

Wiring Diagram 240398801

Owner's Guide 241694400

Market North America

Energy Guide 241613738

Service Data Sheet 240379018

Installation Instructions 240568301

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995474227

06/09/13

(EN/SERVICE/KHB)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT17L3F

Publication No: 5995474227 FRT17L3FW0

09/06 2

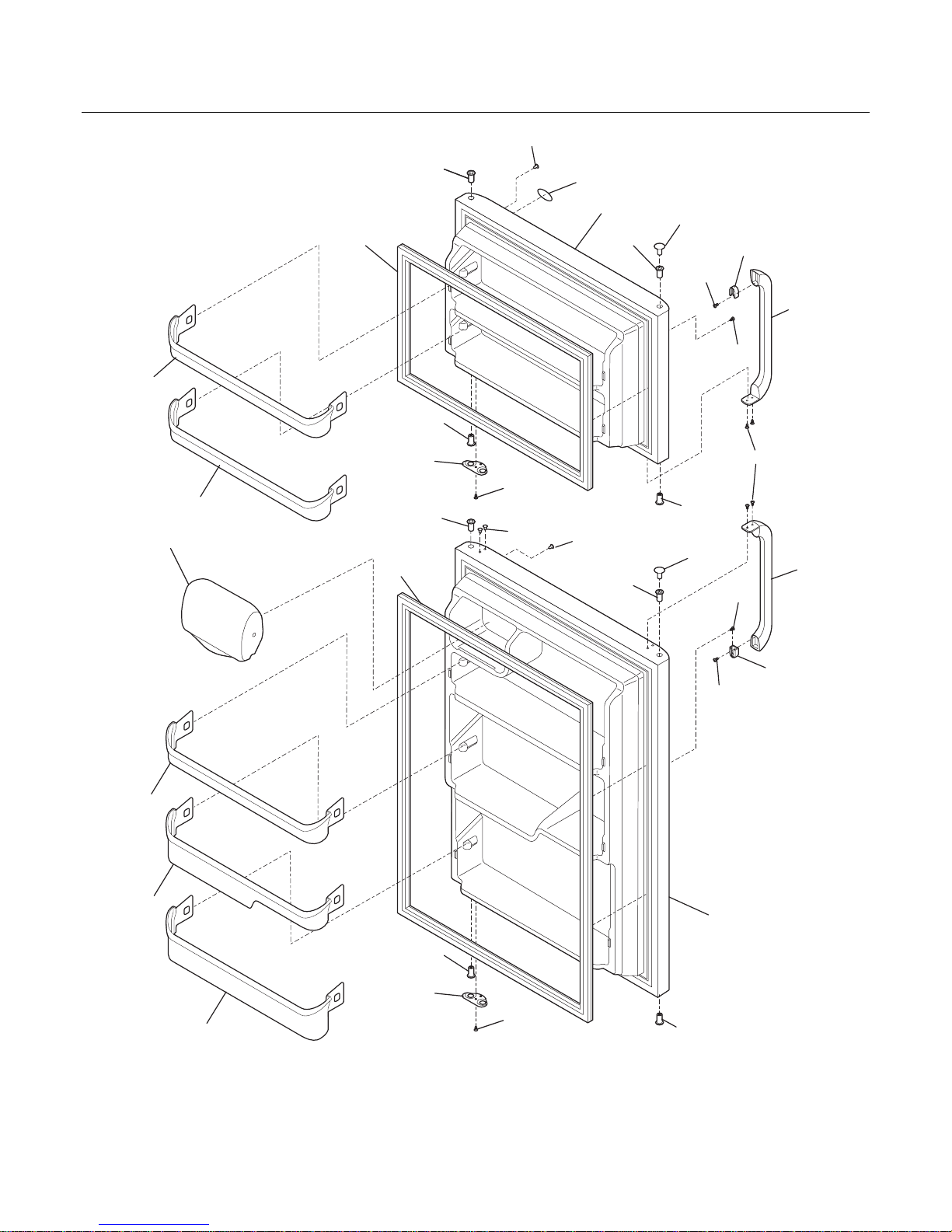

DOOR

48A

48B

13A

21C

N05DBDBCA1

21A

18A

21A

FRT17L3FW0 Publication No: 5995474227

# Functional Parts 3 09/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 240554113 Gasket-frzr door, white, magnetic

2 240542116 Gasket-refr door, white, magnetic

7 240337701 Door-dairy, w/o graphics, white

10 240381301 Plug-button, white, hinge brg hole, (2)

11 240420101 Door, frzr, white

12 240415201 Label-nameplate, white

13 240312403 Door Stop, white, ref

13A 240312404 Door Stop, white, frzr

14 240494001 Plug-button, white

15 240420201 Door, refr, white

18A 218428101 Handle-door, white, w/block & screw

21 240383406 Screw, truss hd quad, #10-16 x .500, zinc

21A 240521303 Screw, #10-16 x 1/2

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

48 240535101 Rack-door

48A 240383901 Bin-door, 2-liter

48B 240383801 Bin-door, gallon

49 240535001 Rack-door

73 218396701 Block-handle mtg, dovetail

74 215503203 Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995474227 FRT17L3FW0

09/06 4

CABINET

12A

35A 36

N05BBAABA26

43 21C

21C

FRT17L3FW0 Publication No: 5995474227

# Functional Parts 5 09/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 241652301 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 241652215 Cover-evap coil

10* 240568601 Seal-coil cover

10*# 241520701 Harness-wiring, freezer

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13 240369702 Motor-evap fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433204 Screw, hex washer head, 8-18 x 5/16

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 Plug-button, white, upr hinge holes

30 240357106 Bracket-lower hinge

34 240311303 Washer, hinge, nylon, (2)

35 240357006 Bracket-ctr hinge

35A 240336802 Spacer-hinge, center

36 240516402 Pin-center hinge

37 241611301 Trim-cabinet corner, white, (2)

38 240356901 Bracket, upper hinge

40 240354401 Cover-upper hinge, white

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241559604 Roller Assy, fixed, front LH

43* 241559603 Roller Assy, fixed, front RH

56 240516502 Pin-lower hinge

58 5304456287 Screw, hex washer head, 8-15A x 0.500

59 240442706 Screw-#10-32 X 3/4, zinc

72 240368301 Grille/Kickplate, white

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 218515401 Clip

* 240479601 Plug, button, cab liner holes

* 5303321319 Paint, touch-up, white

Publication No: 5995474227 FRT17L3FW0

09/06 6

SHELVES

FRT17L3FW0 Publication No: 5995474227

# Functional Parts 7 09/06

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 5303282284 Shelf-freezer, "table type"

12 241542001 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 241559801 Socket-light

17 240368001 Control Box

17* 240568607 Seal

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 241621501 Timer-defrost

23* 5304455649 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360902 Shelf, sliding, wire

25 240364706 Cover, crisper pan

26 240364501 Pan, crisper, (2)

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

* 241613738 Energy Guide

Publication No: 5995474227 FRT17L3FW0

09/06 8

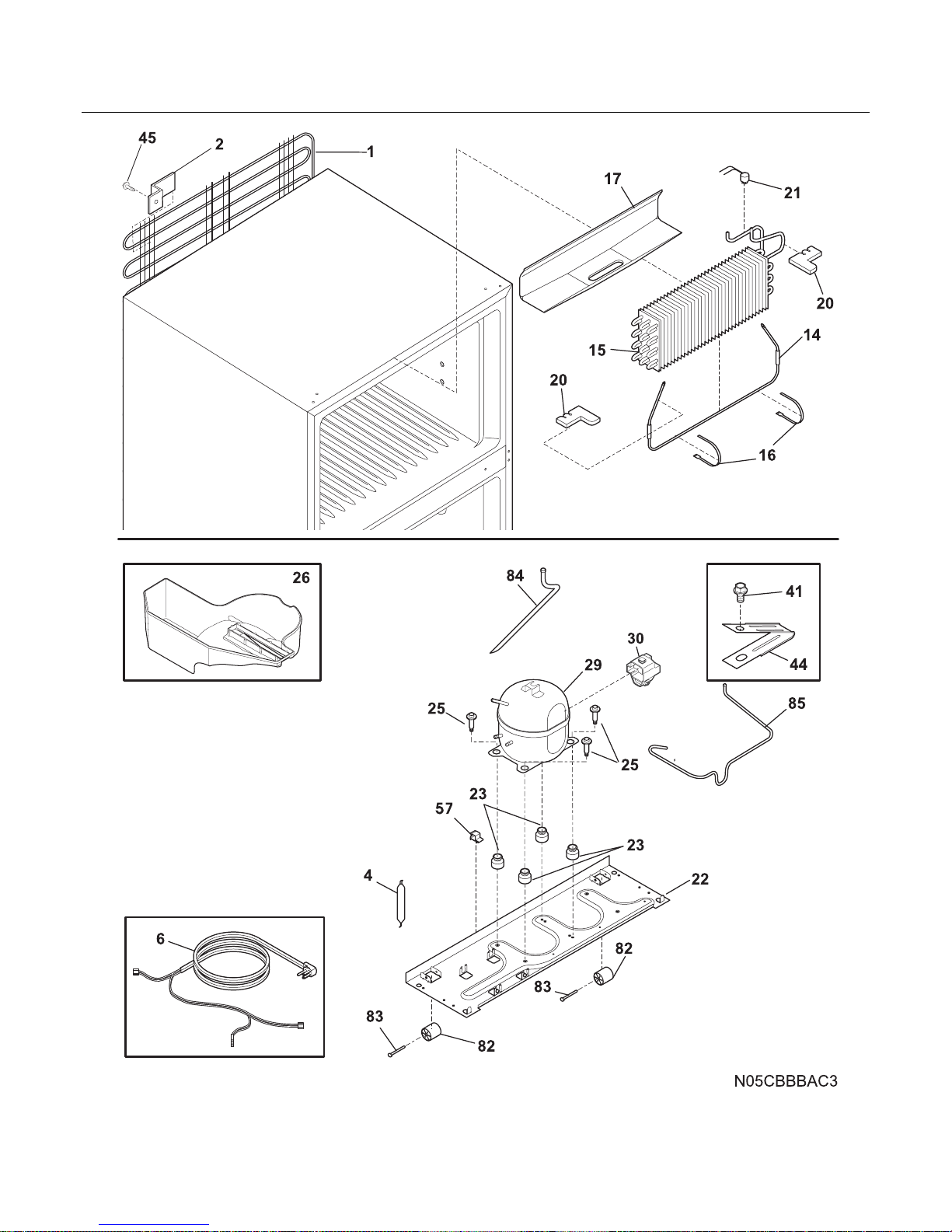

SYSTEM

FRT17L3FW0 Publication No: 5995474227

# Functional Parts 9 09/06

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 241674101 Condenser, static

1* 240405201 Grommet, rubber, black, cond tube/wire

1* 5303208866 Spacer, condenser tube, black

1* 5304406721 Spacer-cond tube, round, 5/8 OD x .81"lg

2 241658801 Bracket, condenser mtg

4 # 218944001 Drier-filter, R134a System

6 241678801 Harness-wiring, machine compt

6* 241520701 Harness-wiring, freezer

6* # 240388701 Wiring Harness, control box

14 # 240356213 Heater-defrost

15 5303918275 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551802 Trough-drain

20 241551901 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241665403 Base-compressor

22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)

26 240598501 Pan-defrost drain

26* 5303307896 Thermal Mastic

29 # 5303918326 Compressor, w/electricals

30 # 241667501 Relay Combo

41 240433204 Screw, hex washer head, 8-18 x 5/16

44 5304456288 Clamp-wiring harness, strain relief, galv steel

45 241500304 Screw, hex washer head, 8-18AB x 0.625

45* 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

57 240542601 Clip-wiring harness

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 241505701 Tube-drain, lower

85 241544301 Tube-connector, suction

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 5303918263 Heat Exchanger Kit, suction line

* 5303918234 Hot Tube Repair Kit, service

Publication No: 5995474227 FRT17L3FW0

09/06 10

WIRING SCHEMATIC
