Frigidaire GLGFS75D Manuel utilisateur

FGFL79D.eps T24G0013.eps T24B0004.eps T24V0026.eps T24T0026.eps T24D0005.eps

316417814d.eps 316417814s.eps

Product No. GLGFS75DBA GLGFS75DQA GLGFS75DSA

Series 30" f/s gas 30" f/s gas 30" f/s gas

Color black bisque white

Market North America North America North America

Wiring Diagram 316417814 316417814 316417814

Owner's Guide 316417100 316417100 316417100

Installation Instructions 316259336 316259336 316259336

Service Data Sheet 316417605 316417605 316417605

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995420238

04/10/28

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

GLGFS75D

Publication No: 5995420238 GLGFS75D

10/04 2

BACKGUARD

GLGFS75D Publication No: 5995420238

# Functional Parts 3 10/04

* Non-Illustrated Parts

BACKGUARD

Model Index: AGLGFS75D (GLGFS75DSA)

BGLGFS75D (GLGFS75DBA)

CGLGFS75D (GLGFS75DQA)

POS. NO PART NO. DESCRIPTION

1 316416100 A B C Shield, backguard, rear wall

2 316051600 A B C Shield, backguard, inner

2A 316235100 A B C Shield, top, inner

14 316022500 A B C Light/Lamp, indicator, 125 V

15 316411403 A - - Support, backguard, white, RH

15 316411405 - B - Support, backguard, black, RH

15 316411407 - - C Support, backguard, bisque, RH

15A 316411402 A - - Support, backguard, white, LH

15A 316411404 - B - Support, backguard, black, LH

15A 316411406 - - C Support, backguard, bisque, LH

19 316424191 A - - Panel, control, white

19 316424192 - B - Panel, control, black

19 316424193 - - C Panel, control, bisque

20 # 316418203 A B C Clock/Timer, electronic, ES300

20A 316419104 A - - Overlay, clock, white, ES300

20A 316419103 - B - Overlay, clock, black, ES300

20A 316419105 - - C Overlay, clock, bisque, ES300

24 316246000 A - - Switch, rocker, white, oven light

24 # 316246001 - B - Switch, rocker, black, oven light

24 316246002 - - C Switch, rocker, bisque, oven light

24C# 316114000 A - - Switch, speed bake, white

24C# 316114002 - B - Switch, speed bake, black

24C# 316114004 - - C Switch, convection, bisque

36 316220000 A - - Knob, top valve, white, (4)

36 316220002 - B - Knob, top valve, black, (4)

36 316220003 - - C Knob, top valve, bisque, (4)

40 316204920 A - - Panel, manifold, white

40 316204921 - B - Panel, manifold, black

40 316204922 - - C Panel, manifold, bisque

42 316416201 A - - Trim, extrusion, gray

42 316416200 - B - Trim, extrusion, black

42 316416202 - - C Trim, extrusion, tan

46 316040201 A B C Lens, indicator light, red

56 316230701 A B C Shield, backguard, inner

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B C Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 A B C Screw, 8-18 x 0.5, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

Publication No: 5995420238 GLGFS75D

10/04 4

BURNER

GLGFS75D Publication No: 5995420238

# Functional Parts 5 10/04

* Non-Illustrated Parts

BURNER

Model Index: AGLGFS75D (GLGFS75DSA)

BGLGFS75D (GLGFS75DBA)

CGLGFS75D (GLGFS75DQA)

POS. NO PART NO. DESCRIPTION

1 # 316219500 A B C Pipe, manifold

2 # 5303935236 A B C Valve, 14K burner, w/mtg screw

2A # 5303935235 A B C Valve, 5K burner, w/mtg screw

2B # 5303935232 A B C Valve, 9.5k/12k burner, w/mtg screw

2C # 5303935234 A B C Valve, 9.5K burner, w/mtg screw

* 316215600 A B C Screw, valve mtg., 1/4 - 20

3 # 316219004 A B C Wiring Harness, w/igntr switch

8 # 316135701 A B C Module, spark

10 # 316223400 A B C Burner, sealed, 14K

10A# 316206400 A B C Burner, sealed, 5K

10B# 316212300 A B C Burner, sealed, 12K

10C# 316212400 A B C Burner, sealed, 9.5K

11 # 316272000 A B C Ignitor/orifice assy., top burner, front, 14K, w/holder, tube

11A# 316237700 A B C Ignitor/orifice assy., top burner, rear, 5K, w/holder, tube

11B# 316237702 A B C Ignitor/orifice assy., top burner, rear, 12K, w/holder, tube

11C# 316237800 A B C Ignitor/orifice assy., top burner, front, 9.5K, w/holder, tube

13 # 316405300 A B C Tube, 3/8, aluminum, rgltr to manf, with fittings

14 # 316091706 A B C Regulator, pressure

14* 316021104 A B C Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

15 316091600 A B C Bracket, regulator

16 # 316405500 A B C Tube, valve to regul., 3/8

17 # 316404900 A B C Valve, safety

17* 08068018 A B C Shield, wire, safety valve

18 # 316404400 A B C Burner, oven

19 # 316428500 A B C Ignitor, oven burner

20 316401401 A B C Baffle, oven burner

21 5303013272 A B C Nut, hex head sems

22 # 316405400 A B C Tube, valve to mixer

23 # 316404300 A B C Burner, broiler

24 # 316409700 A B C Elbow, mixer

25 316401301 A B C Baffle, broil burner

26 # 316428600 A B C Ignitor, burner

26* 316401500 A B C Cover, broil Ignitor

37 316240600 A B C Screw, assy mtg, ignitor/orifice

44 316237900 A B C Orifice, top burner, 14K

44A 316237903 A B C Orifice, top burner, 5K

44B 316237901 A B C Orifice, top burner, 12K

44C 316237902 A B C Orifice, top burner, 9.5K

47 GRLP2 A B C LP Conversion Kit, w/instructions

47* 316248105 A B C Instructions, LP kit

* # 316253700 A B C Wiring Harness, ignitor module

* 5303271648 A B C Screw, wafer hd sq dr, 8-18AB x 0.5

Publication No: 5995420238 GLGFS75D

10/04 6

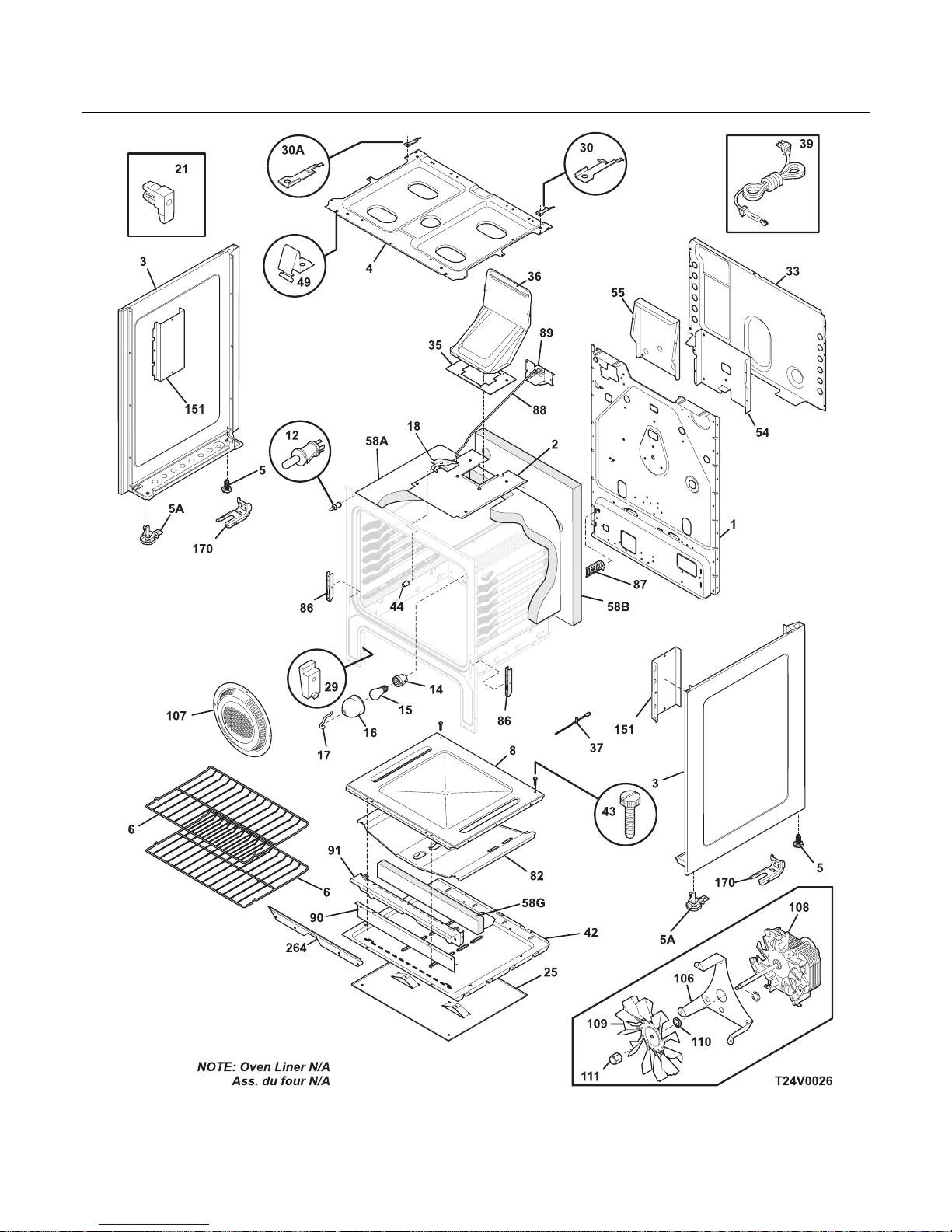

BODY

GLGFS75D Publication No: 5995420238

# Functional Parts 7 10/04

* Non-Illustrated Parts

BODY

Model Index: AGLGFS75D (GLGFS75DSA)

BGLGFS75D (GLGFS75DBA)

CGLGFS75D (GLGFS75DQA)

POS. NO PART NO. DESCRIPTION

1 316401601 A B C Back, main

2 316402201 A B C Shield, oven top

2* 316437100 A B C Brace, oven top

3 316400102 A - - Panel, bodyside, white, RH

3 316400103 A - - Panel, bodyside, white, LH

3 316400104 - B - Panel, bodyside, black, RH

3 316400105 - B - Panel, bodyside, black, LH

3 316400106 - - C Panel, bodyside, bisque, RH

3 316400107 - - C Panel, bodyside, bisque, LH

4 316201403 A B C Burner Box

5 316272900 A B C Screw, leveling, plastic, rear, (2)

5A 316407200 A B C Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 A B C Rack, oven

8 316400603 A B C Panel, oven bottom

12 # 316407101 A B C Switch, oven light/door

14 316116400 A B C Receptacle, oven light

15 5303013071 A B C Bulb/Lamp, oven light

16 08011086 A B C Lens, oven light, glass

17 316087500 A B C Retainer, lens

18 # 316405800 A B C Latch Assembly, oven door

21 316408000 A B C Clip, bodyside

25 316406200 A B C Shield, heat, lower

29 316407301 A B C Glide, drawer, front

30 316217700 A B C Bracket, hinge, RH, main top

30A 316217701 A B C Bracket, hinge, LH, main top

33 316402500 A B C Shield, rear wall

35 316116600 A B C Gasket, flue

36 316208901 A B C Flue

37 # 316217001 A B C Probe, oven temp

39 3202006 A B C Cord, electric power

42 316400703 A B C Shield, wool, lower

43 3131732 A B C Screw, 8-18 x 1.438, oven bottom

44 316246501 A B C Spacer, oven door

49 316234200 A B C Clip, maintop mtg, (2)

54 316404200 A B C Shield, heat

55 316404800 A B C Shield, flue

58A 316403700 A B C Insulation, oven wrapper

58B 316403600 A B C Insulation, oven back

58G 08067973 A B C Insulation, main front

82 316400801 A B C Shield, bake burner

82* 316432800 A B C Clip, wire

86 316407000 A B C Receptacle, hinge

86* 316418901 A B C Screw, trilobe, 10-32 x 5/16"

87 316401200 A B C Bracket, harness

88 316232700 A B C Rod, auto latch

89 # 316415400 A B C Motor, latch/lock

90 316401100 A B C Shield, main front

91 316401000 A B C Shield, front, burner

Publication No: 5995420238 GLGFS75D

10/04 8

BODY

GLGFS75D Publication No: 5995420238

# Functional Parts 9 10/04

* Non-Illustrated Parts

BODY

Model Index: AGLGFS75D (GLGFS75DSA)

BGLGFS75D (GLGFS75DBA)

CGLGFS75D (GLGFS75DQA)

POS. NO PART NO. DESCRIPTION

106 316404100 A B C Bracket, motor mtg.

107 316026701 A B C Cover, fan

108# 316415700 A B C Motor, convection

109 316136400 A B C Blade, fan

110 316136500 A B C Washer, fan motor

111 316136600 A B C Nut, fan retainer

151 316404600 A B C Shield, bodyside

170 5303935180 A B C Anti-tip Kit, w/bracket, screw

170* 316107200 A B C Bracket, anti-tip

170* 316112500 A B C Template, anti-tip

170* 316116000 A B C Screw, concrete, 1.75", anti-tip brkt

264 316404700 A B C Bracket, air dam

* 316416601 A B C Harness, wiring, main

* 316231800 A B C Cover, hole, conv. element

* 5303305324 A - - Paint, touch-up, white

* 5303305345 - B - Paint, touch-up, black

* 5304414035 - - C Paint, touch-up, bisque

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B C Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

* 316021132 A B C Screw, 8-18 X 11/16, black

* 316089500 A B C Screw, 10-16 x .486

* 5303271648 A B C Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 A B C Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995420238 GLGFS75D

10/04 10

TOP/DRAWER
