Frigidaire GLED388A Manuel utilisateur

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

GLED388ASA GLED388A 37856397H1411 white North America

Publication No.

5995363867

020115

-EN/SERVICE /ECL

377

ELECTRIC

RANGE

Model No.

GLED388A

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318045064

OWNER’S GUIDE - # 318200823

TIMER INSTRUCTION SHEET - # 318200161

INSTALLATION INSTRUCTIONS - # 318201602

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

01/02 2

Publication No. GLED388ASA

5995363867

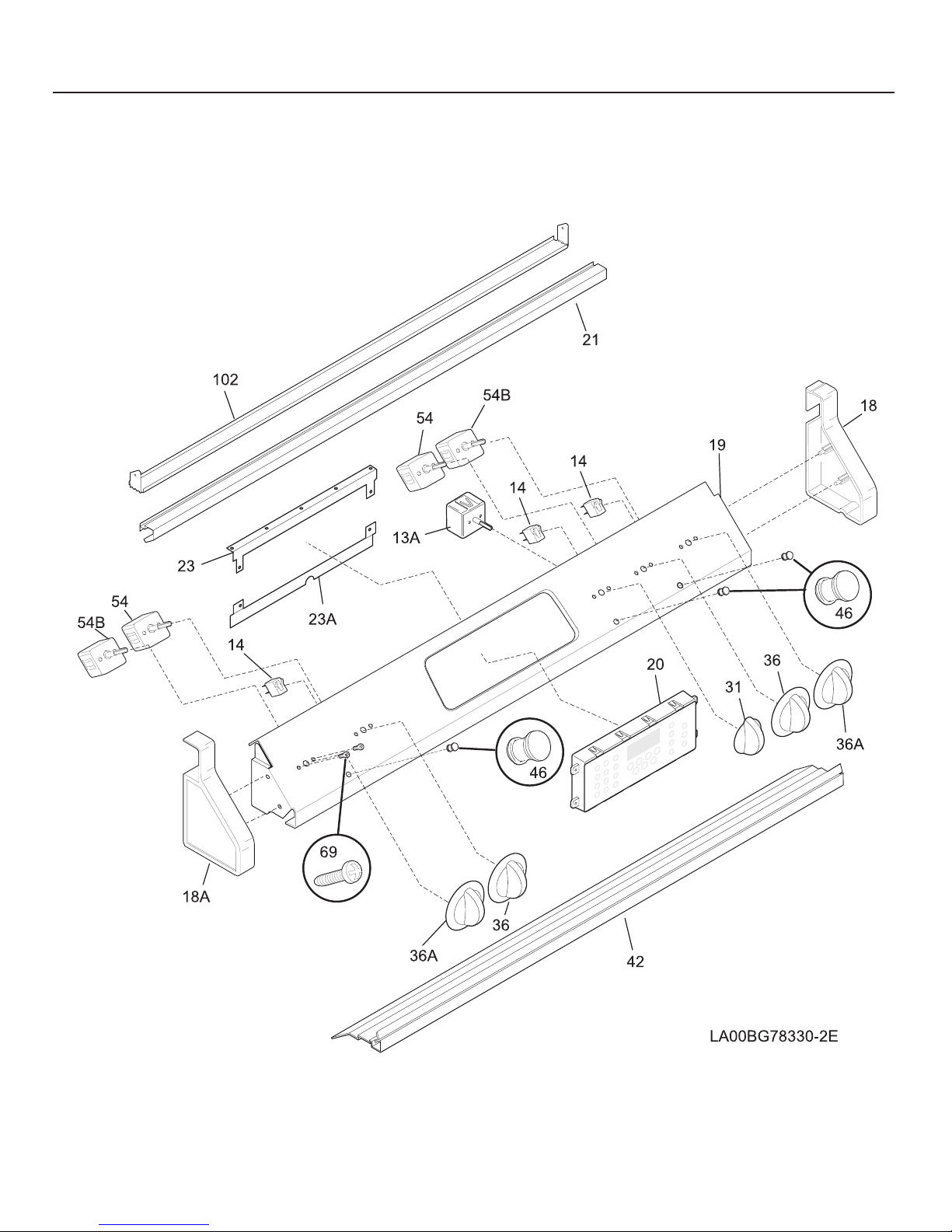

BACKGUARD

# = Functional Parts 3 01/02

* = Non-Illustrated Parts

GLED388ASA Publication No.

5995363867

BACKGUARD

POS. NO PART NO DESCRIPTION

13A# 316095500 Switch,infinite ,drawer/zone ,warmer

14 # 318076700 Light,indicator ,125v

18 5303304668 End Cap,white ,RH

18A 5303304671 End Cap,white ,LH

19 318182917 Panel,control mtg. ,white

20 # 318183621 Clock/Timer,electronic ,white

21 318027804 Trim,backguard ,white ,top

23 318015042 Bracket,clock mtg ,upper

23A 318015043 Bracket,clock mtg ,lower

31 318197600 Knob,warmer ,white

36 318196603 Knob,control ,white

36A 318196600 Knob,dual control ,white

42 318106924 Trim,backguard ,white ,bottom

46 5303297274 Lens,indicator light

54 # 318120501 Switch,surface unit

54B# 318191002 Switch,infinite ,dual

69 5303323134 Screw,switch mtg. ,8-32 x 0.188

102 318055601 Bracket,mounting

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

01/02 4

Publication No. GLED388ASA

5995363867

BODY

# = Functional Parts 5 01/02

* = Non-Illustrated Parts

GLED388ASA Publication No.

5995363867

BODY

POS. NO PART NO DESCRIPTION

1 318066402 Panel,main back

1A 318070910 Panel,main back ,upper

2A 318108600 Shield,oven top

3 318159800 Panel,body side ,upper

6 5303310522 Rack,shelf ,30" ,oven

6A 5303311206 Shelf,broiler pan

9 5303317977 Pan,broiler

10 5303317976 Insert,broiler pan

12 # 318089911 Switch,light

14 # 5308011085 Receptacle,oven light

15 # 3201908 Light,oven

16 3201911 Cover,oven light ,glass

17 5304400195 Retainer,light cover

25 318179107 Panel,heat shield ,sm oven bottom

37 # 318198500 Probe,oven temp

41 5303310526 Cover,hinge cutout

54 5303310514 Housing,oven light

56 318002712 Trim,oven front ,white

58A 318133744 Insulation,oven wrapper

58B 318133769 Insulation,oven back

59 318072502 Tube,oven vent

62 # 5303310518 Terminal Block

62* 5303308427 Nut,hex ,10-32

62* 5303310517 Plate,ground strap

66 # 5303310513 Element,broil ,2750 W

67 # 5303310512 Element,bake ,3000 W

68 5304403015 Support,element hanger

70 318194400 Shield,insulation

70A 318199801 Deflector

71 5303310515 Panel,wiring cover ,rear

76 318124100 Front,oven

80 318192400 Spring,oven

81 5303320846 Plate,oven mtg

83 318089609 Liner,oven

86 5303310524 Receptacle,hinge

87 318111800 Plate,cord set mtg

88 318118904 Rod,latch

89 # 318095937 Motor,latch assy ,w/brkt & switch

89*# 318120710 Switch,cooktop shutoff

103 5303300213 Trim,base ,white

107 318119600 Cover,fan

108# 318073012 Motor,blower

109 316136400 Blade,fan

111 316136600 Nut,fan retainer

114 318175100 Plate,filler

125# 316234601 Motor,fan

127 5303310542 Adapter,vent tube ,with converter

128 5303311163 Bushing

129 5303311164 Spring

141# 5303284446 Switch,thermal cutout

142 318123901 Deflector

161# 318050710 Element,convection ,2500 W

177 5303324040 Gasket,vent

217 316042300 Plate,warning

218 318054700 Plate,anti-tip

219# 318005000 Thermostat,safety ,for fan

220 5304401475 Bracket

221 5304401476 Bracket

263 316136500 Washer,fan motor

* 5303311207 Tube,protector

* # 318078515 Box & wires assy

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

* 5303307980 Screw,8-32 x 0.437

01/02 6

Publication No. GLED388ASA

5995363867

TOP

# = Functional Parts 7 01/02

* = Non-Illustrated Parts

GLED388ASA Publication No.

5995363867

TOP

POS. NO PART NO DESCRIPTION

6 318111103 Support,element ,(2)

15 # 316010205 Element,surface ,6" ,1200 W ,radiant

15A# 318177900 Element,bridge

15B# 316224300 Element,dual ,9"/6" ,surface ,2100W/700W,radiant

15C# 316098202 Element,warmer zone ,100W

16 318079552 Main Top,glass ,white

51 # 318044820 Light,indicator ,red

52 5303317177 Spring,element mtg.

53 318125931 Bracket,indicator light ,hot surface

55 5303317178 Spacer,element

56 5303317179 Screw,element ,6 x 3/4

* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

01/02 8

Publication No. GLED388ASA

5995363867

DOOR

# = Functional Parts 9 01/02

* = Non-Illustrated Parts

GLED388ASA Publication No.

5995363867

DOOR

POS. NO PART NO DESCRIPTION

1 318043100 Bracket,trim ,handle ,(2)

1A 318180310 Bracket,trim mtg

2 318180312 Bracket,upper trim mtg

3 318187810 Trim,door ,white ,RH side

3A 318187811 Trim,door ,white ,LH side

3B 318176646 Trim,door ,white ,top

4 318187715 Panel,door front assy ,glass ,white ,with lower trim

6 318056802 Shield,insulation

7 318133754 Insulation,oven door

9 318157011 Liner,door

10 5303308458 Screw,10-24 x 1/4

12 318053103 Gasket,oven door seal

16 318041603 Panel,glass ,inner oven door

17 318042102 Spacer,glass

18 318053001 Seal,window

23 318024700 Hinge,oven door

31 5303310536 Latch,oven door

39 316108800 Handle,door ,white ,oven

56 5303300265 Screw,8-18 x 0.500 ,chrome

64 5304417120 Tape,0.762 m ,Neoprene

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

* 5303307980 Screw,8-32 x 0.437

01/02 10

Publication No. GLED388ASA

5995363867

WIRING DIAGRAM
