FACTORY PARTS CATALOG

GAS RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGFB64CJSA FGFB64CJ WHITE/WHITE USA

FGFB64CJSB FGFB64CJ WHITE/WHITE USA

FGFB64CJSC FGFB64CJ WHITE/WHITE USA

FGFB64CJSD FGFB64CJ WHITE/WHITE USA

Publication No.

5995343935

000925

-EN/SERVICE /CML

369

WIRING DIAGRAM # - 316002168

OWNER’S GUIDE # - 316135902

INSTALLATION GUIDE # - 316105822 GAS - RANGE

FGFB64CJSA

FGFB64CJSB

FGFB64CJSC

FGFB64CJSD

09/00 2

Publication number

5995343935 FGFB64CJSA,FGFB64CJSB,FGFB64CJSC,FGFB64CJSD

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FGFB64CJSA,FGFB64CJSB,FGFB64CJSC,FGFB64CJSD 5995343935

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FGFB64CJ (FGFB64CJSA)

B = FGFB64CJ (FGFB64CJSB)

C = FGFB64CJ (FGFB64CJSC)

D = FGFB64CJ (FGFB64CJSD)

POS. NO PART NO DESCRIPTION

* 316021105 A B C D Screw,hex head cup pt ,8-18 x 0.375 ,

black,back/bodyside

* 316021108 A B C D Screw,cup pt ,8-18 x 0.375 ,chrome ,

hinge,ind light,manifold panel

* 316021110 A B C D Screw,semi gimlet ,8-18 x 0.500 ,black

1 316028700 A B C D Shield-backguard,galv ,rear wall

2 316051600 A B C D Shield-backguard,inner

2A 316053802 A B C D Shield-backguard,inner/top

11 316083722 A B C D Trim-wrapper,white ,textured,w/hole

15 316023108 A B C D Support-backguard,RH

15A 316023109 A B C D Support-backguard,LH

19 316100585 A B C D Panel-backguard

20 316131600 - - C D Clock/Timer,electronic

20 # 316101000 A B - - Clock/Timer,electronic

20* 316101502 A B C D Overlay-clock,white

23 316100301 A B C D Bracket-timer

24 # 316118101 A B C D Switch-oven light,rocker ,white

36 316109513 A B C D Knob-top valve,white

40 316009285 A B C D Panel-manifold,white

42 316055201 A B C D Trim-vent,chrome

56 316074907 A B C D Deflector-flue, black

09/00 4

Publication number

5995343935 FGFB64CJSA,FGFB64CJSB,FGFB64CJSC,FGFB64CJSD

CAUTION: Use the part number on all orders, not the position number.

BURNER

# - Fast Moving Parts

* - Non Illustrated Parts 5 09/00

Publication number

FGFB64CJSA,FGFB64CJSB,FGFB64CJSC,FGFB64CJSD 5995343935

CAUTION: Use the part number on all orders, not the position number.

BURNER

A = FGFB64CJ (FGFB64CJSA)

B = FGFB64CJ (FGFB64CJSB)

C = FGFB64CJ (FGFB64CJSC)

D = FGFB64CJ (FGFB64CJSD)

POS. NO PART NO DESCRIPTION

* 316048200 A B C - Screw-,hex washer head ,1/4-20 x 0.31 ,w/gasket

* 316134300 ---D Screw-valve mounting

* 5303271648 A B C D Screw,wafer hd sq dr ,8-18AB x 1/2 ,burner box

1 316113801 A B C - Manifold-pipe

1 316134501 ---D Manifold-pipe

2 # 316127500 A B C - Valve-top burner,9K

2 # 316134100 ---D Valve-top burner,9K

3 # 316103600 A B C D Switch-ignitor

4 # 316059612 A B C D Tube-burner,red ,RF

5 # 316059613 A B C D Tube-burner,green ,LF

6 # 316059614 A B C D Tube-burner,nat. ,RR

7 # 316059615 A B C D Tube-burner,black ,LR

8 # 316135701 A B C D Spark Module

8* 316001824 A B C D Harness-ignitor

10 # 5303935025 A B C D Burner Assy-top,sealed ,small ,9000 BTU

11 316011200 A B C D Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B C D Tube,aluminum ,rgltr to manf ,with fittings

14 # 316091706 A B C D Regulator-pressure

14* 316021104 A B C D Screw-regulator/brkt, hex , 8-18 x 3/8 ,nick, 3

15 316091600 A B C D Bracket-regulator

16 # 316065003 A B C D Tube-valve to regulator,3/8

17 # 5303208499 A B C D Valve-safety,dual

18 # 3131290 A B C D Burner-oven

19 316119301 A B C D Ignitor-oven

20 3131284 A B C D Baffle-oven burner

21 5303013272 A B C D Nut, hex head sems

22 # 316065002 A B C D Tube-valve to mixer

23 # 08067935 A B C D Burner-broiler

24 # 316070400 A B C D Mixer Elbow

25 5303210379 A B C D Baffle-broiler

26 316119302 A B C D Ignitor-broil

37 316069301 A B C D Screw-burner mtg

44 5303210090 A B C D Orifice-top burner,small

45 316011100 A B C D Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B C D Plate-burner tube

47 # 5303286386 A B C D LP Conversion Kit

09/00 6

Publication number

5995343935 FGFB64CJSA,FGFB64CJSB,FGFB64CJSC,FGFB64CJSD

CAUTION: Use the part number on all orders, not the position number.

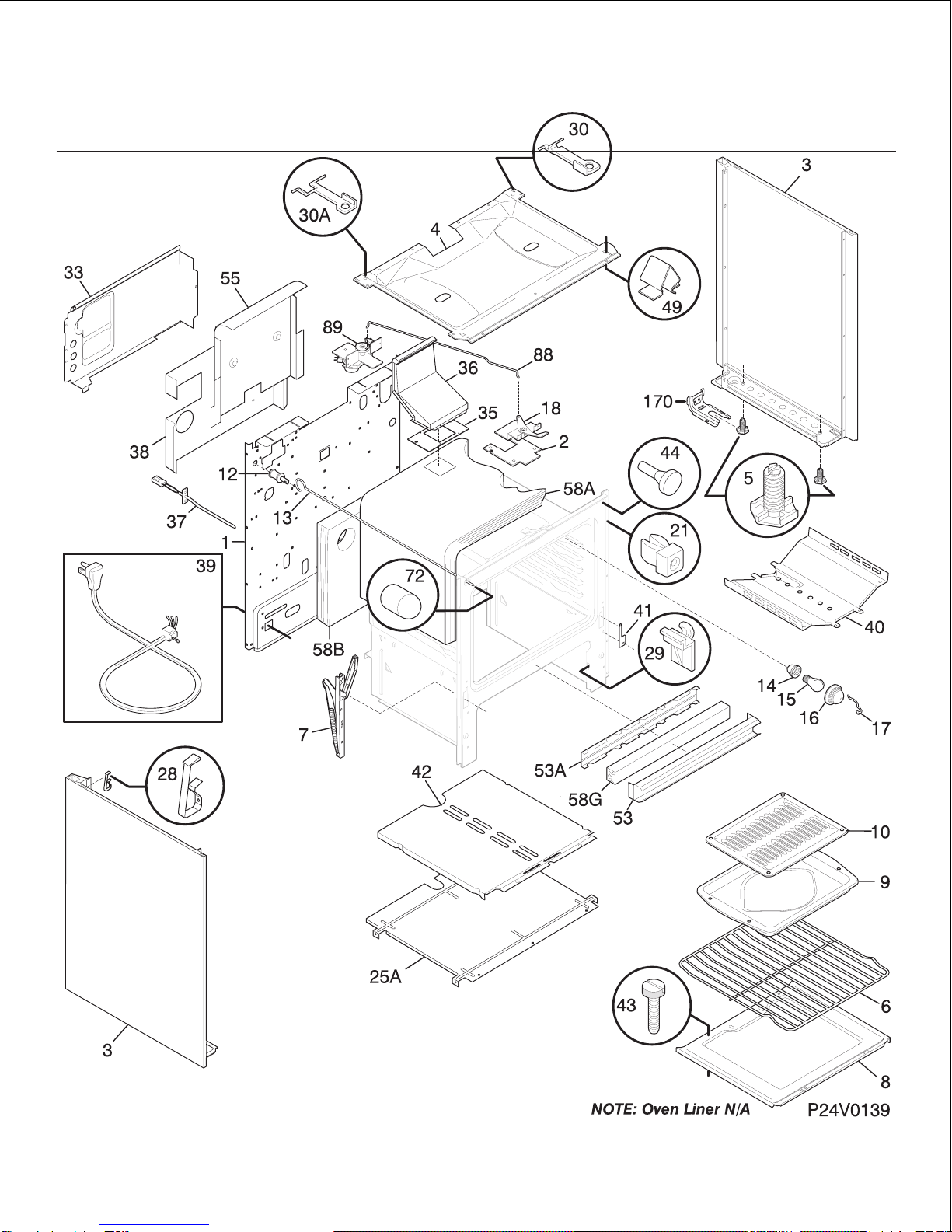

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 09/00

Publication number

FGFB64CJSA,FGFB64CJSB,FGFB64CJSC,FGFB64CJSD 5995343935

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FGFB64CJ (FGFB64CJSA)

B = FGFB64CJ (FGFB64CJSB)

C = FGFB64CJ (FGFB64CJSC)

D = FGFB64CJ (FGFB64CJSD)

POS. NO PART NO DESCRIPTION

* 316001632 A B C D Wiring Harness,chassis

* 316021105 A B C D Screw,hex head cup pt ,8-18 x 0.375 ,

black,back/bodyside

* 316021108 A B C D Screw,cup pt ,8-18 x 0.375 ,chrome ,

hinge,ind light,manifold panel

* 08067757 A B C D Cover Plate

1 316029416 A B C D Back-main

2 3131314 A B C D Shield-oven top

3 316081034 A B C D Panel-bodyside,white ,RH

3 316081035 A B C D Panel-bodyside,white ,LH

4 316011917 A B C D Burner Box,with hole

5 316129200 A B C D Screw-leveling,plastic ,with stop

6 316067902 A B C D Rack-oven

7 316007002 A B C D Hinge-oven door,(2)

8 5303212540 A B C D Panel-oven bottom

8* 316064600 A B C D Support-oven bottom

9 316081900 A B C D Pan-broiler

10 316082000 A B C D Insert-broiler pan

12 # 316027701 A B C D Switch-oven light

13 316026800 A B C D Rod-light switch /door

14 316116400 A B C D Socket-light/lamp,oven

15 5303013071 A B C D Light Bulb/Lamp

16 08011086 A B C D Lens-light/lamp, glass , oven

17 316087500 A B C D Retainer-lens

18 # 316036300 A B C D Latch-door

21 3014099 A B C D Spacer-bodyside, (8)

25A 5303288580 A B C D Shield-bake lower

28 3011813 A B C D Clip-wire, bodyside

29 3051162 A B C D Glide-drawer,front

30 316059200 A B C D Bracket-main top,RH

30A 316059201 A B C D Bracket-main top,LH

33 5303288495 A B C D Shield-rear wall

35 316116600 A B C D Gasket-flue

36 316133002 A B C D Flue

37 # 316111202 A B C D Probe-oven temp

38 316051700 A B C D Shield-heat

39 3202006 A B C D Cord-electric power

40 3200836 A B C D Shield-heat baffle

40* 5303288570 A B C D Screw-heat shield, hd shldr sqdr ,8-18 X 1/2

41 3131570 A B C D Cover-hinge cutout

42 5303288578 A B C D Shield-bake burner

43 3131732 A B C D Screw-oven bottom, 8-18 x 1.438

44 3131903 A B C D Bumper-door/drawer, rubber

49 3051124 A B C D Clip-spring mtg

53 5303288579 A B C D Shield-main front

53A 08067992 A B C D Shield-insulation

55 316107800 A B C D Shield-flue

58A 316047708 A B C D Insulation, 2" ,oven wrapper

58B 316054200 A B C D Insulation, 2" ,oven back

58G 08067973 A B C D Insulation,main front

BODY

09/00 8

Publication number

5995343935 FGFB64CJSA,FGFB64CJSB,FGFB64CJSC,FGFB64CJSD

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 9 09/00

Publication number

FGFB64CJSA,FGFB64CJSB,FGFB64CJSC,FGFB64CJSD 5995343935

CAUTION: Use the part number on all orders, not the position number.

72 5303285692 A B C D Cover-light/switch rod

88 316026400 A B C D Rod-latch,auto

89 # 316028101 A B C D Motor-latch/lock

170 5303935180 A B C D Anti-tip Kit,w/bracket,screw

170* 316107200 A B C D Bracket,anti-tip

170* 316112500 A B C D Template, Anti-tip bracket

170* 316116000 A B C D Screw,concrete tpg ,1.75 inch ,

anti-tip brkt

09/00 10

Publication number

5995343935 FGFB64CJSA,FGFB64CJSB,FGFB64CJSC,FGFB64CJSD

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER
