Frigidaire FGF363MXC Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR MARKET

FGF363MXCCA FGF363MXC 30" f/s gas stainless North America

Publication No.

5995390449

030512

-EN/SERVICE /ECL

369

GAS

RANGE

Model No.

FGF363MXC

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - # 316255216

SERVICE DATA SHEET - # 316218504

OWNER’S GUIDE - # 316257503

INSTALLATION INSTRUCTIONS -# 316259315

05/03 2

Publication No. FGF363MXCCA

5995390449

BACKGUARD

# = Fast-moving Parts 3 05/03

* = Non-Illustrated Parts

FGF363MXCCA Publication No.

5995390449

BACKGUARD

POS. NO PART NO DESCRIPTION

1 316239900 Shield,backguard ,rear wall

2 316051600 Shield,backguard ,inner

2A 316235100 Shield,top ,inner

15 316220216 Support,backguard ,black ,RH

15A 316220217 Support,backguard ,black ,LH

19 316232648 Panel,backguard ,black

20 # 316207500 Clock/Timer,electronic ,ES300

20A 316220805 Overlay,clock ,black ,ES300

23 316220900 Bracket,clock mtg

4 # 316246001 Switch,rocker ,black ,oven light

36 316220002 Knob,top valve ,black ,(4)

40 316204912 Panel,manifold ,black

42 316270600 Trim,extrusion ,black

56 316230701 Shield,backguard ,inner

* 218490900 Cleaner,stainless steel

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

05/03 4

Publication No. FGF363MXCCA

5995390449

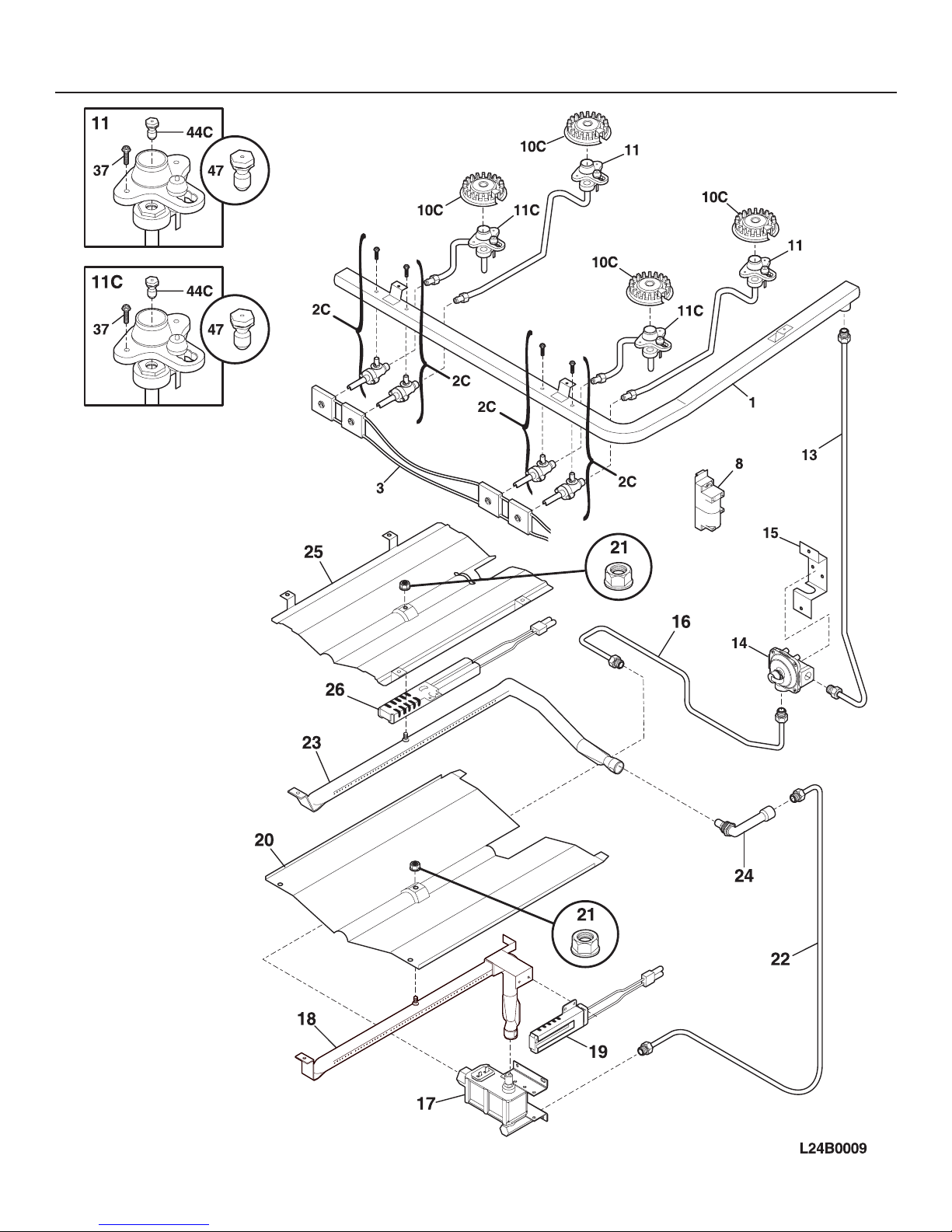

BURNER

# = Fast-moving Parts 5 05/03

* = Non-Illustrated Parts

FGF363MXCCA Publication No.

5995390449

BURNER

POS. NO PART NO DESCRIPTION

1 # 316204000 Pipe,manifold

2C # 5303935213 Valve,9.5K top burner ,w/mtg screw

* 316134300 Screw,10-24 ,valve mounting

3 # 316219004 Wiring Harness,w/igntr switch

8 # 316135701 Module,spark

10C# 316212400 Burner,sealed ,9.5K

11 # 316237701 Ignitor/orifice assy.,top burner ,rear ,9.5K,w/holder ,tube

11C# 316237800 Ignitor/orifice assy.,top burner ,front ,9.5K,w/holder ,tube

13 # 316207000 Tube,3/8 ,aluminum ,rgltr to manf ,with fittings

14 # 316091706 Regulator,pressure

14* 316021104 Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt

15 316091600 Bracket,regulator

16 # 316065003 Tube,valve to regul. ,3/8

17 # 5303208499 Valve,safety ,dual

17* 08068018 Shield,wire ,safety valve

18 # 316269000 Burner,oven

19 # 5303935066 Ignitor,oven kit ,w/nut & instr

20 3131284 Baffle,oven burner

21 5303013272 Nut,hex head sems

22 # 316065002 Tube,valve to mixer

23 # 08067935 Burner,broiler

24 # 316070400 Elbow,mixer

24* 316113400 Spacer,mixer elbow

25 5303210379 Baffle,broiler

26 # 316119302 Ignitor,broiler

37 316240600 Screw,assy mtg ,ignitor/orifice

44C 316237902 Orifice,top burner ,9.5K

47 GRLP1 LP Conversion Kit,w/instructions

47* 316248105 Instructions,LP kit

* # 316253700 Wiring Harness,ignitor module

05/03 6

Publication No. FGF363MXCCA

5995390449

BODY

# = Fast-moving Parts 7 05/03

* = Non-Illustrated Parts

FGF363MXCCA Publication No.

5995390449

BODY

POS. NO PART NO DESCRIPTION

1 316029416 Panel,main back

2 3131314 Shield,oven top

3 316216404 Panel,bodyside ,black ,RH

3 316216405 Panel,bodyside ,black ,LH

3* 316021132 Screw,bodyside ,8-18 X 11/16 ,black

4 316201402 Burner Box

5 316129200 Screw,leveling ,plastic ,with stop

6 316067902 Rack,oven

7 316216500 Hinge,oven door ,RH

7A 316216501 Hinge,oven door ,LH

8 5303300701 Panel,oven bottom

8* 316064600 Support,oven bottom

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

12 # 316209901 Switch,oven light/door

14 316116400 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

16 08011086 Lens,oven light ,glass

17 316087500 Retainer,lens

18 # 316213900 Latch,oven door

21 3014099 Spacer,bodyside

25A 5303288580 Shield,heat ,lower

28 3011813 Clip,wire ,bodyside

29 3051162 Glide,drawer ,front

30 316217700 Bracket,hinge ,RH ,main top

30A 316217701 Bracket,hinge ,LH ,main top

33 316121001 Shield,lower wire ,rear wall

35 316116600 Gasket,flue

36 316133002 Flue

37 # 316233900 Probe,oven temp

38 316051700 Shield,heat

39 3202006 Cord,electric power

40 3200836 Shield,heat baffle

41 316233400 Cover,hinge cutout ,RH

41A 316233500 Cover,hinge cutout ,LH

42 5303288578 Shield,bake burner

43 3131732 Screw,8-18 x 1.438 ,oven bottom

44 316246500 Spacer,oven door

49 316234200 Clip,maintop mtg ,(2)

53 5303288579 Shield,main front

53A 08067992 Shield,insulation ,front frame

55 316107800 Shield,flue

58A 316047708 Insulation,2" ,oven wrapper

58B 316218303 Insulation,oven back

58G 08067973 Insulation,main front

88 316232700 Rod,auto latch

89 # 316135202 Motor,latch/lock

151 316239300 Shield,bodyside

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete ,1.75" ,anti-tip brkt

* # 316253410 Wiring Harness,main

* 5303305345 Paint,touch-up ,black

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

05/03 8

Publication No. FGF363MXCCA

5995390449

TOP/DRAWER

# = Fast-moving Parts 9 05/03

* = Non-Illustrated Parts

FGF363MXCCA Publication No.

5995390449

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 316011503 Drawer

2 316231400 Liner,drawer

4 316231206 Panel,drawer ,black

7 3051163 Glide,drawer ,rear

16 316202316 Main Top,black

20 316202400 Grate,black

22C 316213500 Cap,9.5K burner ,black

88 316099500 Pin,guide ,(2)

* 218490900 Cleaner,stainless steel

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

05/03 10

Publication No. FGF363MXCCA

5995390449

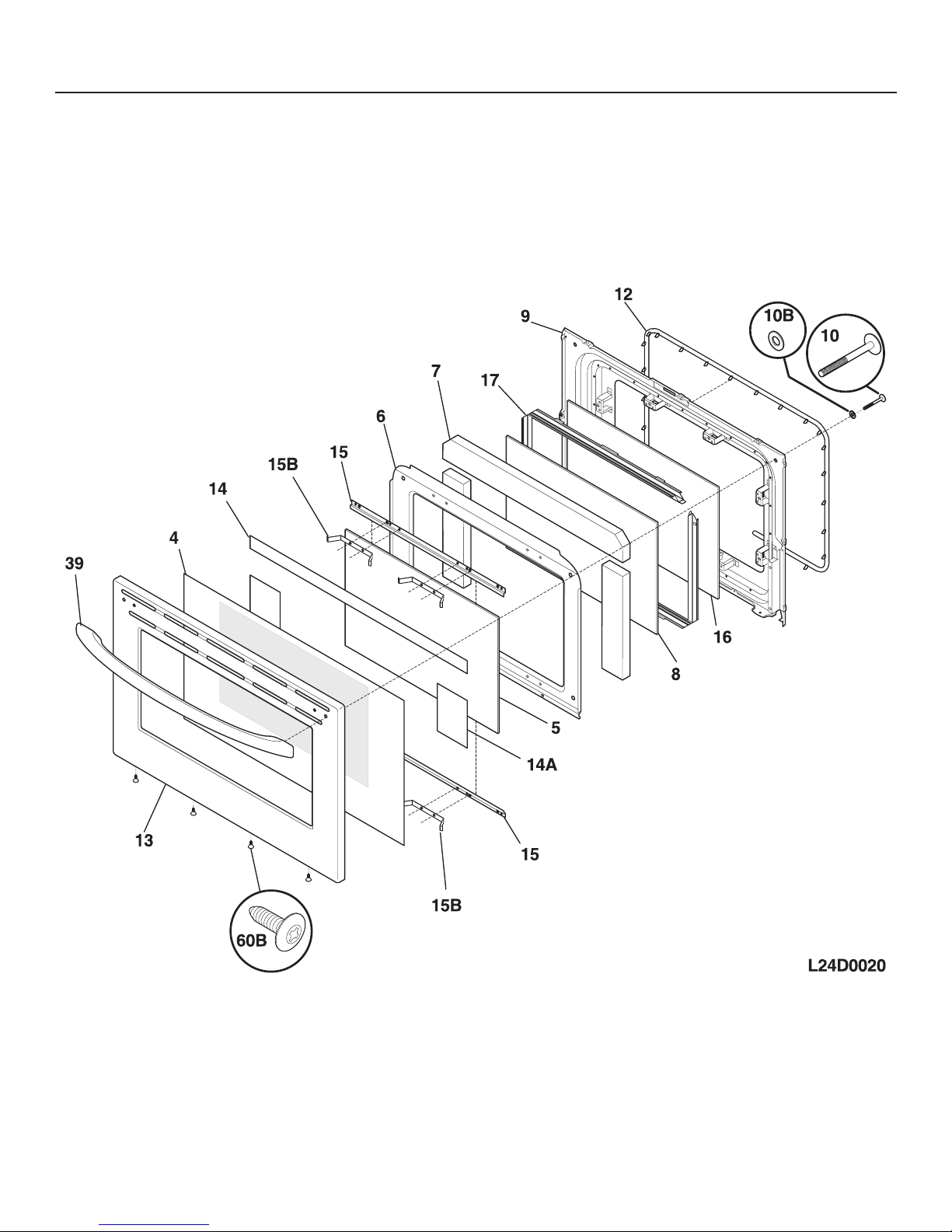

DOOR
