Frigidaire FEF375E Manuel utilisateur

Product No. FEF375EBA FEF375EQA FEF375ESA

Series 30" f/s elec 30" f/s elec 30" f/s elec

Color black bisque white

Market North America North America North America

Wiring Diagram 316441411 316441411 316441411

Owner's Guide 316417003 316417003 316417003

Installation Instructions 316259206 316259206 316259206

FEF379A.eps T20G0043.eps T20V0088.eps T20T1826.eps T20D0024.eps

316255100.eps 316255100.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438867

05/06/08

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEF375E

Publication No: 5995438867 FEF375E

06/05 2

BACKGUARD

FEF375E Publication No: 5995438867

# Functional Parts 3 06/05

* Non-Illustrated Parts

BACKGUARD

Model Index: AFEF375E (FEF375EBA)

BFEF375E (FEF375EQA)

CFEF375E (FEF375ESA)

POS. NO PART NO. DESCRIPTION

1 316416100 A B C Shield, backguard, rear wall

14 316022500 A B C Light/Lamp, indicator, 125 V

15 316411405 A - - Support, backguard, black, RH

15 316411407 - B - Support, backguard, bisque, RH

15 316411403 - - C Support, backguard, white, RH

15A 316411404 A - - Support, backguard, black, LH

15A 316411406 - B - Support, backguard, bisque, LH

15A 316411402 - - C Support, backguard, white, LH

19 316436232 A - - Panel, control, black

19 316436212 - B - Panel, control, bisque

19 316436211 - - C Panel, control, white

20 # 316418202 A B C Clock/Timer, electronic, ES300

20A 316419103 A - - Overlay, clock, black, ES300

20A 316419105 - B - Overlay, clock, bisque, ES300

20A 316419104 - - C Overlay, clock, white, ES300

24 # 316246001 A - - Switch, rocker, black, oven light

24 316246002 - B - Switch, rocker, bisque, oven light

24 316246000 - - C Switch, rocker, white, oven light

24C# 316259800 A - - Switch-rocker, black

24C# 316259802 - B - Switch-rocker, bisque

24C# 316259801 - - C Switch-rocker, white

31 316223002 A - - Knob, control, black

31 316223003 - B - Knob, control, bisque

31 316223000 - - C Knob, control, white

46 316040201 A B C Lens, indicator light, red

54 # 316021500 A B C Switch, infinite, small element

54A# 316021501 A B C Switch, infinite, large element

56 316234013 A - - Shield, backguard, black, inner

56 316234014 - B - Shield, backguard, bisque, inner

56 316234012 - - C Shield, backguard, white, inner

69 5303288565 A B C Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 A B C Screw, 8-18 x 0.5, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

Publication No: 5995438867 FEF375E

06/05 4

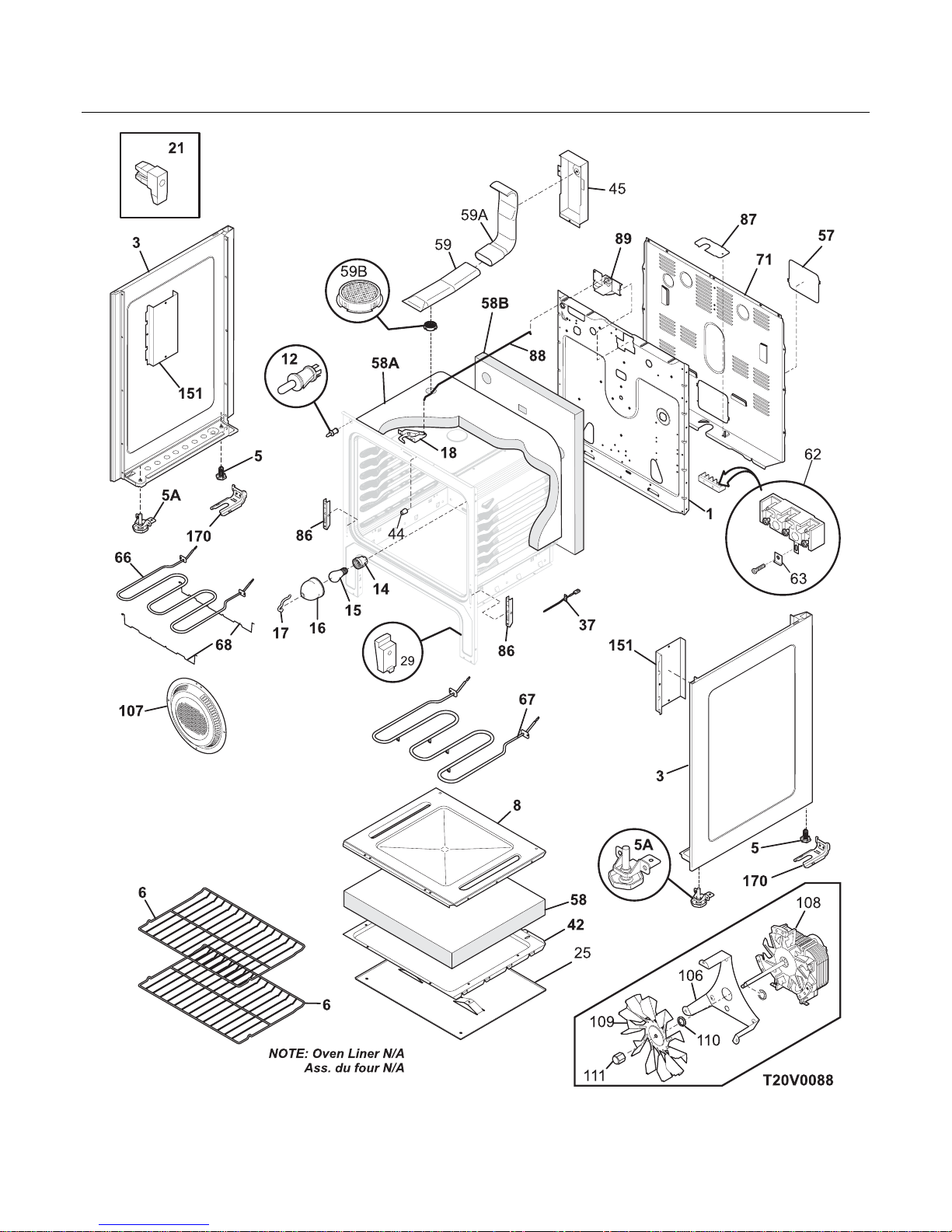

BODY

FEF375E Publication No: 5995438867

# Functional Parts 5 06/05

* Non-Illustrated Parts

BODY

Model Index: AFEF375E (FEF375EBA)

BFEF375E (FEF375EQA)

CFEF375E (FEF375ESA)

POS. NO PART NO. DESCRIPTION

1 316401800 A B C Panel, main back

3 316400104 A - - Panel, bodyside, black, RH

3 316400105 A - - Panel, bodyside, black, LH

3 316400106 - B - Panel, bodyside, bisque, RH

3 316400107 - B - Panel, bodyside, bisque, LH

3 316400102 - - C Panel, bodyside, white, RH

3 316400103 - - C Panel, bodyside, white, LH

5 316272900 A B C Screw, leveling, plastic, rear, (2)

5A 316407200 A B C Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 A B C Rack, oven

8 316400601 A B C Panel, oven bottom

12 # 316407101 A B C Switch, oven light/door

14 316116400 A B C Receptacle, oven light

15 5303013071 A B C Bulb/Lamp, oven light

16 08011086 A B C Lens, oven light, glass

17 316087500 A B C Retainer, lens

18 # 316405800 A B C Latch Assembly, oven door

21 316408000 A B C Clip, bodyside

25 5303289914 A B C Shield-heat lower

29 316407301 A B C Glide, drawer, front

37 # 316217001 A B C Probe, oven temp

42 316407700 A B C Shield, wool, lower

44 316246501 A B C Spacer, oven door

45 316234100 A B C Shield, wire, vent tube

57 316422400 A B C Cover, access

58 316403800 A B C Insulation, oven bottom

58A 316406600 A B C Insulation, oven wrapper

58B 316406500 A B C Insulation, oven back

59 316208201 A B C Tube, oven vent, lower

59A 316208304 A B C Tube, oven vent, upper

59B 316247300 A B C Catalyst, oven vent, ceramic

62 5303935238 A B C Terminal Block Kit, w/ground plate

62* 316085600 A B C Insulator

62* 316205500 A B C Nut, hex flange, 3/8 10-32

63 316278800 A B C Plate, grounding strap

66 # 316203200 A B C Element, broil

67 316075103 A B C Element, bake

68 316404000 A B C Support, element, broil

71 316422300 A B C Shield, rear wall

86 316441300 A B C Receptacle, hinge

86* 316418901 A B C Screw, trilobe, 10-32 x 5/16"

87 316081200 A B C Bracket, cable mtg

88 316203500 A B C Rod, auto latch

89 # 316415400 A B C Motor, latch/lock

106 316404100 A B C Bracket, motor mtg.

107 316026701 A B C Cover, fan

108# 316415800 A B C Motor, fan

109 316136400 A B C Blade, fan

Publication No: 5995438867 FEF375E

06/05 6

BODY

FEF375E Publication No: 5995438867

# Functional Parts 7 06/05

* Non-Illustrated Parts

BODY

Model Index: AFEF375E (FEF375EBA)

BFEF375E (FEF375EQA)

CFEF375E (FEF375ESA)

POS. NO PART NO. DESCRIPTION

110 316136500 A B C Washer, fan motor

111 316136600 A B C Nut, fan retainer

151 316404600 A B C Shield, bodyside

170 5303935180 A B C Anti-tip Kit, w/bracket, screw

170* 316107200 A B C Bracket, anti-tip

170* 316112500 A B C Template, anti-tip

170* 316116000 A B C Screw, concrete, 1.75", anti-tip brkt

* # 316416444 A B C Harness, wiring, main

* 3203550 A B C Plug, button, oven bottom

* 316231800 A B C Cover, hole, conv. element

* 5303305345 A - - Paint, touch-up, black

* 5304414035 - B - Paint, touch-up, bisque

* 5303305324 - - C Paint, touch-up, white

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 A B C Screw, 8-18 x 0.5, black

* 316021132 A B C Screw, 8-18 X 11/16, black

* 316089500 A B C Screw, 10-16 x .486

* 5303271648 A B C Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 A B C Screw, wafer head, 8-32T x 0.500, black

* 5308014215 A B C Screw, 6-20 x 0.312

Publication No: 5995438867 FEF375E

06/05 8

TOP/DRAWER

26B

26A

15A

T20T 2618

FEF375E Publication No: 5995438867

# Functional Parts 9 06/05

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AFEF375E (FEF375EBA)

BFEF375E (FEF375EQA)

CFEF375E (FEF375ESA)

POS. NO PART NO. DESCRIPTION

1 316408701 A B C Drawer, utility

2 316403300 A B C Liner, drawer

4 316403502 A - - Panel, drawer front, black

4 316403503 - B - Panel, drawer front, bisque

4 316403501 - - C Panel, drawer front, white

7 316407400 A B C Glide, drawer, rear

15 # 316010205 A B C Element, surface, 6", 1200 W, radiant

15A# 316224200 A B C Element, surface, 9", 2500W, radiant

16 316421239 A - - Maintop, frame/glass, black

16 316421241 - B - Maintop, frame/glass, bisque

16 316421240 - - C Maintop, frame/glass, white

18 316436600 A B C Hinge Bracket, maintop, (2)

26 316427600 A B C Channel, element support, (2)

26A 316099202 A B C Bracket, chassis support, rear

26B 316214200 A B C Bracket, chassis support, front

52 316278300 A B C Clip, element mtg

* # 316416852 A B C Harness, wiring, surface

* 316264000 A B C Cleaner, cooktop

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 A B C Screw, 8-18 x 0.5, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

* 5308014215 A B C Screw, 6-20 x 0.312

Publication No: 5995438867 FEF375E

06/05 10

DOOR

60B

T20D0024
