FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF369CGSB FEF369CG WHITE/WHITE USA

FEF369CGTB FEF369CG ALMOND/ALMOND USA

Publication No.

5995323176

990514

-EN/SERVICE /SBR

369

WIRING DIAGRAM # - 316002669

OWNER’S GUIDE # - 316000278

INSTALLATION GUIDE # -316003025 ELECTRIC - RANGE

FEF369CGSB

FEF369CGTB

06/98 2

Publication number

5995323176 FGF369CGSB, FGF369CGTB

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FGF369CGSB, FGF369CGTB 5995323176

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FEF369CG (FEF369CGSB)

B = FEF369CG (FEF369CGTB)

POS. NO PART NO DESCRIPTION

* 316000278 A B Owner’s Manual

* 316001759 A B Harness-surface elements

* 316002669 A B Diagram-wiring

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316071902 A B Gasket-edge

* 316085600 A B Insulator-shield thermostt

* 316112500 A B Template, Anti-tip bracket

* 5303292005 A B Screw-switch/handle,8-32 x 5/32

1 316081601 A B Shield-backguard,rear wall

2 316015905 A B Shield-backguard,inner

11 316083720 - B Trim-wrapper ele w/hole,almond

11 316083721 A - Trim-wrapper,, textured , white

13A 316095500 A B Switch-warmer, infinite , drawer/zone

14 316022504 A B Light-indicator,250v

14A 316022500 A B Light/Lamp, warmer, indicator ,

drawer/zone, 125 V

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316100541 A - Panel-Bkgd, white

19 316100542 - B Panel-Bkgd, almond

20 # 316101004 A B Clock/Timer

20* 316101502 A - Overlay-clock

20* 316101504 - B Overlay-clock

23 316100300 A B Bracket-clock mtg

24# 316118101 A - Switch-rocker,oven light ,white

24# 316118102 - B Switch-rocker,oven light ,almond

24B# 316086901 A - Switch-rocker,dual element ,white

24B# 316086902 - B Switch-rocker,dual element ,almond

24C# 316114000 A - Switch-Speed Bake,white

24C# 316114001 - B Switch-Speed Bake, almond

31A 316095601 A - Knob-warmer,white

31A 316095602 - B Knob-warmer,almond

36 316025106 A - Knob-control,infinite sw ,white

36 316025107 - B Knob-control,infinite sw ,almond ,(4)

40 316025808 A - Panel-manifold,white

40 316025809 - B Panel-manifold,almond

46 316040201 A B Lens-light/lamp,indicator ,red

54 # 316021500 A B Switch-infinite, 6" element

54A# 316021501 A B Switch-infinite, 8" element

54B# 316049800 A B Switch, infinite , dual element

77A 316114100 A B Spacer

96 316113700 A B Relay

97 318111400 A B Relay

06/98 4

Publication number

5995323176 FGF369CGSB, FGF369CGTB

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 06/98

Publication number

FGF369CGSB, FGF369CGTB 5995323176

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FEF369CG (FEF369CGSB)

B = FEF369CG (FEF369CGTB)

POS. NO PART NO DESCRIPTION

* 3203550 A B Plug-button

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316045000 A B Clip-wire,harness ,main top

* 316101600 A B Shield-vent,smoothtop

* 5303051099 A B Nut,hex ,#10-32

1 316080804 A B Back-main, short,dipped ,black

3 316081034 A - Panel-bodyside, white ,RH

3 316081035 A - Panel-bodyside, white , LH

3 316081036 - B Panel-bodyside,almond ,RH

3 316081037 - B Panel-bodyside,almond ,LH

5 316107300 A B Screw-leveling

6 316067902 A B Rack-oven

7 316007002 A B Hinge-oven door,(2)

8 3203540 A B Panel-oven bottom

9 316073800 A B Pan-broiler

10 3205234 A B Insert-broiler pan

12 # 316027701 A B Switch-oven light

13 316026800 A B Rod-light switch /door

14 316116400 A B Socket-light

15 5303013071 A B Light Bulb/Lamp

16 08011086 A B Lens-light/lamp, glass , oven

17 316087500 A B Retainer-lens

18 # 316036300 A B Latch-door

21 3014099 A B Spacer-bodyside, (8)

25 3200848 A B Shield-heat,lower

29 3051162 A B Glide-drawer,front

30 5303283574 A B Bracket-hinge,main top RH

30A 5303283575 A B Bracket-hinge,main top LH

37 # 316111202 A B Probe-oven temp

41 3131570 A B Cover-hinge cutout

44 3131903 A B Bumper-door/drawer, rubber

45 316066100 A B Shield-wire, s/t vent

57 316081101 A B Cover-access

58 3200847 A B Insulation,oven bottom

58A 316047707 A B Insulation, 1" ,oven wrapper

58A 316047708 A B Insulation, 2" ,oven wrapper

58B 316054201 A B Insulation,oven back

58B 316054202 A B Insulation, 1" ,oven back

59 316073602 A B Tube-oven vent

59A 316023601 A B Tube-oven vent,upper

59B 316040100 A B Bracket-mounting,vent tube

62 # 5303935061 A B Terminal Block

63 5301145190 A B Plate-ground strap

66 # 5303051140 A B Element-broil

67 # 316075102 A B Element-bake,lower oven

68 316075300 A B Support-element, broil

71 316015805 A B Shield-rear wall

72 5303285692 A B Cover-light/switch rod

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

88 316026400 A B Rod-latch,auto

89 # 316028107 A B Motor-latch/lock

106 316026600 A B Bracket-motor mtg

107 316026701 A B Cover-fan

06/98 6

Publication number

5995323176 FGF369CGSB, FGF369CGTB

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 06/98

Publication number

FGF369CGSB, FGF369CGTB 5995323176

CAUTION: Use the part number on all orders, not the position number.

BODY

108* 316021111 A B Screw,8-18 x 1.500

108# 316090500 A B Motor-fan

109 316090600 A B Fan Blade

110 316090700 A B Washer,fan motor

111 316090800 A B Nut-fan retainer

112 316082700 A B Relay,oven door lock

170 316107200 A B Anti-tip bracket

170* 316116000 A B Screw-Anti tip, 1.75" concrete

06/98 8

Publication number

5995323176 FGF369CGSB, FGF369CGTB

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 9 06/98

Publication number

FGF369CGSB, FGF369CGTB 5995323176

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A = FEF369CG (FEF369CGSB)

B = FEF369CG (FEF369CGTB)

POS. NO PART NO DESCRIPTION

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 A - Screw-8-18x1/2 Tr Sqd White

* 316021113 - B Screw-8-18x1/2 Tr Sqd Almond

* 316045000 A B Clip-wire,harness ,main top

* 316089600 A B Spacer-drawer,(2)

* 316112101 A B Cleaner-cooktop

* 5303280311 A B Screw, waf hd sdr , 10-32 x 5/16 , (2)

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 A - Panel-drawer,white

4 316084406 - B Panel-drawer,almond

4* 08067785 - B Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B Glide-drawer,rear

15 # 316010204 A B Element-surface,radiant , large/8 inch ,

2100W,limit sw incl

15A# 316010203 A B Element-surface,radiant , small/6 inch ,

1200W,limit sw incl

15B# 316049703 A B Element-surface,radiant ,dual ,

2100W/1000W,limit sw incl

15C# 316098201 A B Element-warmer,120V/100W

16 316098139 A - Maintop & glass assy,glass ,white

16 316098140 - B Maintop & glass assy,glass ,almond

18 5303273062 A B Hinge-main top,RH

18A 5303273063 A B Hinge-main top,LH

26 316099101 A B Channel-support, element , (2)

26A 316099201 A B Bracket-support, chassis

44 3131903 A B Bumper-door/drawer, rubber

48 316100200 A B Shield-wire,main top

52 316099400 A B Clip-spring, element mtg,(8)

53 316099300 A B Bracket-indicator light,hot surface ,

4 hole

88 316099500 A B Pin-guide, (2)

06/98 10

Publication number

5995323176 FGF369CGSB, FGF369CGTB

CAUTION: Use the part number on all orders, not the position number.

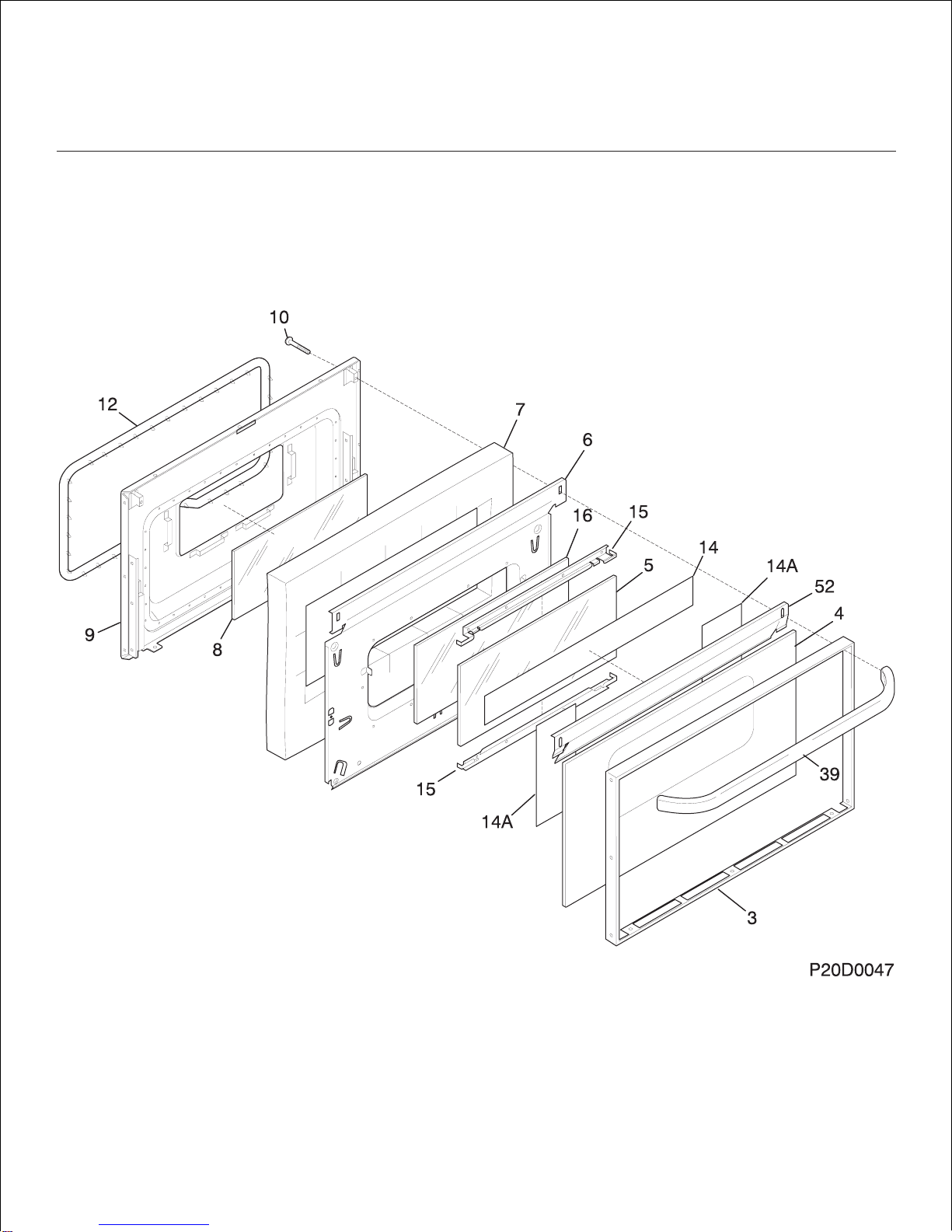

DOOR
