Frigidaire FEF355BF Manuel utilisateur

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF355BFDB FEF355BFDB almond USA

FEF355BFDC FEF335BF almond USA

FEF355BFWB FEF355BF white USA

FEF355BFWC FEF355BF white USA

Publication No.

5995309019

980619

-EN/SERVICE /CML

369

ELECTRIC - RANGE

Model No.

FEF355BF

FACTORY PARTS CATALOG

ELECTRIC RANGE

WIRING DIAGRAM # -316002622

OWNER’S MANUAL # -316000262

INSTALLATION INSTR. # -316003018

104 Warren Road

Augusta, Georgia 30907-3755

BACKGUARD

Publication No. FEF355BFWB,FEF355BFWC,FEF355BFDB,FEF355BFDW

5995309019

06/98 2

A = FEF355BF (FEF355BFWB)

B = FEF355BF (FEF355BFWC)

C = FEF355BF (FEF355BFDB)

D = FEF355BF (FEF355BFDC)

POS. NO PART NO DESCRIPTION

* 316003018 A B C D Instructions,installation

* 316021105 A B C D Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D Screw-8-18x1/2 Tr Sqd black

* 316071902 A B C D Gasket-edge

1 316081601 A B C D Shield-backguard,rear wall

2 316015907 A B C D Shield-backguard,inner

11 316083719 A B C D Trim-wrapper,textured ,black

14 316022503 A B C D Light/Lamp,indicator ,yellow ,250 V

15 316023108 A B C D Support-backguard,RH

15A 316023109 A B C D Support-backguard,LH

19 316024494 A B C D Panel-control,metal

20 # 316101001 A B C D Clock/Timer,electronic

20* 316101503 A B C D Overlay-clock

23 316100300 A B C D Bracket-clock mtg

24 # 316005602 A B C D Switch-rocker,oven light ,black

36 316025100 A B C D Knob-control,infinite sw

40 316025800 A B C D Panel-manifold

46 316040201 A B C D Lens-light/lamp,indicator ,red

54 # 316021500 A B C D Switch-6" element,(2)

54A# 316021501 A B C D Switch-8" element,(2)

69 5303292005 A B C D Screw-switch mtg,8-32 x 5/32

BACKGUARD

FEF355BFWB,FEF355BFWC,FEF355BFDB,FEF355BFDW Publication No.

5995309019

# = Functional Part 3 06/98

* = Non-Illustrated Part

BODY

Publication No. FEF355BFWB,FEF355BFWC,FEF355BFDB,FEF355BFDW

5995309019

06/98 4

A = FEF355BF (FEF355BFWB)

B = FEF355BF (FEF355BFWC)

C = FEF355BF (FEF355BFDB)

D = FEF355BF (FEF355BFDC)

POS. NO PART NO DESCRIPTION

* 3203550 A B C D Plug-button

* 316021105 A B C D Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 5303051099 A B C D Nut,hex ,#10-32

1 316080804 A B C D Back-main, short,dipped ,black

3 316081028 A B - - Panel-bodyside,white ,RH

3 316081030 - - C D Panel-bodyside,almond ,RH

3* 316081029 A B - - Panel-bodyside,white ,LH

3* 316081031 - - C D Panel-bodyside,almond ,LH

4 5303271756 A B C D Burner Box

5 5303203397 A B C D Screw-leveling

5* 3934058 A B C D Anti-tip Kit

5* 316078600 A B C D Screw,anti-tip ,(4)

5A 5303288460 A B C D Nut,T-type ,leveling screw

6 316067902 A B C D Rack-oven

7 316007002 A B C D Hinge-oven door,(2)

8 3203540 A B C D Panel-oven bottom

9 316073800 A B C D Pan-broiler

10 3205234 A B C D Insert-broiler pan

12 # 316027701 A B C D Switch-oven light

13 316026800 A B C D Rod-light switch /door

14 3014073 A B C D Socket-light/lamp,oven

15 5303013071 A B C D Light Bulb/Lamp

16 08011086 A B C D Lens-light/lamp,glass ,oven

17 316087500 A B C D Retainer-lens

18 # 316036300 A B C D Latch-door

21 3014099 A B C D Spacer-bodyside,(8)

25 3200848 A B C D Shield-heat,lower

29 3051162 A B C D Glide-drawer,front

30 5303283574 A B C D Bracket-hinge,main top RH

30A 5303283575 A B C D Bracket-hinge,main top LH

37 # 316111200 A B C D Probe-oven temp

41 3131570 A B C D Cover-hinge cutout

44 3131903 A B C D Bumper-door/drawer,rubber

57 316081101 A B C D Cover-access

58 3200847 A B C D Insulation,oven bottom

58A 316047708 A B C D Insulation,oven wrapper

58B 316054200 A B C D Insulation,oven back

58C 3131304 A B C D Insulation,oven top

59 316073600 A B C D Tube-oven vent

62 # 5303935061 A B C D Terminal Block

63 5301145190 A B C D Plate-ground strap

66 # 5303051140 A B C D Element-broil

67 # 316075102 A B C D Element-bake,lower oven

68 316075300 A B C D Support-element

71 316015805 A B C D Shield-rear wall

72 5303285692 A B C D Cover-light/switch rod

82 5303289913 A B C D Shield-insulation

87 316081200 A B C D Bracket-cable mtg

88 316026400 A B C D Rod-latch,auto

89 # 316028101 A B C D Motor-latch/lock

BODY

FEF355BFWB,FEF355BFWC,FEF355BFDB,FEF355BFDW Publication No.

5995309019

# = Functional Part 5 06/98

* = Non-Illustrated Part

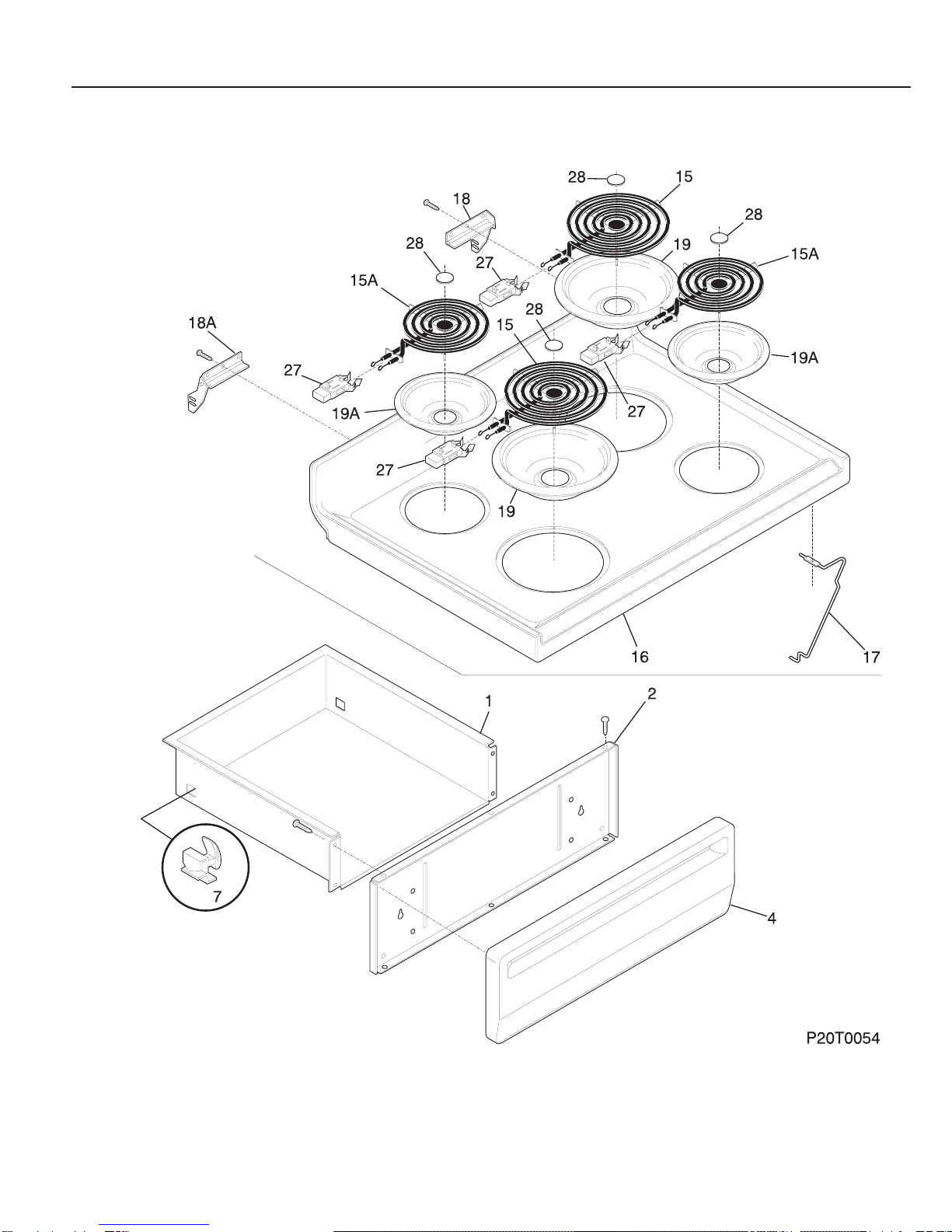

TOP/DRAWER

Publication No. FEF355BFWB,FEF355BFWC,FEF355BFDB,FEF355BFDW

5995309019

06/98 6

A = FEF355BF (FEF355BFWB)

B = FEF355BF (FEF355BFWC)

C = FEF355BF (FEF355BFDB)

D = FEF355BF (FEF355BFDC)

POS. NO PART NO DESCRIPTION

* 3203618 A B C D Rivet-pop,warning-plate

* 316001725 A B C D Harness-wiring,surface element

* 316021105 A B C D Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D Screw-8-18x1/2 Tr Sqd black

* 316021112 A B - - Screw-8-18x1/2 Tr Sqd White

* 316021113 - - C D Screw-8-18x1/2 Tr Sqd Almond

* 316058601 A B C D Clip-surface element,(4)

* 316089600 A B C D Spacer-drawer,(2)

* 5303280311 A B C D Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5308014215 A B C D Screw,#6-20 x 5/16 ,(4)

1 316011501 A B C D Drawer-utility

2 3131975 A B C D Shield-panel

4 316084405 A B - - Panel-drawer,white

4 316084406 - - C D Panel-drawer,almond

4* 08067785 - - C D Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B C D Glide-drawer,rear

15 # 316048600 A B C D Element-surface,large/8 inch

15A# 316048500 A B C D Element-surface,small/6 inch

16 316020907 A B - - Main Top,white

16 316020908 - - C D Main Top,almond

17 316057601 A B C D Rod-maintop support

17* 316089500 A B C D Screw,10-16X.486

18 5303273062 A B C D Hinge-main top,RH

18A 5303273063 A B C D Hinge-main top,LH

19 # 5303935053 A B C D Pan-surface element,large/8 inch ,(2)

19A# 5303935055 A B C D Pan-surface element,small/6 inch ,(2)

27 # 5303912666 A B C D Terminal Block Kit,surface element

28 5303017715 A B C D Medallion,1 1/2"dia ,black ,

surface element

28 5303296595 A B C D Medallion,3/4"dia ,surface element

44 3131903 A B C D Bumper-door/drawer,rubber

TOP/DRAWER

FEF355BFWB,FEF355BFWC,FEF355BFDB,FEF355BFDW Publication No.

5995309019

# = Functional Part 7 06/98

* = Non-Illustrated Part

DOOR

Publication No. FEF355BFWB,FEF355BFWC,FEF355BFDB,FEF355BFDW

5995309019

06/98 8

A = FEF355BF (FEF355BFWB)

B = FEF355BF (FEF355BFWC)

C = FEF355BF (FEF355BFDB)

D = FEF355BF (FEF355BFDC)

POS. NO PART NO DESCRIPTION

* 316021110 A B C D Screw-8-18x1/2 Tr Sqd black

* 316065301 A B C D Plate warning/caution

* 5303212671 A - C - Screw,cr pan hd sems ,8-32BP x 1.00

* 5303212762 - - C D Screw,8-18 X 1/2

* 5303280311 A B C D Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5303285179 A B C D Screw-oven door,wafer head ,8-32T x 1/2

3 316067802 A B C D Trim-oven door,black

4 316089000 A B C D Glass-oven door,black ,outer

5 316088700 A B C D Glass-oven door,inner

6 316088401 A B C D Shield-wool

7 316076403 A B C D Insulation-door

8 316088600 A B C D Glass-oven door,airwash

9 316066610 A B C D Liner-oven door

10 5303280308 A B C D Screw-handle mtg,wafer head ,10-24T x 2

12 # 5303131601 A B C D Seal-oven door

14 5303208656 A B C D Reflector,aluminum foil

14A 5303208655 A B C D Reflector,aluminum foil ,(2)

15 316081401 A - C - Bracket-glass mtg

15 316081403 - B - D Bracket-glass mtg

16 316085700 A - C - Glass-oven door,heat barrier

16 316085701 - B - D Glass-oven door,heat barrier

39 316091114 A B C D Handle-door,black ,oven

39* 316008401 A B C D Washer,3/4 x 1/4 ,steel ,(2)

52 316081303 A B C D Shield-oven door,black ,top

DOOR

FEF355BFWB,FEF355BFWC,FEF355BFDB,FEF355BFDW Publication No.

5995309019

# = Functional Part 9 06/98

* = Non-Illustrated Part

WIRING DIAGRAM

Publication No. FEF355BFWB,FEF355BFWC,FEF355BFDB,FEF355BFDW

5995309019

06/98 10
