Frigidaire 970-6866 Mode d’emploi

97068663.eps T20G5671.eps T20V0310A.eps T20T1856C.eps T20D0064.eps

SEARS CANADA

Product No. 970-686635

Series 30" f/s elec

Color stainless

Market Canada

Owner's Guide 316417297

Installation Instructions 316259203

Service Data Sheet 316458452

Frigidaire

5855 TERRY FOX WAY

MISSISSAUGA, ONTARIO, CANADA L5V 3E4

This Catalog replaces 5995572772

Publication No.

5995576773

10/10/13

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

970-6866

Publication No: 5995576773 970-686635

10/10 2

BACKGUARD

8.8.

20A

54B

54A

15A

31A

31B

13A 14

T20G5671

970-686635 Publication No: 5995576773

# Functional Parts 3 10/10

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

13A# 316095503 Switch, infinite, warmer

14 316022500 Light/Lamp, indicator, 125 V

15 316411405 Support, backguard, black, RH

15A 316411404 Support, backguard, black, LH

19 316492207 Panel, backguard, stainless

20 # 316557210 Controller, electronic, ES335

* 316021110 Screw, 8-18 x 0.5, black

20A 316419306 Overlay, clock, black, ES335

31 316442401 Knob, control, black

31A 316442404 Knob, warm zone, black

31B 316442410 Knob, dual control, black

46 316557300 Lens-light/lamp, indicator, clear

54 # 316436000 Switch, infinite, small element

54A# 316436001 Switch, infinite, large element

54B# 316238200 Switch, infinite radian, dual

56 316234013 Shield, backguard, black, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316417297 Owners Manual

* 316458452 Service Tech Sheet, w/wiring diagrm

* 316259203 Instructions, installation

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316089500 Screw, 10-16 x .486

Publication No: 5995576773 970-686635

10/10 4

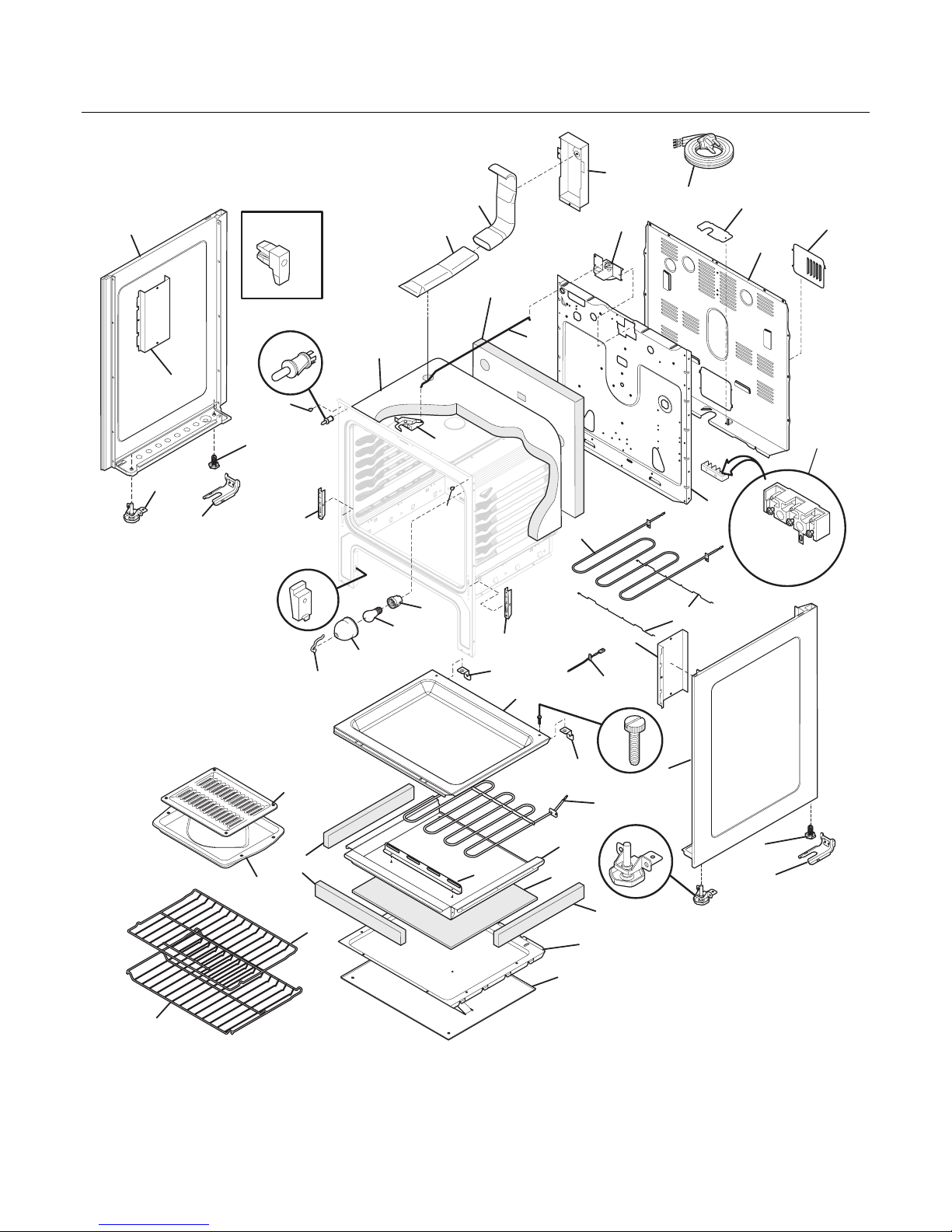

BODY

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

86 66

170

151

T20V0310A

59A

58C

58D

970-686635 Publication No: 5995576773

# Functional Parts 5 10/10

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316401802 Panel, main back

3 316400118 Panel, bodyside, black, RH

3 316400119 Panel, bodyside, black, LH

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316498900 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316425800 Rack, oven, (1), w/handle

6A 316425700 Rack, oven sump, (1)

8 316505601 Panel, oven bottom

8A 316505701 Base, bake element

8B 316506000 Bracket, support, oven bottom, (2)

* 316282700 Screw, w/washer, 8-18

8C 316505801 Support, element

9 316081900 Pan, broilerOPTIONAL ACCESS0RY

10 316082000 Insert, broiler panOPTIONAL ACCESS0RY

12 316445500 Switch, oven light, door frame

14 316116400 Receptacle, oven light

15 316538901 Lamp, oven light

16 318406100 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

21 316408000 Clip, bodyside

22 316567600 Bracket-bodyside, front, (2)

25 316406200 Shield, heat, lower

29 316407301 Glide, drawer, front

37 # 316490000 Probe, oven temp

39 # 318113111 Cord, electric

* 316418901 Screw, trilobe, 10-32 x 5/16", black

42 316400701 Shield, wool, lower

43 5303285179 Screw, wafer head, 8-32T x 0.500, black

44 316517600 Spacer, oven door

45 316234100 Shield, wire, vent tube

* 3131737 Washer, black

57 316457801 Cover, access

58A 316406601 Insulation, oven wrapper

58B 316406503 Insulation, oven back

58C 316509600 Insulation, lower shield

58D 316509700 Insulation, oven bottom

59 316208401 Vent Tube, assembly, w/catalyst

* 316089500 Screw, 10-16 x .486

59A 316208304 Tube, oven vent, upper

* 5303289910 Screw, 8A, 1"

62* 316001003 Screw, ground wire

62* 316205500 Nut, hex flange, 3/8 10-32

66 # 316203301 Element, broil

67 316505500 Element, bake, 3000W

68 316404000 Support, element, broil

71 316422304 Shield, rear wall

86 316537400 Receptacle, hinge, (2)

86* 316418900 Screw, sims lp, #8-32 x 5/16", black

87 316081200 Bracket, cable mtg

88 316203500 Rod, auto latch

Publication No: 5995576773 970-686635

10/10 6

BODY

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

86 66

170

151

T20V0310A

59A

58C

58D

970-686635 Publication No: 5995576773

# Functional Parts 7 10/10

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

89 # 316464300 Motor-latch

151 316404600 Shield, bodyside

170 316112004 Anti Tip Kit, assembly

170* 316107200 Bracket, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

170* 316541700 Template, anti-tip

* # 316443036 Wiring Harness, main

* 316581300 Retainer, wire

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995576773 970-686635

10/10 8

TOP/DRAWER

26B

26A

15A

15B

15D

T20TC1856

970-686635 Publication No: 5995576773

# Functional Parts 9 10/10

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316408703 Drawer, utility

2 316403300 Liner, drawer

4 316409407 Panel, drawer front, stainless

7 316407400 Glide, drawer, rear

15 # 318178110 Element, surface, 6", 1200, (2), radiant

15A# 316282100 Element surface dual, surface, 1700/2700W, dual radiant

15B# 316135401 Element, surface, 9", 2500 W, radiant

15D# 318198832 Element, surface, warmer, 100 W

16 316531913 Maintop, glass, black

18 316436600 Hinge Bracket, maintop, (2)

18 316580800 Bracket-hinge, main top

26 316427600 Channel, element support, (2)

26A 316498200 Bracket-support, chassis, aluminum

26B 316214202 Bracket, chassis support, front

39 316246100 Handle, door/drawer, stainless

39* 5303288572 Screw-handle mtg

52 316461700 Clip, element mtg

* 316468100 Cleaner, smoothtop, w/sponge

* # 316580428 Harness, wiring, surface units

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995576773 970-686635

10/10 10

DOOR
