Frigidaire FEB755CE Mode d’emploi

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB755CESG 37054741D6017 WHITE U.S.A.

FEB755CEBG 37054741D6067 BLACK U.S.A.

ELECTRIC WALL OVEN

Model No.

FEB755CE

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM #- 318046107

OWNER’S GUIDE #- 318008401

INSTALLATION INSTR. # - 318064300

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995317715

990201

-EN/SERVICE

377

Publication No. FEB755CE

5995317715

02/99 2

CONTROL PANEL

20 14

LA9923G04

100

15A

18A

FEB755CE Publication No.

5995317715

# = Functional Part 302/99

* = Non-Illustrated Part

CONTROL PANEL

A=FEB755CE (FEB755CESG)

B=FEB755CE (FEB755CEBG)

POS. NO PART NO DESCRIPTION

12# 318058200 A B Thermostat-oven

14 5303320497 A B Light/lamp indicator

15 5303302286 A B Support backguard RH

15A 5303302287 A B Support backguard LH

18 5303311208 AEnd Cap RH white

18 5303311231 BEnd Cap RH black

18A 5303311209 AEnd Cap LH white

18A 5303311232 BEnd Cap LH black

19 318129722 APanel-control white

19 318129723 BPanel-control black

20 # 318012911 AClock/Timer white

20# 318012910 BClock/Timer black

21 5303302283 ATrim-canopy white

21 5303300968 BTrim-canopy black

23 318015725 A B Bracket timer

24# 316005607 ASwitch rocker-oven light white

24# 316005602 BSwitch rocker-oven light black

32 318017206 AKnob-thermostat white

32 318017205 BKnob-thermostat black

42 5303318709 ATrim-vent white

42 5303316983 BTrim-vent black

65 318038800 A B Cover-control housing

68 5303302285 A B Housing control

69 5303323134 A B Screw, 8-32 X 3/16

78 318036901 ACover, oven vent white

78 318036900 BCover, oven vent black

99 5303316956 AScrew, 6-32 X 3/8, white

99 5303307406 BScrew, 6-32 X 3/8, black

100 318112200 A B Plate (mtg rocker switch)

*3201861 A B Screw, 6 X 3/8

*5303320848 A B Screw, 6-20 X 1/4

FEB755CE Publication No.

5995317715

02/99 4

CAVITY / ELEMENTS UPPER OVEN

UPPER BODY PARTS ONLY

118

58B

126

58C

89A

LA9923V08

6B 67

66 68

127

15 16

91A

123

58A

231

FEB755CE Publication No.

5995317715

# = Functional Part 502/99

* = Non-Illustrated Part

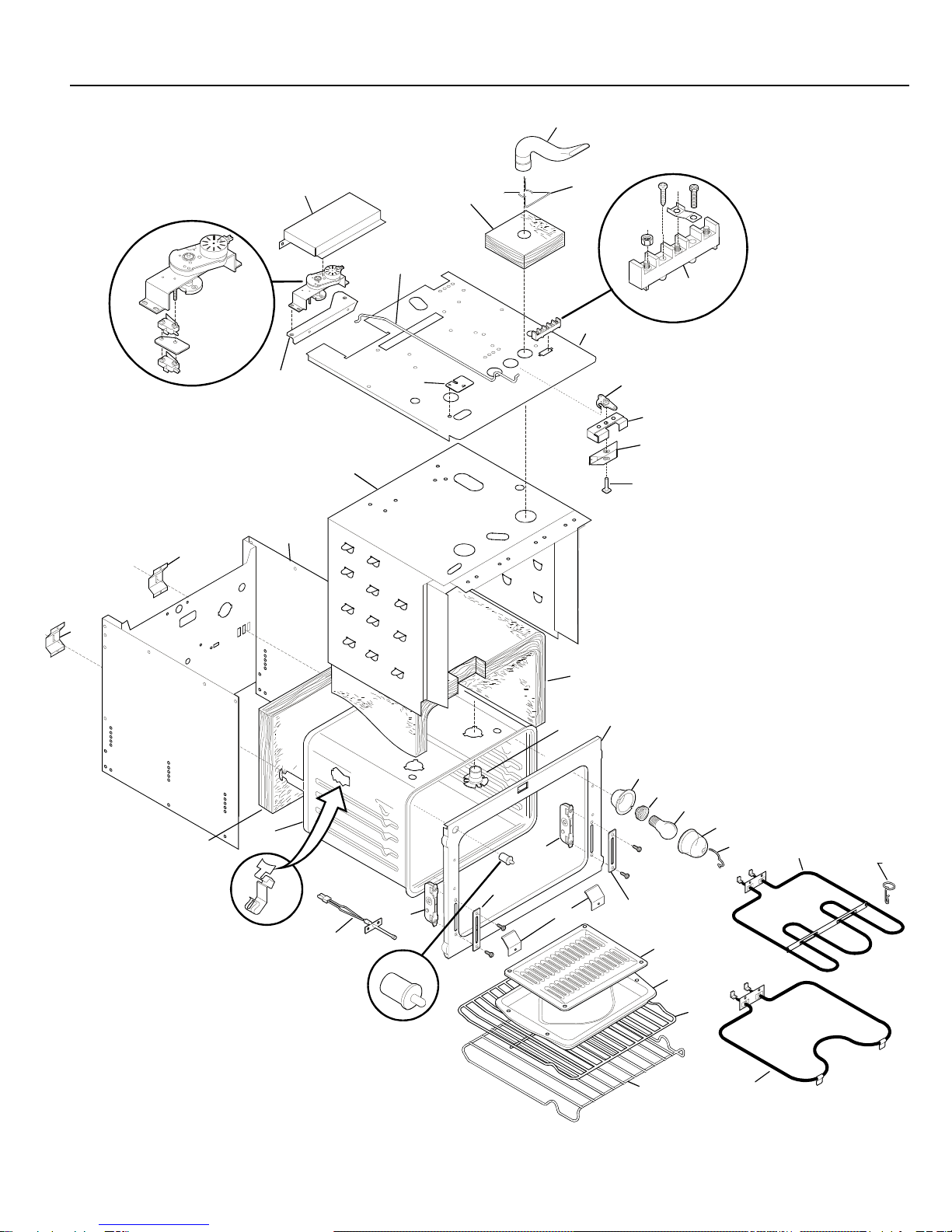

CAVITY / ELEMENTS UPPER OVEN

A=FEB755CE (FEB755CESG)

B=FEB755CE (FEB755CEBG)

POS. NO PART NO DESCRIPTION

2 5304402380 A B Cover-top

6 5303296873 A B Rack-oven

6B 5303299271 A B Shelf-oven

95303317977 A B Pan-broiler

10 5303317976 A B Insert broiler pan

12 318089910 A B Switch-light

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer-lens

18 3051648 A B Latch door

27 5303284616 A B Clip thermo-bulb

37# 316111203 A B Probe-oven temp

41 5303310526 A B Cover-hinge cutout

54 5303310514 A B Housing-oven light

58A 5304409957 A B Insulation wrapper

58B 3019048 A B Insulation oven back

58C 5303317714 A B Insulation oven vent

59 5303300951 A B Tube-oven vent

62# 5303310518 A B Terminal block

66# 5303322963 A B Element-broil

67# 5303323865 A B Element-bake

68 5304403015 A B Support-element

76 318124204 A B Front-oven

80 5303301261 A B Spring-oven

81 5303323710 A B Bracket-oven

83 318089518 A B Liner-oven assy

86 5303310524 A B Channel-hinge

88 3016241 A B Rod-latch

89# 318095800 A B Motor-latch/lock

89A 3016296 A B Cover-Motor

91 3019069 A B Housing-latch

91A 3051647 A B Housing-latch

92 5308012004 A B Stud-axle

97 318066500 A B Wrapper-back & sides

118 5303308461 A B Bracket-latch

123 318071430 A B Shield-insulation top & sides

126 3016303 A B Clip-insulator retainer

127 5303310542 A B Adapter assy

231 5303300421 A B Cover capillary

*5303323955 A B Clip-retainer

*08002868 A B Screw, 10-24 X ½

*5303308456 A B Screw, 8-18 X 0.531

*5303308449 A B Fastener

*3018802 A B Clip-cable

*3051070 A B Screw, 10-24 X 7/16

*5303323139 A B Screw, 10-24 X 29/32

*5303323144 A B Nut, #10-32

*5303323136 A B Screw ground

*5303323137 A B Screw, 10-32 X 17/32

02/99 6

Publication No. FEB755CE

5995317715 CAVITY/ELEMENTS LOWER OVEN

141

126

58B

121

227

156

LA9923V09

667

101

98A

103

127

1617

123

96A

58C

96B

58A

LOWER BODY PARTS ONLY

FEB755CE Publication No.

CAVITY/ELEMENTS LOWER OVEN 5995317715

# = Functional Part 702/99

* = Non-Illustrated Part

A=FEB755CE (FEB755CESG)

B=FEB755CE (FEB755CEBG)

POS. NO PART NO DESCRIPTION

65303296873 A B Rack-oven

12# 5301314211 A B Switch-light

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer-lens

27 5303284616 A B Clip thermo-bulb

41 5303310526 A B Cover-hinge cutout

54 5303310514 A B Housing-oven light

56 5303302282 ATrim bodyside white

56 5303300956 BTrim bodyside black

58A 5303304702 A B Insulation wrapper

58B 5303304703 A B Insulation oven back

58C 5303317714 A B Insulation oven vent

59 318072507 A B Tube-oven vent

66# 5303322963 A B Element-broil

67# 5303323865 A B Element-bake

68 5304403015 A B Support-element

71 5303305023 A B Shield wire

76 318124206 A B Front-oven

80 5303301261 A B Spring-oven

81 5303323710 A B Bracket-oven

82 5303304699 A B Shield insulation

83 318089507 A B Liner-oven assy

86 5303310524 A B Channel-hinge

96 5303317197 A B Duct-oven vent assy

96A 3016325 A B Duct-oven vent center

96B 3016327 A B Duct-vent pipe

97 318066701 A B Wrapper-back & sides

98 318029332 A B Trim-side inner RH

98A 318029333 A B Trim-side inner LH

99 5303299686 A B Support-adjustable

101 318039512 ABracket-trim white

101 318039511 BBracket-trim black

103 318028701 ATrim-base white

103 318028700 BTrim-base black

121 318145002 A B Wrapper base

123 318071430 A B Shield-insulation top & sides

126 3016303 A B Clip-insulator retainer

127 318072800 A B Adapter assy

141# 5303302280 A B Thermostat-safety

156 5303317198 A B Bracket-oven vent

227 5303323955 A B Clip retainer

*08002868 A B Screw, 10-24 X ½

*5303211311 A B Screw, #8 X ½

*3018802 A B Clip-cable

*5303935083 AScrew, 10-16 X 1 ¼

*5303302745 A B Screw, 10-16 X 1 1/8

*5303320505 A B Bx & wires ay

*3015722 A B Clip wire

*5303323137 A B Screw, 10-32 X 17/32

FEB755CE Publication No.

5995317715

02/99 8

DOOR

LA9923D07

LOWER DOOR PARTS

UPPER DOOR PARTS

454

FEB755CE Publication No.

5995317715

# = Functional Part 902/99

* = Non-Illustrated Part

UPPER/ LOWER DOORS

A=FEB755CE (FEB755CESG)

B=FEB755CE (FEB755CEBG)

POS. NO PART NO DESCRIPTION

3 318026110 ATrim-oven door white

3318026600 BTrim-oven door black

4 5303302279 AGlass-oven door white

4 5304401679 BGlass-oven door black

6 318073600 A B Shield-air wash

7 5303308470 A B Insulation oven door

9318038601 A B Liner-door baffle

10 5303311217 A B Screw-handle door (10-24 x 3/16)

11 5303294969 A B Strike plate

12# 3206270 A B Seal-oven door upper

12# 5303316768 A B Seal-oven door lower

16 5303324250 A B Glass-oven door

16 5303323828 A B Glass-oven door lower

17 318139100 A B Support-glass door upper

17 318162601 A B Support-glass door lower

18 3016263 A B Seal-rope door upper oven

18 5303299723 A B Seal-rope door lower oven

19 318139201 A B Collar glass mtg, door upper

20 318014301 ASpacer-handle white

20 318014300 BSpacer-handle black

23 5303325091 A B Hinge-oven door

25 318048304 A B Liner-oven door upper

25 318156606 A B Liner oven door lower

29 5303210003 A B Spacer-handle mtg (2)

39 316091107 AHandle-door white

39 316091106 BHandle-door black

54 5303308456 A B Screw, 8-18 X 17/32

59 3202113 A B Button-plug

61 5303300414 A B Spacer, cork & rubber

*08002868 A B Screw, 10-24 X ½

*5303325981 A B Screw, 10-16 X 1 ½

*5304403558 A B Screw, 10-16 X ¼

Publication No. FEB755CE

5995317715

02/99 10

WIRING DIAGRAM
