Frigidaire FEB30T5GCB Mode d’emploi

FEB30T5DC.eps CPLEB30T9FCA.eps BUFEB30T5GCA.eps BLFEB30T5DSC.eps

DCFEB30S5GC2.eps 318046123.eps

Product No. FEB30T5GCB

37054343E70S2

Series 30" double

Color stainless

Market North America

Wiring Diagram 318046123

Owner's Guide 318205115

Installation Instructions 318201514

Service Data Sheet 318047309

Timer Guide 318200129

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995494159

07/07/02

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB30T5G

Publication No: 5995494159 FEB30T5GCB

07/07 2

CONTROL PANEL

FEB30T5GCB Publication No: 5995494159

# Functional Parts 3 07/07

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257300 Shield, oven top

2B 318260100 Cover, box

19 318271544 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316443833 Control, electronic, ES610W1, dual oven

20* 5303311306 Screw, 8-18 x 0.375, (8)

77 316247900 Spacer, power board, (4)

77A 316114100 Spacer, (2)

97 316443913 Board, relay, dual oven

* 318231769 Wiring Harness, timer, to relay board

* 5303211311 Screw, 8 x 0.500

Publication No: 5995494159 FEB30T5GCB

07/07 4

UPPER OVEN

FEB30T5GCB Publication No: 5995494159

# Functional Parts 5 07/07

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318259205 Back, main

2 318258902 Shield, insulation, upper

6 318345207 Rack, oven

9 5303317977 Pan, broilerOPTIONAL ACCESS0RY

10 5303317976 Insert, broiler panOPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

58A 318285055 Insulation, oven wrapper

58B 318285056 Insulation, oven back

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

71* 318340201 Bracket, insul. panel

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258707 Shield, insulation, lower

83 318261403 Liner, oven assy

86 318342400 Receptacle, hinge

89 # 318261211 Motor, latch assy

* # 318231750 Harness, wiring, main, latch

* # 318199744 Wiring Harness, latch, BAS

* # 318199746 Wiring Harness, latch, NO BAS

99 318252800 Support, side

* 5303300265 Screw, 8-18 X 1/2, (2)

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

119# 318004900 Switch, thermal

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272900 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

264 318257701 Trim, oven, black, front

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* 5303211311 Screw, 8 x 0.500

* 5303323139 Screw, 10-24 x 0.906

* 5303323277 Screw, 8-18 X 13/32

* 5303325980 Screw, 10-32 x 0.437

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995494159 FEB30T5GCB

07/07 6

LOWER OVEN

FEB30T5GCB Publication No: 5995494159

# Functional Parts 7 07/07

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259205 Back, main

2 318258902 Shield, insulation, upper

6 318345207 Rack, oven

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318903604 Trim, side filler, black, RH

56A 318903605 Trim, side filler, black, LH

58A 318285055 Insulation, oven wrapper

58B 318285056 Insulation, oven back

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

71* 318340201 Bracket, insul. panel

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258707 Shield, insulation, lower

83 318261403 Liner, oven assy

86 318342400 Receptacle, hinge

87 318260600 Bracket, cable mtg.

89 # 318261211 Motor, latch assy

* # 318231750 Harness, wiring, main, latch

* # 318199744 Wiring Harness, latch, BAS

* # 318199746 Wiring Harness, latch, NO BAS

90 318259701 Trim, oven front, black, bottom

99 318256200 Bracket, side, bottom, (2)

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

119# 318004900 Switch, thermal

127 318317100 Adapter Assembly, vent tube, w/converter

142 318123910 Deflector

143 318172904 Support, wire

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

264 318257801 Trim, oven, black, front

* # 318078543 Box & wires assy

* # 318370311 Wriring Harness, main

* 5303211311 Screw, 8 x 0.500

* 5303323136 Screw ground

* 5303323277 Screw, 8-18 X 13/32

* 5303325980 Screw, 10-32 x 0.437

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995494159 FEB30T5GCB

07/07 8

DOORS

4142

DCFEB30S5GC2

FEB30T5GCB Publication No: 5995494159

# Functional Parts 9 07/07

* Non-Illustrated Parts

DOORS

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260520 Baffle, door

7 318372000 Insulation, door, (2)

7A 318372002 Insulation, door, (2)

8 316117500 Glass, oven door, heat barrier

9 318259605 Liner, door

10 5304452028 Screw, handle mtg, 10-14 x 1/2, (2)

12 318053130 Seal, oven door, upper

13 318272183 Door Assy, glass, stainless steel, outer

16 318212210 Glass, oven door, heat barrier

17 316402403 Spacer, door glass, (2)

23 318024714 Hinge, door, (2)

24 318260301 Trim, door, black, lower

39 316270200 Handle, door, black

40 318242702 Bracket, glass holder, upper door, (2)

41 318370600 Bracket, glass retainer, (2)

42 318382301 Bracket, glass retainer, (4)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer

* 318163602 Cleaner, stainless steel

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (2)

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995494159 FEB30T5GCB

07/07 10

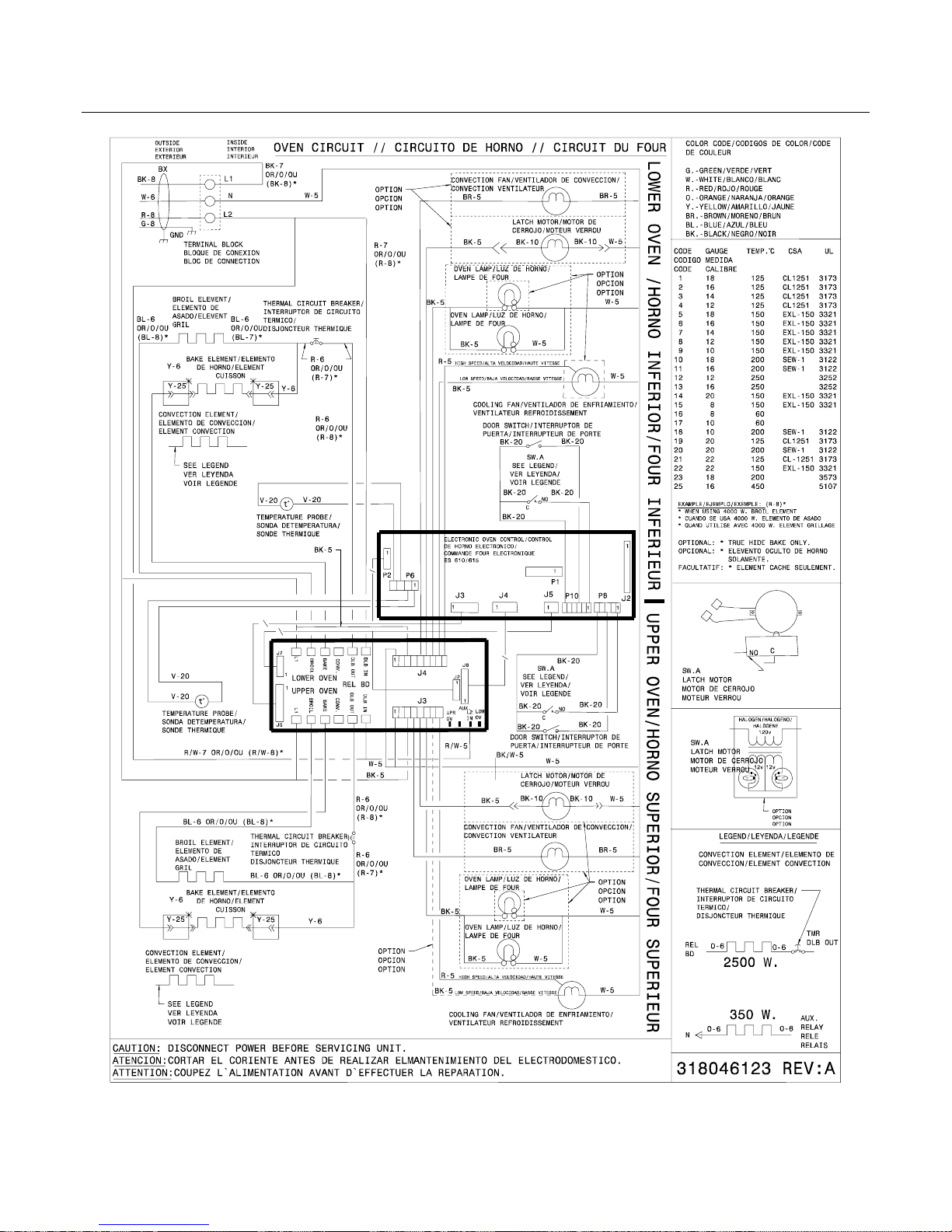

WIRING DIAGRAM
