Frigidaire FDB435RFS Mode d’emploi

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDB435RFS3 FDB435RF 24" Built-in white

MARKET

North America

Publication No.

5995344602

001010

-EN/SERVICE /ECL

821

24" BUILT IN

DISHWASHER

Model No.

FDB435RF

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154385401

OWNER’S GUIDE # - 154350101

WIRING DIAGRAM # - 154385401

101 Masters Blvd.

Anderson, SC 29624

10/00 2

Publication No. FDB435RFS3

5995344602

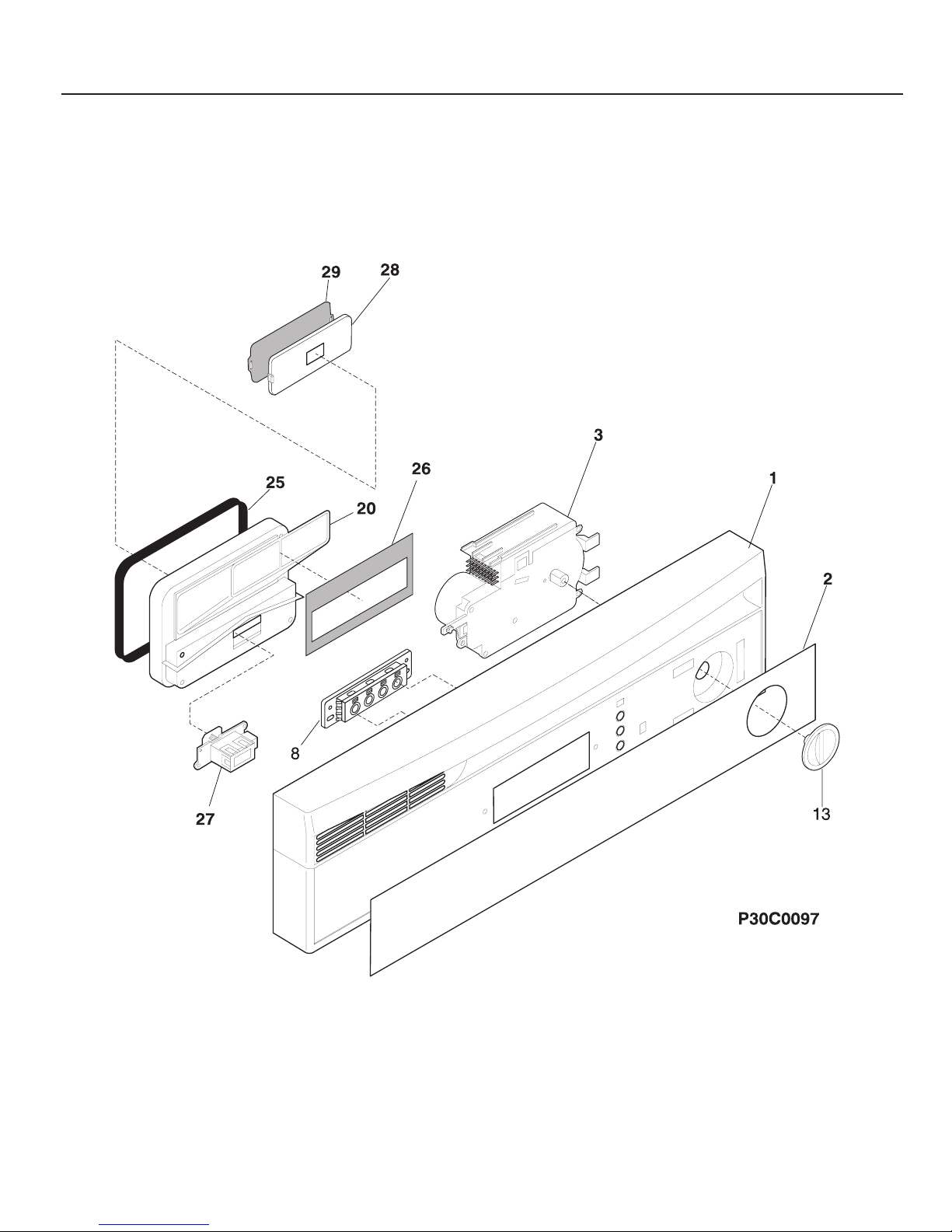

CONTROL PANEL

# = Fast Moving Part 3 10/00

* = Non-Illustrated Part

FDB435RFS3 Publication No.

5995344602

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 154368204 Panel-control,white

2 154236601 Insert-control pnl

3 # 154295701 Timer

3* 154095701 Screw-timer,thread rolling ,(2)

3* 154131203 Shield-timer

8 # 154215101 Switch-selector,4B tap touch

8* 154248601 Shield-switch

8* 5303318719 Screw,mtg.

13 154239501 Knob-timer,white

20 154283701 Vapor Weldment Assy

25 154229201 Seal-chamber

26 154303901 Gasket-vent

27 154226701 Actuator-wax

28 154226901 Valve-vent

29 154226403 Gasket-valve

* 154283901 Screw,#8-10 ,3/8 phillips

* # 154385201 Harness-wiring

10/00 4

Publication No. FDB435RFS3

5995344602

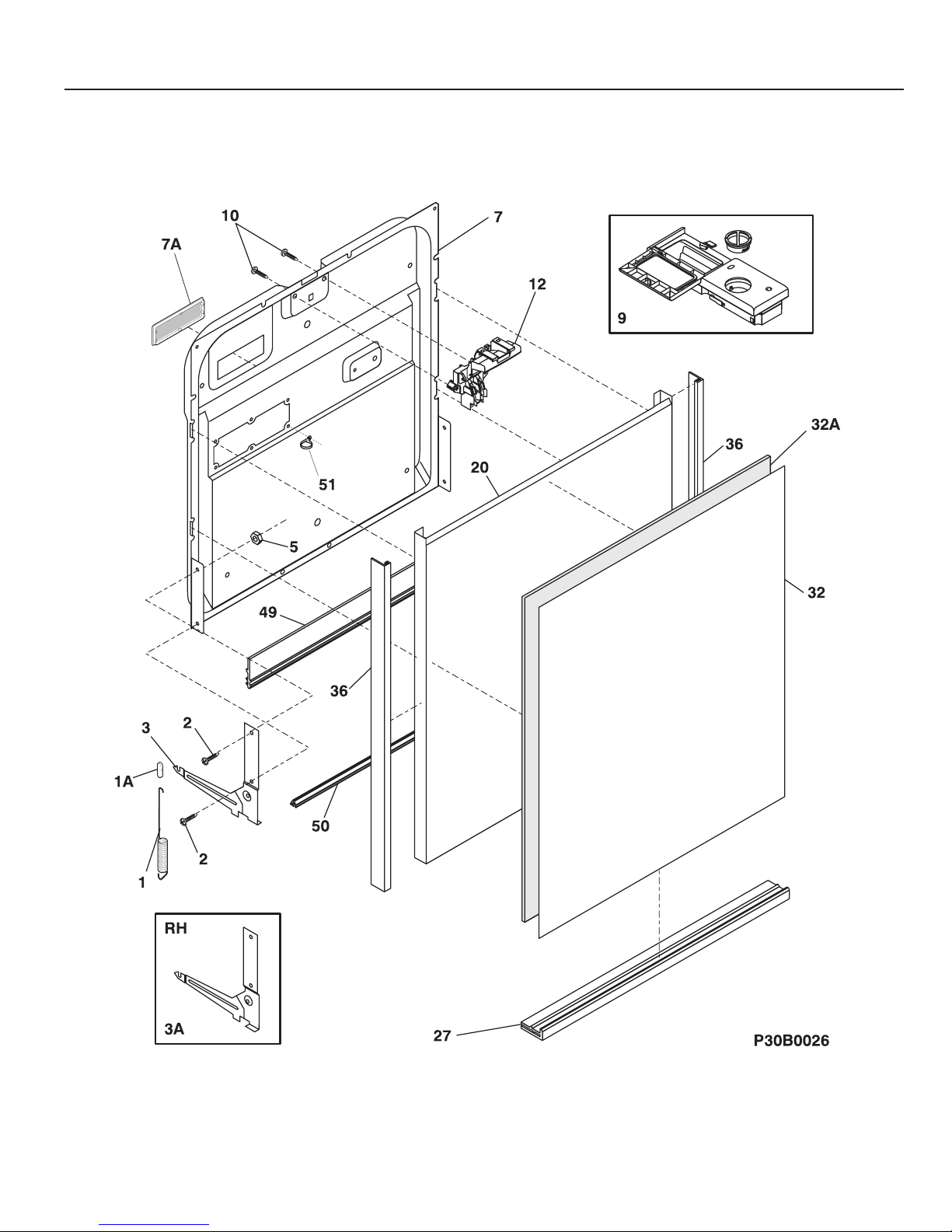

DOOR

# = Fast Moving Part 5 10/00

* = Non-Illustrated Part

FDB435RFS3 Publication No.

5995344602

POS. NO PART NO DESCRIPTION

1 154365701 Spring-door,(2)

1A 154325201 Spring linkage,(2)

2 154093301 Screw-arm assy,(4)

3 154325304 Arm Assy,LH

3A 154325303 Arm Assy,RH

* 154211501 Pin-arm

5 154079601 Nut-arm assy,(4)

7 154299002 Door-inner assy

7A 154226601 Liner grate

9 154230101 Dispenser-det/rinse aid

9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 Screw-latch mtg,(2)

12 # 154361201 Latch assy,white

20 154327701 Mid Door Assy

27 154309503 Trim-door,black ,bottom

32 5303943148 Insert-door kit,wht/alm&blk/wht

32A 154229001 Spacer-insert,door

36 154309303 Trim-door,side ,(2)

49 154297602 Gasket-door,bottom

50 154211401 Support-door hinge

51 154320301 Clamp-wire,drip loop

* 154227806 Thermostat-temp boost

DOOR

10/00 6

Publication No. FDB435RFS3

5995344602

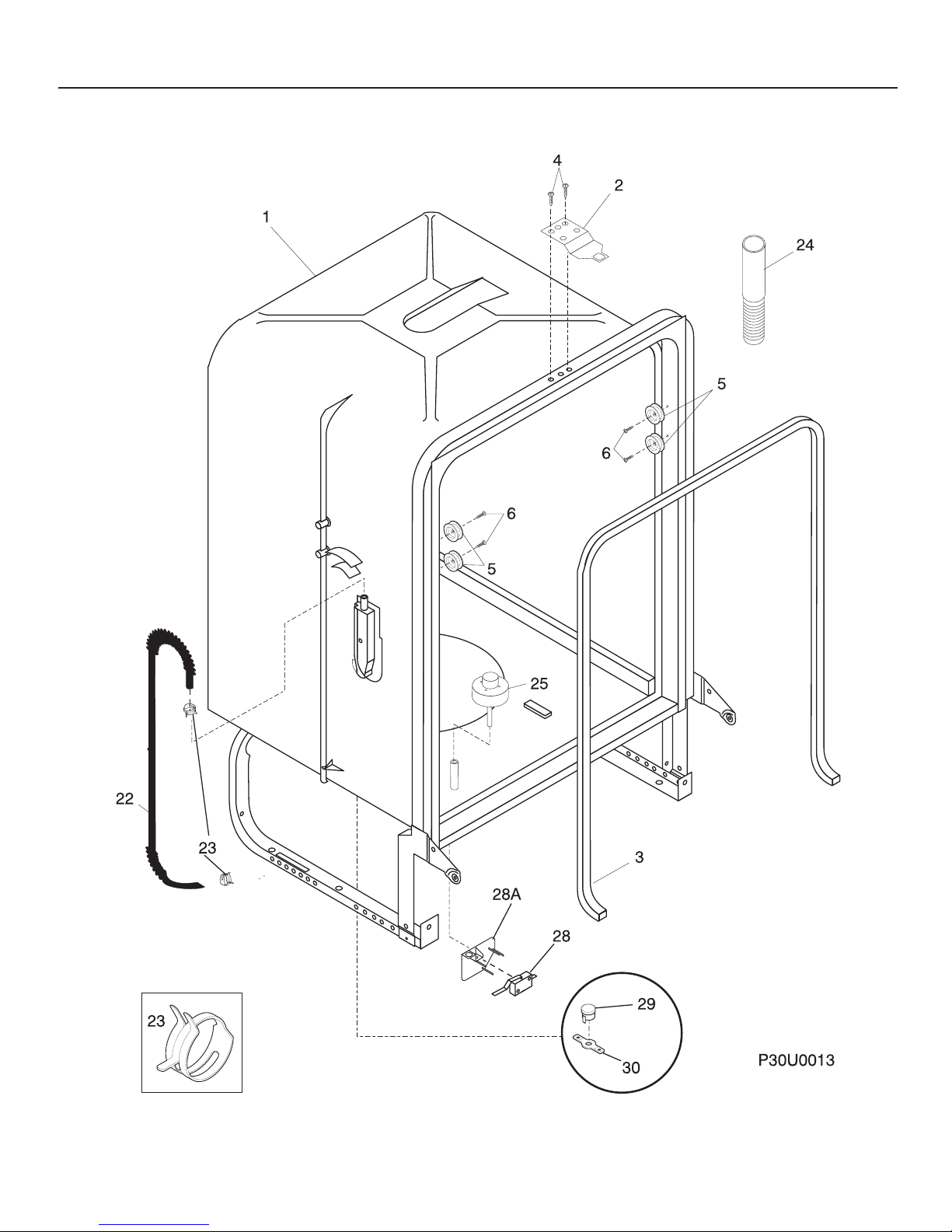

TUB

# = Fast Moving Part 7 10/00

* = Non-Illustrated Part

FDB435RFS3 Publication No.

5995344602

POS. NO PART NO DESCRIPTION

1 # 154209301 Tub assy,w/frame parts

2 154211601 Strike-door

3 # 154211801 Gasket-tub

4 154200602 Screw,10-16 x 3/8 ,hex

5 154333901 Roller-tub

6 5303943103 Screw w/washer,(8)

22 154239801 Tubing-water inlet

23 5303318539 Clamp-tubing,(2)

24 # 154225602 Hose-drain

25 # 154209701 Float

28 # 154225501 Switch-float

28A 154209801 Bracket-float switch

28A* 154333301 Screw,bracket mtg ,ph truss head

29 # 154290204 Thermostat,re-settable

30 154241101 Retainer-thermostat

30* 154297701 Screw,retainer-thermo

* 154238304 Insulation,tub

* 154360201 Insulation,blanket ,back

* 5300807270 Screw,(2) ,countertop mtg.

TUB

10/00 8

Publication No. FDB435RFS3

5995344602

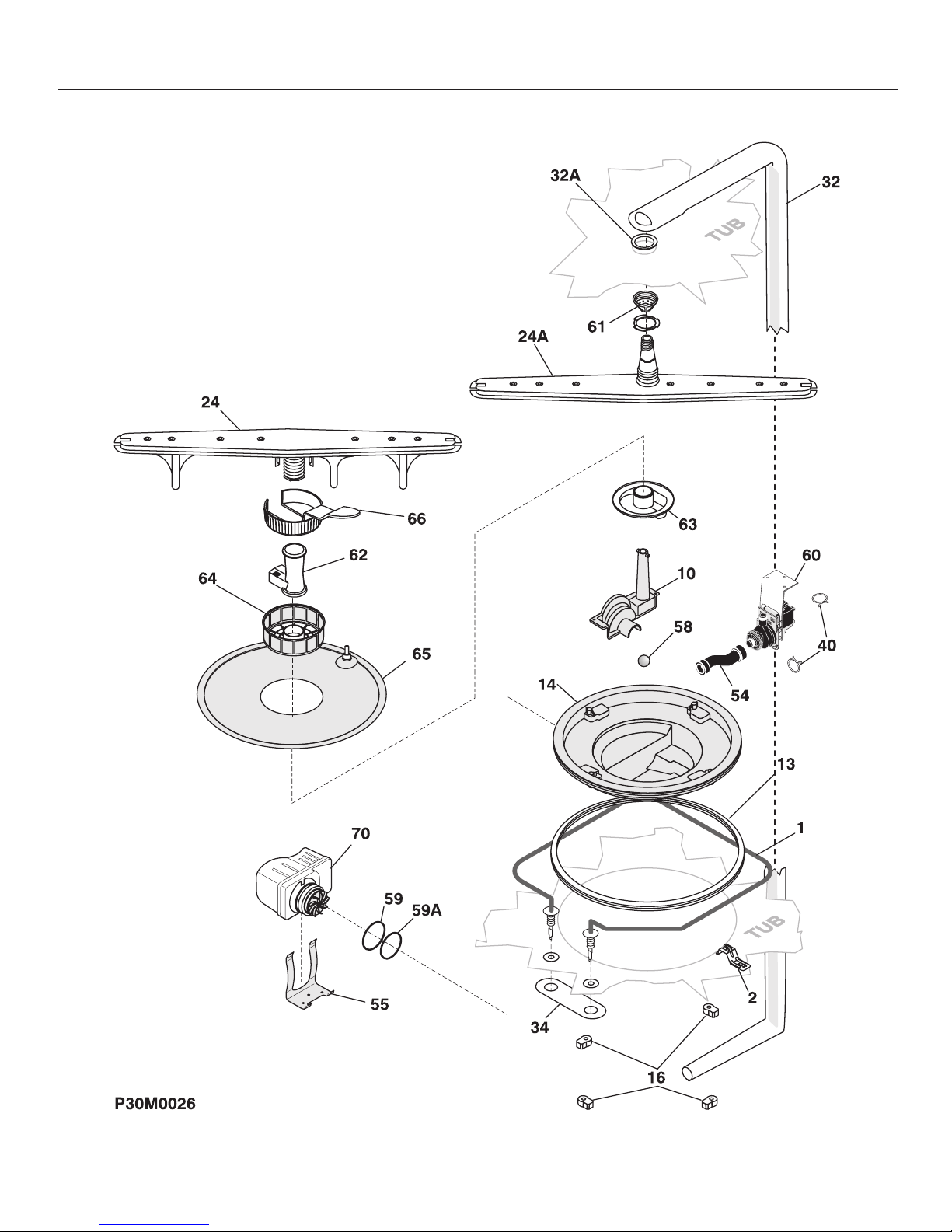

MOTOR & PUMP

# = Fast Moving Part 9 10/00

* = Non-Illustrated Part

FDB435RFS3 Publication No.

5995344602

POS. NO PART NO DESCRIPTION

1 # 154247601 Heater

1* 154106201 Nut-heater,(2)

1* 154289801 Shield-heater terminal

2 154359701 Bracket-heater,(2)

10 154245501 Cover-volute

13 154246801 Gasket-sump

14 154365902 Housing-sump

16 154246502 Retainer,sump

16* 5304404947 Screw,retainer

24 154250801 Spray arm-lower

24A 154313601 Spray arm-center

24A* 154252001 Nut-spray arm

32 154251701 Tube-delivery

32A 154358901 Gasket-delivery tube

34 154064901 Washer-insulating

40 154348401 Clamp,red ,pump

40 154348501 Clamp,silver ,pump

40* 154106801 Clamp-hose,(2)

54 154234401 Hose-connector

55 154362301 Bracket-motor

55* 5303316032 Screw,truss ss ,8 .625

58 154246402 Check ball

59 154246901 O-ring,rear

59A 154247001 O-ring,front

60 154247502 Drain Pump Assy

60* 154234501 Bracket-motor,drain

61 154359601 Nozzle,3rd level ,spray arm

62 154294101 Support-spray arm

63 154252201 Base-soil director

64 154252301 Filter-soil director

65 154252401 Filter-polypro

66 154252701 Trap-glass

70 # 154369501 Motor assembly,circulation ,w/o o’rings

* 154200601 Screw-#10-16 x 3/8

* 154338601 Clamp-P,nylon

MOTOR & PUMP

10/00 10

Publication No. FDB435RFS3

5995344602

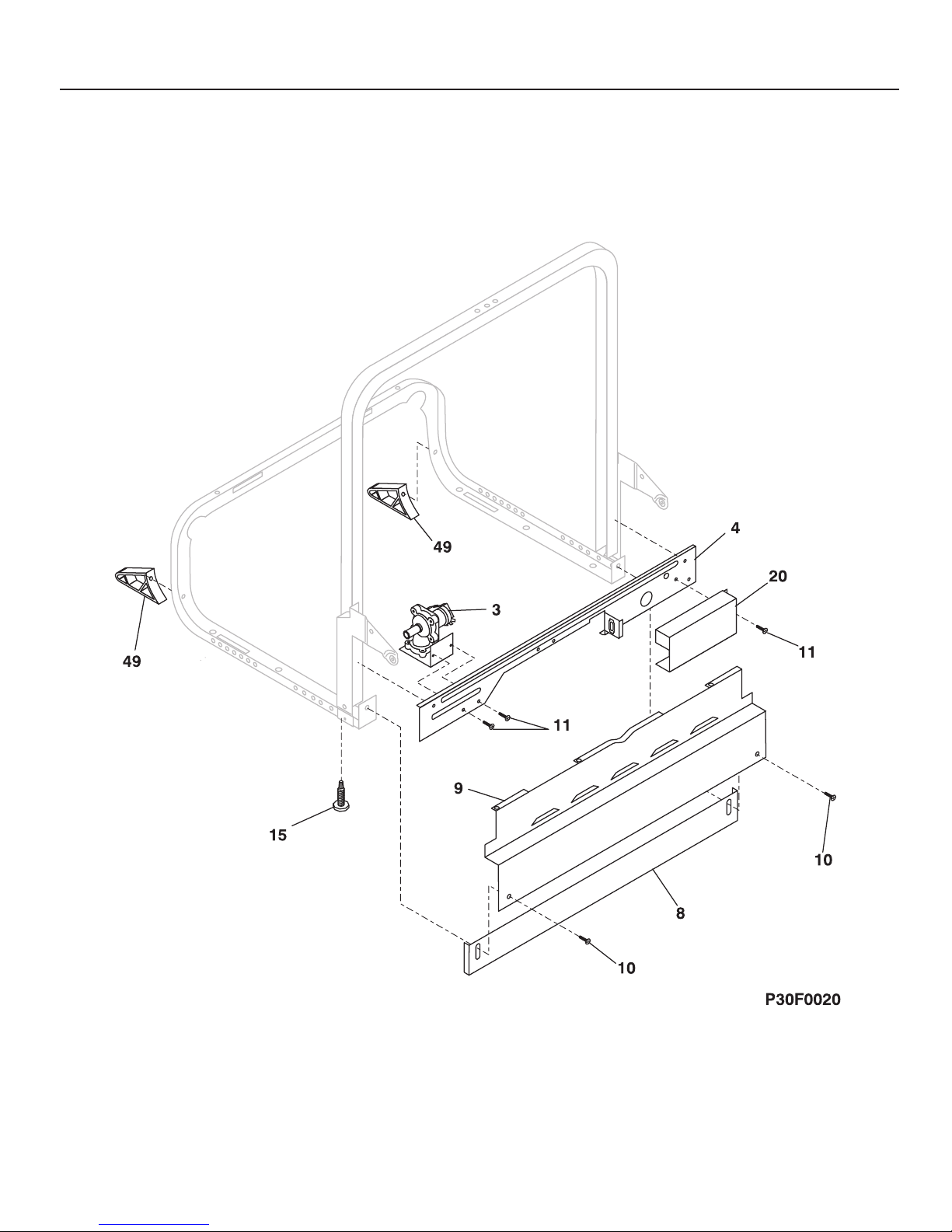

FRAME
