Frigidaire FDB1200RG Mode d’emploi

P30L0070.eps P30C0156.eps P30B0037.eps P30U0025.eps P30M0039.eps P30F0022.eps

P30R0109.eps

Product No. FDB1200RGB1 FDB1200RGC1 FDB1200RGQ1 FDB1200RGS1

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide English 154659501 154659501 154659501 154659501

Owner's Guide Spanish 154659503 154659503 154659503 154659503

Owner's Guide French 154659502 154659502 154659502 154659502

Service Data Sheet 154547801 154547801 154547801 154547801

Energy Guide 154678510 154678510 154678510 154678510

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995521191

08/08/11

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB1200RG

Publication No: 5995521191 FDB1200RG

08/08 2

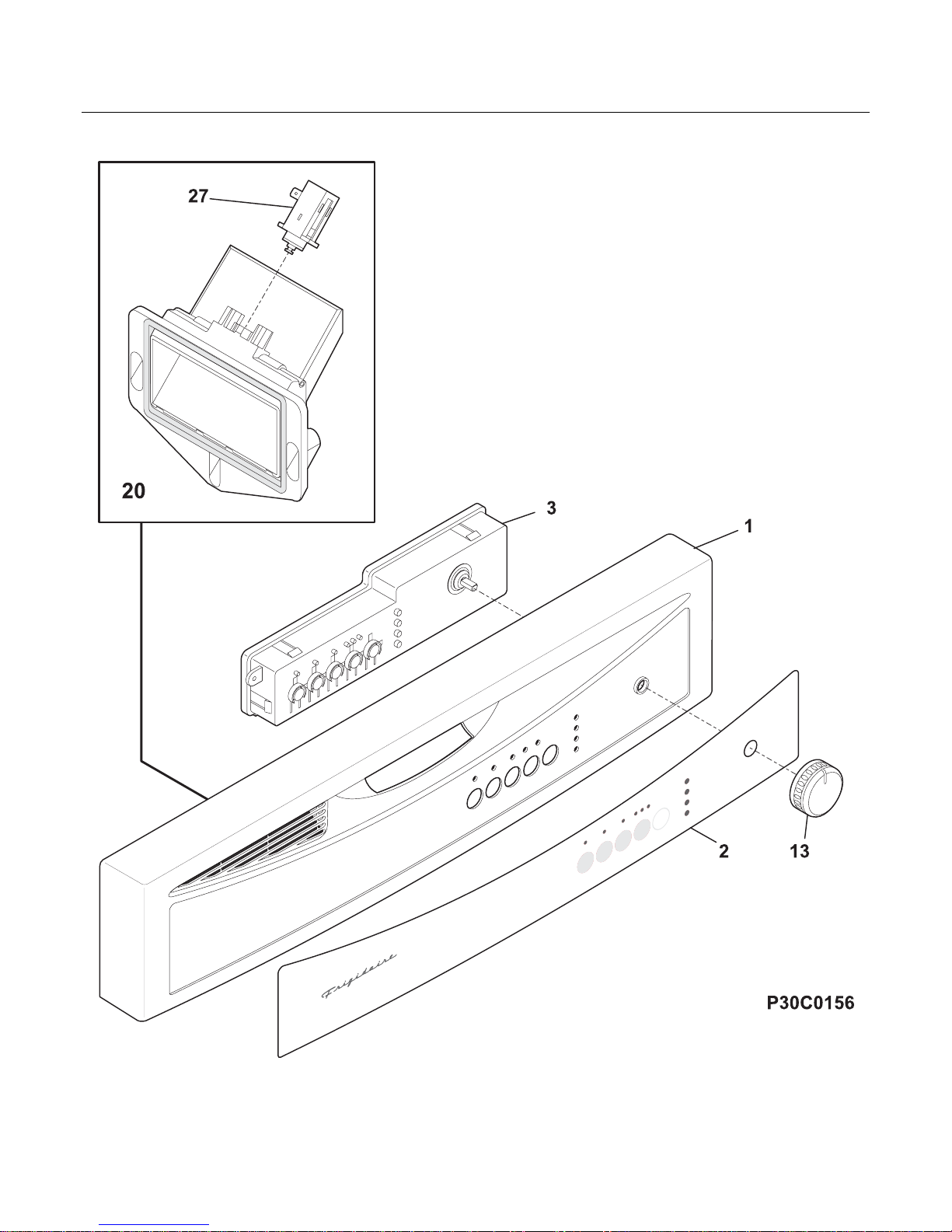

CONTROL PANEL

FDB1200RG Publication No: 5995521191

# Functional Parts 3 08/08

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB1200RG (FDB1200RGB1)

BFDB1200RG (FDB1200RGC1)

CFDB1200RG (FDB1200RGQ1)

DFDB1200RG (FDB1200RGS1)

POS. NO PART NO. DESCRIPTION

1 154644803 A B - - Panel, control, black

1 154644804 - - C - Panel, control, bisque

1 154644801 - - - D Panel, control, white

2 154535103 A B - - Insert, control panel, black, 5 button

2 154535104 - - C - Insert, control panel, bisque, 5 button

2 154535101 - - - D Insert, control panel, white, 5 button

3 # 154568301 A B C D Control Module, 5 button, w/selector

13 154535903 A B - - Knob, control, black

13 154535904 - - C - Knob, control, bisque

13 154535901 - - - D Knob, control, white

20 154423601 A B C D Vent assy, active dry, w/actuator

20* 154436201 A B C D Screw, dry duct, (3)

27 154433501 A B C D Actuator, active dry vent

* # 154646101 A B C D Wiring Harness, main

* 154227501 A B C D Thermistor

* 154678510 A B C D Energy guide label

* 154409401 A B C D Screw, #8-18 x .375

Publication No: 5995521191 FDB1200RG

08/08 4

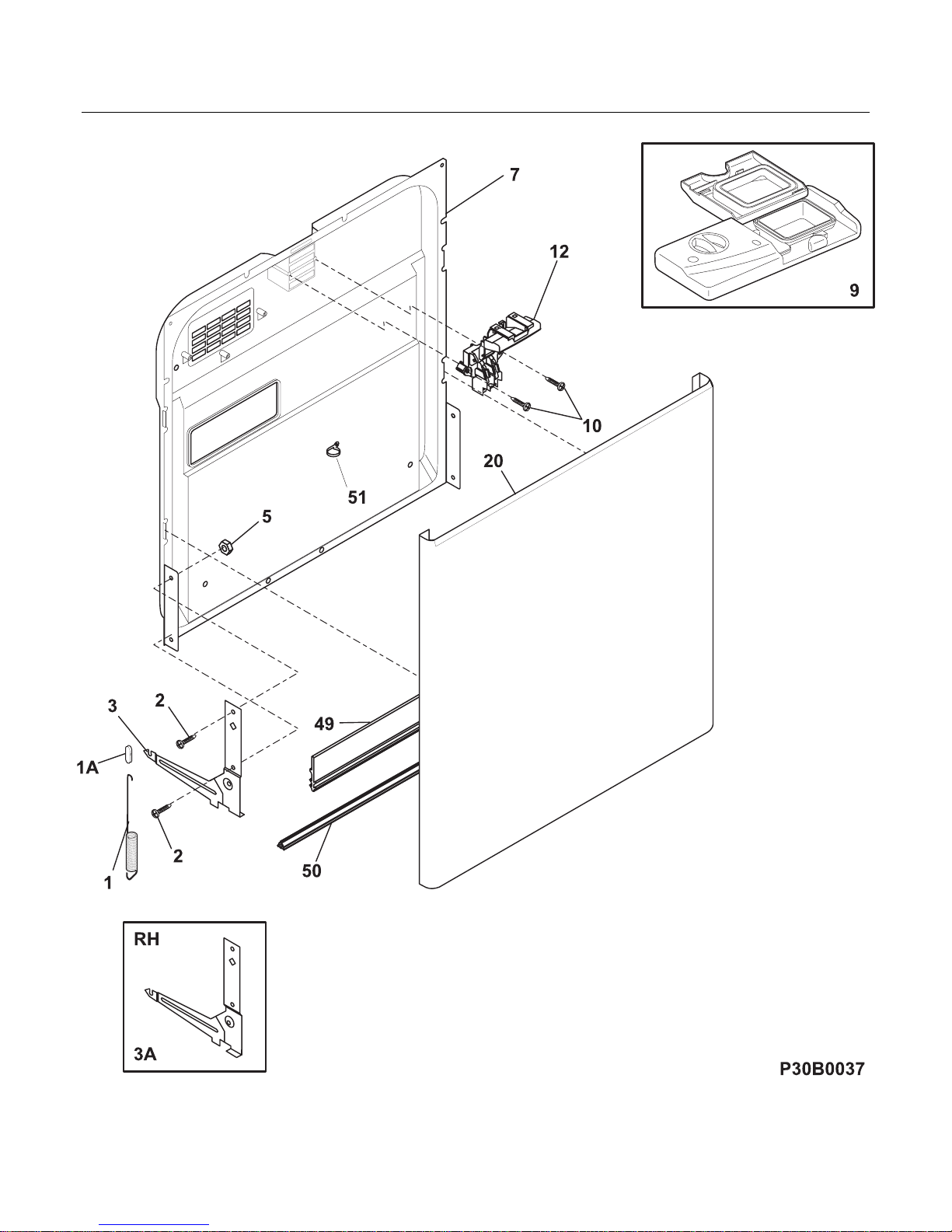

DOOR

FDB1200RG Publication No: 5995521191

# Functional Parts 5 08/08

* Non-Illustrated Parts

DOOR

Model Index: AFDB1200RG (FDB1200RGB1)

BFDB1200RG (FDB1200RGC1)

CFDB1200RG (FDB1200RGQ1)

DFDB1200RG (FDB1200RGS1)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154597503 A B C D Arm Assy, LH

3A 154596103 A B C D Arm Assy, RH

* 154529101 A B C D Pin, arm assy

5 154079601 A B C D Nut, arm assy, and handle mtg.

7 154494601 A B C D Liner, door assy.

9 154542103 A B C D Dispenser, det/rinse aid, w/o reed

9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D Screw, latch mtg, (2)

12 # 154556703 A B - - Latch assy, black

12 # 154556704 - - C - Latch assy, bisque

12 # 154556701 - - - D Latch assy, white

20 154538303 A - - - Door, black

20 154538305 - B - - Door, stainless

20 154538304 - - C - Door, bisque

20 154538301 - - - D Door, white

20* 5304428306 A B C D Screw, door mtg., (2)

49 154576501 A B C D Gasket, door, bottom

50 154211401 A B C D Support, door hinge

51 154320301 A B C D Clamp, drip loop, wire

* 154409401 A B C D Screw, #8-18 x .375

Publication No: 5995521191 FDB1200RG

08/08 6

TUB

FDB1200RG Publication No: 5995521191

# Functional Parts 7 08/08

* Non-Illustrated Parts

TUB

Model Index: AFDB1200RG (FDB1200RGB1)

BFDB1200RG (FDB1200RGC1)

CFDB1200RG (FDB1200RGQ1)

DFDB1200RG (FDB1200RGS1)

POS. NO PART NO. DESCRIPTION

1 # 154534701 A B C D Tub assy, w/frame parts

2 154662601 A B C D Strike, door

3 # 154561001 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 154333902 A B C D Roller, tub

6 5303943103 A B C D Screw, w/washer, (8)

22 154446002 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154606701 A B C D Hose, drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch Assy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154641601 A B C D Insulation, blanket

* 154685101 A B C D Gasket, tub, corner, (2)

* 5300807270 A B C D Screw, (2), countertop mtg.

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

Publication No: 5995521191 FDB1200RG

08/08 8

MOTOR & PUMP

FDB1200RG Publication No: 5995521191

# Functional Parts 9 08/08

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB1200RG (FDB1200RGB1)

BFDB1200RG (FDB1200RGC1)

CFDB1200RG (FDB1200RGQ1)

DFDB1200RG (FDB1200RGS1)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B C D Heater, round

1* 154106202 A B C D Nut, heater, (2)

1* 154289801 A B C D Shield, heater terminal

2 154465101 A B C D Bracket, heater, (2)

10 154245501 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154461901 A B C D Housing, sump

16 154246502 A B C D Retainer, sump

24 154568002 A B C D Spray arm, grey, lower, w/heat shield

24A 154468502 A B C D Spray arm, grey, center

24B 154520601 A B C D Nozzle, shower, assembly

32 154464101 A B C D Tube, delivery

32* 154491101 A B C D Screw, delivery tube

32A 154406401 A B C D Gasket, delivery tube

40 154106801 A B C D Clamp, hose, 1.29" open, worm gear, (2)

40* 154380601 A B C D Clamp, hose, 1.5" open, worm gear, (5)

54 154491201 A B C D Hose, connector, drain pump

55 154595901 A B C D Bracket, motor

55* 5303316032 A B C D Screw, truss ss, 8 .625, (7)

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 # 154580301 A B C D Pump Assy, drain

61 154463402 A B C D Grommet, delivery tube

62 154294101 A B C D Support, spray arm, lower

63 154252201 A B C D Base, soil director

64 154252301 A B C D Filter, soil director, white

65 154252401 A B C D Filter, polypro

66 154252701 A B C D Trap, glass

70 # 154700101 A B C D Motor & Pump Assy, johnson, 2900

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995521191 FDB1200RG

08/08 10

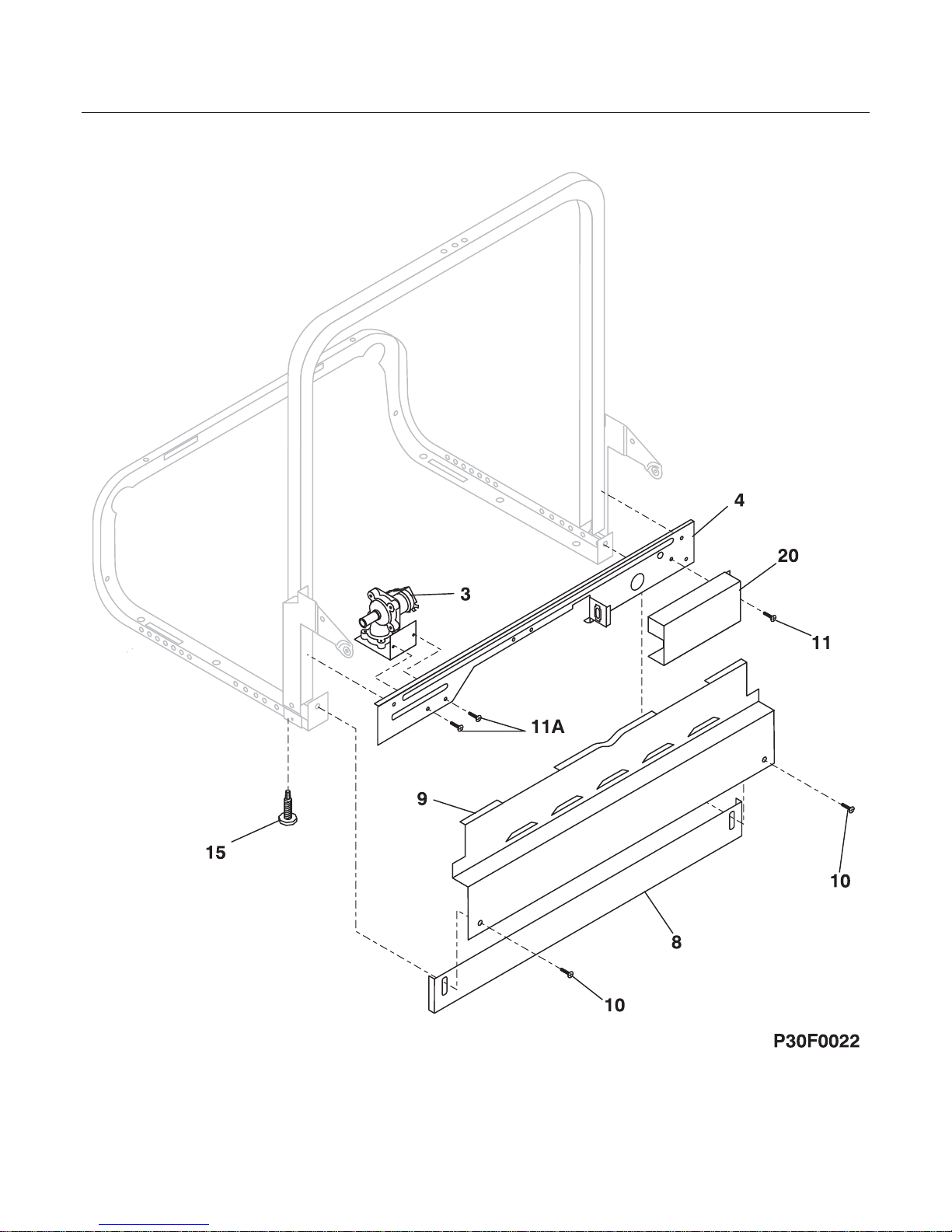

FRAME
