Drop-In Cooktop

FPEC3085K S

30" Electric24" Built-In

Signature Features

Precision™ Wash

Technology

Our dishwasher features Precision™

Wash Technology, which gives you

clean dishes every time.

Quiet Dishwasher

A quiet performance every time.

SpaceWise®

Silverware Basket

There’s a place for all of your

silverware in our multicompartment,

removable basket.

Fits-More™ Capacity

Our large capacity, tall-tub dishwasher

fits up to 14 place settings so you can

wash even more at once.

Product Dimensions

Height (Adjustable) 33-1/2" – 35"

Width 24"

Depth (Including Door) 25"

More Easy-To-Use Features

Delay Start

Set your dishwasher to run

on your schedule.

Ready-Select® Controls

Easily select options with the touch

of a button.

Energy Saver Dry Option

No heat dry option.

Attractive Stainless Steel Exterior1

Low Rinse-Aid Indicator Light

Control Lock Option

5-Level Wash Design

White Interior

UltraQuiet™ 2

Sound Reduction System

Available in:

1 Select model only.

Dishwashers

FFBD2407L S / M / W / B / Q

Stainless

(S)

Bisque

(Q)

Black

(B)

White

(W)

Silver Mist

(M)

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

Product Dimensions

A - Height (Adjustable)

B - Width

C - Depth (Including Door)

D - Depth (To Tub Flange)

Depth with Door Open 90˚

33-1/2" – 35"

24"

25"

22-1/2"

49-1/4"

Meets requirements

of ASSE 1006

Cutout Dimensions

Height (Min.)

Height (Max.)

Width (Min.)

Depth (Min.)

34-1/4"

35-1/4"

24"

NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

24" Built-In Dishwashers

Frigidaire Baseline

1 For use on adequately wired 120V, dedicated circuit having

2-wire service with a separate ground wire. Appliance must be

grounded for safe operation.

Features

Control Design

Digital Display

Door Latch

Stay-Put Door Hinge Design

Low Rinse-Aid Indicator Light

Interior Design

Interior Color

Wash System

Wash Levels / Wash Speeds

Sound Package

Filter

Filter Trap

Soft Food Disposer

dB Level

Drying System

Cycles

Number of Cycles

Heavy

Normal

Light

Delicate

Favorite

China / Crystal

Rinse Only

Energy Saver Plus

Upper Rack Wash Only

Cycle Indicator Light

Control Lock

Options

Heat / No Heat Dry

Hi-Temp Wash

NSF® Certiﬁed Sanitize Rinse

Delay Start

Rack System

Rack Design / Rack Coating

Upper Rack –

Stemware / Champagne Glass Holders

Fold-Down Tines

Cup Shelves

Lower Rack –

SpaceWise® Silverware Basket

Fold-Down Tines

Small Items Cover

Speciﬁcations

Water Inlet Location

Water Usage (Gallons)

Water Pressure (PSI)

Integral Air Gap on Supply

Leveling Legs

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating) @ 120 Volts 1

Amps @ 120 Volts

Shipping Weight (Approx.)

Ready-Select®

Yes

Tall Tub

White

Precision™ Wash

5 / 1

UltraQuiet™ 2

Plastic

Removable

Yes

Static

Yes

2-4-6 Hour

Deluxe / PVC

Ultra 1

Left Bottom Front

6.0

20 – 120

Yes

Right Bottom Front

120V / 60 Hz / 15A

1.44

64 Lbs.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Dishwashers

FFBD2407L S / M / W/ B / Q 24" Built-In

Specifications

subject to change.

Meets

requirements of

ASSE 1006

24" Built-In Dishwasher w/Ready-Select Controls (RSC)

Baseline

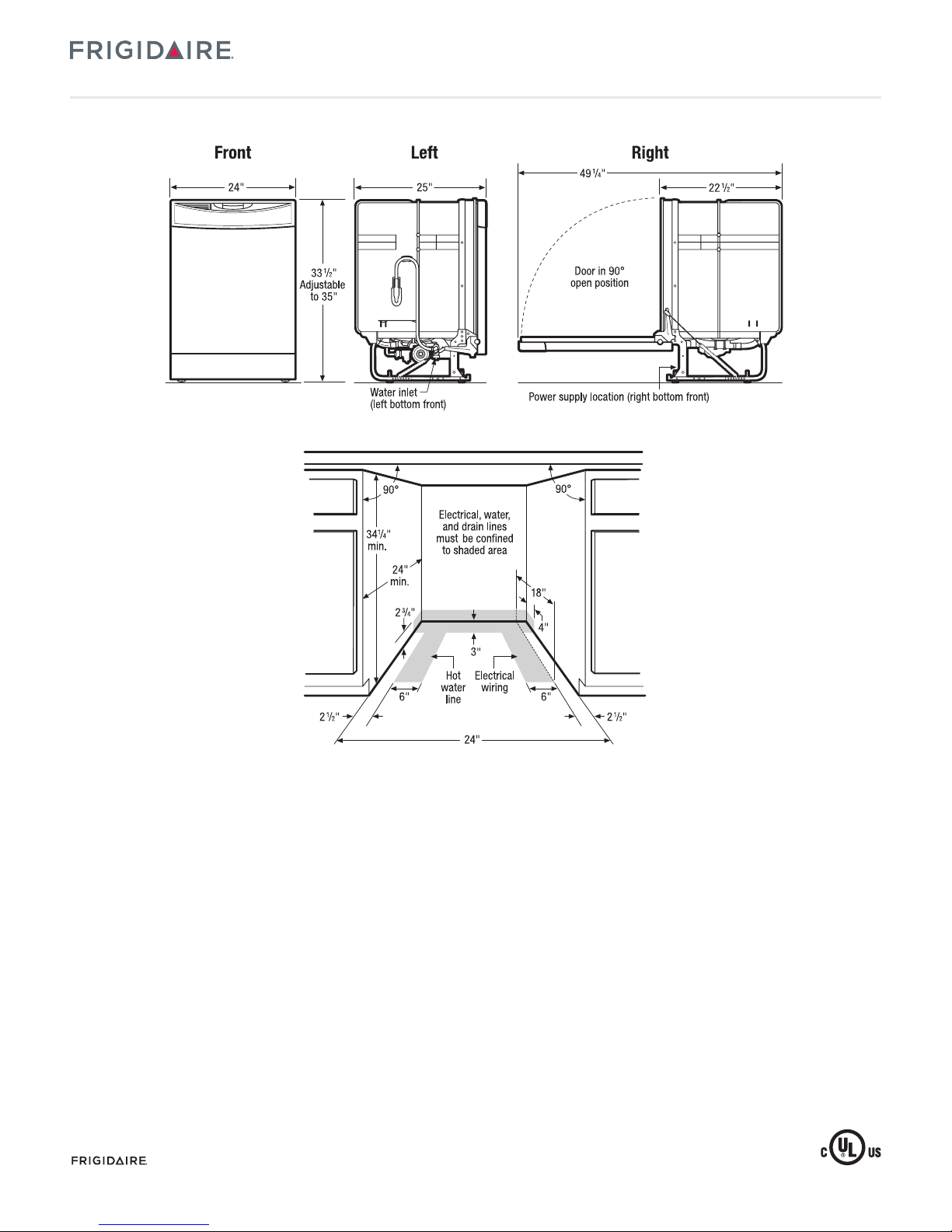

Dishwasher Specifications

•Product Shipping Weight (approx.) – 64 Lbs.

•Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if

connected with disposer)

•Connected Load (kW Rating) @ 120 Volts = 1.44 kW

(For use on adequately wired 120V, dedicated circuit having 2-wire

service with a separate ground wire. Appliance must be grounded

for safe operation.)

•Amps @ 120V = 10 Amps

•Always consult local and national electric & plumbing codes.

Meets requirements of ASSE 1006 — integral air gap on supply.

•Water Pressure – Hot water line to dishwasher must provide

between 20 and 120 pounds per square inch (psi).

•Make sure location has right drain, water and electrical outlets

to make connections.

•Keep back free of drain, water & electrical supply.

•Electrical and water supplies should enter cabinet opening on floor,

or through back or side walls, as shown in shaded areas.

•Connections preferably located toward left side of dishwasher. Do not

cross drain, water or electrical lines in front of motor, blower or frame.

•When installing adjacent to wall, cabinet or other obstruction that

extends beyond front edge of unit, allow 2" minimum clearance

between opened door and obstruction.

•When installing at end of cabinet line, sides must be fully enclosed.

•Do not install unit under a cooktop, damage will occur.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Dishwashers

FFBD2407L S / M / W/ B / Q 24" Built-In
