Frigidaire FDB1502RG Mode d’emploi

P30L0076.eps P30C0158.eps P30B0037.eps P30U0025.eps P30M0039.eps P30F0022.eps

P30R0107.eps

Product No. FDB1502RGB1 FDB1502RGC1 FDB1502RGM1 FDB1502RGQ1 FDB1502RGS1

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless silver mist bisque white

Owner's Guide English 154659801 154659801 154659801 154659801 154659801

Owner's Guide Spanish 154659803 154659803 154659803 154659803 154659803

Owner's Guide French 154659802 154659802 154659802 154659802 154659802

Service Data Sheet 154595301 154595301 154595301 154595301 154595301

Energy Guide 154678514 154678514 154678514 154678514 154678514

Installation Instructions 154427301 154427301 154427301 154427301 154427301

Market North America North America North America North America North America

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995519153

08/07/17

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB1502RG

Publication No: 5995519153 FDB1502RG

07/08 2

CONTROL PANEL

FDB1502RG Publication No: 5995519153

# Functional Parts 3 07/08

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB1502RG (FDB1502RGB1)

BFDB1502RG (FDB1502RGC1)

CFDB1502RG (FDB1502RGM1)

DFDB1502RG (FDB1502RGQ1)

EFDB1502RG (FDB1502RGS1)

POS. NO PART NO. DESCRIPTION

1 154645203 A B C - - Panel, control, black

1 154645204 - - - D - Panel, control, bisque

1 154645201 - - - - E Panel, control, white

2 154591803 A B C - - Insert, control panel, black, 10 pad

2 154591804 - - - D - Insert,controlpanel, bisque,10pad

2 154591801 - - - - E Insert, control panel, white, 10 pad

3 # 154635501 A B C D E Board, electronic, K4

4 154552101 A B C D E Cover, control

8 154552201 A B C D E Switch Assembly, tactile

20 154423601 A B C D E Vent assy, active dry, w/actuator

20* 154436201 A B C D E Screw, dry duct, (3)

27 154433501 A B C D E Actuator, active dry vent

33 154553501 A B C D E Gasket, cover

* # 154665601 A B C D E Harness, wiring, main

* 154227501 A B C D E Thermistor

* 154678514 A B C D E Energy guide label

* 154294701 A B C D E Screw, #7 plas .375, (6), disp. assy.

* 154409401 A B C D E Screw, #8-18 x .375

Publication No: 5995519153 FDB1502RG

07/08 4

DOOR

FDB1502RG Publication No: 5995519153

# Functional Parts 5 07/08

* Non-Illustrated Parts

DOOR

Model Index: AFDB1502RG (FDB1502RGB1)

BFDB1502RG (FDB1502RGC1)

CFDB1502RG (FDB1502RGM1)

DFDB1502RG (FDB1502RGQ1)

EFDB1502RG (FDB1502RGS1)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D E Spring, door, (2)

1A 154325201 A B C D E Linkage, door spring, (2)

2 154093301 A B C D E Screw, arm assy, (4)

3 154597503 A B C D E Arm Assy, LH

3A 154596103 A B C D E Arm Assy, RH

* 154529101 A B C D E Pin, arm assy

5 154079601 A B C D E Nut, arm assy, and handle mtg.

7 154299006 A B C D E Door, inner assy

9 154542103 A B C D E Dispenser, det/rinse aid, w/o reed

9* 154294701 A B C D E Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D E Screw, latch mtg, (2)

12 # 154556703 A B C - - Latchassy,black

12 # 154556704 - - - D - Latch assy, bisque

12 # 154556701 - - - - E Latchassy, white

20 154597903 A - - - - Door Assy, black, outer, w/dampeners

20 154597905 - B - - - Door Assy, stainless, outer, w/dampeners

20 154538312 - - C - - Door,silver mist

20 154597904 - - - D - Door Assy, bisque, outer, w/dampeners

20 154597901 - - - - E Door Assy, white, outer,w/dampeners

20* 5304428306 A B C D E Screw,door mtg., (2)

49 154576501 A B C D E Gasket, door, bottom

50 154211401 A B C D E Support, door hinge

51 154320301 A B C D E Clamp, drip loop, wire

* 154409401 A B C D E Screw, #8-18 x .375

Publication No: 5995519153 FDB1502RG

07/08 6

TUB

FDB1502RG Publication No: 5995519153

# Functional Parts 7 07/08

* Non-Illustrated Parts

TUB

Model Index: AFDB1502RG (FDB1502RGB1)

BFDB1502RG (FDB1502RGC1)

CFDB1502RG (FDB1502RGM1)

DFDB1502RG (FDB1502RGQ1)

EFDB1502RG (FDB1502RGS1)

POS. NO PART NO. DESCRIPTION

1 # 154534701 A B C D E Tub assy, w/frame parts

2 154662601 A B C D E Strike, door

3 # 154561001 A B C D E Gasket, tub

4 154200602 A B C D E Screw, 10-16 x 3/8, hex

5 154333902 A B C D E Roller, tub

6 5303943103 A B C D E Screw, w/washer, (8)

22 154446002 A B C D E Tubing, water inlet

23 5303318539 A B C D E Clamp, tubing, (2)

24 # 154606701 A B C D E Hose, drain

25 # 154209701 A B C D E Float

28 154408701 A B C D E Switch Assy, float

29 # 154290204 A B C D E Thermostat, re-settable

30 154241101 A B C D E Retainer, thermostat

30* 154297701 A B C D E Screw,retainer-thermo

* 154685101 A B C D E Gasket, tub, corner, (2)

* 154447102 A B C D E Insulation,blanket

* 5300807270 A B C D E Screw, (2), countertop mtg.

* 154041001 A B C D E Screw, plask #1, 10-10 x 9/16

Publication No: 5995519153 FDB1502RG

07/08 8

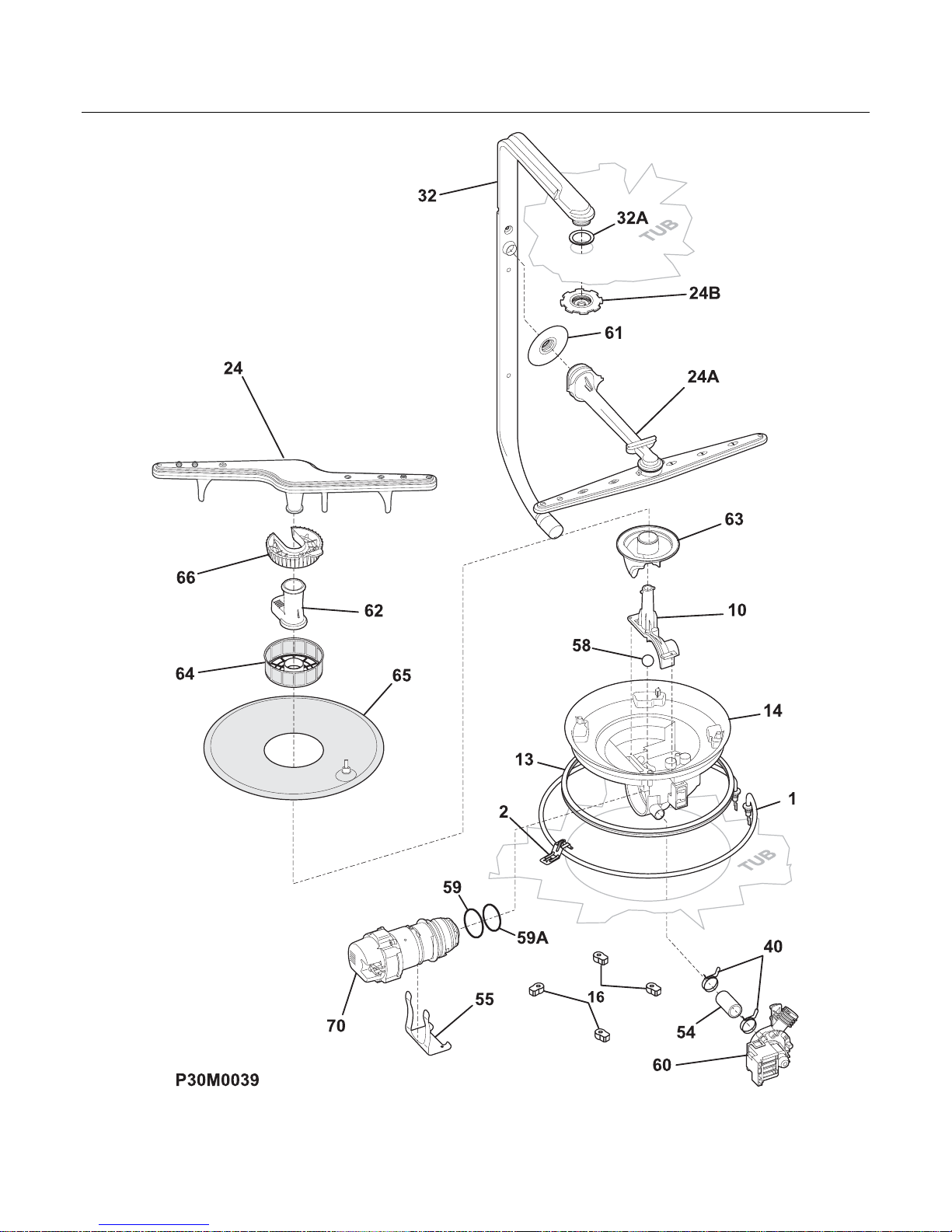

MOTOR & PUMP

FDB1502RG Publication No: 5995519153

# Functional Parts 9 07/08

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB1502RG (FDB1502RGB1)

BFDB1502RG (FDB1502RGC1)

CFDB1502RG (FDB1502RGM1)

DFDB1502RG (FDB1502RGQ1)

EFDB1502RG (FDB1502RGS1)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B C D E Heater, round

1* 154106202 A B C D E Nut, heater, (2)

1* 154289801 A B C D E Shield, heater terminal

2 154465101 A B C D E Bracket, heater, (2)

10 154245501 A B C D E Cover, volute

13 154246801 A B C D E Gasket, sump

14 154461901 A B C D E Housing, sump

16 154246502 A B C D E Retainer, sump

24 154568002 A B C D E Spray arm, grey, lower, w/heat shield

24A 154468502 A B C D E Spray arm, grey, center

24B 154520601 A B C D E Nozzle, shower, assembly

32 154464101 A B C D E Tube, delivery

32* 154491101 A B C D E Screw,delivery tube

32A 154406401 A B C D E Gasket,delivery tube

40 154106801 A B C D E Clamp, hose, 1.29" open, worm gear, (2)

40* 154380601 A B C D E Clamp, hose, 1.5" open, worm gear, (5)

54 154491201 A B C D E Hose, connector, drain pump

55 154595901 A B C D E Bracket, motor

55* 5303316032 A B C D E Screw, truss ss, 8 .625, (7)

58 154246402 A B C D E Check ball

59 154246901 A B C D E O-ring, rear

59A 154247001 A B C D E O-ring,front

60 # 154580301 A B C D E Pump Assy, drain

61 154463402 A B C D E Grommet, delivery tube

62 154294101 A B C D E Support, spray arm, lower

63 154252201 A B C D E Base, soil director

64 154252301 A B C D E Filter, soil director, white

65 154252401 A B C D E Filter, polypro

66 154252701 A B C D E Trap, glass

70 # 154700101 A B C D E Motor & Pump Assy, johnson, 2900

* 154200601 A B C D E Screw, #10-16 x 3/8

Publication No: 5995519153 FDB1502RG

07/08 10

FRAME
