Frigidaire FDB635RF Manuel utilisateur

PRODUCT NO. BASE MODEL NO. COLOR

FDB635RFR4 FDB635RF reversible

FDB635RFS4 FDB635RF white

Publication No.

5995308110

980604

-EN/SERVICE /ECL

911

24" BUILT-IN

DISHWASHER

Model No.

FDB635RF

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154296902

OWNER’S GUIDE # - 154255602

INSTALLATION INST - 15329601

101 Masters Blvd.

Anderson, SC 29624

6/98 2

Publication No. FDB635RF

5995308110

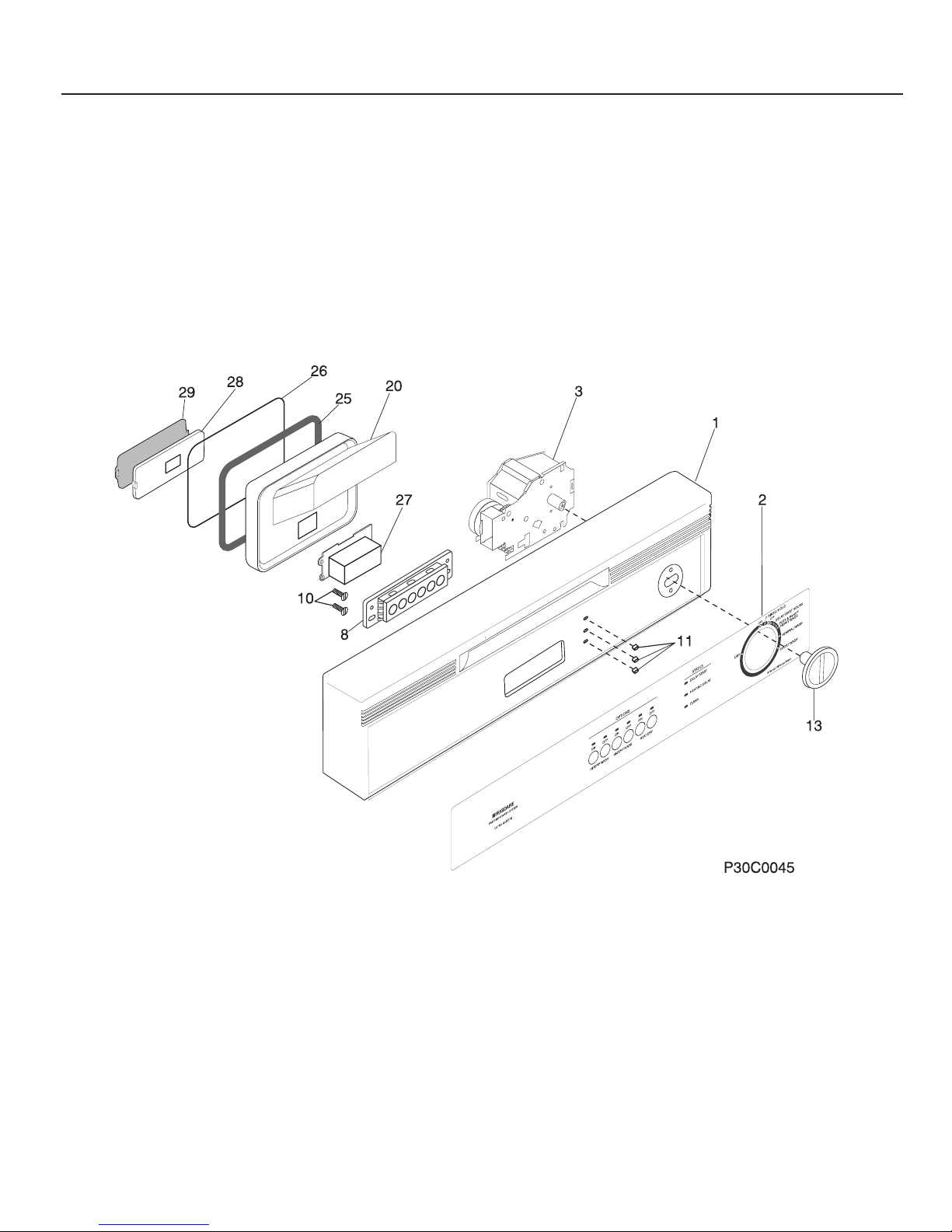

CONTROL PANEL

# = Fast Moving Part 3 6/98

* = Non-Illustrated Part

FDB635RF Publication No.

5995308110

CONTROL PANEL

A = FDB635RF (FDB635RFS4)

B = FDB635RF (FDB635RFR4)

POS. NO PART NO DESCRIPTION

1 154222701 A - Panel-control,white

1 154222703 - B Panel-control

2 154236701 A - Insert-control pnl,white

2 154236703 - B Insert-control pnl

3 # 154295701 A B Timer

3* 154095701 A B Screw-timer,thread rolling ,(2)

3* 154131203 A B Shield-timer

8 # 154214701 A B Switch-selector,6 button

8* 154248601 A B Shield-switch

11 154298301 A B Lens-light

13 154239501 A - Knob-timer,white

13 154239503 - B Knob-timer

20 154283701 A B Vapor Weldment Assy

25 154229201 A B Seal-chamber

26 154303901 A B Gasket-vent

27 154226701 A B Actuator-wax

28 154226901 A B Valve-vent

29 154226401 A B Gasket-valve

* 154103702 A B Screw-switch mtg,(2)

* 154283901 A B Screw,#8-10 ,3/8 phillips

* 5303318719 A B Screw,(3) ,timer mtg.

* # 154296102 A B Harness-wiring

6/98 4

Publication No. FDB635RF

5995308110

DOOR

# = Fast Moving Part 5 6/98

* = Non-Illustrated Part

FDB635RF Publication No.

5995308110

A = FDB635RF (FDB635RFS4)

B = FDB635RF (FDB635RFR4)

POS. NO PART NO DESCRIPTION

1 154226002 A B Spring-door,(2)

1* 154325201 A B Spring linkage

2 154093301 A B Screw-arm assy

3 154325303 A B Arm Assy,RH

3 154325304 A B Arm Assy,LH

3* 154211501 A B Pin-arm

5 154079601 A B Nut-arm assy

7 154299002 A B Door-inner assy

9 154230101 A B Dispenser-det/rinse aid

10 154304301 A B Screw-latch mtg,(2)

12 # 154308101 A - Latch assy,white

12 # 154308103 - B Latch assy,black

20 154327701 A B Mid Door Assy

27 154257601 A - Trim-door,white ,bottom

27 154257603 - B Trim-door,black ,bottom

32 5303943148 A B Insert-door kit,wht/alm&blk/wht

32A 154229001 A B Spacer-insert,door

36 154254201 A - Trim-door,white ,side

36 154254203 - B Trim-door,side

49 154297602 A B Gasket-door,bottom

50 154211401 A B Support-door hinge

* 5300808658 A B Screw,#8A x .375"

* 154103702 A B Screw-switch mtg,(2)

* 154200601 A B Screw-#10-16 x 3/8

* 5300808749 A B Screw,C.R. truss ,#8 .625

DOOR

6/98 6

Publication No. FDB635RF

5995308110

TUB

# = Fast Moving Part 7 6/98

* = Non-Illustrated Part

FDB635RF Publication No.

5995308110

A = FDB635RF (FDB635RFS4)

B = FDB635RF (FDB635RFR4)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B Tub assy,w/frame parts

2 154211601 A B Strike-door

3 # 154211801 A B Gasket-tub

4 5300807270 A B Screw

5 154213401 A B Roller-tub

6 5303943103 A B Screw w/washer,(8)

22 154239801 A B Tubing-water inlet

23 5303318539 A B Clamp-tubing,(2)

24 # 154225602 A B Hose-drain

25 # 154209701 A B Float

28 # 154225501 A B Switch-float

28* 154200701 A B Screw-#10-32 x 3/8

28* 154209801 A B Bracket-float switch

29 # 154290204 A B Thermostat,re-settable

30 154241101 A B Retainer-thermostat

30* 154297701 A B Screw,retainer-thermo

* 154041001 A B Screw,plask #1 ,10-10 x 9/16

TUB

6/98 8

Publication No. FDB635RF

5995308110

MOTOR & PUMP

# = Fast Moving Part 9 6/98

* = Non-Illustrated Part

FDB635RF Publication No.

5995308110

A = FDB635RF (FDB635RFS4)

B = FDB635RF (FDB635RFR4)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B Heater

1* 154106201 A B Nut-heater,(2)

1* 154289801 A B Shield-heater terminal

2 154322501 A B Bracket-heater

7 154245901 A B Macerator

10 154245501 A B Cover-volute

12 154245801 A B Impeller

12* 154282701 A B Screw,ss impeller

13 154246801 A B Gasket-sump

14 154335403 A B Housing-sump

15 # 154246701 A B Check valve

16 154246502 A B Retainer,sump

24 # 154250901 A B Spray arm-lower,w/cover

24* 154252001 A B Nut-spray arm

24A 154313601 A B Spray arm-center

32 154251701 A B Tube-delivery

32A 154251601 A B Gasket-delivery tube

34 154064901 A B Washer-insulating

40 154106801 A B Clamp-hose

40 154247301 A B Clamp,drain pump

54 154234401 A B Hose-connector

55 154245601 A B Bracket-motor

55A 154246201 A B Bracket-motor,front

56 # 154245706 A B Motor,circulation

57 154246001 A B Barrel,front

57* 154246101 A B Barrel,rear

58 154246402 A B Check ball

59 154246901 A B O-ring,rear

59A 154247001 A B O-ring,front

60 154247502 A B Drain Pump Assy

60* 154234501 A B Bracket-motor,drain

61 154250201 A B Nozzle,3rd level ,spray arm

62 154294101 A B Support-spray arm

63 154252201 A B Base-soil director

64 154252301 A B Filter-soil director

65 154252401 A B Filter-polypro

66 154252701 A B Trap-glass

67 154246601 A B Hose-drain,shunt

68A# 154227805 A B Thermostat-temp assure

70 # 154291504 A B Motor & Pump Assy,includes#7,#12 ,

#57A,#59 & #59A,#55A,#56,#57

* 154241101 A B Retainer-thermostat

* # 154227806 A B Thermostat-temp boost

* 154200601 A B Screw-#10-16 x 3/8

* 154247101 A B Clamp,drain side

* 154247201 A B Clamp,intake

* 154247401 A B Clamp,connector pump

* 154287201 A B Screw,motor mounting

* 154329001 A B Cover-fan

* 5303316032 A B Screw,truss ss ,8 .625

MOTOR & PUMP

6/98 10

Publication No. FDB635RF

5995308110

FRAME
