Frigidaire FAS185J2A2 Manuel utilisateur

PRODUCT NO. BASE MODEL NO. BTU-COOLING

FAS185J2A2 FAS185J2A 18000BTU

Publication No.

5995348611

010118

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAS185J2A2

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309343701

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

08/01 2

Publication No. FAS185J2A2

5995348611

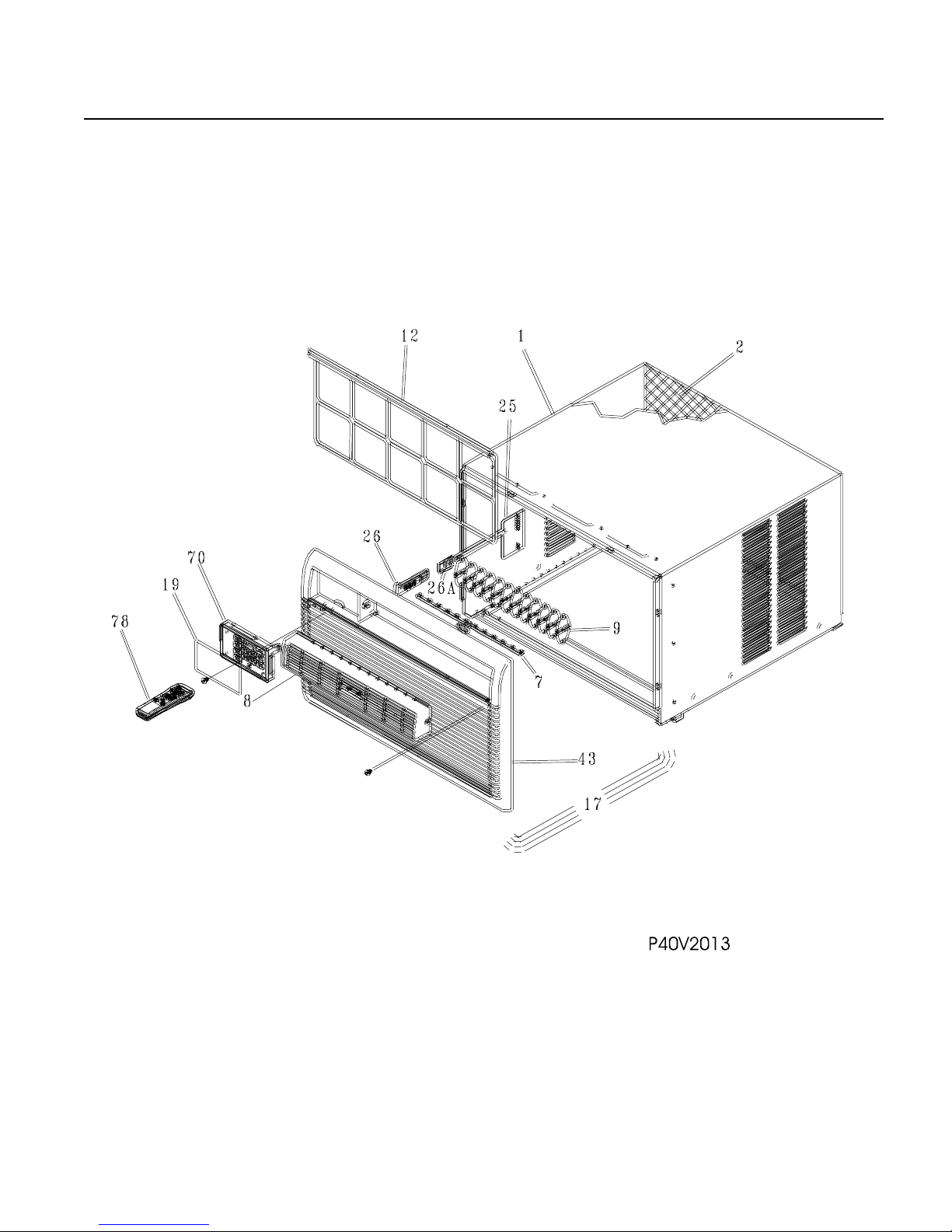

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

FAS185J2A2 Publication No.

5995348611

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver

8 309630804 Louver,horizontal

8* 309633305 Louver Assy,horizontal

9 309631004 Louver

12 309631404 Filter-air,molded plastic

17 309633205 Front-cabinet,complete assy

19 309341002 Overlay,Frig Gallery

25 309321401 Door-vent,actuator

26 309330404 Handle-vent,gray

26A 309330202 Detent-vent

26A* 309330206 Detent Assy-vent,with adhesive

43 309630904 Panel,cabinet front

70 309342401 Enclosure,elec control mt

78 309350502 Remote Control,transmitter ,with batteries

08/01 4

Publication No. FAS185J2A2

5995348611

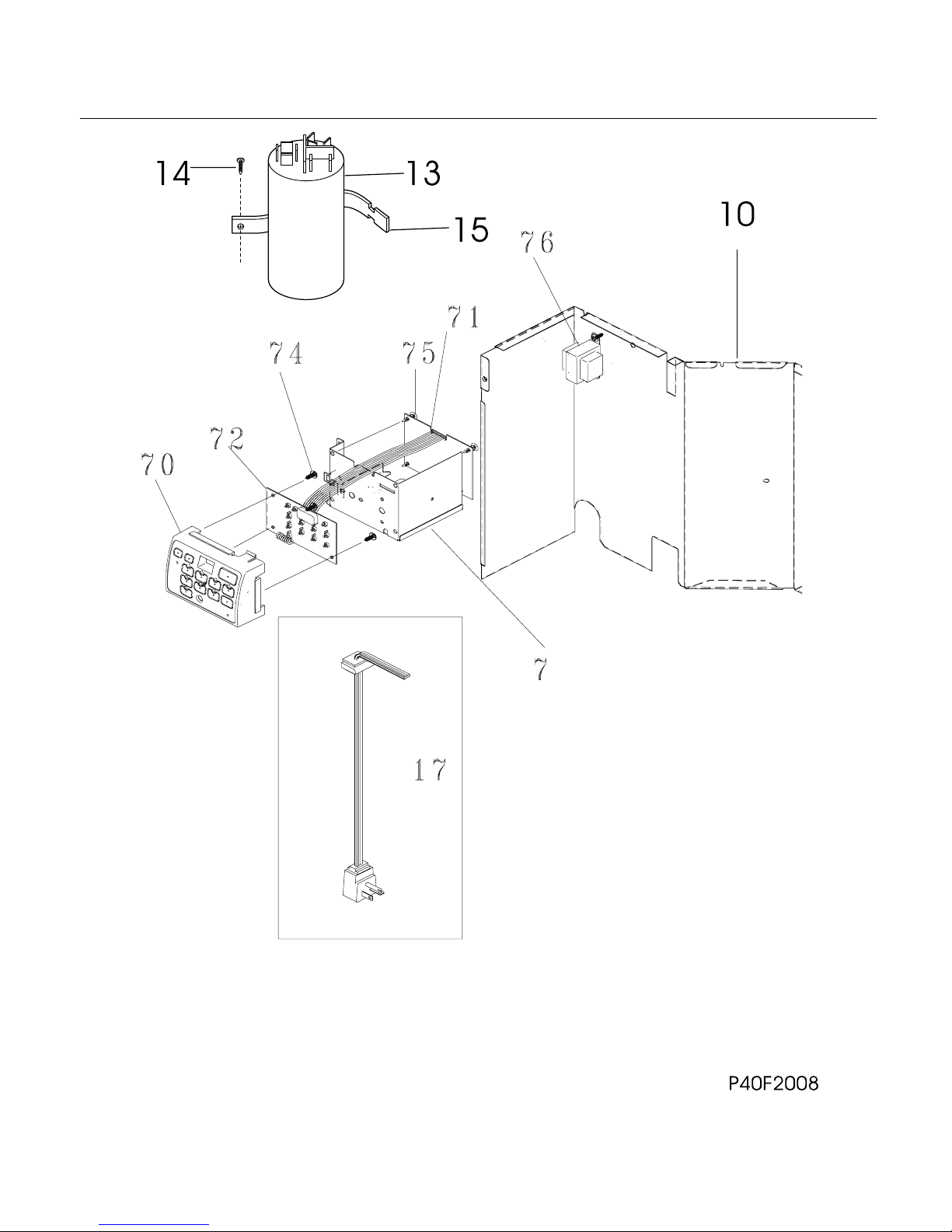

CONTROLS

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

FAS185J2A2 Publication No.

5995348611

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630403 Control Box

10 309623601 Bulkhead,control system

13 # 5303317228 Capacitor,370 V ,30+6

14 3015312 Screw,8-18AB x 0.500

15 5303303077 Strap-capacitor

17 309343112 Cord-service,type C 16AWG

70 # 309342401 Enclosure,elec contrl mt

71 # 309350401 PC Board,power,Sagem

72 # 309350403 Board-input,Sagem HD

72* 5304417643 Ribbon Protector

74 5303301590 Screw-bracket

75 5304413781 Support-pc board

76 309111602 Transformer,240/12 Volt

* 5304413782 Holder-thermistor,assy with seal

* 5304414108 Holder-thermistor,without sea

* # 5304408751 Wiring Harness

08/01 6

Publication No. FAS185J2A2

5995348611

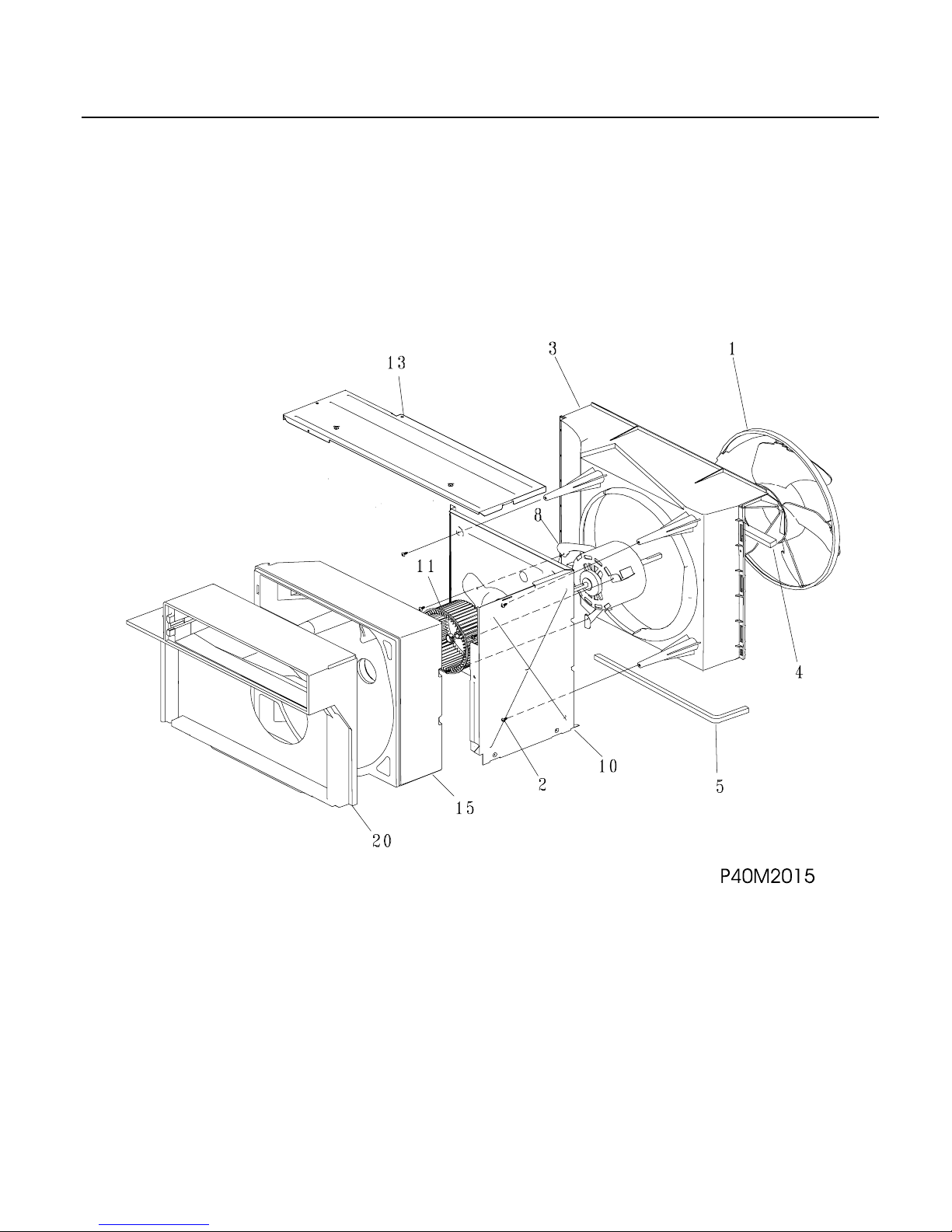

AIR HANDLING PARTS

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

FAS185J2A2 Publication No.

5995348611

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5303311048 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309623201 Shroud-condenser,one piece

5 5303015311 Seal,fan housing ,lower

8 309630603 Motor-fan,GE 3sp ,48/fr ,230/60

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630301 Cover-blower wheel,top

15 309630101 Housing-blower,evap scroll

20 309630201 Plate-blower housing,scroll plate

08/01 8

Publication No. FAS185J2A2

5995348611

COMPRESSOR PARTS

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

FAS185J2A2 Publication No.

5995348611

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304403268 Compressor

2 5303286606 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

5 5303002069 Wire-Bale,terminal cover

6 5303002068 Gasket,terminal cover

7 5303002067 Cover,compr terminal

11 # 309634101 Evaporator

12 # 5303306719 Condenser

13 309623501 Tray-evaporator

14 309632906 Base stud ASSY

16 # 5308017120 Capillary Tube,45 inch long ,cut to length

19 309112501 Washer,metallic

19* 5303002664 Washer,compressor mtg

08/01 10

Publication No. FAS185J2A2

5995348611

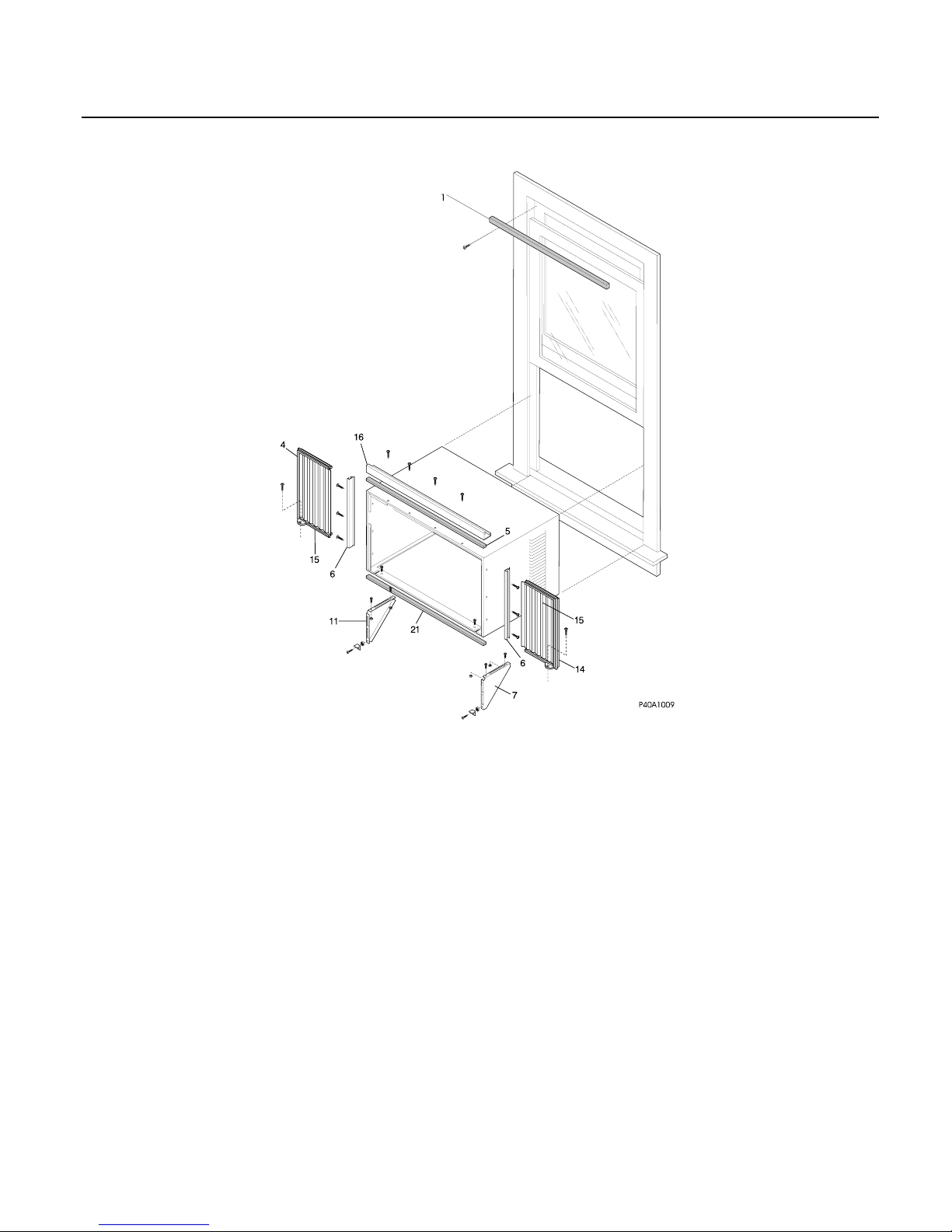

WINDOW MOUNTING PARTS

POS. NO PART NO DESCRIPTION

1 5304407729 Seal-window frame,stuffer

4 5304414928 Frame,LH

5 5304409250 Seal-top rail

6 5304414933 Retainer,accordian

7 5304414105 Bracket-support,RH

11 5304414106 Bracket-support,LH

14 5304414929 Frame,RH

15 5304414930 Closure,accordian type ,window mount

16 5304414116 Rail,top

21 5303212504 Seal-sleeve/chassis,bottom

* 309313204 Kit-mounting support

* 309313303 Kit-window mounting,heavy duty

* 5304409248 Hardware-mounting

* 5304409249 Seal-hole,shipping screws
