Frigidaire FAS184P2A Manuel utilisateur

Product No. FAS184P2A1 FAS185P2A1 FAS186P2A1

Series heavy duty heavy duty heavy duty

Volts 230/208 230/208 230/208

BTU-Cooling 18000/17800 BTU 18500/18200 BTU 18500/18200 BTU

Wiring Diagram 81902544 81902542 81902542

Owner's Guide 819042060en 819042060en 819042060en

Installation Instructions 819042102en 819042102en 819042102en

Market North America North America North America

M40L0004.eps M40C0009.eps M40M0007.eps 81902544.eps 81902542.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995437471

05/05/24

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAS184P2A /

FAS185P2A /

FAS186P2A

Publication No: 5995437471 FAS184P2A / FAS185P2A / FAS186P2A

05/05 2

CABINET, FRONT, CONTROLS

FAS184P2A / FAS185P2A / FAS186P2A Publication No: 5995437471

# Functional Parts 3 05/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAS184P2A (FAS184P2A1)

BFAS185P2A (FAS185P2A1)

CFAS186P2A (FAS186P2A1)

POS. NO PART NO. DESCRIPTION

4 5304447780 - B C Cover, ionizer

5 5304447781 A B C Vent, fresh air, with lever

7 # 5304447782 A B - Remote Control, transmitter

7 # 5304447883 - - C Remote Control, transmitter

8A 5304448484 A B C Front Assembly, complete panel, includes 8, 9, 10, 11, 12, 13, 14

8 5304447783 A B C •Panel, front grille

9 5304447784 A B C •Filter, air, plastic frame

10 5304447785 A B C •Louver, horizontal

11 5304447786 A B C •Clip, air vent

12 5304447787 A B C •Frame, front assembly

13 5304447788 A B C •Louver, vertical

14 5304447789 A B C •Dial, louver adjuster

15 5304447790 A B C Frame, shutter panel, LH

16 5304447792 A B C Retainer, shutter lock

17 5304447793 A B C Shutter, accordion panel, RH/LH

18 5304447794 A B C Retainer, shutter mount, cabinet sides

19 5304447795 A B C Rail, shutter track, top

20 5304447796 A B C Cabinet, wrapper/sleeve

21 5304447797 A B C Bracket, cab mounting

22 5304447798 A B C Screw, cab leveling

23 5304447799 A B C Bracket, angle, cab support

24 5304447791 A B C Frame, shutter panel, RH

25 5304447800 A B C Console, control cover

26 # 5304447890 A - - PC Board, display/input

26 # 5304447801 - B C PC Board, display/input

27 5304447802 A B C Clip, cable clamp

28 5304447803 A B C Cover, front plate, control box

29 # 5304447936 A - - PC Board, control/power

29 # 5304447939 - B C PC Board, control/power

30 5304447805 A B C Control Box

31 # 5304447924 A B C Capacitor, fan motor

32 # 5304447807 A B C Sensor, temperature, evap/indoor

33 5304447808 A B C Strap, capacitor mtg.

34 # 5304447925 A B C Capacitor, run

35 # 5304447937 A B C Transformer

36 # 5304447926 A B C Power Cord, LCDI, with test/reset

37 # 5304447940 - B C Ionizer, clean air

Publication No: 5995437471 FAS184P2A / FAS185P2A / FAS186P2A

05/05 4

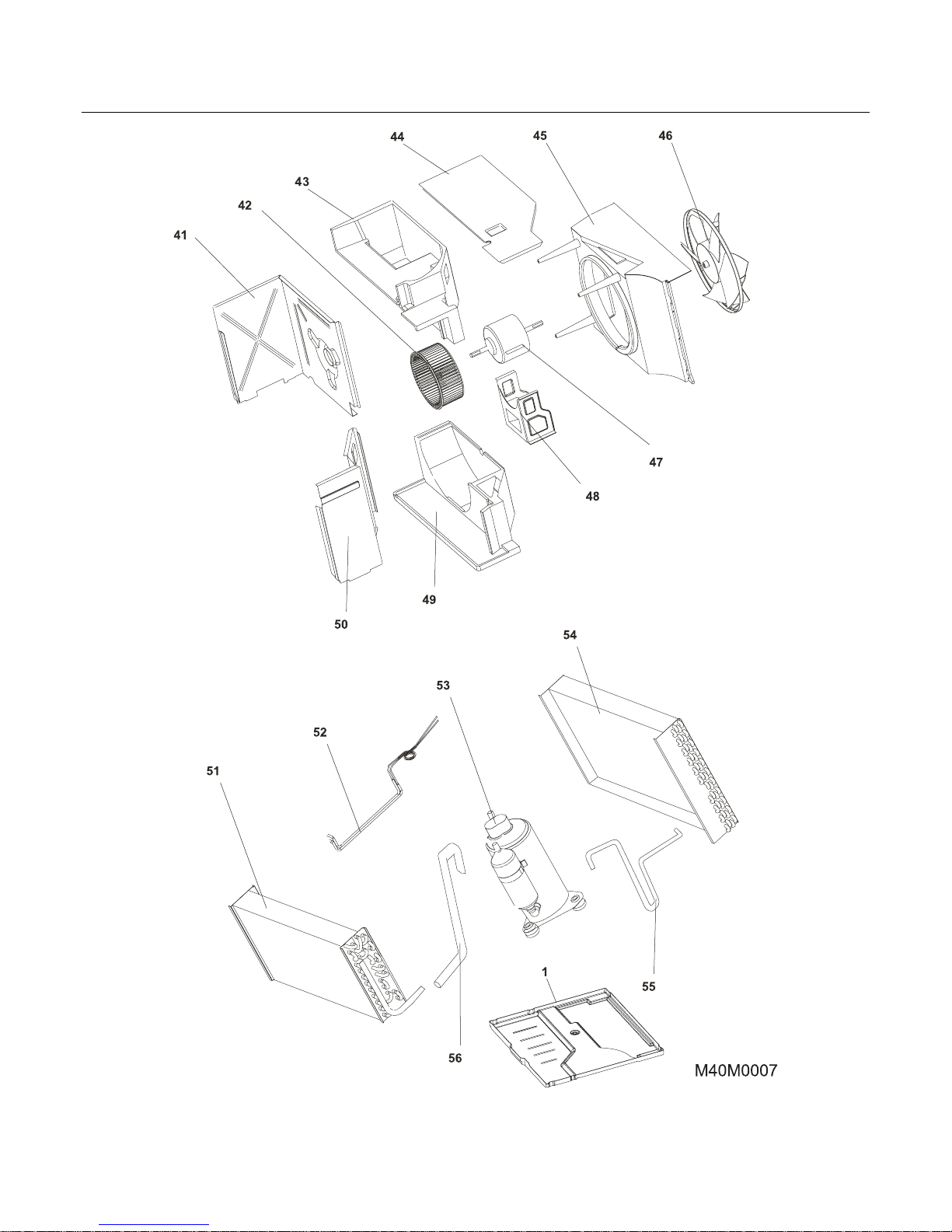

COOLING & AIR FLOW SYSTEMS

FAS184P2A / FAS185P2A / FAS186P2A Publication No: 5995437471

# Functional Parts 5 05/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAS184P2A (FAS184P2A1)

BFAS185P2A (FAS185P2A1)

CFAS186P2A (FAS186P2A1)

POS. NO PART NO. DESCRIPTION

1 5304447892 A B C Base, unit chassis

41 5304447813 A B C Bulkhead, panel, left side

42 # 5304447814 A B C Blower Wheel, centrifugal fan

43 5304447815 A B C Scroll, blower housing, top

44 5304447816 A B C Cover, blower scroll, top plate

45 # 5304447817 A B C Shroud, fan housing

46 # 5304447818 A B C Fan Blade, axial flow

47 # 5304447938 A B C Motor, fan

48 5304447820 A B C Bracket, fan motor mount

49 5304447821 A B C Scroll, blower housing, bottom

50 5304447822 A B C Bulkhead, panel, right side

51 # 5304447930 A - - Evaporator

51 # 5304447941 - B C Evaporator

52 # 5304447931 A B C Capillary Tube

53 # 5304447932 A B C Compressor Assembly, w/electricals, drier, & mtg grommets

54 # 5304447933 A - - Condenser

54 # 5304447826 - B C Condenser

55 # 5304447934 A B C Discharge Tube

56 # 5304447935 A B C Suction Tube

Publication No: 5995437471 FAS184P2A / FAS185P2A / FAS186P2A

05/05 6

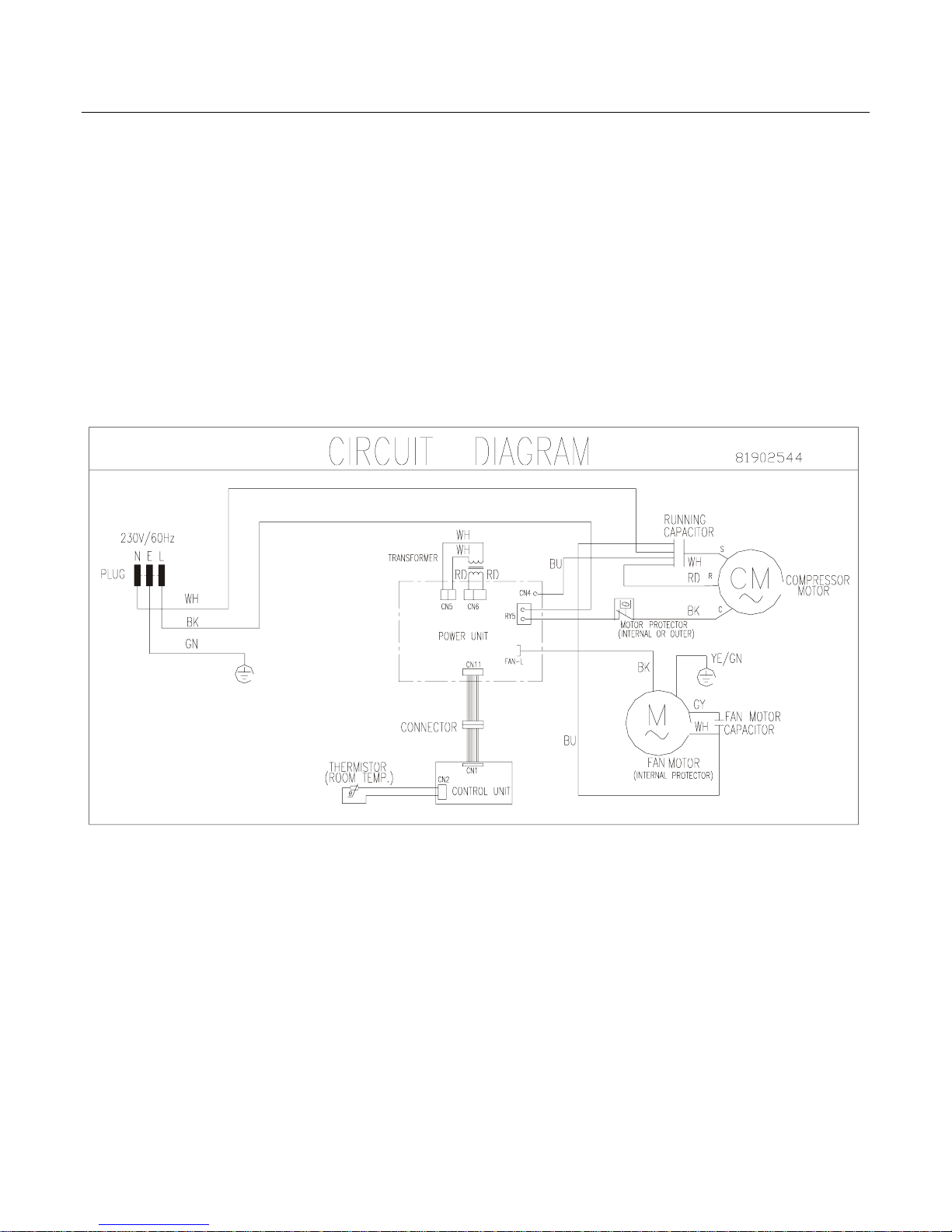

WIRING DIAGRAM

81902544

FAS184P2A / FAS185P2A / FAS186P2A Publication No: 5995437471

# Functional Parts 7 05/05

* Non-Illustrated Parts

WIRING DIAGRAM

81902542
