Frigidaire FAS185J2A1 Manuel utilisateur

PRODUCT NO.

BASE MODEL NO.

VOLTS

BTU-COOLING

FAS185J2A1 FAS185J2A 230 18000

P.O. Box 212378

Augusta, GA 30917

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

Model No.

FAS185J2A1

WIRING DIAGRAM # - 309343701

OWNERS GUIDE # - 309000825

Publication No.

000307

-EN/SERVICE /REP

345

5995339784

FAS185J2A1

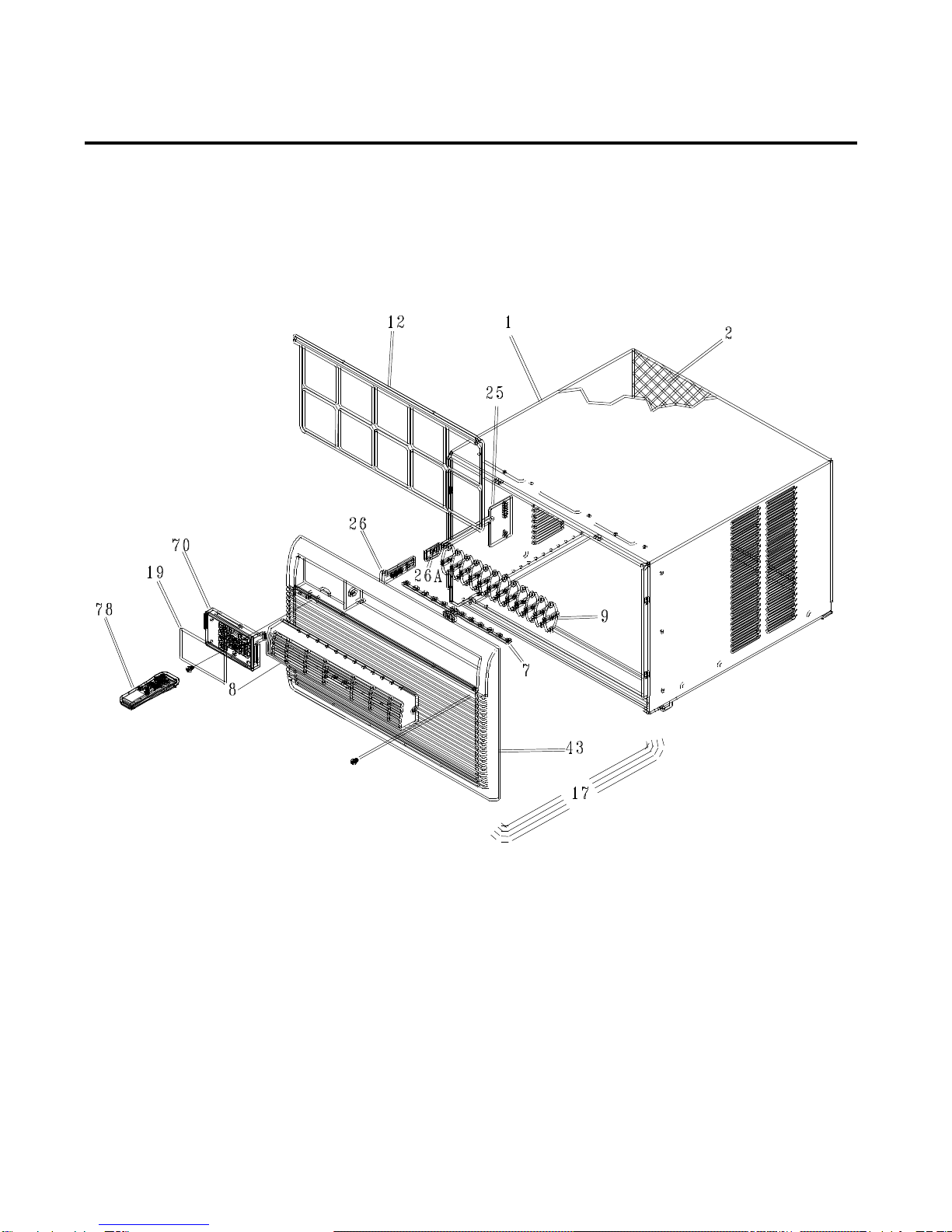

CABINET FRONT AND WRAPPER

3/00 1

FAS185J2A1

1 309632704 Sleeve-Seal Assy Domestic

2 309632804 Grill & RR Rail ASM HDTC

7 309631104 Link-Vertical Louvers

8 309630804 Louver-Horizontal

9 309631004 Louver-Vertical HDTC

12 309631404 Filter-Molded BRCLN

17 309633205 FrontT ASM- HDTC

19 309341002 Plate-Dial

25 309321401 Door-Vent Actuator HDTC

26 309330404 Handle-Vent Barcelona

43 309630904 Frame-Front HDTC

70 309342401 Enclosure

78 309342604 Remote- control

*309633305 Louver assy-includes 7, 8 & 9

CABINET FRONT AND WRAPPER

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

3/00 2

FAS185J2A1

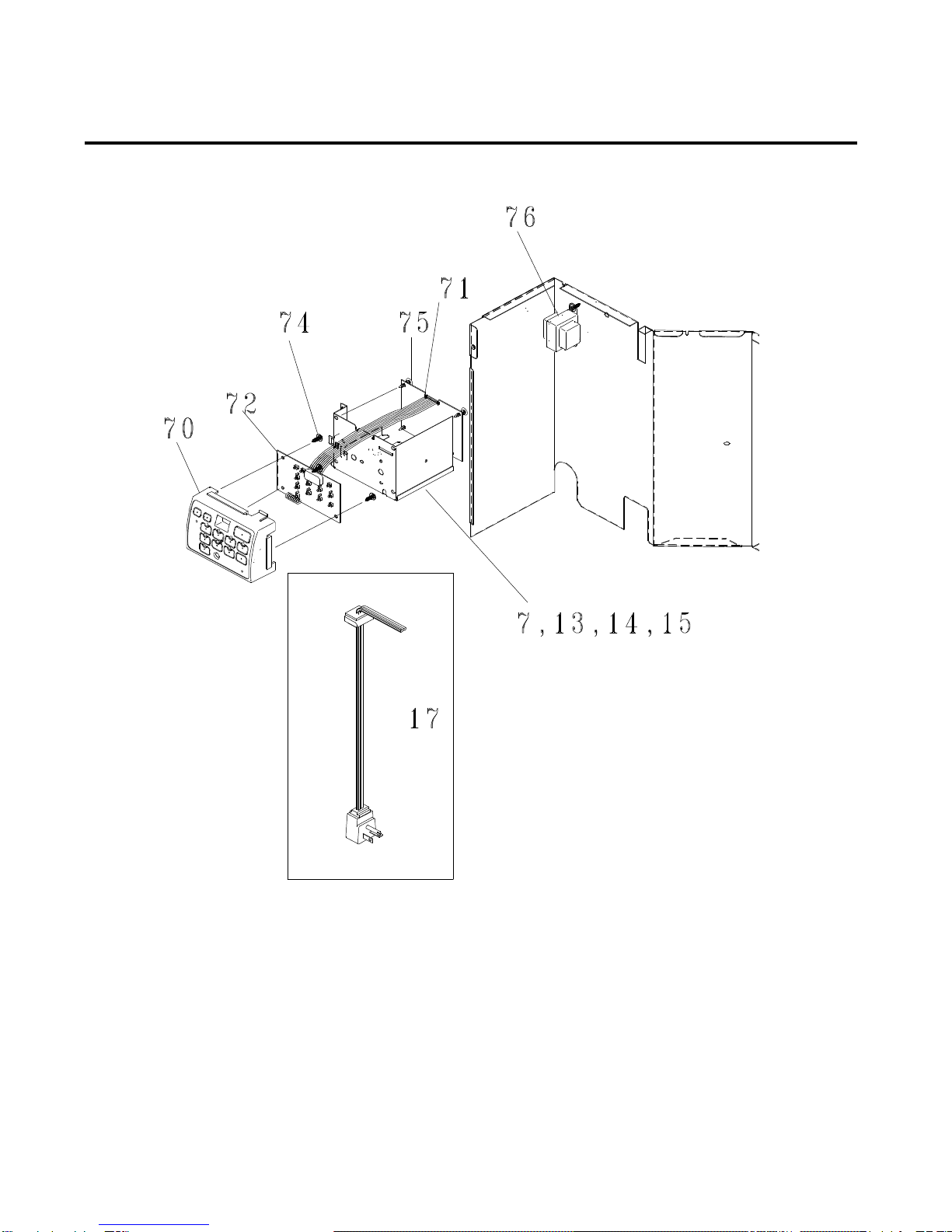

CONTROL PARTS

3/00 3

FAS185J2A1

7 309630403 Box-Control

10 309623601 Bulkhead

12 * 5304414108 Clip-thermister holder

13# 5303317228 Capacitor, 370V, 30+6 mfd

14 5303303691 Screw, truss head, 8-18AB x 0.38

15 5303303086 Strap-capacitor

17# 309343112 Cord-power 230v

70 # 309342401 Enclosure

71 # 309340503 Power board

72 # 309340701 Input board

74 5303301590 Screw, (2)

75 5304413781 Hardware, (4)

76 # 309111602 Transformer

*5304415035 Defrost-thermister

*5304408751 Harness-compressor wires

CONTROL PARTS

# = Functional Parts

* = Non-illustrated Parts

POS. NO. PART NO. DESCRIPTION

3/00 4

FAS185J2A1

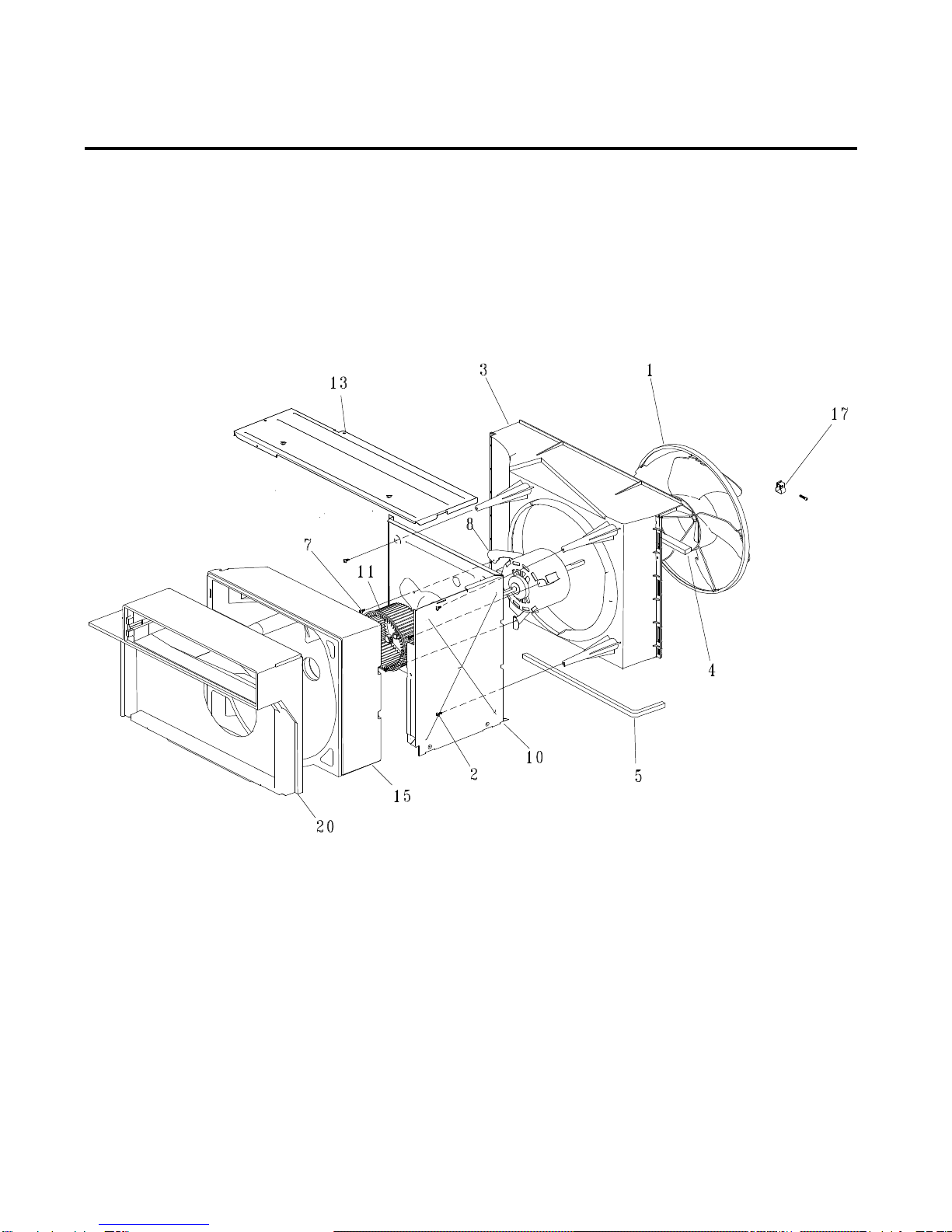

AIR HANDLING PARTS

3/00 5

FAS185J2A1

1# 5303311048 Fan Blade, with clamp

2 3202975 Screw,10-16 x 0.72 square drive

3 309623201 Condenser Shroud - One Piece

4 3016696 Seal, housing-fan, upper

5 5303015311 Seal, housing-fan, lower

7 5303015427 Screw, truss head, 8-18AB x 0.47

8# 309630603 Motor-Fan 3SP 230/60 48Fr

10 309623401 Bulkhead-Aire Side HDTA/TC

11 309633001 Blower Whl & Clamp Assy - Plastic

13 309630301 Cover-Top HDTA/TC

15 309630101 Scroll-Evap Cool Only HDTA/TC

20 309630201 Plate-Scroll HDTA/TC

AIR HANDLING PARTS

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

3/00 6

FAS185J2A1

COMPRESSOR PARTS

3/00 7

FAS185J2A1

1# 5304403268 Compressor

2 5303283877 Grommet-compressor,3

3 5308006948 Nut, compressor, 3

5 5303002069 Clamp-Cover

6 5303002068 Gasket-cover

7 5303002067 Cover,terminal

10 5303317601 Start Assist Kit, compressor

11# 309634101 Evap-Assy 2Row 19Fpi

12# 5303306719 Condenser

13 309623501 Tray-Evap

14 309632906 Base/Compressor-Stud Assy

16# 5303209546 Capillary Tube

16A * 5303209546 Capillary Tube

16B * 5303209546 Capillary Tube

17 5304416409 Drier-process tube

19 5303002664 Washer,compressor

COMPRESSOR PARTS

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

3/00 8

FAS185J2A1

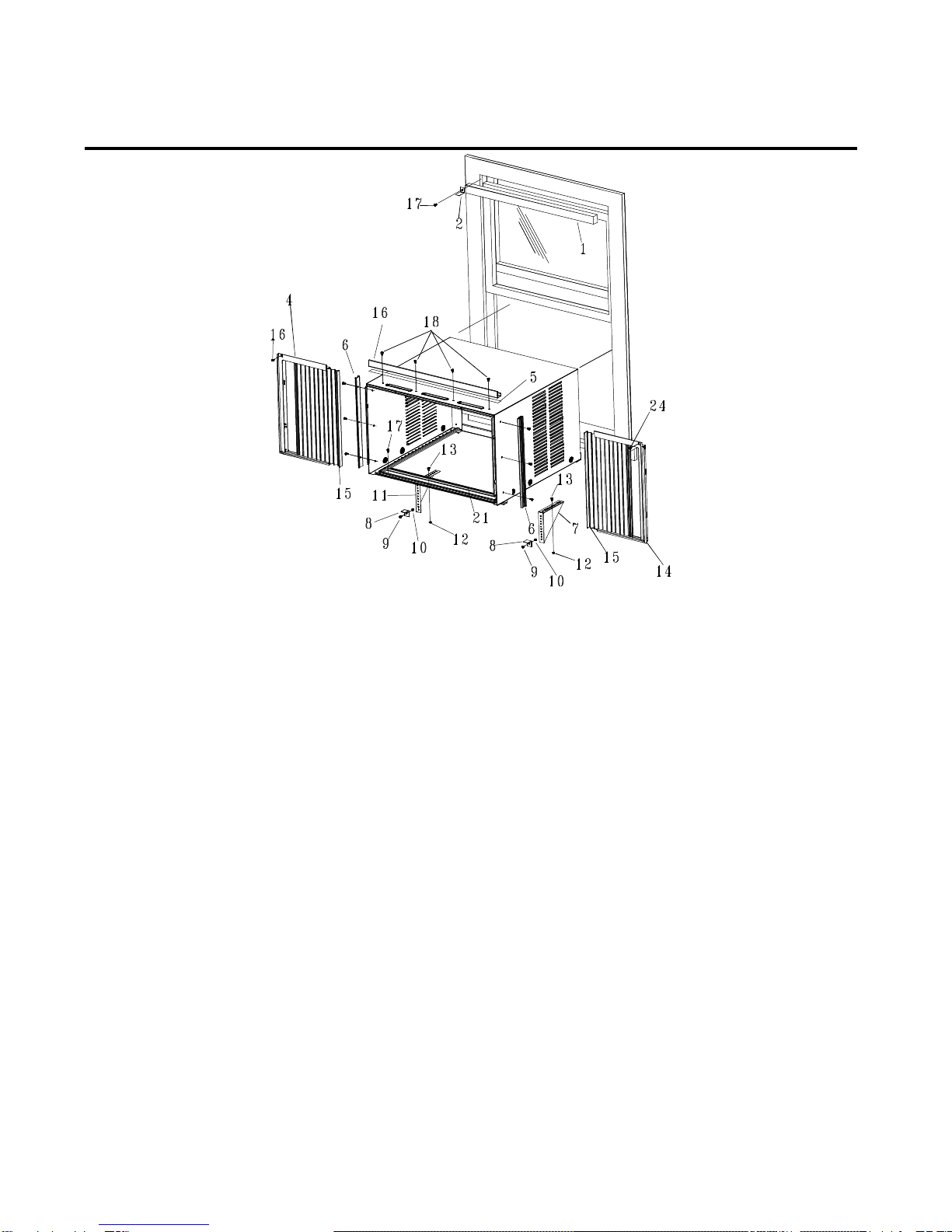

1 5304407729 Seal-window

2 5303211056 Bracket

4 5304414928 Frame,LH

5 5304409250 Seal-top rail

6 5304414933 Retainer,accordian

7 5304414931 Support,RH

8 3001815 Bracket-support

9 3007756 Screw

10 3007759 Nut-bracket

11 5304414932 Support,LH

12 3017023 Nut, hex, 10-32, 2

13 5303281649 Screw,support

14 5304414929 Frame,RH

15 5304414930 Accordian

16 5304414116 Rail,top

17 3002803 Screw-wood

18 8012680 Screw

21 5303212504 Seal,bottom

24 3002801 Screw

*309313303 Kit-Mounting-HDSO

*5304409248 Hardware

*5304409249 Seal-shipping screw holes

# = Functional Parts

* = Non-illustrated Parts

WINDOW MOUNTING PARTS

POS. NO. PART NO. DESCRIPTION

3/00 9
