Tiger 2-15kW

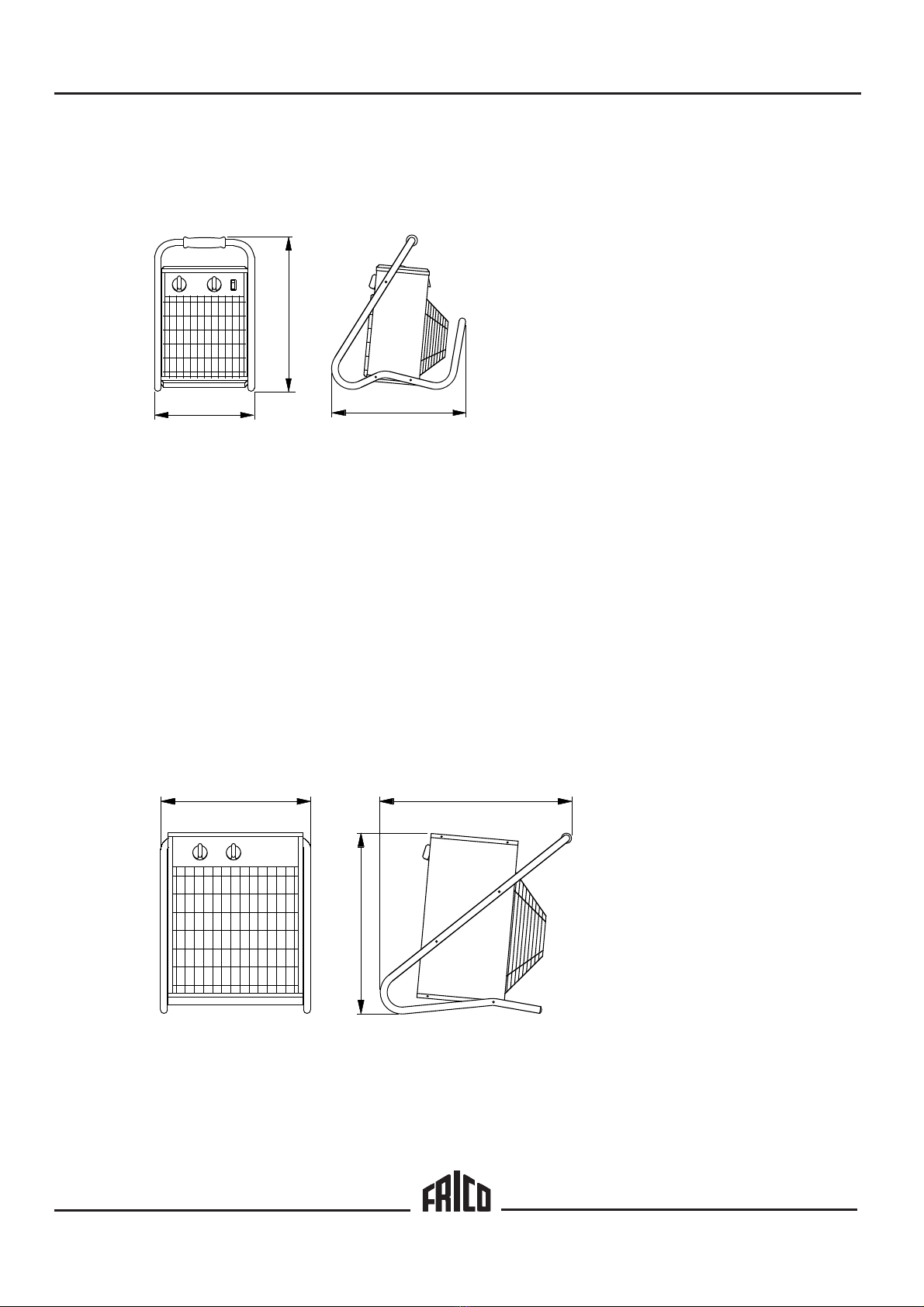

TIGER 2 kW TIGER 3 kW

A = 290 A = 290

B = 445 B = 445

C = 385 C = 385

TIGER 15 kW

A = 415

B = 510

C = 525

TIGER 5 kW TIGER 9 kW

A = 290 A = 350

B = 445 B = 530

C = 385 C = 475

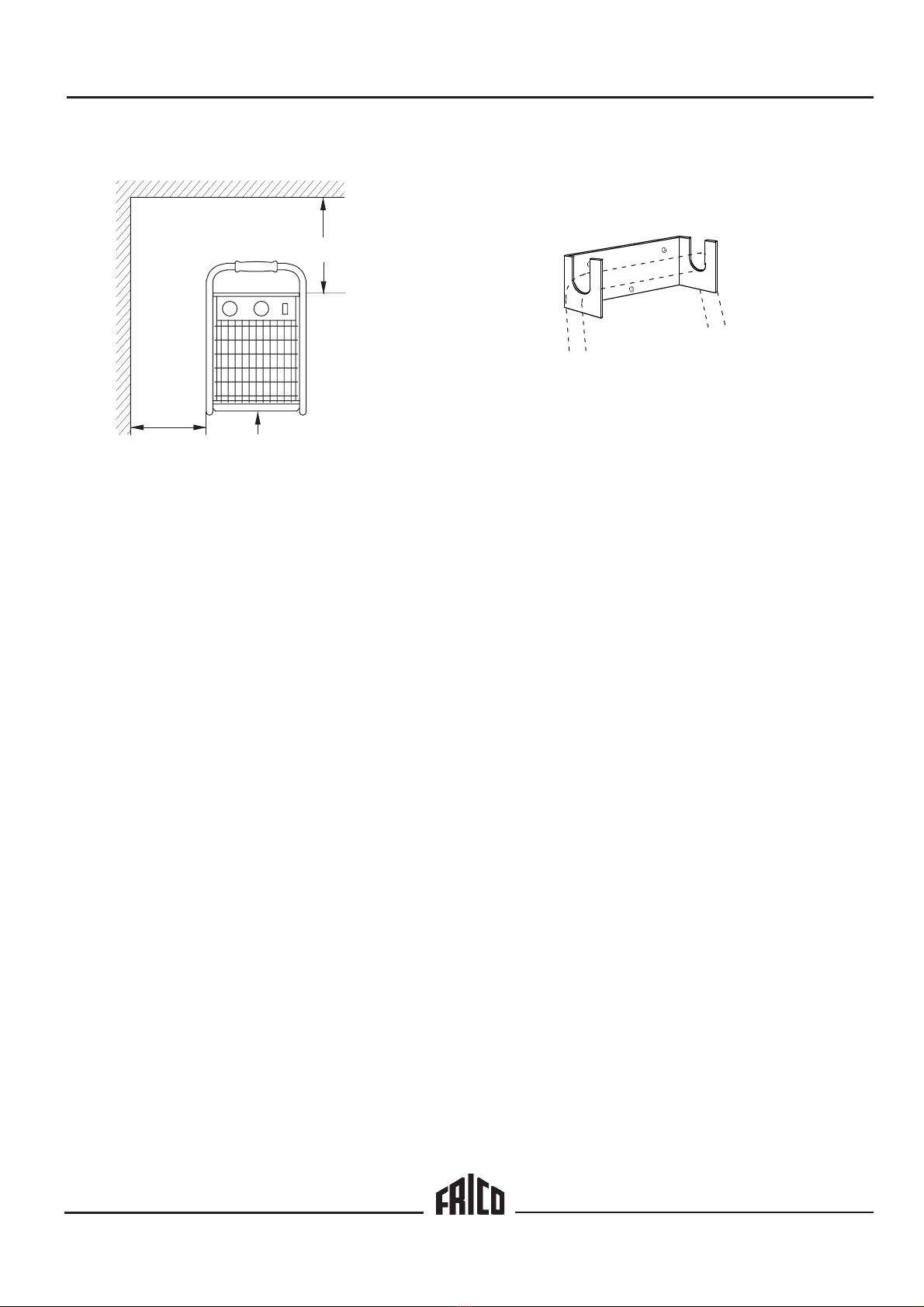

Tiger 2-15kW

Minimimått vid fast montage

Minimumsmål ved fast montasje

Minimimitat kiinteässä asennuksessa

Mindestabmessungen bei fester Montage

Cotes minimales pour le montage à poste

fixe

Minimumafmetingen bij vast montage

Minimum distances in permanent assembly

Минимальные расстояния при стационарной

установке

Distanze minime nel montaggio permanente

Flyttas apparaten ofta från sitt fasta läge

kan upphängningskonsoll i stället användas.

Rekvireras kostnadsfritt från vår kundser-

vice.

Flyttes apparatet ofte, kan man benytte en

veggkonsoll. Rekvireres kostnadsfritt fra

vår kundservice.

Bei häufigem Versetzen des Geräts aus

seiner festen Stellung können statt dessen

Aufhängekonsolen verwendet werden.

Si l'appareil est déplacé souvent de sa

position fixe, on pourra utiliser à la place

la console de suspension qui peut être

obtenue gratuitement auprès de notre

service après-vente.

Wordt het apparaat vaak verplaatst uit zijn

vaste stand, dan kan een ophangconsole in

plaats daarvan worden gebruikt.

A mounting bracket can be used if the fan

heater is often moved from its permanent

assembly.

Скоба для подвески используется в случаях,

когда тепловентилятор необходим в других

местах кроме места стационарной установки.

Скоба поставляется бесплатно, но должна

указываться при заказе.

Si può utilizzare una mensola se l’aerotermo

viene spesso spostato dal luogo permanente.

Fig. 1

min 1,8 m

min

300 mm

min 300 mm

Tiger 2-15kW

Are of use

The TIGER-series fan heaters are designed for

heating of premises. The heater are primarely

designed for portable use, but can be

permanently installed on a wall using the 6 mm

holes on the handles rear. The compact and

rugged construction means that the fan heaters

are suitable for shops, garages, warehouses

etc. The heaters are approved by SEMKO,

NEMKO, DEMKO och FIMKO. Enclosure: Splash

proof design , IP44.

Electrical connection

The heaters are delivered with 1,8 m flexible

cord. Tiger 2 and 3 single-phase heaters with

ordinary plugs and 400V three-phase heaters

with flexible cord and CEE-adapter.

3 kW 400V 3N~, 5 kW 230V 3~ , 5 kW 400V 3N~

and 9 kW 400V 3N~ heaters has a 230V~-outlet

on the back of the unit. This makes it possible to

connect extra light, a drilling machine or the like.

The outlet cannot be loaded with more than the

following currents:

Power stage 3 kW, 400V3N~ 5 kW, 230V3~

1/2 16 A 16 A

11,7 A 3,4 A

5 kW, 400V3N~ 9 kW, 400V3N~

1/2 16 A 16 A

1/1 8,8 A 3 A

The heater must be protected by a 16 A-fuse.

Electrical installation

The electrical installation should be carried out by

a qualified electrician in conformity with prevailing

regulations. The unit should be preceded by an

all-pole switch with at least 3 mm breaking gap,

preferably equipped with an operating lamp.

Mains voltage and nameplate must comply. The

wiring diagram for each unit is situated on the

inside of the cover.

NB! All electrical work must be carried out in

currentless condition.

Permanent assembly

• The minimum distances in the drawing on

page 3 must be kept.

• Mark holes and drill for the fixing plugs.

• Use plugs of adequate size and appropriate

for the wall.

• Mount the fan heater and make sure that it is

properly assembled.

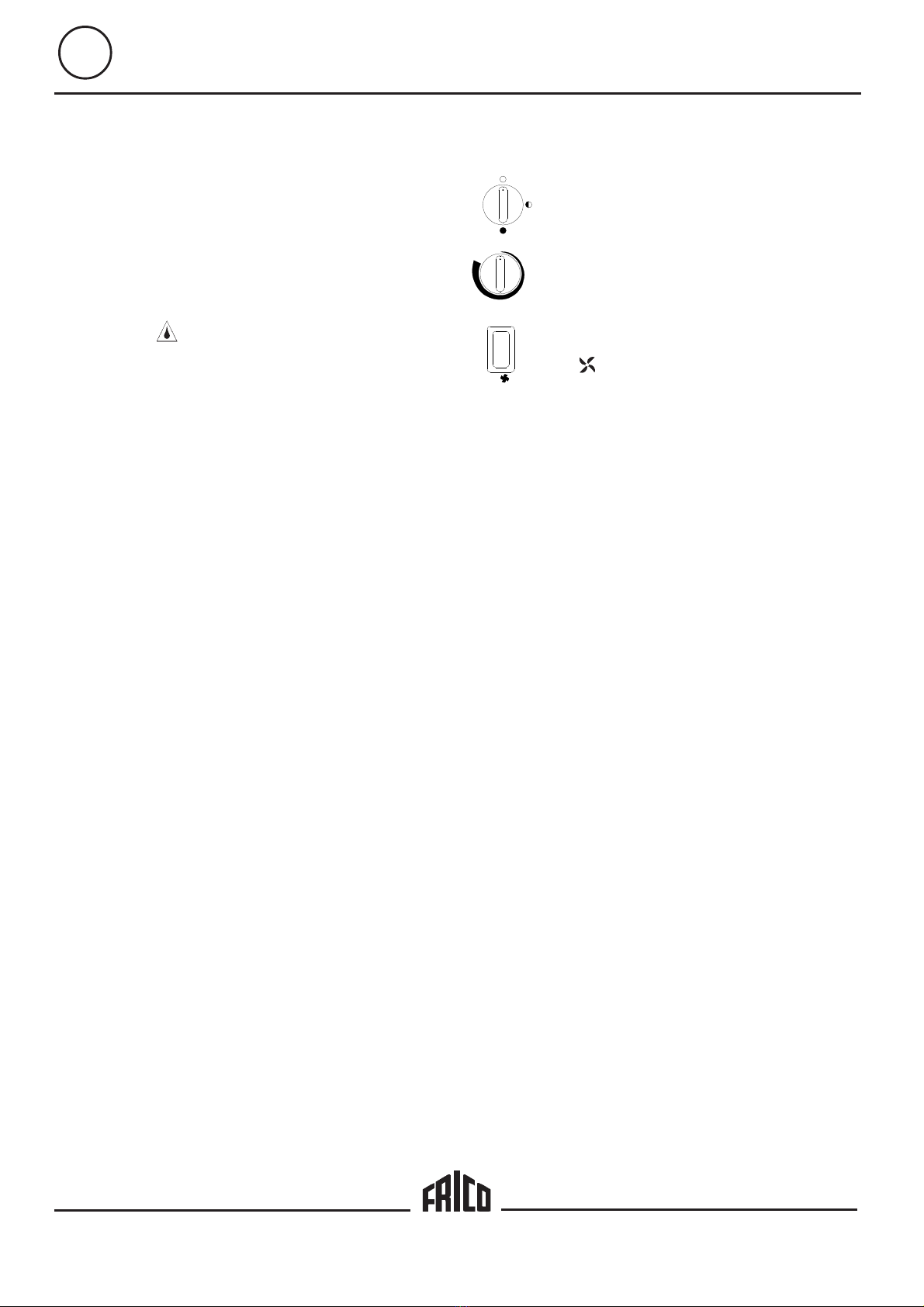

Function

Tiger 2–15:

Power stages, see technical data.

Tiger 2–15:

Adjustable range of the thermostat,

5–40° C.

Tiger 2–9:

With the switch in position °C the fan

blows continuously and the thermostat

only regulates the power. In position

°C the thermostat will also regulate

the fan.

Overheating

The built-in temperature limiter is triggered if the

temperature rises in the fan heater. After

rectification of the fault and cooling of the

appliance the overheating protection can be

reset by pushing in the button on top of the

appliance. In case of repeated trouble a

qualified electrician should be contacted.

Maintenance

The fan heater are more or less maintenance-

free. Dust and dirt may cause overheating and

danger of fire. The appliance must therefore be

cleaned regularly.

Ground contact

If the appliance is protected by an RCCB and

this is triggered when connecting the appliance

this might be due to dampness in the heating

rods. This should not be considered a fault and

is easily corrected by connecting the heater to

a wall-outlet without RCCB so the heating

rods can dry. It may take anywhere from one

hour to a couple of days. To prevent this it is

best to operate the heater for short periods

during a long storage.

°C

Tiger 2-15kW

P21 P31 P33 P5323 P53

23355

230V~ 230V~ 400V 3N~ 230V 3~ 400V 3N~

8,8 13,2 4,4 12,6 7,3

0 - - 2 0 - 2 - 3 0 - 1,5 - 3 0 - 3,3 - 5 0 - 2,5 - 5

21 32 32 31 31

280 280 280 480 480

5,7 6,0 6,3 6,7 6,7

P9323 P93 P15323 P153

991515

230V 3~ 400V 3N~ 230V 3~ 400V 3~

22,7 13,1 38,1 21,9

0 - 6 - 9 0 - 4,5 - 9 0 - 7,5 - 15 0 - 7,5 - 15

37 37 43 43

720 720 1050 1050

10,2 10,2 16,6 15,9

Technical data

TYPE

Power, kW

Voltage, V

Current, A

Power stages, kW

Temperature increase of out-

going air at full power, °C

Airflow, m3/h

Weight, kg

TYPE

Power, kW

Voltage, V

Current, A

Power stages, kW

Temperature increase of out-

going air at full power, °C

Airflow, m3/h

Weight, kg

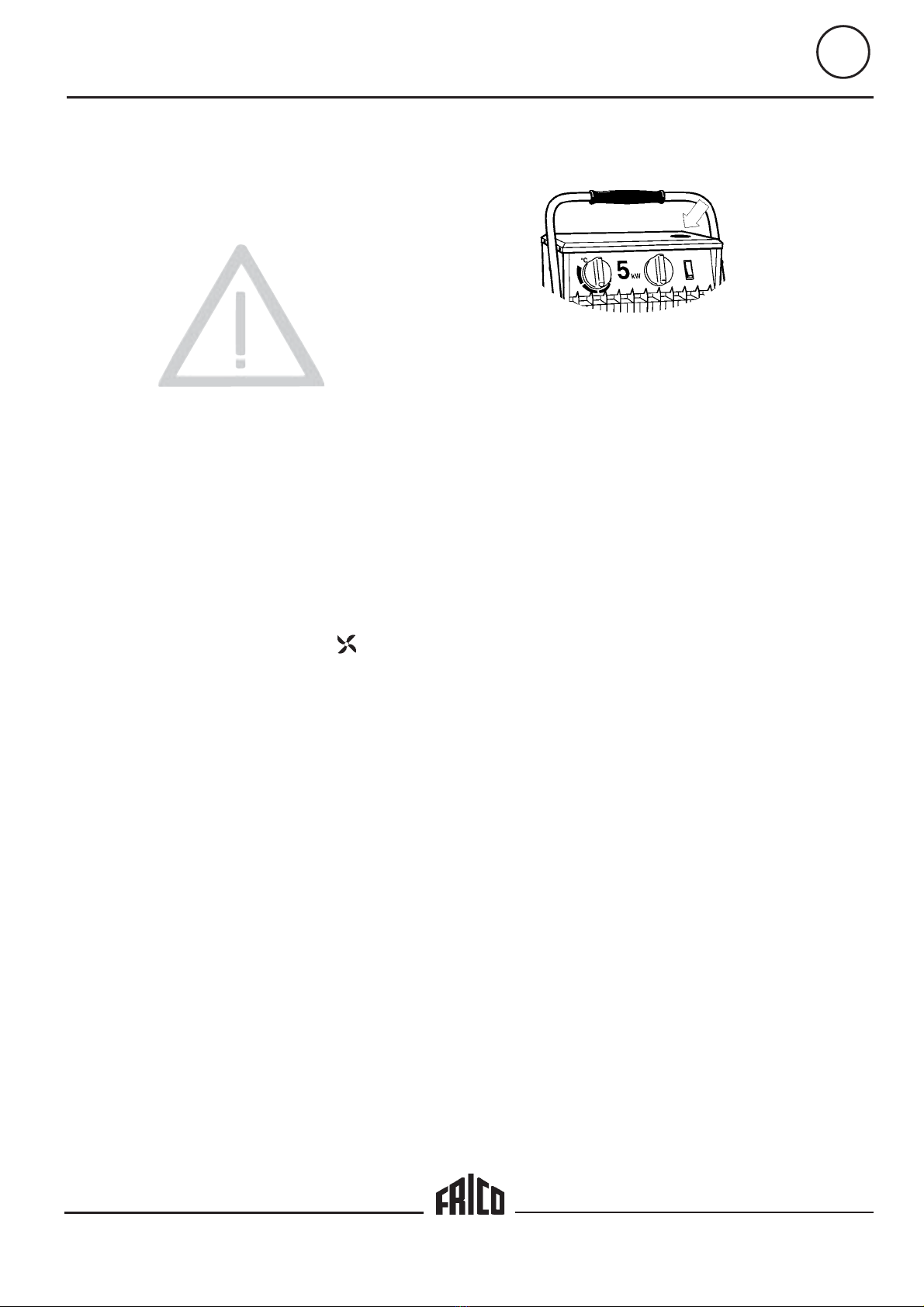

Safety

• The appliance must not be used in the

immediate vicinity of bathtubs, showers,

wash basins or swimming pools!

• The appliance has hot surfaces during

operation!

• The appliance must not be placed so that

inflammable material can be ignited.

• The appliance must not be covered either

with clothes or similar material, since

overheating of the appliance can result in

fire hazard!

• The appliance must not be placed directly

under a wall-outlet!

• Do not use the heater in a room with a floor

area of less than 4m2!

Push the button on top of the unit to make sure

the temperature limiter has not been triggered

during transport!

Fig. 2

Tiger 2-15kW

Frico AB

Box 102

S-433 22 Partille

försäkrar under eget ansvar härmed att följande

produkt(er)

Portabla värmefläktar serie Tiger

Typ: P21, P31, P33, P53, P93 och P153

som omfattas av denna försäkran överensstämmer

med fordringarna i

EU/EES´s Direktiv om Elektromagnetisk

Kompatibilitet (EMC) 89/336 /EEC

och

EU/EES´s Lågspänningsdirektiv (LVD) 73/23/

EEC

och är tillverkade i enlighet med följande

harmoniserade standard(er) eller andra

tillämpliga dokument.

EMC: EN 55 014: 1993

EN 55 104

EN 61 000-3-2/3: 1991

LVD: EN 60 335-2-30: 1992

Partille , 15 December 1995

Mats Careborg

Tekniskt ansvarig

Frico AB

Box 102

S-433 22 Partille

under own responsibility hereby declare that the

following product(s)

Portable Fan-heaters, series Tiger

Type: P21, P31, P33, P53, P93 and P153

which is(are) covered by this declaration of

conformity comply with the

EC Electromagnetic Compatibility (EMC)

Directive 89/336 /EEC & 92/31 EEC

EC Low Voltage Directive (LVD) 73/23/EEC

and is(are) manufactured in accordance with the

following stated harmonised standard(s) or other

normative document(s).

EMC: EN 55 014: 1993

EN 55 104

EN 61 000-3-2/3: 1991

LVD: EN 60 335-2-30: 1992

Partille , 15 December 1995

Mats Careborg

Technical Manager

Main office

FRICO AB Tel: +46 (0)31 336 86 00

Box 102 Fax: +46 (0)31 26 28 25

S-433 22 Partille e-mail: [email protected]

SWEDEN http://www.frico.se

Norway

FRICO AS

Postboks 82, Alnabru Tel: +47 (0)2 272 38 44

N-0614 Oslo Fax: +47 (0)2 272 38 39

NORWAY e-mail: [email protected]

http://www.frico.no

France

FRICO FRANCE Tel: +33 (0) 4 72 42 99 42

7, rue de la libération Fax: +33 (0) 4 72 42 99 49

F-69 270 Fontaines sur Saone e-mail: [email protected]

FRANCE

Russia

FRICO representative office in Russia

1 st Golutvinsky per., 3 Tel/Fax: +7 095 238 63 20

Moscow 109180 e-mail: [email protected]

RUSSIA

00.11-21

For latest updated information, see www.frico.se
