Freecom NETWORK HARD DRIVE PRO Manuel utilisateur

Rev. 722

NETWORK DRIVE PRO

EXTERNAL NETWORK HARD DRIVE / 3.5" / GIGABIT LAN

WIN & MAC

USER MANUAL

Freecom Network Drive Pro

Congratulations

Congratulations on your purchase of the Freecom Network Drive Pro. The Network

Drive Pro provides central network storage or Network Attached Storage (NAS). If you are

unfamiliar with networking and routing basics, refer to Appendix C, "Network Basics", to

become more familiar with the terminology and procedures used in this manual.

Freecom Technologies • Germany

www.freecom.com

To prevent data loss, make a backup copy of your data each time before

reconfiguring the hard drive.

Attention!

for identification purposes and may be trademarks or registered trademarks of those

companies. This device is designed for office and home use.

Caution! This is an EN 55022 Class B device.

Freecomshallassumenoliabilityfordamagesofanykind,forlossofdataoranyconsequential

claimsresultingtherefrom(including,andwithoutrestriction,claimsrelatingtothebusiness

losses, business interruptions, loss of business data or other financial claims) that result from

the use of this Freecom product or improper operation of this Freecom product. This shall

also apply in cases where Freecom has been notified that such claims may exist.

Subject to change as technical advances dictate.

Table of Contents

User manual

General Information ...........................................................................................................page 4

Safety precautions...............................................................................................................page 6

Chapter 1:

Connecting / Installing Network Drive Pro................................................................page 10

Chapter 2:

Get to know your Network Drive Pro ...........................................................................page 13

Chapter 3:

Network Drive Pro Functions ..........................................................................................page 23

Chapter 4:

The Freecom Network Storage Assistant....................................................................page 51

Chapter 5:

Network Drive Pro in everyday use...............................................................................page 58

Apendix:

Appendix A.............................................................................................................................page 71

Appendix B.............................................................................................................................page 72

Appendix C.............................................................................................................................page 77

Freecom Network Drive Pro

General Information

Package contents

Please check the contents of the box to ensure it includes following items:

• Freecom Network Drive Pro drive

• Power pack

• Network cable (UTP)

• CD-ROM with instruction manual, Safety guide and application software

• Quick installation guide

Technical Support

For any technical questions, please visit our web site at www.freecom.com or at the site

created specifically of this product, www.openfsg.com. These websites offer a range

of information, answers to frequently asked questions, firmware and product guides

(available for download). You can also use our forum to exchange experience with other

users or discuss any problems or difficulties you may be having. Or else contact Freecom

Support for more in-depth assistance.

Freecom on the net

The Network Drive Pro and other Freecom products including documentation, drivers,

and other information can be found on a World Wide Web home page that you can

access at the universal resource locator (URL) http://www.freecom.com or http://www.

openfsg.com. A connection to the Internet and a Web browser such as Internet Explorer,

Opera or Firefox are required.

Related Publications

There is a lot of information available on the internet that can help you achieve what you

want. In this document, you may be directed to various RFC documents for further infor-

mation. An RFC is a Request For Comment (RFC) published by the Internet Engineering

Task Force (IETF), an open organization that defines the architecture and operation of the

Internet. The RFC documents outline and define the standard protocols and procedures

for the Internet. The documents are listed on the World Wide Web at www.ietf.org and

are mirrored and indexed at many other sites worldwide.

For more information about address assignment, refer to the IETF documents RFC 1597,

Address Allocation for Private Internets, and RFC 1466, Guidelines for Management of

IP Address Space.

For more information about IP address translation, refer to RFC 1631, The IP Network

Address Translator (NAT).

General Information

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability,

Freecom reserves the right to make changes to the products described in this document

without notice. Freecom does not assume any liability that may occur due to the use or

application of the product(s) or circuit layout(s) described herein.

Trademarks

Freecom is a trademark of Freecom Technologies.

Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation.

Other brand and product names are registered trademarks or trademarks of their re-

spective holders.

System Requirements

The following hardware and software requirements must be fulfilled to ensure trouble-

free operation.

Hardware Requirements

In order to use the Freecom Network Drive Pro, following components are needed:

• PC: Intel Pentium III / AMD Duron 900 MHz or higher

• Mac: PowerPC G3/G4/G5, Power Book G3/G4 or Intel Mac

• 256 MB RAM (Vista: 512 MB RAM) or higher

• CD-ROM drive for installing drivers and/or software

• LAN

• Internet connection for online warranty registration and driver/software updates

and downloads

Software Requirements

• Windows 2000

• Windows XP

• Windows Vista

• MacOS X 10.3 or higher

• Linux Kernel 2.2 or higher

Freecom Network Drive Pro

Precautionary measures

To ensure that your Freecom Network Drive Pro functions properly, please take note of

the following precautions. If these are not followed, you may void your warranty and

damage the Network Drive Pro.

• Do not drop the Freecom Network Drive Pro or expose it to other kinds of sudden

mechanical shocks as this may result in data loss and damage to the hard drive.

• Do not use the Freecom Network Drive Pro when the ambient temperature is below

10°C or above 35°C.

• If the Freecom Network Drive Pro is moved from a cool environment to a warmer

environment, please allow the drive to acclimatize to the ambient temperature

before operating the device. Failing to do so may lead to condensation within the

drive enclosure, which in turn may cause the drive to malfunction.

• Do not place liquids or drinks on the Network Drive Pro. When liquids are spilled and

get in contact with the electronics within the drive enclosure, it will damage the drive

and will cause the drive to malfunction.

• Do not use the Network Drive Pro in a dusty environment. Dust inside the enclosure

may damage the internal electronics and result in drive malfunction.

• Only use the power adapter that was supplied with the Network Drive Pro.

• Opening the Network Drive Pro will void the warranty.

Advantages of the Freecom Network Drive Pro

The Freecom Network Drive Pro is the perfect solution for home and small business use.

Thanks to its fast and easy installation, you are up and running the Network Drive Pro

in no time at all.

Network Drive Pro is a combination hard drive, server (1 x LAN) and USB server (2 x USB

2.0 High Speed). This reduces the number of devices you need. Most of the Network

Drive Pro functions can be used with little previous knowledge.

File server

Save your data centrally on Network Drive Pro and make it accessible to all PCs in the

network.

Web server

Save your websites on the Network Drive Pro and put them directly online.

FTP server

The built-in FTP server allows you to access data from any PC.

USB server

Increase your storage space by attaching additional devices (e.g., external hard-drives)

and let other network devices use this disk space.

USB printer server

Connect a USB printer and use it as your network printer.

Open Source Firmware

You are familiar with Linux and want to add more features to your Network Drive Pro?

No problem. Firmware is available free of charge and open to modification (The user

assumes all risks relating to any modification he/she may perform.).

Advantages of the Freecom Network Drive Pro

Freecom Network Drive Pro

Software features

Network transport protocols

TCP/IP

Network file protocols

Microsoft Network CIFS

Client support

Microsoft Windows 98/Me/NT 4.0/2000/XP/2003 Server/Vista

Apple Macintosh OS 8.x/9.x/10.x

Network settings

DHCP

Manual configuration

System management

Web-based configuration

Configuration wizard

Services

HTTP (with PHP)

FTP

SSH

NTP

Security

Supports user, group and file shares

System configuration

Number of users: unlimited

Number of groups: unlimited

Hardware features

Processor

StorLink SL3516

64 MB RAM

512 KB Flash

Network connection

1x GBit LAN

USB

2x USB 2.0 480 Mbps for up to two printers or mass storage devices

Fan

Temperature-controlled fan

HDD

HDD sleep mode for lower power consumption and reduced noise

Electrical requirements

Voltage: 100 - 240 V DC

Frequency: 50 - 60 Hz, single-phase

Environmental requirements

Operating temperature: 10 - 35° C (50 - 95° F)

Storage temperature: -10 - 70° C (-40 - 185° F)

Humidity: 20 - 80 % relative humidity, no condensation

Maximum operating altitude (above sea level): 3000 m (9900 ft)

Dimensions and weight

Dimensions: L x B x H 15 x 18 x 5 cm / 5.9 x 7.1 x 2 inch

Weight: approx. 1400 g / 49 ounce

Software features & Hardware features

Freecom Network Drive Pro

Chapter 1: Connecting / Installing Network Drive Pro

1.1 Hardware Installation

Setup of the Network Drive Pro is performed using the following steps:

1. Plug the Network Drive Pro's power cord into a power outlet.

2. Switch on DHCP on the PC in the TCP/IP-configuration. (For more information see

Appendix B)

3. Connect the included Ethernet Cable into the Ethernet port on the rear of Network

Drive Pro into one of the LAN ports. Connect the other end of the cable directly to

the PC.

4. Check the LINK/ACT light on the UTP port you have connected on the Network Drive

Pro. If it is lit, then your Network Drive Pro is connected properly.

1.2 Installation of the Freecom Network Storage Assistant Software (PC)

The Freecom Network Storage Assistant quickly detects and performs the basic set-up

of your Network Drive Pro. When you start it, it displays all Network Drives Pro available

in your network and helps you configure the Network Drive Pro as a printer server or

create network folders.

1. Insert the Freecom Network Drive Pro software & Manual CD into your CD drive. The

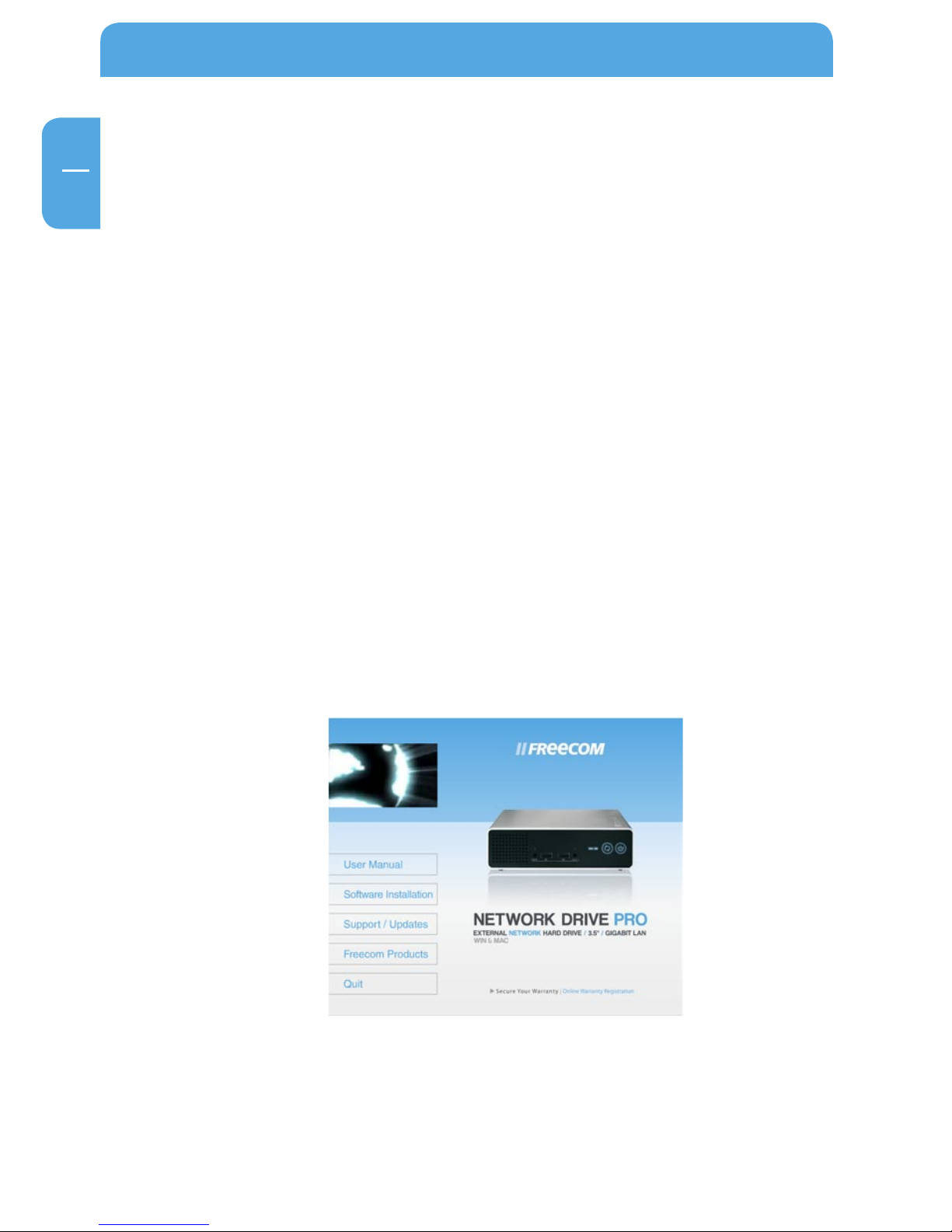

Freecom start menu opens:

In case the software does not open automatically, please click on "Start.exe" in the

main directory of the CD.

2. Click on "Software Installation" -> "FNS Assistant". The installation starts now. Follow

the instructions on the screen.

Autres manuels pour NETWORK HARD DRIVE PRO

Table des matières

Autres manuels Freecom Stockage

Freecom

Freecom TOUGHDRIVE PRO 2.5 Manuel utilisateur

Freecom

Freecom FHD-2 Manuel utilisateur

Freecom

Freecom DATABAR XXS Manuel utilisateur

Freecom

Freecom MOBILE DRIVE CLASSIC 3.0 Manuel utilisateur

Freecom

Freecom LTO OEM FH Manuel utilisateur

Freecom

Freecom Hard Drive Classic Manuel utilisateur

Freecom

Freecom Databar Manuel utilisateur

Freecom

Freecom MOBILE DRIVE CLS Manuel utilisateur

Freecom

Freecom TOUGH DRIVE LEATHER - Manuel utilisateur

Freecom

Freecom FC TapeWare DAT-72i Manuel utilisateur

Freecom

Freecom DATABAR 2GB Manuel utilisateur

Freecom

Freecom Data Tank Gateway WLAN Manuel utilisateur

Freecom

Freecom FC TapeWare AIT-250i FC Manuel utilisateur

Freecom

Freecom Desktop Hard Drives Manuel utilisateur

Freecom

Freecom 3.5 " / USB 2.0 / ESATA Manuel utilisateur

Freecom

Freecom DLT-S4 Manuel utilisateur

Freecom

Freecom DAT-160 Manuel utilisateur

Freecom

Freecom MOBILE DRIVE XXS Manuel utilisateur

Freecom

Freecom NETWORK STORAGE CENTER/NETWORK MEDIA CENTER Manuel utilisateur

Freecom

Freecom FHD-2 PRO Manuel utilisateur

Freecom

Freecom LTO OEM HH Manuel utilisateur

Freecom

Freecom MOBILE DRIVE CLASSIC II Manuel utilisateur

Freecom

Freecom ValueLoader DLT VS80 Mode d'emploi

Freecom

Freecom FHD-1 Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur

Dell

Dell PowerVault MD3600f Series Manuel utilisateur
