INSTALLATION MANUAL

CT-200

Under Sink Chiller Unit Installation Instructions and Use and Care Guide

CHILLER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read

and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING".

These words mean:

You can be killed or seriously injured if you don’t immediately follow instructions.

You can be killed or seriously injured if you don’t follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of

injury, and tell you what can happen if the instructions are not followed. You can be killed or seriously

injured if you don’t follow instructions.

ASSISTANCE OR SERVICE

If you need assistance or service, ﬁrst see “Troubleshooting” section. Additional help is available by

calling 1-800-626-5771 or write:

Franke Kitchen Systems

Luxury Products Group

800 Aviation Parkway

Smyrna, TN 37167

Please include a daytime phone number in your correspondence. For installation and service, call:

1-800-626-5771 or visit our website at www.frankeksd.com.

Keep this book and your sales slip together for future reference. You must provide proof of purchase

or installation date for in-warranty service. Write down the following information about your appliance

to help you obtain assistance or service if you need it. You will need to know your complete model

number. You can ﬁnd this information on the model and serial number label.

Dealer Name____________________________________________________________________

Address________________________________________________________________________

Phone Number________________________________ Model Number_______________________

Purchase Date___________________________________________________________________

DANGER

WARNING

CT-200

Under Sink Chiller Unit Installation Instructions and Use and Care Guide

TECHNICAL DATA

Water temperature 50°F

Chiller capacity 1 gal/hr

Supply voltage 115 VAC

Frequency 60 Hz

Minimum water pressure 30 psi

Maximum water pressure 100 psi

CONTENTS IN BOX

Call immediately if you see inconsistencies (1-800-626-5771) or visit www.frankeksd.com

1. Chiller unit

2. 4' blue poly tubing

3. (2) elbow push ﬁttings

4. (2) 1/4" x 1/4" x 1/4" x T push ﬁttings

5. Check valve

6. 6' white poly tubing

7. Wall mounting clip

8. #7 phillips screw

9. (1) 3/8" x 3/8" x 1/4" T push ﬁtting

10. (2) 3/8" x 1/4" reducer ﬁttings

11. 1/4" compression ferrule

12. 1/4" compression insert

13. 1/4" compression nut

INSTALLATION REQUIREMENTS

IMPORTANT: For best results, Franke recommends its products to be installed by a licensed, professional

plumber. The installer should familiarize themselves with how this chiller will be installed. Make certain to

observe all local plumbing and building codes during installation of this unit. Inspect location where the

chiller will be installed. Proper installation is the responsibility of the installer. Make sure you have everything

necessary for the correct installation. Water connections use push ﬁttings that DO NOT require any types of

sealing compounds to prevent leakage. Use of any sealing compounds will VOID THE PRODUCT WARRANTY.

This chiller is not a water puriﬁer. For water puriﬁcation, Franke separately oﬀers and strongly recommends

using the chiller with our line of professional under counter ﬁltration products to enhance water quality, and

improve performance and durability of the chiller. These instructions are written assuming the use of the

Franke ﬁltration products.

This chiller must be used in conjunction with a drinking water dispensing faucet, also sold separately.

Franke recommends pairing this chiller with one of our Little Butler®of point of use dispensing faucets,

as outlined in these instructions.

For installations with high water pressure, or ﬂuctuations in water pressure, Franke recommends using

our SB60 pressure safety valve (sold separately) to control pressure to the chiller.

This product is certiﬁed to ASME A112.19.3/CSA B45 for stainless steel

plumbing ﬁxtures, NSF/ANSI Standard 61, Annex G for lead content, which

is in compliance with California’s Health and Safety Code Section 116875

(commonly known as AB1953), and UL399 for drinking water coolers.

CT-200

Under Sink Chiller Unit Installation Instructions and Use and Care Guide

LOCATION REQUIREMENTS

Determine where the chiller and all components being used in the installation should be mounted beforehand

and make sure there is adequate clearance for plumbing and electrical components and there is enough

tubing to reach the intended mounting positions. For best performance, position the chiller to allow a 2" (5 cm)

space around the top and sides. Do not put any objects on top of the chiller that could obstruct the fan.

WARNING

ELECTRICAL REQUIREMENTS

A 120-volt, 60-Hz, 15- or 20-amp, grounded electrical supply is

required. It is recommended that a separate circuit serving only

your chiller unit be provided. Use an outlet that cannot be

turned on/oﬀ by a switch.

RECOMMENDED GROUND METHOD

The chiller must be grounded. This appliance is equipped with

a power supply cord with a 3 prong ground plug. To minimize

possible shock hazard, the cord must be plugged into a mating,

3 prong, ground-type outlet, grounded in accordance with all

national and local codes and ordinances. If a mating outlet is

not available, it is the personal responsibility and obligation

of the customer to have a properly grounded, 3 prong outlet

installed by a qualiﬁed electrician.

ELECTRICAL SHOCK HAZARD

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Failure to follow these instructions can

result in death, ﬁre, or electrical shock.

WATER SUPPLY REQUIREMENTS

A cold water supply with a minimum pressure of 30 psi and a maximum pressure of 100 psi must be available

to the chiller. It can come directly from the water supply of the home, or from a water ﬁltration system. A

Franke ﬁltration system is highly recommended.

INSTALLATION INSTRUCTIONS

IMPORTANT: For subsequent steps, it will be required to cut and route tubing to ﬁt the speciﬁc application in

your home. All tubing must be cut squarely and free of burrs. Ensure there is no damage within 1" of the cut end.

Insert the tubing squarely. See Figure A.

Make sure to insert tubing completely. See Figure B.

To remove, push in collet and pull out tubing See Figure C.

Figure A Figure B Figure C

Tube Collet Body

DO NOT USE ANY FORM OF SEALING

COMPOUNDS, this is not required for

push ﬁt connections, and using sealing

compounds could cause leaks. All

tubing connections must be ﬁrmly

seated. Tubing must be routed to avoid

sharp bends and have enough slack to

avoid straining connections. A P-clip

and mounting screw is included to

hold the tubing in place as needed.

Pull gently on each connection to

make sure they are secure. See

Diagram 1 for details on tubing

installation and removal.

HOW TO INSERT/REMOVE TUBING

IN PUSH FIT CONNECTIONS

DIAGRAM 1

10.

11.

12.

13.

14. 15.

16.

13.

CT-200

Under Sink Chiller Unit Installation Instructions and Use and Care Guide

INSTALLATION INSTRUCTIONS

The following instructions pertain to the connection of this chiller to a Franke ﬁltration system and Franke Little

Butler®series dispensing faucets. The connection options for all compatible Franke products will be reviewed

in this document. Make sure you understand which connection option applies to your speciﬁc installation.

Diagram 2 illustrates a general overview of the entire installation for ALL COLD ONLY Little Butler®

dispensing faucets.

1. Chiller unit

2. 1/4" tee push ﬁtting

3. 1/4" blue tubing

4. Franke Little Butler®cold only faucet

(sold separately)

5. Cold water supply from home

6. Hot water supply from home

7. 1/4" white tubing

8. Franke ﬁltration system (sold separately)

9. 10306 shut-oﬀ valve (sold separately)

10. 3/8" x 3/8" x 1/4" push ﬁtting

11. Check valve

12. 3/8" tubing

13. 3/8"-1/4" reducer push ﬁtting or 1/4"

compression ﬁtting (not shown)

14. SB60 pressure safety valve (sold separately)

15. 1/4" elbow push ﬁtting

16. Franke kitchen faucet (sold separately)

DIAGRAM 2:

COLD ONLY LITTLE BUTLER DISPENSING FAUCET

12.

CT-200

Under Sink Chiller Unit Installation Instructions and Use and Care Guide

INSTALLATION INSTRUCTIONS

1. After chiller is unpacked, place upright for 24 hours before plugging it in.

2. Ensure the water supply is turned oﬀ.

3. Install a suitable drinking water dispensing faucet (sold separately) per the instructions. The following

steps outline how the chiller is to be connected to a Franke COLD ONLY Little Butler®dispensing

faucet. Any other faucet may require additional steps or hardware to install.

4. Connect the 3/8" black tubing (12) from the exit of

the Franke ﬁltration system (8) to the 3/8" to 1/4"

reducer push ﬁtting (13). Cut a piece of the white

1/4" poly tubing (7) long enough to connect the

reducer push ﬁtting to the “water in” connection

on the chiller. If the SB60 pressure safety valve

(14) is utilized, insert it between the 3/8" to 1/4"

reducer push ﬁtting (13) and the elbow push

ﬁtting (15). If not utilized, connect the tubing (7)

from the reducer push ﬁtting (13) to one of the

elbow push ﬁttings (15), and connect the other

end of the elbow push ﬁtting to the “water in”

connection on the chiller.

5. Next connect the other elbow push ﬁtting (15) to

the “water out” connection on the chiller. Cut a

piece of the blue 1/4" poly tubing (3) long enough

to connect to the 1/4" tee push ﬁtting (2). The tee

push ﬁtting (2) may be connected directly to the

chiller “water out” connection in place of the

elbow push ﬁtting (15) if your particular installation

has room to do this. Connect blue 1/4" tubing (3)

to the side of the tee push ﬁtting (2) going to the

inlet of the drinking water faucet.

12.

13.

14. 15.

15.

“Water in” connection

“Water out” connection

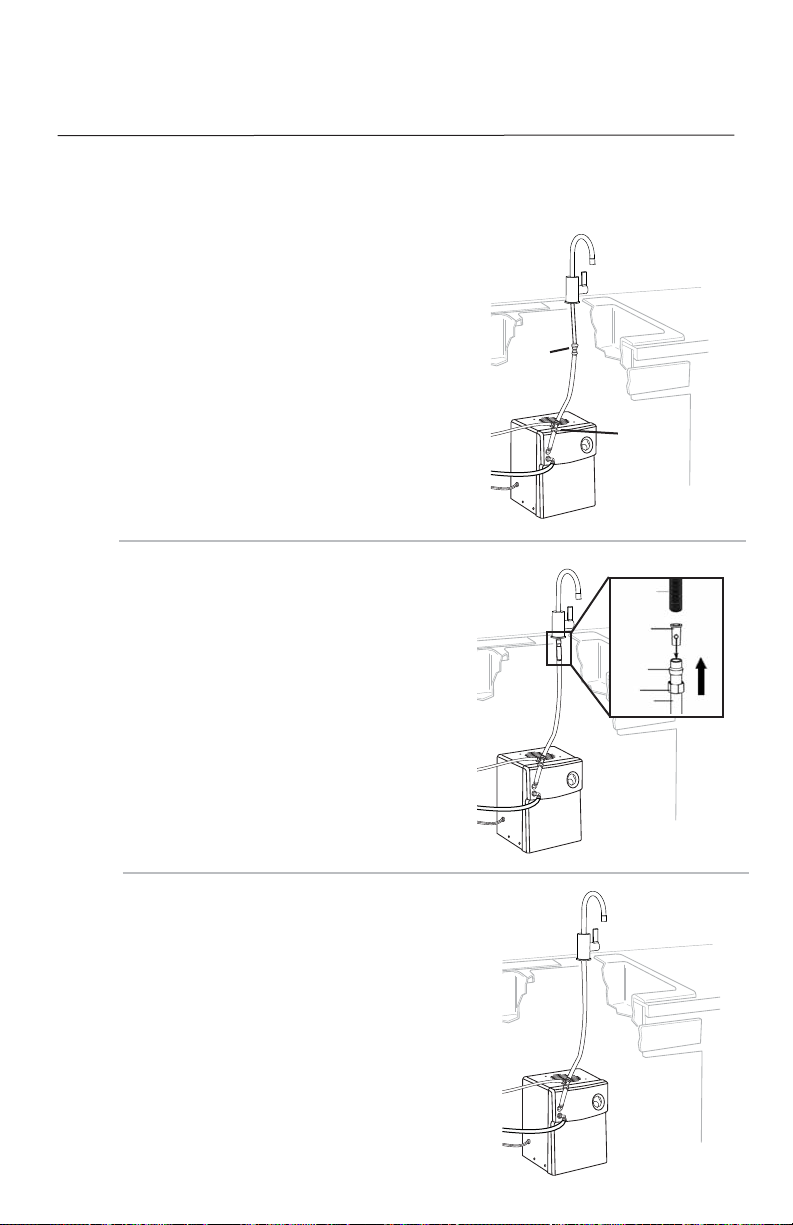

Option 3:

For DW13050 dispensing faucet models:

Connect the 1/4" tubing (3) from the chiller (1)

directly to the cold water inlet of the dispensing

faucet (4).

12.

13.

15.

Option 1:

For DW50XX, DW61XX, DW70XX, DW80XX,

and DW90XX dispensing faucet models:

Connect the 1/4" tubing (3) from the chiller to

a 3/8" to 1/4" reducer push ﬁtting (13) and

use the black 3/8" tubing supplied with the

dispensing faucet (12) to connect the dispensing

faucet (4) to the 3/8" side of the reducer push

ﬁtting (13).

Option 2:

For DW100XX, DW110XX, and DW120XX

dispensing faucet models:

Slide the compression nut (20) and plastic ferrule

(19) and onto the 1/4" tubing (3) from the chiller

(1). Slide the plastic insert (18) into the end of

the 1/4" tubing from the chiller. Insert the tubing

with compression ﬁtting hardware attached into

the mounting nipple (17) of the faucet (4) and

tighten the compression nut (20).

15.

17.

18.

19.

20.

15.

CT-200

Under Sink Chiller Unit Installation Instructions and Use and Care Guide

6. Connect the 1/4" tubing (3) from the “water out” tee push ﬁtting (2) from the chiller (1) to

the faucet (4). This step will vary, based on dispensing faucet being connected. Identify the

faucet you are connecting and follow the appropriate instruction:

CT-200

Under Sink Chiller Unit Installation Instructions and Use and Care Guide

7. If you are NOT installing a ﬁltration system with

the chiller, please refer to the "setup of chiller

without ﬁltration system" on page 9. Connect

the 1/4" white tubing (7) to the other side of

the tee push ﬁtting (2). Connect the other end

of the tubing to the check valve (11). Make sure

the check valve (11) is oriented with the arrow

pointing in the direction of the ﬂow, towards the

tee push ﬁtting (10). Then cut a short piece of

1/4" tubing and connect the check valve (11) to

the 3/8" x 3/8" x 1/4" tee push ﬁtting (10).

8. Connect a piece of 3/8" tubing from one outlet of

the tee push ﬁtting (10) to the inlet of the ﬁltration

system (8). Connect another piece of 3/8" tubing

from the other outlet of the tee push ﬁtting (10) to

the cold water supply of the home (5). Franke

recommends using a 10306 shut-oﬀ valve (9) that

allows for connection directly to the kitchen

faucet as illustrated.

10.

11. 7. 2.

11.

10.

CT-200

Under Sink Chiller Unit Installation Instructions and Use and Care Guide

16.

6. 5.

12.

14.

15.

13.

SETUP OF CHILLER WITHOUT THE FILTRATION SYSTEM

IMPORTANT: The check valve helps to avoid the possibility of excessive pressure building as the chiller cycles

on and oﬀ. If you are NOT installing the chiller with a ﬁltration system, do NOT use tee push ﬁtting (2), check

valve (11), or tee push ﬁtting (10) illustrated in step 7. The setup without the check valve would look like the

Diagram 3.

DIAGRAM 3

9. Slowly turn on water supply. Open the cold water valve and allow the dispensing faucet to run for at

least 1 minute. Check all connections for leaks.

10. Plug in the chiller to a suitable power supply (see electrical requirements section). Prior to drinking

water, ﬂush water through chiller for at least 5 minutes.

USAGE

SETTING THE TEMPERATURE

- Your chiller has a dial for water temperature control.

- For colder water: Turn it clockwise (to the right).

- For less cold water: Turn it counterclockwise (to the left).

- To shut down the chiller: Turn the dial to the Oﬀ position at full counterclockwise (extreme left).

- Allow one hour to obtain chilled water.

CT-200

Under Sink Chiller Unit Installation Instructions and Use and Care Guide

TROUBLESHOOTING

Problem

Water is not cold.

Cold water drips or sputters from spout.

Water does not ﬂow from spout.

Unpleasant taste.

Check the Following

- Check that the circuit breaker has not tripped or the house fuse

has not blown.

- Check that power supply cord is plugged into electrical outlet.

- Check if the electrical outlet is operated by a switch.

The switch may have turned the power oﬀ.

- Cold water in tank is still being chilled. Wait 15 minutes and

check temperature again.

- Check that the Temperature Control is set to the “Max” setting.

- Check that tubing is not bent or kinked.

- Make sure main supply valve is open.

- Check that water pressure to the chiller is 30 psi (138 kPa)

minimum.

- Check to see if chiller is attached to hot water line. If so, attach to

cold water line.

- Check ﬁlters for proper installation.

- If the dispenser has not been used for 3 or more days or if only 1

to 3 cups of water are dispensed in a day, the tank may need to be

purged. Open the faucet for 2 to 3 minutes to purge the old water

from the tank. Allow new water in tank to reach desired

temperature (approximately 1 hour) before dispensing water.

- Check to see if ﬁltration element in ﬁltration system needs to be

replaced

MAINTENANCE

DISCONNECTING AND STORAGE

1. Unplug the chiller.

2. Shut oﬀ water supply to chiller.

3. Open faucet to release pressure.

4. Disconnect the water lines attached to the chiller by depressing collet on push ﬁttings.

5. Tip chiller to the left side (power cord side) and drain water into a large container.

6. Set chiller in its normal upright position for storage.

RECONNECTING THE CHILLER

1. Shut oﬀ water supply to chiller.

2. Put chiller back in position, allowing a 2" (5 cm) space around the side and top.

3. Connect chiller as described in the “Installation Instructions” section.

4. Slowly open main water supply valve and open faucet until water ﬂows.

5. Plug in chiller and set dial to desired water temperature (See the “Setting the Temperature” section).

Autres manuels pour CT-200

Table des matières

Autres manuels Franke Refroidisseur

Franke

Franke KER1P Manuel utilisateur

Manuels Refroidisseur populaires d'autres marques

Aqua Optima

Aqua Optima Corona Manuel utilisateur

York

York YGWH 115 Mode d’emploi

Galletti

Galletti PERFORMA MPE Series Manuel utilisateur

SMC Networks

SMC Networks HRR Series Manuel utilisateur

Daikin

Daikin EWAQ016CAW Manuel utilisateur

Trane

Trane CVHE Mode d'emploi

Moffat

Moffat Friginox TSR-11SC Manuel utilisateur

Gree

Gree GWH07AGA-K6DNA1C Manuel utilisateur

Denali

Denali M1 Manuel utilisateur

MP Systems

MP Systems PURGE Series Manuel utilisateur

AEC

AEC PCA SERIES Fiche technique

Carrier

Carrier AquaEdge 19XRV series Mode d'emploi

Telemark

Telemark TVP-2000 Manuel

TICA

TICA MINI VRF CHR Series Manuel utilisateur

Penguin

Penguin COLD THERAPY CHILLER Manuel utilisateur

MAXA

MAXA A68 Manuel utilisateur

SABROE

SABROE ChillPAC Manuel utilisateur

Daikin

Daikin EWWQ-AJYNN Manuel utilisateur
