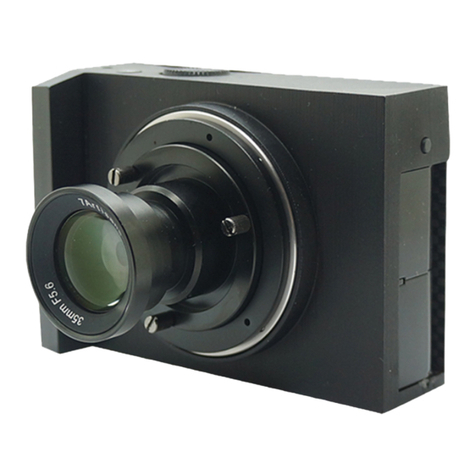

Foxtech Map-A7R Manuel utilisateur

Map-A7R II Full-Frame

Mapping Camera

User Manual

V1.0 2021.12

Contents

Description..................................................................................................... 1

Disclaimer................................................................................................. 1

Intellectual Property................................................................................ 1

Specification.................................................................................................. 2

Interface Definition.......................................................................................3

Operating Instructions................................................................................ 6

Camera Shutter Setting.............................................................................. 6

Triggered by Relay..................................................................................6

Triggered by PWM signal.......................................................................6

Map-A7R II Full-Frame Mapping Camera User Manua

Description

Disclaimer

Thank you for purchasing this product. You can log in to the website for the latest product information, technical

support and user manual. It is recommended that you download and use the latest version of the user manual. This

manual is subject to change without notice.

You can also get product usage information or technical support through official customer service. Due to

different production batches, the appearance or function parameters are slightly different and will not affect the

normal use of the product.

Please read this statement carefully before using. Once used, it is deemed to be an endorsement and acceptance of

the entire contents of this statement. Please read the instruction manual carefully and strictly follow the

instructions in this manual to use this product. Foxtech will not be liable for any result or loss caused by improper

use, installation, assembly or modification of users.

Intellectual Property

The intellectual property rights of this product and manual are owned by Foxtech. Any organization or individual

may not copy, reproduce or distribute in any form without written permission. If you need to quote, you need to

indicate the source, and you should not make any modifications, deletions and references to this manual.

Map-A7R II Full-Frame Mapping Camera User Manua

Specification

Product A7R Ⅱ

Pixels 42.2 mega pixels

pixel size 4.5цm

Minimum exposure time 0.8s

Sensor size 35.8*23.9mm

Hot shoes for PPK Support

Image size(pixels) 7952*5304

Shutter speed 30—1/8000

Size 95mm*75mm*43mm

Lens 35mm/40mm/56mm

Power 7.2-8.6V

weight 219g(Standard),234g(PSDK)

Parameter Setting Button/USB

Date reading USB/SD card

Map-A7R II Full-Frame Mapping Camera User Manua

Interface Definition

No. Description No. Description

1 POS Card 5 Setting

2 Screen 6 HDMI/USB

3 SkyPort 7 SD Card

4 Restart/Save 8 Menu

Map-A7R II Full-Frame Mapping Camera User Manua

Power in+

GND

Power Input

7.2-8.6V

Shutter Wire GND

Shutter Wire

Power out+

Power Module

GND

Hot Shoe for PPK

Manually shooting key

Map-A7R II Full-Frame Mapping Camera User Manua

PWM module

Power in+(5V)

PWM Module

GND

PWM input

PPK(Insert into the

flight controller)

Relay Module

GND

PWM input

Map-A7R II Full-Frame Mapping Camera User Manua

Operating Instructions

1. The camera will take a picture automatically, then it can be used via flight

controller or manually.

2. If the memory card is used for the first time. After camera self-check, insert

the memory card into the camera and click “OK” button to format, then it can be

used normally.

3. When debugging the camera, it is recommended to connect the camera to the

monitor or TV using HDMI wire.

Camera Shutter Setting

Triggered by Relay

1. Connect the shutter release cable to AUX OUT 5 on flight controller. If there is no PPK module, connect the

PPK cable to AUX OUT 6 on flight controller.

2. Connect the flight controller to the computer using USB or other data links and open the mission planner.

3. Proceed to the CONFIG > FULL PARAMETER LIST and locate the CAM_TRIGG_TYPE parameter. This

parameter must show as “1”. If it is not set to 1, change this parameter to 1 before proceeding to the next step.

4. Locate the BRD_PWM_COUNT parameter in the same category, and set it to “4”, meaning that only the top

four of AUX ports will emit PWM signal.

5. Locate the RELAY_PIN in the same category and set its value to “54” which means the shutter release cable

connects to the flight controller via AUX OUT 5.

6. Locate the CAM_FEEDBACK_PIN parameter in the same category, and set it to “55”, which means the PPK

module connects to flight controller via AUX OUT 6.

Triggered by PWM signal

1. Connect the shutter release cable to AUX OUT 5 on flight controller. If there is no PPK module, connect the

PPK cable to AUX OUT 6 on flight controller.

2. Connect the flight controller to the computer using USB or other data links and open the mission planner.

3. Proceed to the CONFIG > FULL PARAMETER LIST and reset these four parameters:

4. Set the value of BRD_PWM_COUNT in the same category to “5”, meaning that only the top five of AUX

ports will emit PWM signal.

Map-A7R II Full-Frame Mapping Camera User Manua

5. Locate the SERVO13_FUNCTION in the same category and set its value to “10” which means the shutter

release cable connects to the flight controller 13 port.

6. Locate the CAM_FEEDBACK_PIN parameter in the same category, and set it to “55”, which means the PPK

module connects to flight controller via AUX OUT 6.

Setting camera on APP and PC

https://helpguide.sony.net/ilc/1520/v1/en/index.html

Imaging Edge Mobile for Android

https://www.foxtechfpv.com/product/cameras/map-a7r-2/imaging_edge_mobile

_7.6.0.apk

Please download Imaging Edge Mobile(for IOS) in APP Store.

This content is subject to change.

Download the latest version from

https://www.foxtechfpv.com/foxtech-map-a7r-ii-full-frame-mapping-camera.html

For everyday updates, please follow

Foxtech Facebook page: https://www.facebook.com/foxtechhobby

YouTube Channel: https://www.youtube.com/user/foxtechonline/featured?view_as=subscribe
