Fostex VF-08 8-track Digital Multitracker

_______________________________________________________

Contents

I. Description

II. Mixer features

III. Recorder features

IV. Selling Points vs. Competition

V. Model 8340 SCSI Card

_______________________________________________________

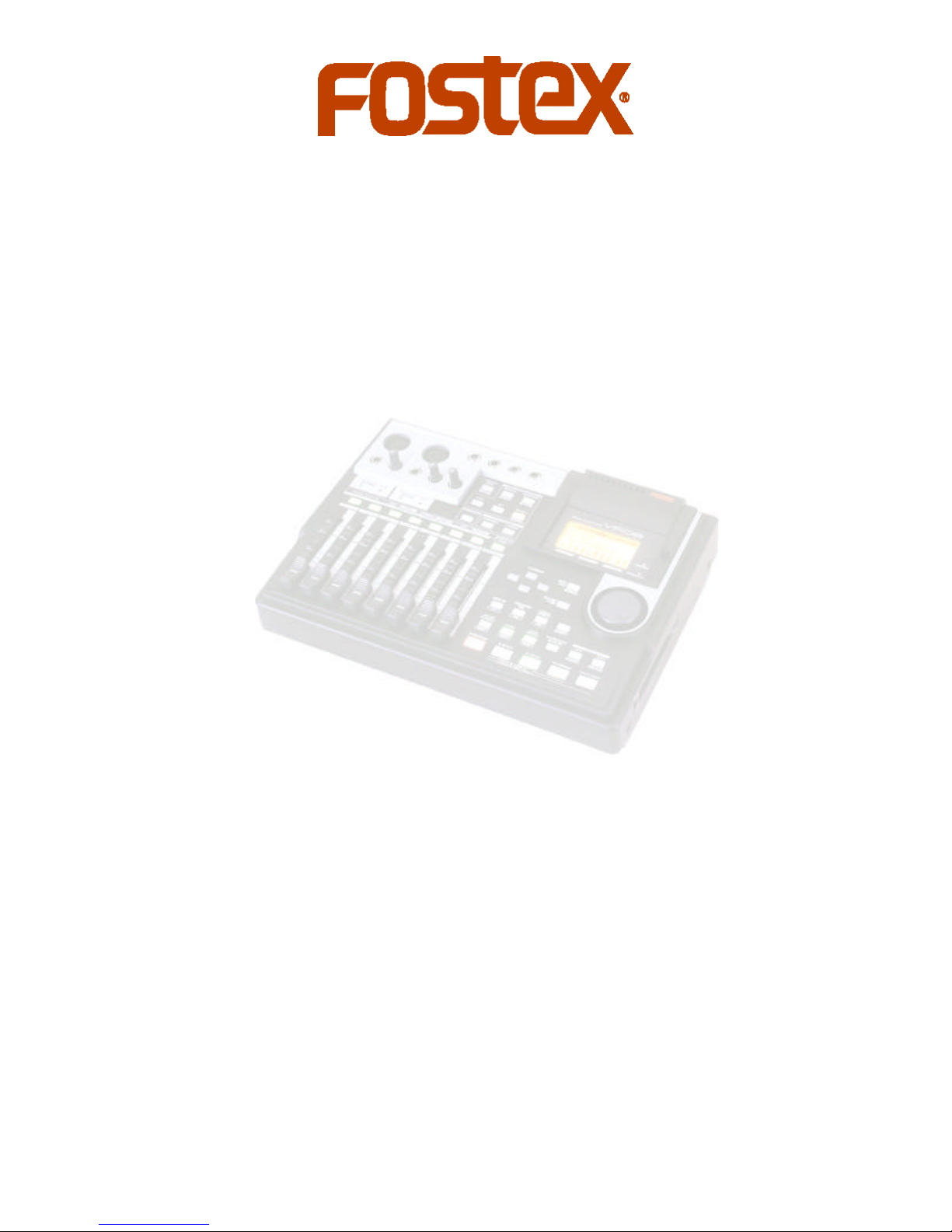

The Fostex VF08 is the

breakthrough of the digital

multitracker that is positioned at

the pricing divide between

digital and analog MTR’s.

Inheriting a lot of technologies

Fostex has developed in the

long history of MTR designs,

the VF08 offers 8-track digital

recording, intuitive digital mixer,

reputed A.S.P. digital effects,

99 scene memory, wave form

display, 2 x XLR inputs with

phantom power, and so on. In

addition to those functions new

powerful features include

Mastering Mode, offering 10 x

Mastering Library such as Live

Mix, Pop Mix, Dance etc for easy and sophisticated stereo mastering production, and

Training Mode to improve your skill playing to source recorded from a CD etc. The

factory-installed 5.1GB drive offers as long as 2 hours of non-compressed 8-track

recording, which is the longest in this class. Thanks to employment of the 3.5” IDE drive,

users can easily upgrade the drive with a larger capacity anytime they want.

I. Mixer Section

Ø8 tracks + 16 additional tracks recording with no data compression.

Ø5.1GB E-IDE hard drive is factory installed giving 16 hours recording /

reproducing (mono-track).

ØHD capacity is to be increased in the future.

ØBounce Mode for easy track bouncing.

ØMastering Mode enables reproduction of ‘master tracks 7-8’ with mastering

effects.

ØIn addition to manual EQ –Reverb –Comp –Limiter settings, 10 x preset

mastering libraries (Flat, Wet Mix, Light Mix, Live Mix, Pop Mix, Dance, Hard,

70’s, Hall and Lo-Fi modes) are selectable for easy and quick operation.

ØTraining Mode offers slow reproduction without pitch change, center-cancelled

reproduction and repeats reproduction between A-B points.

Ø2-band EQ with Libraries. In addition to the regular shelving type, 36 libraries

include bell type, LPF/HPF etc.

ØS/PDIF digital I/O to export and import stereo signal digitally.

Recorder Section

ØAudio Scrubbing with waveform display for intuitive edits using professional-like

Jog wheel.

ØNon-destructive editing including Copy / Move-Paste / Erase.

Ø99 song programs with title edit.

Ø+/-6% vari-pitch by 0.1% step.

ØBar/Beat resolution.

Ø99 Mark Points per program with title edits for quick location.

ØScene Sequence function enables to change mixing scenes by any mark points.

ØAuto Punch In/Out with rehearsal function and Auto Loop.

Ø2 x Input jacks with trim (Mic–Line), on/off switch and peak LED: Phones as well

as XLR inputs with phantom power.

Ø1 x Fostex original A.S.P. multi-effects of professional quality offering as many as

38 effect patches.

Ø99 Mixing Scene Memory (Fader/EQ/Pan/Effects) per program with title edits.

ØInternal Tempo Mapping with metronome function offers output of MIDI Clock &

Song Position Pointer as well as slave run to external MTC Sequencer.

ØMTC/MMC compliance makes sync run / remote controlling with a sequencer.

Important Selling Points Over Competition

ØUncompressed audio quality

ØComes with XLR inputs and phantom power

ØRecord time = 16 hours -mono , 2 hours-8 tracks

ØMIDI Time Code/MIDI Clock sync to external sequencers and computer

recording software

ØWaveform display for editing

ØDigital S/PDIF input and output for burning CD’s, transferring audio to external

devices and/or computer

ØTraining mode –helps learn music passages and eliminate recorded vocals

Model 8340 SCSI Card

Model 8340 is an optional SCSI card for

model VF08 to give the following additional

functions.

ØFast backup to external SCSI

removable devices such as ZIP,

ZIP250, DVD-RAM drives.

ØImport and export of audio data in

WAV file format via a DOS formatted

(FAT16) disk using SCSI re-movable

devices.

ØWith future software update on VF08, data backup to a CD-R/RW will be

possible.

The 8340 card can be retrofit to the VF08’s slot on the right side by end-users.

Installation guide is in the manual supplied with the card.
