Fostex D-160 Manuel utilisateur

D-160 Owner’s Manual Supplement (V2.10)

The functions explained here are additions to the main manual because of our version-up

(V2.10) of the D-160 software. Please read this manual together with the main manual

before operating the D-160.

1. Large capacity hard disks can now be used.

It is now possible to use E-IDE hard disks with a recording capacity up to approximately

30GB (FS=44.1kHz) as the D-160’s recording media (current drive/backup drive).

Please refer to “List of hard disks checked for operation” to make sure any product you

are about to use will operate correctly.

2. In the BAR/BEAT/CLK (bar/beat/clock) time base, the offset figure of the BAR

that indicates the head of the disk can now be edited.

Although [Time Base] is explained in [Before Operating] the main D-160 owners manual,

the unit to indicate the present traveling position, MTC (MIDI time code) or BAR/BEAT/

CLK (bar/beat/clock) is now also employed in addition to ABS (absolute time).

Because of this, the figure indicating the present disk position will be different depending

on the selected time base. When the D-160 is in the initial setup state and the MTC offset

display at [MTC 00h 59m 57s 00f] for the disk in the head position (ABS 00m 00s 00f) or,

at BAR/BEAT/CLK, it will display [-002bar 1 beat 00clk].

Before version-up V2.10, this offset figure could be changed only for MTC, and the BAR/

BEAT/CLK offset figure was fixed to [-002bar 1beat 00clk].

But, with V2.10, the BAR offset figure in BAR/BEAT/CLK can now be changed to any

figure within the -002 ~ -009 range.

In the initial setup state of the D-160, [-002bar 1beat 00clk] will always be displayed and

the bar offset figure will be [-002bar].

To setup the offset figure of this BAR/BEAT/CLK display, execute it in the SETUP mode of

the D-160, the same as the setup of the MTC offset figure. Please read the reverse side

operating procedures. For setup of the MTC offset, refer to the explanations in the SETUP

mode of the main owners manual.

<NOTE>: When formatting a large capacity hard disk, the time required to format will be in

relation to disk size. As a general estimate, it requires about 15 minutes to format 1GB and

thus, as an example, it will take about 7 hours for a 30GB hard disk.

Quantum

Fireball CX

Fireball CR

Model

Maker Disk Capacity

6.4GB, 10.2GB, 13.0GB, 20.4GB

4.3GB, 6.4GB, 8.4GB, 13.0GB

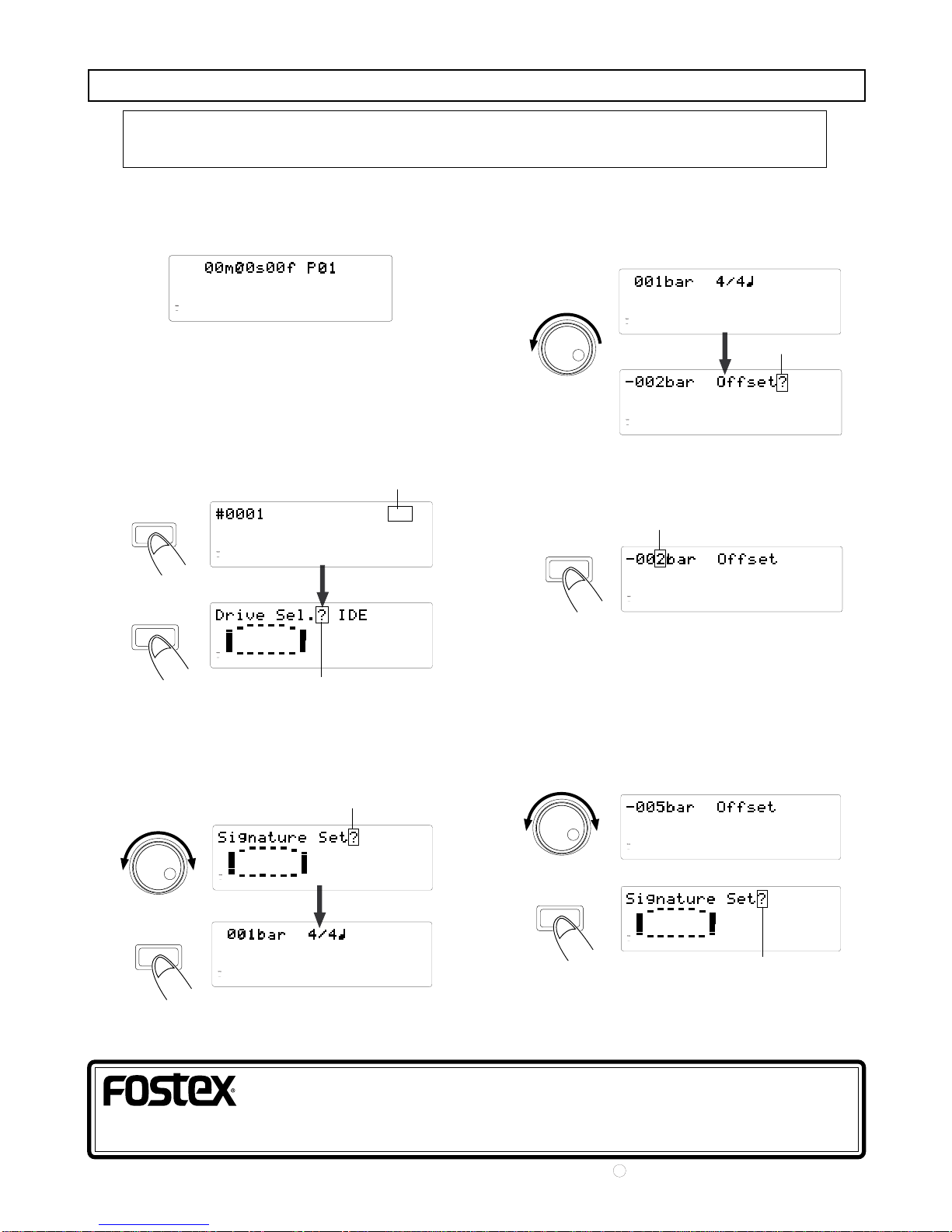

1. First selecttheprogram towhich offset is tobesetup.

The example below is the display as a result of selecting

program 1.

2. After switching to the SETUP display by pressing the

DISP SEL key, press the EXECUTE/YES key.

If the DISP SEL key is pressed twice against the above

ABS display, it will change to the SETUP display and if

the EXECUTE/YES key is pressed, it will change to the

[Drive Sel ? (current drive setup)] menu as shown

below when in the initial setup state.

3. Rotate the JOG dial to show [Signature Set?] in the

display and press the EXECUTE/YES key.

The current set bar will be displayed and if it is in the

initial setup state, the first bar will be 4/4.

4. Rotate the JOG dial counter-clockwise.

The offset figure of the current set bar will be

displayed. If it is in the initial state, [-002bar Offset?]

will be displayed as shown below.

5. Press the EXECUTE/YES key.

The number [2] in -002bar will blink and the bar

offset figure can now be edited.

6. Rotate the JOG dial to input the desired offset figure,

then press the EXECUTE/YES key.

Any offset figure within a 2~9 range can be input

(the example below is the result of inputting of 5 for

the bar figure). After this, press the EXECUTE/YES

key and it will be set to the input offset figure and the

display will change to the [Signature Set?] menu.

DISP SEL

EXECUTE

/YES

EXECUTE

/YES

7. Exit from the SETUP mode by pressing the EXIT/NO

key.

Setup procedures for BAR/BEAT/CLK offset

<NOTE>: Offset setups can be executed for each program. The setup content will be

maintained even though power is switched off.

FOSTEX CORPORATION

3-2-35, Musashino, Akishima-shi,Tokyo 196-0021, Japan

FOSTEX CORPORATION OF AMERICA

15431, Blackburn Ave., Norwalk, CA 90650, U. S.A.

Blink

EXECUTE

/YES

EXECUTE

/YES

PRINTED IN JAPAN JULY 1999 8288 672 000 FX.

44.1kHz

ABS

1110

44.1kHz

SETUP

1110

44.1kHz

SETUP

1110

44.1kHz

SETUP

1110

44.1kHz

SETUP

SIGNATURE

1110

44.1kHz

SETUP

1110

44.1kHz

1110

44.1kHz

1110

44.1kHz

1110

44.1kHz

SETUP

SIGNATURE

1110
