FortiGate 310B

QuickStart Guide

July 05, 2012

01-430-175078-20120705

FortiGate®, and FortiGuard®, are registered trademarks of Fortinet,

Inc., and other Fortinet names herein may also be trademarks of

Fortinet. All other product or company names may be trademarks of

their respective owners. Performance metrics contained herein were

attained in internal lab tests under ideal conditions, and performance

may vary. Network variables, different network environments and

other conditions may affect performance results. Nothing herein

represents any binding commitment by Fortinet, and Fortinet

disclaims all warranties, whether express or implied, except to the

extent Fortinet enters a binding written contract, signed by Fortinet’s

General Counsel, with a purchaser that expressly warrants that the

identiﬁed product will perform according to the performance metrics

herein. For absolute clarity, any such warranty will be limited to

performance in the same ideal conditions as in Fortinet’s internal lab

tests. Fortinet disclaims in full any guarantees. Fortinet reserves the

right to change, modify, transfer, or otherwise revise this publication

without notice, and the most current version of the publication shall

be applicable.

Table of Contents

1 Package Contents

2 Installation

3 Connecting to the FortiGate Unit

4 Technical Speciﬁcations

5 LED Speciﬁcations

6Technical Documentation and Links

7Cautions and Warnings

8Register Your Product

9Product License Agreement

1. Package Contents

Tools and Documentation

FortiGate 310B

QuickStart Guide

2 Rack-Mount

Brackets

Tools and

Documentation

QuickStart

Guide

Power Cable Console Cable

4 Rubber Feet 6 Bracket Screws

Ethernet Cable

Fortinet’s consolidated security solutions provide an integrated set of core

security and network services in a single, easy-to-manage, high-performance

appliance that is capable of supporting a wide range of deployment scenarios.

Your box contains the following:

FortiGate 310B

QuickStart Guide

Tools and Documentation CD

Power Cable

Ethernet cable

Console Cable

4 Rubber Feet

2 Rack-Mount Brackets

6 Bracket Screws

The FortiGate unit can be placed on any ﬂat surface, or mounted in any standard 19

inch (48.3 cm) rack unit with the provided rack-mount brackets and screws.

Caution: Electrostatic discharge (ESD) can damage your Fortinet equipment.

Caution: Do not place heavy objects on the unit.

To install the FortiGate unit into a rack:

Caution: To avoid personal injury or damage to the unit, it is recommended that two or

more people install the unit into the rack.

1. Ensure that the FortiGate unit is placed on a stable surface prior to rack-mount

installation.

2. Attach the provided rack-mount brackets to the sides of the unit using the provided

screws.

a. If you are installing the unit into a four-post rack, attach the rack-mount brackets

with the handles aligned with the front of the unit.

b. If you are installing the unit into a two-post rack, attach the rack-mount brackets

with the handles aligned with the middle of the unit.

2. Installation

3. Position the FortiGate unit in the rack. Ensure there is enough room around the unit to

allow for sufﬁcient air ﬂow.

4. Line up the rack-mount bracket holes to the holes on the rack and ensure that the

FortiGate unit is level.

5. Finger tighten four rack-mount screws to attach the unit to the rack.

6. Verify that the spacing around the FortiGate unit conforms to requirements and that

the unit is level, then tighten the rack-mount screws with an applicable screwdriver.

7. Using the provided power cable, plug the cable into the back of the unit, and then into

a grounded electrical outlet or a separate power source such as an uninterruptible

power suppy (UPS) or a power distribution unit (PDU).

Note: If the unit has a redundant power supply, each power cable should be connected

to a different power source. In this way, if one power source fails, the other may still be

operational and the unit will not lose power.

To install the unit on a ﬂat surface:

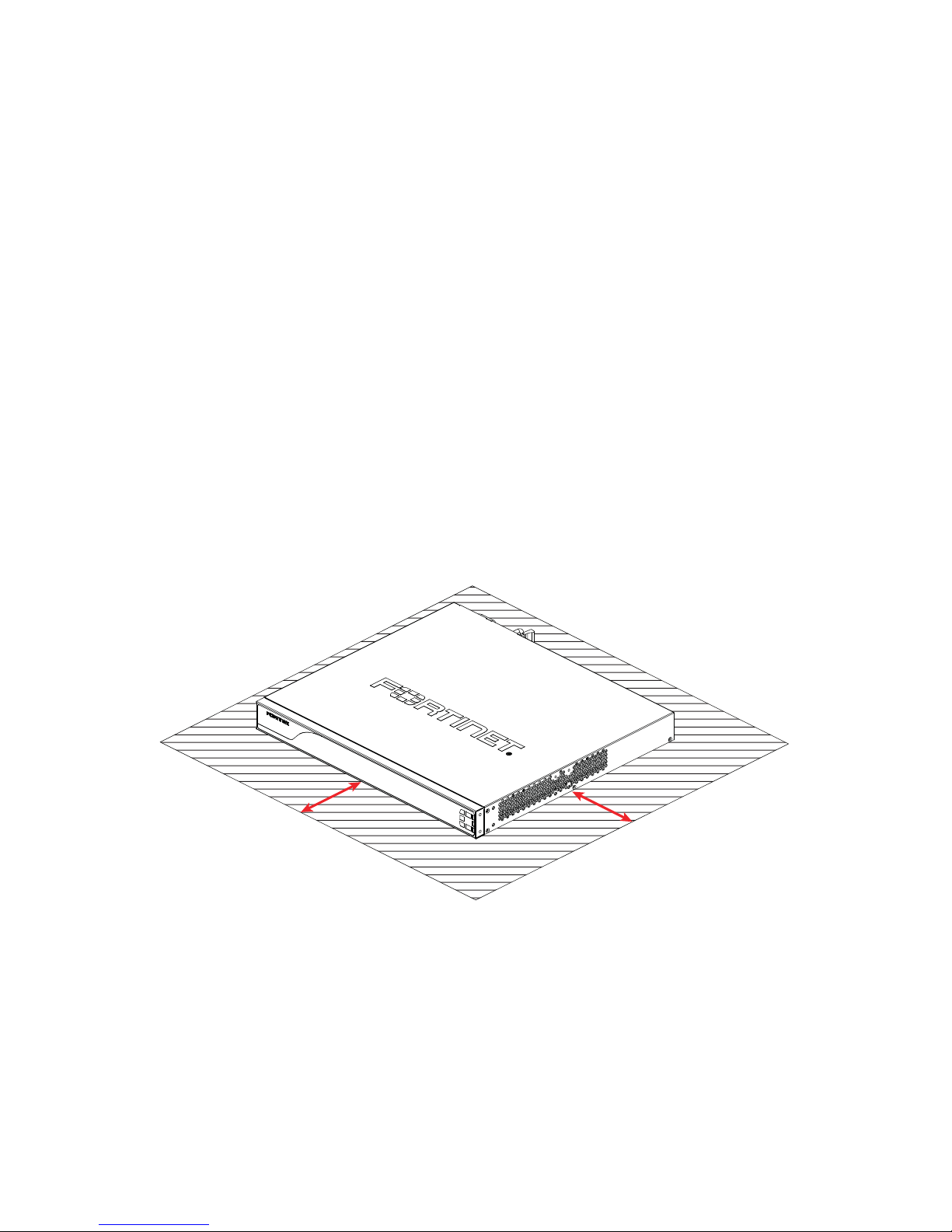

1. Ensure that the surface onto which the FortiGate unit to be installed is clean, level, and

stable and that there is at least 1.5in. (3.81 cm) of clearance on all sides to allow for

adequate airﬂow.

2. Attach the provided rubber feet to the bottom of the FortiGate unit.

3. Place the unit in the designated location.

4. Verify that the spacing around the FortiGate unit conforms to requirements and that

the unit is level.

5. Using the provided power cable, plug the cable into the back of the unit, and then into

a grounded electrical outlet or a separate power source such as an uninterruptible

power suppy (UPS) or a power distribution unit (PDU).

Note: If the unit has a redundant power supply, each power cable should be connected

to a different power source. In this way, if one power source fails, the other may still be

operational and the unit will not lose power.

1.5in (3.81cm) 1.5in (3.81cm)

3. Connecting to the FortiGate Unit

The FortiGate unit requires some basic conﬁguration to add it to your

network. These basic steps include assigning IP addresses, DNS

settings, and the default gateway. Until these steps are completed trafﬁc

will not ﬂow through the device.

The FortiGate unit can be conﬁgured using the Web-based Manager or

the CLI.

This section will step you through both methods of connecting to the

unit. Use whichever method you are most comfortable with.

To Connect to the Web-based Manager:

1. Connect the FortiGate unit port 1 interface to a management

computer using the provided Ethernet cable.

2. Conﬁgure the management computer to be on the same subnet as

the internal interface of the FortiGate unit:

a. Browse to the Network and Sharing Center > Change

Adapter Settings > Local Area Connection Properties

> Internet Protocol Version 4 (TCP/IPv4) Properties.

b. Change the IP address of the management computer

to 192.168.1.2 and the netmask to 255.255.255.0.

3. To access the FortiGate unit Web-based Manager, start a browser

of your choice and browse to https://192.168.1.99 (remember to

include the “s” in https://).

4. Type admin in the Name ﬁeld, leave the Password ﬁeld blank, and

select Login.

You can now proceed with conﬁguring your FortiGate unit.

To Connect to the CLI:

You can conﬁgure all FortiGate conﬁguration options from the CLI using

conﬁg commands. The CLI also includes get, show, diagnose, and

execute commands for performing various conﬁguration and monitoring

tasks.

1. Connect the FortiGate unit console port to the management

computer using the provided console cable.

2. Start a terminal emulation program on the management computer. Use

the following settings:

• Baud Rate: 9600

• Data bits: 8

• Parity: None

• Stop bits: 1

• Flow Control: None

3. Press Enter on your keyboard to connect to the CLI.

4. Type admin in the Name ﬁeld, leave the Password ﬁeld blank, and

press Enter.

You can now proceed with conﬁguring your FortiGate unit.

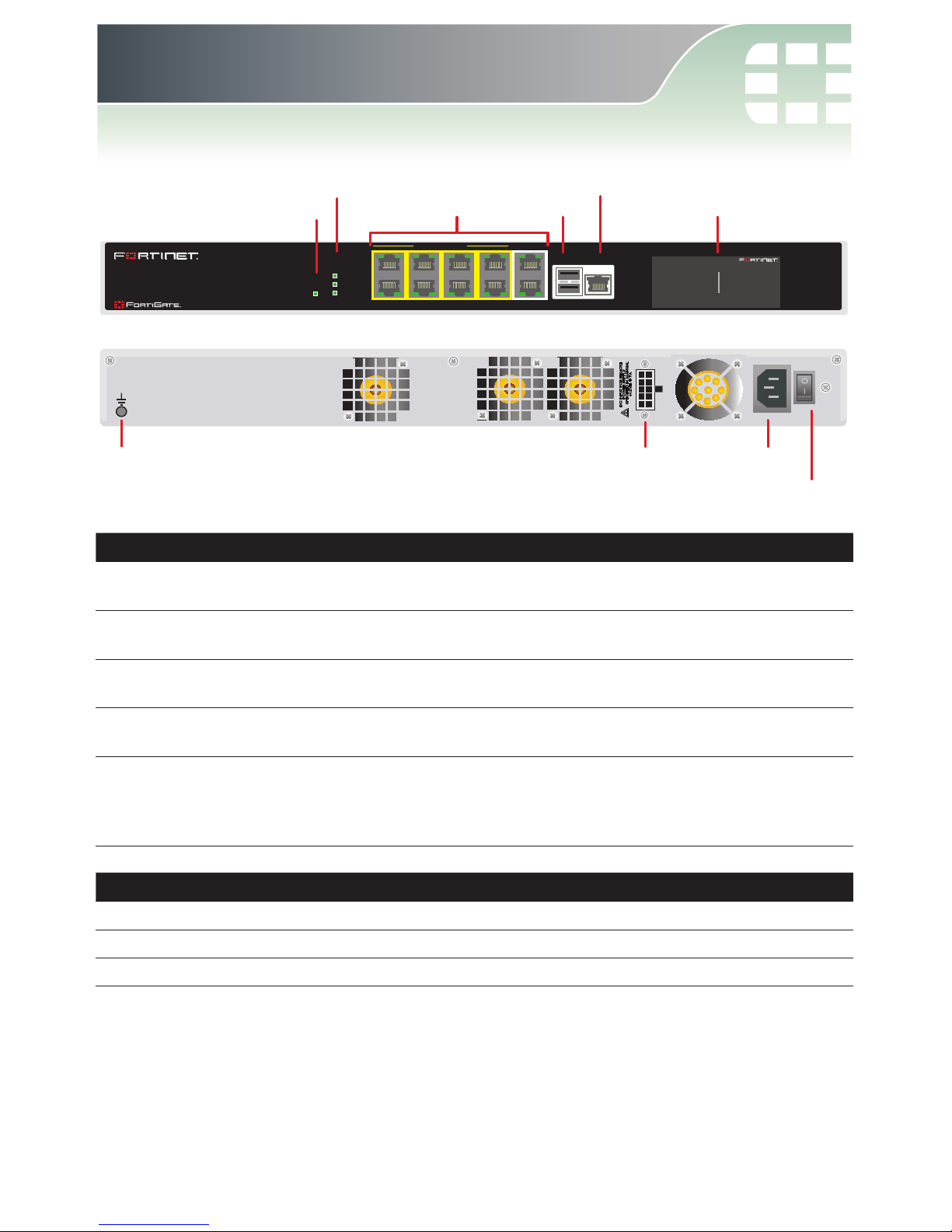

Power LED

Status, Alarm, & HA LEDs

USB Ports

Ethernet Ports 1 - 10

Console Port

AMC Module Slot

CONSOLE

USB

1/2 3/4 5/6 7/8 9/10

POWER

ASM

STATUS

ALARM

NP2 Powered

310B

Front Back

RPS Connection AC Power

Connection

Ground

Power Switch

Interface Type Protocol Description

Ethernet Ports

1 - 8

RJ-45 Gigabit Ethernet NP2 Powered switched Ethernet ports for

connection to your network and the Internet.

Ethernet Ports

9 - 10

RJ-45 Gigabit Ethernet 10/100/1000 non-accelerated switched Ethernet

ports.

USB USB-A USB 2.0 USB server ports for USB key, modem, or

management functions.

Console RJ-45 RS-232 serial Optional connection to the management computer.

Provides access to the CLI.

AMC Slot AMC Advanced

Mezzanine Card

One single-width slot offering additional ASIC-

accelerated ports for additional throughput or

disk-based storage for local logging and content

archiving.

Hardware Specication Description

AC Power 100-240V AC, 60-50Hz

Redundant Power Supply Optional (FRPS-100 or FG-310B-RPS)

AMC Module Slot Optional (ASM-S08 or ASM-FB4)

4. Technical Speciﬁcations

Power LED

Status, Alarm, & HA LEDs

Ethernet Ports

CONSOLE

USB

1/2 3/4 5/6 7/8 9/10

POWER

ASM

STATUS

ALARM

NP2 Powered

310B

LED State Description

STATUS

Green The unit is operating normally.

Flashing Green The unit is turning on.

Off The unit is off.

ALARM Not in use.

HA Green The unit is operating in normal HA mode.

Off The unit is not operating in HA mode.

POWER Green The unit is on.

Off The unit is off.

Ethernet Ports

Activity (Left)

Green Port is active.

Off Port is not in use.

Ethernet Port

Speed (Right)

Green Port is connected at 1Gbps.

Yellow Port is connected at 100Mbps.

Off Port is connected at 10Mbps or is not in use.

5. LED Speciﬁcations
