FortiGate 94D POE

QuickStart Guide

• Technical Support

• New product features

• Protection from new threats

Vous devez enregistrer le produit pour

recevoir:

• Support technique

• Nouvelles fonctionnalitées du produit

• Protection contre de nouvelles menaces

La reistrazione ti permette di usufruire di:

• Supporto Tecnico

• Nuove funzionalita

• Proteezione dalle ultime minaccce

Debe registrar el producto para recibir:

• Apoyo técnico

• Nuevas funcionalidades del producto

• Protección contra ataques

登録のお願い

本日、フォーティネット製品の登録をしてください。

登録すると次のメリットがあります。

テクニカルサポート•新機能の追加•新しい脅威

への防御

请马上注册

您的飞塔产品

您在注册以后才能得到技术支持、新产品特

点信息、最新威胁防护

http://forti.net/support

Toll free: 1 866 648 4638

Phone: 1 408 486 7899

Fax: 1 408 235 7737

Email: [email protected]

Before You Begin

It is normal to not require a hostname

but your ISP may require it.

Hostname

Write down details that you may need from your network administrator or ISP.

T1/E1, Static broadband, Cable, or DSL with a static IP

IP Address Subnet Mask

Cable Modem DHCP

Default Gateway Primary/Secondary DNS

DSL PPPoE

Username

Password

QuickStart Guide Video

http://forti.net/vqsg

USB Cable

Ethernet Cable

Power Cable

4 Rubber Feet

Console Cable

2 Rack-Mount Brackets

8 Bracket Screws

Box Includes

FortiGate 94D PoE & QuickStart Guide

USBMGMT USB CONSOLE

WAN1

WAN2

MGMT

DMZ1

DMZ2

14 20

1915

16 18

17 21

STATUS

POWER

ALARM

FortiGate94D POE

USBMGMT

DMZ1

DMZ2

18 24

2319

20 22

STATUS

POWER

ALARM

WAN 1

WAN2

FortiGate94D POE

USBMGMT

DMZ1

DMZ2

18 24

2319

20 22

STATUS

POWER

ALARM

WAN 1

WAN2

FortiGate94D POE

USBMGMT

DMZ1

DMZ2

18 24

2319

20 22

21 25

STATUS

POWER

ALARM

WAN 1

WAN2

FortiGate940D-POE

PoE

USB MGMT

6 7

Caution: To avoid

personal injury or

damage to the unit, it

is recommended that

two or more people

install the unit into the

rack.

Installation

The FortiGate unit 

(48.3 cm) rack unit with the provided rack-mount brackets and screws.

To install the FortiGate unit into a rack

1. Ensure that the FortiGate unit is placed on a stable surface prior to rack-mount

installation.

2. Attach the provided rack-mount brackets to the sides of the unit using the provided

screws.

Caution: Electrostatic

discharge (ESD) can

damage your Fortinet

equipment.

POE devices only:

This equipment is to

be used in a Network

Environment 0 per

IECTR 62101. This

product is connected

only to PoE networks

without routing to the

outside plant.

3. Position the FortiGate unit in the rack. Ensure there is enough room around the unit to



4. Line up the rack-mount bracket holes to the holes on the rack and ensure that the

FortiGate unit is level.

5. Finger tighten four rack-mount screws to attach the unit to the rack.

6. Verify that the spacing around the FortiGate unit conforms to requirements and that the

unit is level, then tighten the rack-mount screws with an appropriate screwdriver.

7. Using the provided power cable, plug the cable into the rear of the unit, and then into a

grounded electrical outlet or separate power source.

8 9



1. Ensure that the surface onto which the FortiGate unit

to be installed is clean, level, and stable and that

there is at least 1.5 inches (3.8cm) of clearance on all



2. Attach the provided rubber feet to the bottom of the

FortiGate unit.

3. Place the unit in the designated location.

4. Verify that the spacing around the FortiGate unit

conforms to requirements and that the unit is level.

5. Using the provided power cable, plug the cable

into the rear of the unit, and then into a grounded

electrical outlet or separate power source.

Note: If the unit

has a redundant

power supply, each

power cable should

be connected to

a different power

source. In this way,

if one power source

fails, the other may

still be operational

and the unit will not

lose power.

1.5in 1.5in

Caution: SFP

transceivers are static

sensitive devices. Use

an ESD wrist strap

or similar grounding

device when handling

transceivers.

Do not install

or remove SFP

transceivers while



still attached. This

can cause damage

to the cables, cable

connectors, and the

optical interfaces.

It may also prevent

the transceiver from

latching correctly into

the socket connector.

SFP Transceivers

Transmit Optical Bore

Receive Optical Bore

SFP Cage Sockets

Socket Latch

To install the SFP transceivers

1. Ensure that you are properly grounded.

2. Remove the caps from the SFP cage sockets on the

front panel of the unit.

Extraction Lever

10 11

Caution: Do not force

the SFP transceivers

into the cage slots. If

the transceiver does

not easily slide in

and click into place,

it may not be aligned

correctly or may be

upside down. If this

happens, remove

the SFP transceiver,

realign it or rotate it

and slide it in again.

Note: SFP cage

socket orientation

may vary. Ensure that

the SFP transceiver

module is correctly

oriented each time

that you are inserting a

transceiver. Installing

and removing SFP

transceivers can

shorten their useful

life. Do not install or

remove transceivers

more than is

necessary.

3. Position the SFP transceiver in front of the cage

socket opening and ensure that the transceiver is

correctly oriented.

When the transceiver is correctly oriented, the

extraction lever will be level with the socket latch.

4. Hold the sides of the SFP transceiver and slide it into

the cage socket until it clicks into place.

5. Press the transceiver  cage socket with

your thumb.

6. Verify that the transceiver is latched correctly by

grasping the sides of the transceiver and trying to pull

it out without lowering the extraction lever.

If the transceiver cannot be removed, it is installed

and latched correctly.

If the transceiver can be removed, reinsert it and

press harder with your thumb.

If necessary, repeat this process until the transceiver

is securely latched into the cage socket.

To remove the SFP transceivers

1. Ensure that you are properly grounded.

2. If applicable, disconnect the  from the transceiver connector and install

a clean dust plug in the transceiver’s optical bores.

3. Pull the extraction lever out and down to eject the transceiver. If you are unable to use

screwdriver or other similar tool to

open the lever.

4. Hold the sides of the transceiver and carefully pull it away from the cage socket.

5. Replace the cap on the SFP cage socket and place

the removed SFP transceiver into an antistatic bag.

Note: Follow proper



procedures when

installing and

removing SFP

transceivers to ensure

the devices remain

clean and are not

damaged.

DMZ1

DMZ2

FortiGate94D POE

USBMG

1824

2022

STATUS

POWER

ALARM

AN1

WAN2

FortiGate 940D-POE

PoE

USBMGMT

DMZ1

DMZ2

FortiGate94D POE

USBMG

1824

2022

STATUS

POWER

ALARM

AN1

WAN2

FortiGate940D-POE

PoE

USBMGMT

100-240V

5.4

A-2.3A

50-60

CONSOLE

1312

Basic Connections

Connect your device to an electrical outlet and an Internet connection.

This is usually a modem, but could also be another device on your network.

Power Connection

WAN1

Internet

FortiGate Setup Options

Web Browser

Setup Wizard (p.13) With FortiExplorer (pp14-15)



(pp.18-19)

OS X

CTerminal Emulation

With console cable (p.16-17)

Web-based Manager

1. Connect the Ethernet cable to the MGMT port and your computer.

2. Visit 192.168.1.99 in a web browser.

If this does not show the login page, change the IP address of you computer to

192.168.1.2 and try again.

3. Login using username “admin” and no password.

4. Click “Wizard” in the top right corner and follow instructions.

5. Register your device from the dashboard page.

Web Browser with Ethernet cable

https://

LAN Port 1

14 15

DMZ1

DMZ2

FortiGate94D POE

USBMG

1824

2022

STATUS

POWER

ALARM

AN1

WAN2

FortiGate 940D-POE

PoE

USBMGMT

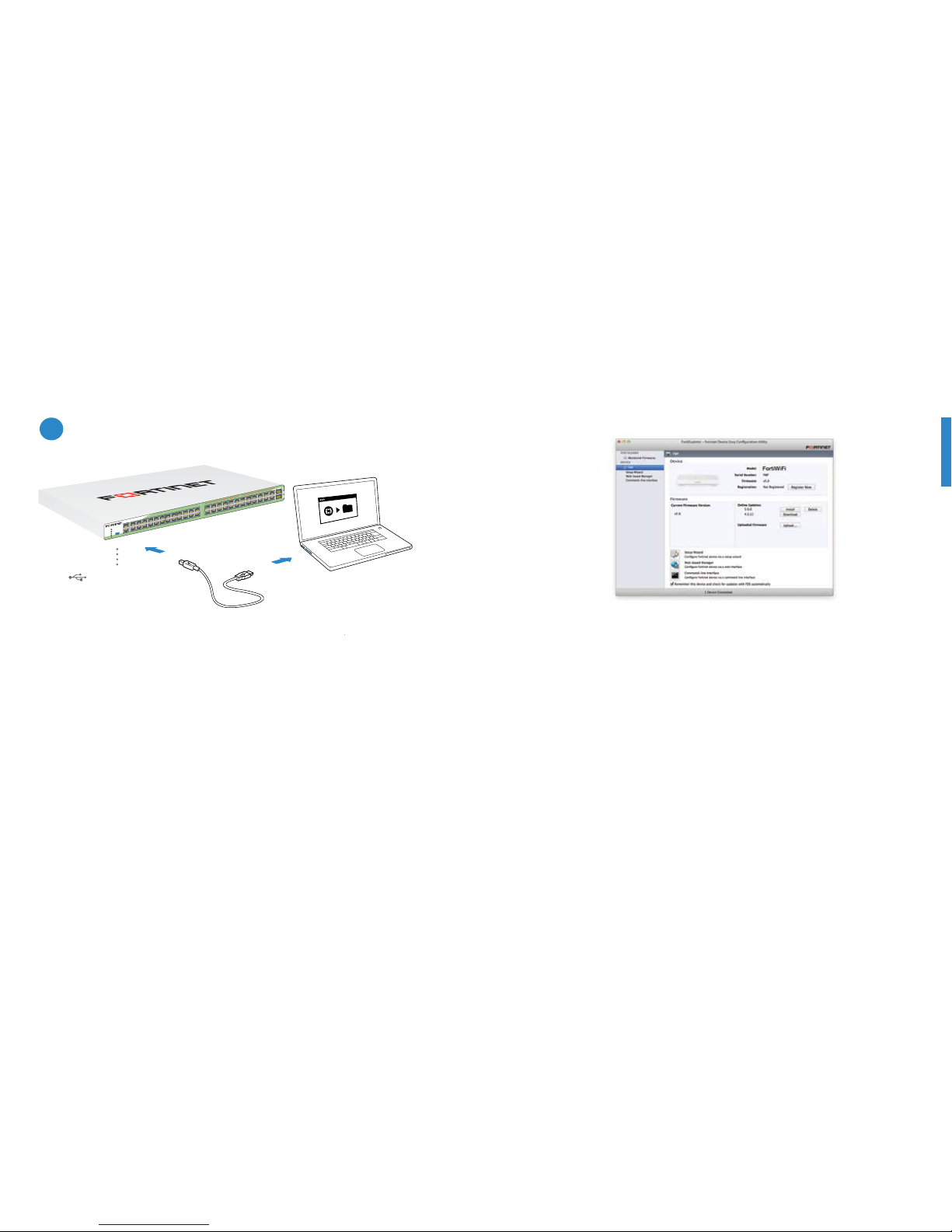

Windows/OS X with USB



2. Connect the USB cable and launch

FortiExplorer if it does not appear

automatically.

Mac OS X Install

2. Double-Click the  and drag the

FortiExplorer icon to the Applications

folder.

3. Connect the USB cable.

4. Click the FortiExplorer icon to launch

the application.

1. Download FortiExplorer from http://forti.net/fexp.

USB MGMT Port

FortiExplorer Setup Wizard

FortiGate 

of the network settings.



access to additional device resources.

1. Follow prompts or click “Register” to register your device with FortiCare.

2. Click “Setup Wizard”.

3. Login using username “admin” and no password.

4. Follow Setup Wizard steps.

5. Click to complete the setup of your device.

16 17

100-240V

5.4

A-2.3A

50-60

CONSOLE

CTerminal Emulation with Console Cable

To Connect to the CLI

1. Connect the FortiGate unit console port to the management computer using the

provided console cable.

2. Start a terminal emulation program on the management computer. Select the COM port

and use the following settings:

Baud Rate: 9600

Data bits: 8

Parity: None

Stop bits: 1

Flow Control: None

3. Press Enter on your keyboard to connect to the CLI.

4. Login using username “admin” and no password. You can now proceed with



Console Port

Get started by typing “?” for a list of available commands.

Begin typing a command and type “?” for a list of available ways to complete.

For example 

A comprehensive reference guide with all commands can be found at http://forti.net/cli.

Table des matières

Autres manuels Fortinet Matériel réseau

Fortinet

Fortinet FortiWeb High-End Series Manuel utilisateur

Fortinet

Fortinet FortiSwitch 1024E Series Manuel utilisateur

Fortinet

Fortinet FortiAP 431G Manuel utilisateur

Fortinet

Fortinet FortiAnalyzer 3700G Manuel utilisateur

Fortinet

Fortinet FortiWAN 1000B Manuel utilisateur

Fortinet

Fortinet FortiGate FortiGate-1000A Manuel utilisateur

Fortinet

Fortinet FortiAP 231FL Manuel utilisateur

Fortinet

Fortinet FortiController FortiController-5208 Manuel de la liste des pièces

Fortinet

Fortinet FortiGate-7000F Series Manuel de la liste des pièces

Fortinet

Fortinet FortiGate FG-1000F Manuel utilisateur

Fortinet

Fortinet FortiMail-5001A Manuel utilisateur

Fortinet

Fortinet FortiLog-100 Manuel utilisateur

Fortinet

Fortinet FortiGate-50AM Manuel utilisateur

Fortinet

Fortinet FortiGate 400F Series Manuel utilisateur

Fortinet

Fortinet FortiBridge-2001F Manuel utilisateur

Fortinet

Fortinet FortiADC 2200F Manuel utilisateur

Fortinet

Fortinet FortiOS 3.0 Mode d’emploi

Fortinet

Fortinet FortiAnalyzer 800G Manuel utilisateur

Fortinet

Fortinet FortiGate 3240C-DC Manuel utilisateur

Fortinet

Fortinet FortiDeceptor Rugged 100G Manuel utilisateur

Fortinet

Fortinet FortiAP 431F Manuel utilisateur

Fortinet

Fortinet FortiBalancer 2000 Manuel utilisateur

Fortinet

Fortinet FortiAnalyzer 200D Manuel utilisateur

Fortinet

Fortinet FortiManager 3700G Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
