FortiADC 2200F

QuickStart Guide

Product Registration

Thank you for purchasing a Fortinet FortiADC. To access:

http://support.fortinet.com

▪ Cloud Management ▪FortiGuard Updates ▪Firmware Upgrades

▪Technical Support ▪Warranty Coverage

Please register your Fortinet FortiADC:

Vous devez enregistrer le produir:

Debe registrar el producto:

登録のお願い:

请马上注册:

This guide covers: FAD-2200F, FAD-2200F-DC

November 07, 2022

of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All

other product or company names may be trademarks of their respective owners. Performance and other metrics contained herein were attained in internal

lab tests under ideal conditions, and actual performance and other results may vary. Network variables, different network environments and other conditions

may affect performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or

implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that

the identiﬁed product will perform according to certain expressly-identiﬁed performance metrics and, in such event, only the speciﬁc performance metrics

expressly identiﬁed in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance

in the same ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features or

development, and circumstances may change such that any forward-looking statements herein are not accurate. Fortinet disclaims in full any covenants,

representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this

publication without notice, and the most current version of the publication shall be applicable.

For Product License Agreement / EULA and Warranty Terms, visit https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

2x Power Cables

(AC models only)

1x Ethernet Cable

1x Console Cable

(DB9 to RJ45)

QuickStart Guide

FortiADC 2200F

Contents - FAD 2200F

Optional SFP Transceiver Modules

FN-TRAN-SFP+SR, 10 GE SFP+ transceiver module, short range with SFP+ and SFP/SFP+ slots

FN-TRAN-SFP+LR, 10 GE SFP+ transceiver module, long range with SFP+ and SFP/SFP+ slots

1x Accessory Kit

(2x Rails, 2x Rail Screws,

4x Rubber Feet, 2x Rackmount Ears)

2x DC Connectors

(DC Models only)

Front Panel - FAD 2200F

1 2 4 53

Management Port (RJ45) GE device management, default IP is 192.168.1.99

HA (RJ45) GE high availability port

Ports 9 to 20 (SFP+)10 GE SFP+ slots

Ports 1 to 8 (SFP) GE SFP slots

Green: Link established at 1 Gbps

Flashing Green:Transmitting data at 1 Gbps

Amber:Link established at 100 Mbps

Flashing Amber: Transmitting data at 100 Mbps

Off: No link established

Green:Link established at 10Gbps

Flashing Green: Transmitting data

Off: No link established

Power Supply Alarm

Amber: Power supply failure

Off: Normal operation

System LED Indicators

CONSOLE (RJ45) port for serial port management

USB (USB A x2) USB 3.0 server port

Power Supply Fan Alarm

Amber: Fan failure

Off: Normal operation

Hard Disk Alarm

Flashing Red: Data activity

Off: Normal operation

System Power Indicator

Green: Power on

Off: Power off

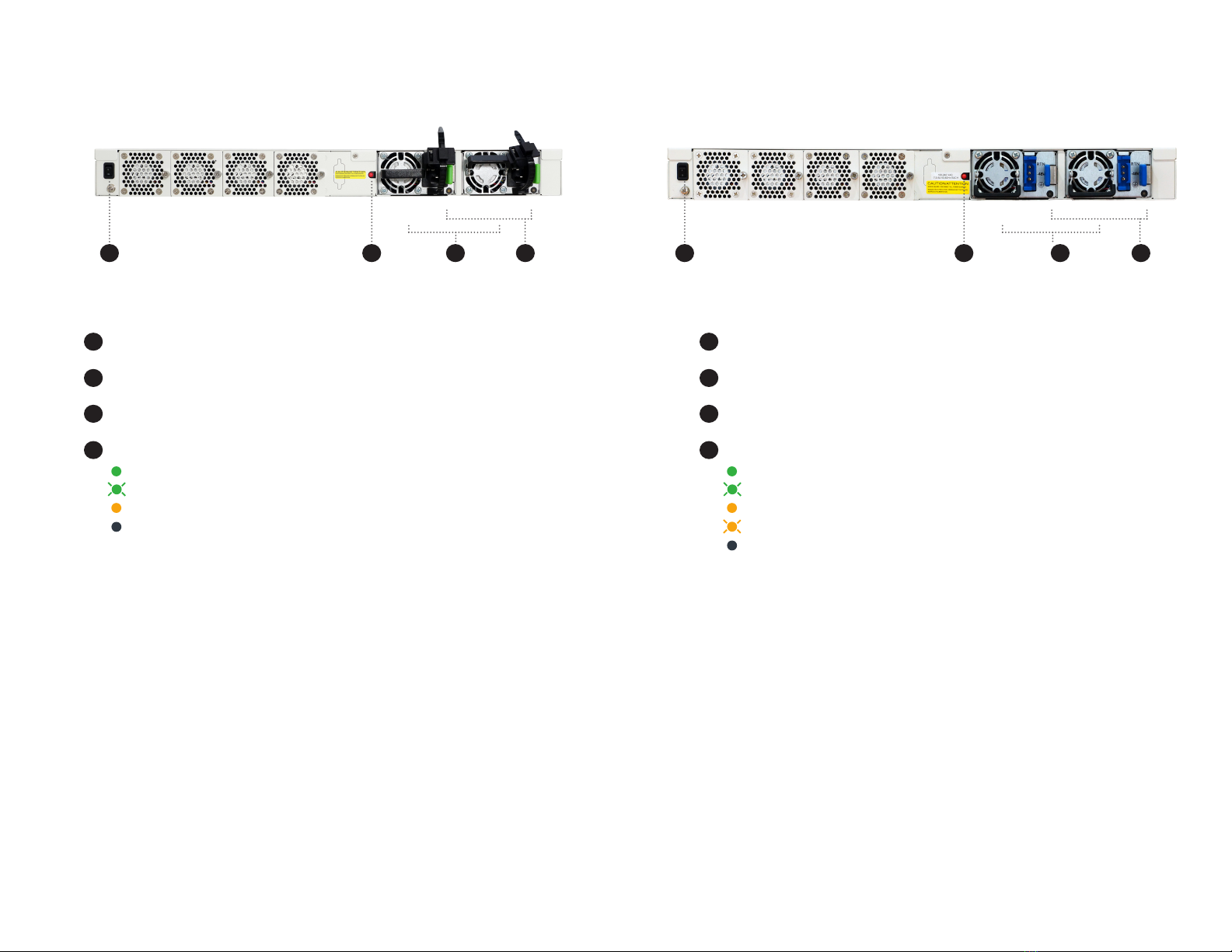

Rear Panel - FAD 2200F

CAUTION/ATTENTION

SHOCKHAZARD. DISCONNECT ALL POWER SOURCES.

RISQUED’ÉLECTROCUTION. DÉBRANCHEZ TOUTES LES

SOURCESD’ALIMENTATION.

31 2 4

Power Supply Indicator

Power Alarm Button resets a power supply error

Redundant Power Supplies (x2) 100 to 240V AC, 7-3.5A, 50/60Hz

Power Switch turns the power ON/OFF

Green: Power supply operating normally

Flashing Green (1 sec): AC input but in Active-Standby mode

Amber: AC input power failure; second power supply operating normally

Off: No AC input

Rear Panel - FAD 2200F-DC

Power Alarm Button resets a power supply error

Redundant Power Supplies (x2) -48V DC to -60V DC, 20A

Power Switch turns the power ON/OFF

DC Power Supply Indicator

Green: PSU operating normally

Flashing Green (1 sec): DC power present but in Active-Standby mode

Amber: DC input power failure; second power supply operating normally

Flashing Amber: PSU warning event

Off: No DC input

31 2 4

AC Installation

Plug in your device to a power outlet using the provided power cables.

Power Outlet

or UPS

Power Outlet

or UPS

Power Connection

Supplied Power Cable

Note: We recommend connecting your FortiADC to an uninterruptible power

supply (UPS) in case of a power outage

DC Cable Installation

Plug in your device to a power outlet using the provided DC power cables.

Assemble the power cables using the supplied power connector.

Pin 1 (-)

Pin 2 (+) Pin 2 (+) Pin 3 ( )

Pin 1 (-)Pin 3 ( )

DC PSU1

DC PSU2

Note: Pin 1 is Negative. Pin 2 is Positive. Pin 3 is Ground. Cables and terminal

lugs are not included. The wires are rated between 24-10 AWG.

Note: We recommend connecting your FortiADC to an uninterruptible power

supply (UPS) in case of a power outage

(Power cable assembly)

DC Power Terminals

1110

Rack Installation

The supplied equipment is designed for standard 19inch racks. The rails

provided are specially designed for this model.

Rack Stability

Ensure the rack is stable before installing the slide rails and appliance.

• Check that the leveling jacks on the bottom of the rack are fully extended to the

ﬂoor with the full weight of the rack resting on the jacks

• For single rack installation, stabilizers should be attached to the rack; for multiple

rack installations, the racks should be coupled together

Support

For video support on installing these slide rails, please visit:

For additional support, please visit:

Appliance Installation

• To avoid personal injury or equipment damage, use a lifting device

• Do not pick up the appliance by the front handles

• Each inner rail has a system lock out tab to prevent the appliance from sliding out,

ensure that it is locked when installing the appliance

• Prevent Electrostatic discharge (ESD) damage by wearing antistatic devices

• Do not place heavy objects on the appliance

What You Will Need

• Philips screwdriver, level & tape measure

• Rack-provided cage nuts and screws

• A lifting device or additional support

• ESD antistatic gear

https://video.fortinet.com

http://support.fortinet.com

Rail Assembly

• The rail kit includes a left and a right rail assembly

• Each rail assembly includes an inner rail, a middle rail, and an outer rail

• The inner rail has locking keyholes used to secure the rail to the appliance

• The inner rail rear end has a lock out tab which slides into the middle rail

• The middle rail is in the outer rail and used to guide the inner rail into the outer rail

• The outer rail has front and rear mounting pins that push into to the rack holes

• The outer rail also has front and rear locking latches to secure the rail to the rack

Inner Rails

Lock Out Tab

Mounting Pins

Release Tab Locking Keyhole

Outer Rails

Locking Latch

1312

Slide Forward

Install M4 Shoulder Screw

Unlocked

Locked

Attach the Inner Rails to the Appliance

1. Detach the inner rail from the rail assembly by pressing the lock out tab

2. Place an inner rail against a side of the appliance

3. Align the inner rail keyholes with the appliance pins

4. Slide the rail towards the front of the appliance until the metal clip locks into place

5. For inner rails with 5 keyholes and a chassis with 3 pins and a thread hole, use the

provided M4 shoulder screw to secure the rail to the appliance

6. Repeat steps 1 to 5 for the remaining inner rail

Align Rail

Metal Clip

Inner Rail

Attach the Outer Rails to the Rack

Front Outer Rail

1. Place an outer rail against a side of the rack

2. Align the front outer rail with the front of the rack

3. Push the front outer rail mounting pins into the rack post holes

4. Lock the locking latch to safely secure the front outer rail to the post

Rear Outer Rail

5. Extend the rear outer rail just past the rack post

6. Level the rail and align the mounting pins

7. Push the rear mounting pins into the rack post holes

8. Lock the locking latch to safely secure the rear outer rail to the post

9. Repeat steps 1 to 8 for the remaining outer rail

Right Rail

Extend Rail

Mount Rail

Lock Latch

Front Rail

Mount Rail

Lock Latch

Align & Level

1514

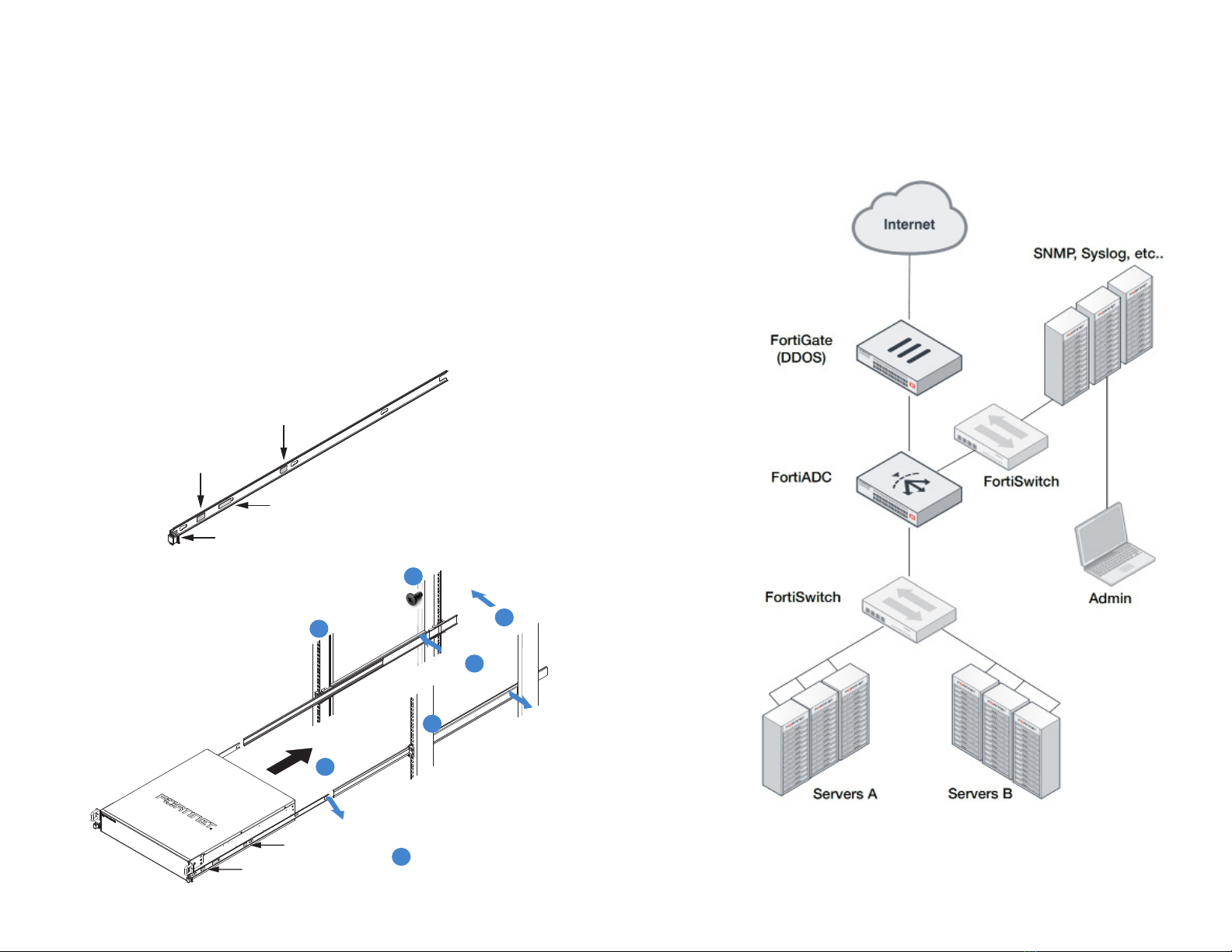

Install the Appliance

Safety Precautions

1. Check that the inner rails are secured to the appliance

2. Inspect that the rack posts and outer rails are secured and level

Rail Installation

3. Slide the middle outer rails forward until they fully extend and lock into place

4. Using a lifting device, lift the appliance and align the inner rails with the middle rails

5. Slide the appliance and inner rails into the middle rails until there is a stop

System Lock

6. Apply even pressure and slide the release tabs outward while sliding the appliance all

the way into the rack until the system release tabs click and lock into position

7. Use four rack screws (not provided) to secure the appliance to the rack

System Release Button

Inner Rail Metal Clip

Release Tab

System Lock Out Tab

Release Tab

System Lock Out Tab

Release Tab

Check Rail Locks

Inspect Posts

Extend Rails

Align Rails

Slide Rails

Deployment

Fully integrate with Fortinet's Security Fabric to optimize network visibility,

load balancing, and user authentication with your new FortiADC.

16 17

Setup Options

Set up your device locally using the GUI or CLI. Choose an option to

complete your setup, then conﬁgure your device.

Local Setup

Command Line Interface (CLI)

An alternate conﬁguration tool from the web-based manager that

uses a terminal emulation application to type commands or upload

batches of commands from a text ﬁle or conﬁguration script.

GUI

Local Setup

An easy-to-use GUI, compatible with most web browsers.

To minimize scrolling, the screen resolution should be at least

1280 x 1024 pixels.

BEthernet Cable

1. Connect Port 1 to the Management Computer using the supplied Ethernet cable

2. Enable DHCP or set the Management Computer’s IP and subnet to:

Static IP Address: 192.168.1.1

Subnet Mask: 255.255.255.0

3. Visit 192.168.1.99 in a web browser

4. Log in with username admin and no password

5. You can now conﬁgure your FortiADC

Management Computer

Port 1

Browse to 192.168.1.99

Username: admin

No Password

GUI

1918

CLI

1. Connect the Console Port with a console cable to the Serial Port on the

Management Computer

2. Start a terminal program on the Management Computer and select an available

COM Port using the following default settings:

Baud rate: 9600

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

3. Log in using username admin and no password

4. You can now conﬁgure your FortiADC

Console Port

Serial Port

Console Cable

Basic Settings

Please refer to the admin guide found on

docs.fortinet.com

for detailed

instruction on conﬁguring your FortiADC.

Basic Network Settings

1. Once you have installed your FortiADC and conﬁgured your management interface,

we recommend setting the following:

 Administrative password

 System time and date

 Network interfaces

 DNS

2. Test the connectivity between devices

3. Register your product, if you haven't already

4. Install your license and update the ﬁrmware

5. Conﬁgure a basic load balancing policy

6. Test the deployment with a load to verify the system behavior

7. Back up your conﬁguration to have as a restore point

Table des matières

Autres manuels Fortinet Matériel réseau

Fortinet

Fortinet FortiAnalyzer 400C Manuel utilisateur

Fortinet

Fortinet FortiLog-100 Mode d’emploi

Fortinet

Fortinet FortiGate 600F Series Manuel utilisateur

Fortinet

Fortinet FortiGate FortiGate-1000A Manuel utilisateur

Fortinet

Fortinet FortiGate-50AM Manuel utilisateur

Fortinet

Fortinet FortiWeb High-End Series Manuel utilisateur

Fortinet

Fortinet FortiSwitch 1024E Series Manuel utilisateur

Fortinet

Fortinet FortiLog-800 Manuel utilisateur

Fortinet

Fortinet FortiGate 80F Series Manuel utilisateur

Fortinet

Fortinet FortiWAN 1000E Manuel utilisateur

Fortinet

Fortinet FortiOS 3.0 Mode d’emploi

Fortinet

Fortinet FortiMail 2000F Manuel utilisateur

Fortinet

Fortinet FortiLog-400 Manuel utilisateur

Fortinet

Fortinet FortiAuthenticator 3000F Manuel utilisateur

Fortinet

Fortinet FortiDeceptor Rugged 100G Manuel utilisateur

Fortinet

Fortinet FortiDDoS 3000F Manuel utilisateur

Fortinet

Fortinet FortiWiFi 20C-ADSL-A Manuel utilisateur

Fortinet

Fortinet FortiSwitch 224E Series Manuel utilisateur

Fortinet

Fortinet FortiDDoS 2000F Manuel utilisateur

Fortinet

Fortinet FortiWAN 200E Manuel utilisateur

Fortinet

Fortinet FortiSwitch M426E-FPOE Manuel utilisateur

Fortinet

Fortinet FortiGate 100F Series Manuel utilisateur

Fortinet

Fortinet FortiGate-5000 Manuel de référence

Fortinet

Fortinet FortiManager 400G Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
