GENNARINO

GAS OVEN

INSTALLATION AND OPERATING MANUAL

Gennarino Gas 80

Gennarino Gas 100

PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING

THE APPLIANCE

A MAJOR CAUSE OF OVEN-RELATED FIRE IS FAILURE TO MAINTAIN

REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE

MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS OVEN BE

INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.

SAVE THESE INSTRUCTIONS

Stefano Ferrara Forni S.R.L.

Forni a legna artigianali

Neapolitan handmade brick ovens

Via Fausto Coppi, 3/B

80010 Quarto, Napoli

Tel./Fax: +39 081 876 1664

e-mail: info@stefanoferraraforni.it

P.IVA 06771801211

C.C.I.A.A. 838246

www.stefanoferraraforni.it

Table of content

Page

- Introduction.............................................................................................................................................................. 3

- Installation operating and maintenance preface ...................................................................................................... 5

- Features .................................................................................................................................................................. 6

- Instruction for lifting and moving oven ..................................................................................................................... 7

- Packaging removing and placement oven on support stand ………………………………….... ................................ 9

- Installation procedures

•General information …………………………………………………………………………............................... 11

•Placement of the marble shelf …………………………………………………………………… ...................... 12

•Installation of the unit control housing ……………………………………………………………………........... 12

•Assembly of the burner............................................................................................................................... 12

•Burner installation....................................................................................................................................... 18

- Connections

•Electrical connection ………………………………………………………………………….............................. 16

•Gas connection …………………………………………………………………………...................................... 17

- Sample of LPG system ……………………………… ................................................................................................ 19

- Oven venting …………………………………………………………………………………………….............................. 20

- Oven care during first fires …………………………………………………………………………… .............................. 21

- Use of the oven with wood ...................................................................................................................................... 22

•Maintenance and cleaning ......................................................................................................................... 23

- Burner components.................................................................................................................................................. 24

- Control panel............................................................................................................................................................ 25

- Celsius/Fahreneit change ....................................................................................................................................... 26

- First ignition and adjustment.................................................................................................................................... 27

•First burner ignition..................................................................................................................................... 27

•Unlocking the burner ................................................................................................................................. 27

•Cooking temperature setting....................................................................................................................... 28

•Low flame gas adjustment.......................................................................................................................... 28

•Air adjustment............................................................................................................................................. 29

•Setting safety limit temperature ................................................................................................................. 31

•Burner operation with control panel............................................................................................................ 32

•On/Off function .......................................................................................................................................... 32

•High flame power adjustment .................................................................................................................... 32

•Switching the burner OFF through control panel........................................................................................ 33

•Error messages ......................................................................................................................................... 34

- Maintenance ............................................................................................................................................................ 35

•Routine maintenance ................................................................................................................................. 36

•Special maintenance ................................................................................................................................. 37

- Burner gas conversion............................................................................................................................................. 38

•Conversion on control panel ...................................................................................................................... 38

•Nozzles replacement.................................................................................................................................. 38

•Flame arrestor replacement ....................................................................................................................... 39

- Replacing components

•Sit control equipment replacement ............................................................................................................ 40

•Probe replacement .................................................................................................................................... 42

•Control Unit fuse replacement.................................................................................................................... 42

•Detection electrode replacement................................................................................................................ 42

- Error messages ....................................................................................................................................................... 43

- Troubleshooting....................................................................................................................................................... 44

•Control unit doesn’t switch on..................................................................................................................... 44

•Control unit turns on but the burner doesn’t start ...................................................................................... 44

•Control unit turns on, the spark strikes, low flame doesn’t turn ON and the burner blocks ........................ 44

•The control unit turns ON, low flame turns ON but the burner blocks and flame turns OFF ...................... 45

•Low flame turns ON but after 15-20 seconds high flame does not turn ON................................................ 45

•Probe fault led turns ON............................................................................................................................. 45

•Red display with “- - -”................................................................................................................................. 46

•Green display: Set T° does not increase ................................................................................................... 46

•Slower heating than the normal parameters .............................................................................................. 46

•Soot under the dome ................................................................................................................................. 47

•Red display (T° inside the oven exceeds the green display (set T°) with high flame led OFF.................... 47

- Control unit diagram................................................................................................................................................. 48

- Connections diagram .............................................................................................................................................. 48

www.stefanoferraraforni.it

INTRODUCTION

This manual has been made so that the user of the oven can work in complete safety.

THE USER HAS OBLIGATION TO READ CAREFULLY AND TO OBSERVE CAREFULLY THE

INSTRUCTIONS OF THE MANUAL.

Failure to comply with the instructions contained in this manual, means to operate in the conditions of use

not foreseen by the manufacturer.

THE MANUFACTURER IS NOT LIABLE FOR ANY DAMAGES CAUSED BY THINGS OR PERSONS,

DUE TO THE FAILURE TO OBSERVE THE INSTRUCTIONS AND THE RECOMMENDATIONS IN THIS

MANUAL.

The manual must be kept in good condition and must always be available for quick reference in case of

need.

THE MANUAL IS OF OWNERSHIP OF THE MANUFACTURER AND CANNOT BE REPRODUCED EVEN

PARTIALLY, AS WELL AS IT CANNOT BE DIFFUSED OR USED FOR ADVERTISING PURPOSE OR

SHARED WITH THIRD PARTIES.

ANY TRANSGRESSION WILL HAVE CIVIL AND PENAL SANCTIONS AS A CONSEQUENCE.

EXPLANATION OF SYMBOLS AND WARNINGS

SYMBOL DESCRIPTION

Symbol used to identify information of particular importance within the manual. The

information also concerns the safety of the personnel involved in the use of the

machine.

Symbol used to indicate passages of technical importance in the instructions and

warnings or procedures related to operator safety.

Symbol used to indicate warnings or procedures related to electricity.

NOTE ON THE PRODUCT

The aim of the manufacturing company is to make ovens that meet the current technical state. So we always

take care of our products even after delivery.

For any problems or inconveniences contact the service center:

Email: info@stefanoferraraforni.it - tel. +39 081 876 16 64

www.stefanoferraraforni.it

INTRODUCTION ABOUT INSTRUCTIONS OF WORKING

These instructions have the task of allowing and facilitating the safe and appropriate use of the OVEN and of

exploiting the regulatory use possibilities provided.

Their observance helps to avoid dangers, repair costs, to reduce off-duty times and to increase the lifespan

of the device.

Operating instructions are to be followed also taking in consideration the regulations on accident prevention

and environmental protection valid in the country of installation

BUYER'S OBLIGATIONS

The buyer is obliged to:

• Observe the national regulations concerning workplace safety;

• Observe the instructions contained in the manual.

www.stefanoferraraforni.it

INSTALLATION OPERATING AND MAINTENANCE PREFACE

WARNING !

READ THIS ENTIRE MANUAL BEFORE YOU INSTALL THE OVEN. FAILURE TO

FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR

EVEN DEATH.

•When this oven is not properly installed, a fire may result. To reduce the risk of fire, follow the

installation instructions

•Contact your local building or fire officials for clarification on any restrictions on installation of this

oven in your area, or need for inspection of the oven installation.

•DO NOT close the oven door while a fire is in the oven.

•Place the door over the oven opening after cooking is completed at the end of the work day.

•Hot while in operation. Keep children, clothing and furniture away. Contact may cause skin burns.

•Do not burn garbage or flammable fluids.

•Smokes of the burning must be expelled through a flue system conform to the local rules.

•Do not connect the oven to a chimney flue serving another appliance.

•Keep children and pets away from hot oven.

•DO NOT USE products not specified for use with this oven.

•DO NOT USE liquid fuel (firelighter fluid, gasoline, lantern oil, kerosene or similar liquids) to start or

maintain a fire.

•DO NOT use water to dampen or extinguish fire in the oven.

•Keep a proper extinguisher (class A) close to the oven at all times.

•Instruct all personnel about location and use of the fire extinguisher and proper fire emergency

procedures.

•DO NOT pack required air spaces with insulation or other materials.

•DO NOT expose the oven to the weather, if the oven is installed outdoors to shelter it under a

canopy.

•The oven is meant only for cooking pizza and/or bread it is not recommended for cooking other food

or food in pan ,chafe of metal pans can get the floor soon damaged and grease spatter from

roasting can be absorbed from the floor that lose its correct properties of cooking.

•DO NOT pack required air spaces with insulation or other materials.

•In case of use of the oven with wood use only well dried wood.

•In case of use of the oven with wood, use a metal shovel to remove the ashes and place them in a

metal bin with a tightly fitting lid. The container should be stored on a non-combustible surface, away

from all combustible materials. Ensure ashes are completely cold before disposing of them

appropriately.

•DO NOT expose the oven to the weather, if the oven is installed outdoors to shelter it under a

canopy.

•The oven is meant only for cooking pizza and/or bread it is not recommended for cooking other food

or food in pan ,chafe of metal pans can get the floor soon damaged and grease spatter from

roasting can be absorbed from the floor that lose its correct properties of cooking

SAVE THESE INSTRUCTIONS

www.stefanoferraraforni.it

FEATURES:

Cooking chamber made of refractory bricks

Fully insulated

Support frame and front enclosure of stainless steel

Marble shelf

Inox door

Mouth sizes mm. 400 wide x mm. 175 heigh (16” x 7”)

External covering of ceramic mosaic tiles

Alimentation: gas

Electronic burner with one modulating flame max thermal capacity kW.24 – kcal/h 20640

Burner working temperature : 0°C to 500°C (32°F – 932°F)

Electronic unit control for temperature management

Gas consumption at max. temperature:

- Natural gas: 2,54 Nmc/h

- LPG : 0,86 Nmc/h

Flue output: Ø 150 mm.

Max heat output: 20640 kcal – 24 kW

Smokes temperature output: 190°C

Electrical supply: 220V – 50/60Hz one phase

Electrical absorption:100 Watt

Extract air flow: 650 mc/h (at starting)

500 mc/h (at fully operating)

Venting: Natural draft

Gas connection: 1/2”

Gas pressure:

- Methane : from 15 mbar - to 25 mbar

- LPG : from 25 mbar - to 50 mbar

It’s required a direct connection of the tube that serves the oven from gas meter to the oven no other

equipment must be installed on the same line between the meter and the oven.

For the gas line use the follows pipes size:

- Distance from the gas meter to the oven until 10 meters (32 ft) use:

For LPG ½“ pipe



For Natural gas ¾” pipe

Distance from the gas meter to the oven over 10 meters (32 ft) use 1” pipe (independently to the gas in use)

www.stefanoferraraforni.it

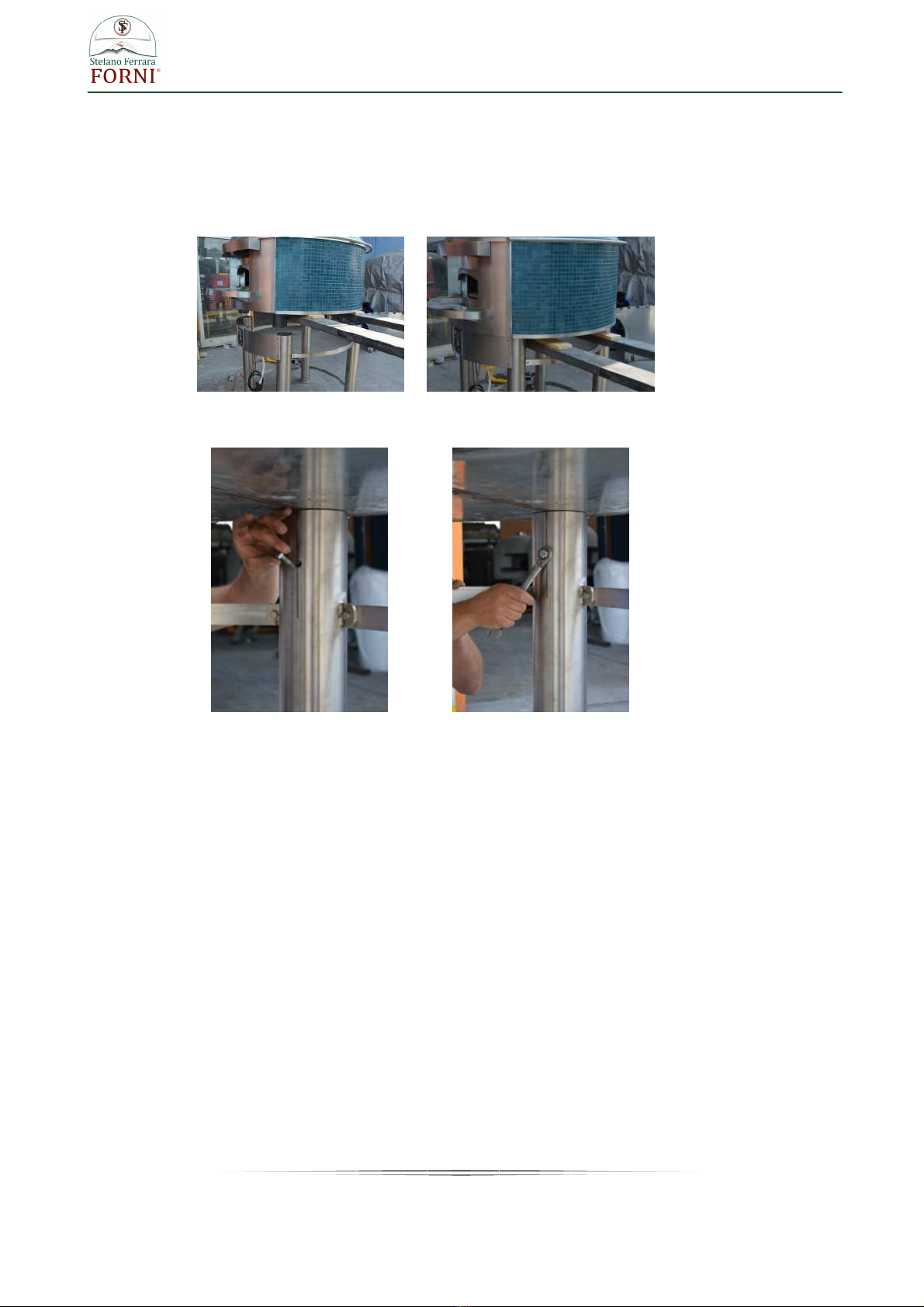

INSTRUCTIONS FOR LIFTING AND MOVING OVEN

FOR OVENS ALREADY INSTALLED ON THE SUPPORT STAND

1- USING A FORKLIFT

Determine if forklift capacity is sufficient to lift oven. (See pag. 11 for weights and sizes)

Prior to lifting, make sure the forks are long enough as whole diameter of the oven, if not fork extensions

should be used.

Keep forklift straight. Carefully place forks on a side of the oven through the stand legs and

position under the oven. Slowly lift and move the oven as needed

WARNING: MAKE SURE DON’T DAMAGE THE BURNER DURING INSERTING THE

FORKS BETWEEN THE STAND LEGS.

2- USING A PALLET JACK

Determine if pallet jack capacity is sufficient to lift oven. (See pag. 11 for weights and sizes)

Prior to lifting, make sure pallet jack is long enough to reach both horizontal angles at lower end of steel tube

support legs. Place pallet jack on a side of the oven , place the forks between tube steel support legs under

the bottom circular tubes.

Carefully lift oven and move slowly.

www.stefanoferraraforni.it

INSTRUCTIONS FOR LIFTING AND MOVING OVEN

FOR OVEN SEPARATED FROM THE SUPPORT STAND

1- USING A FORKLIFT

Determine if forklift capacity is sufficient to lift oven. (See pag. 11 for weights and sizes)

Prior to lifting, make sure the forks are long enough as whole diameter of the oven, if not fork extensions

should be used.

Under the oven there are four little steel feet 4” (10 cm) high to permit placing of the forks.

Keep forklift straight. Carefully place forks on a side of the oven through the steel feet and position under the

oven. Slowly lift and move the oven as needed.

2- USING A PALLET JACK

Determine if pallet jack capacity is sufficient to lift oven. (See pag.11 for weights and sizes)

Prior to lifting, make sure the forks are long enough as whole diameter of the oven.

Place pallet jack between the steel feet and position under the oven.

Carefully lift oven and move slowly.

WARNING : ONLY VERTICAL LIFTING IS ALLOWED DO NOT TURN UPSIDE

DOWN THE OVEN

www.stefanoferraraforni.it

PACKAGING REMOVING AND PLACEMENT OF THE OVEN ON SUPPORT STAND

On the bottom of the crate (front side and back side) there is the required space for insert the forks of the

forklift. (photo 1)

The crate is fixed to two metal brackets placed under the oven (photo 2)

photo 1 photo 2

Once removed the crate, in order to remove the brackets, lift the oven with a forklift and unscrew the bolts.

Note the removed bolts (17 mm.- 0.67 in hexagonal head screw) will be the same to use for fixing the oven

on the support stand, so preserve them for the next use.

ASSEMBLY THE SUPPORT STAND

The support stand consist of:

N. 4 inox tubes (legs)

N. 7 inox curves plates of legs conjunction

N. 1 inox front paneling for housing of the control panel

All the pieces are labelled with numbers.

Assembly all the pieces respecting the order of the numbers and pairing the same numbers

www.stefanoferraraforni.it

Lift the oven with a forklift until above the height of the metallic support stand (photo 3)

Let down carefully for inserting the steel feet placed under the oven into the legs of the support stand (photo

Once placed the oven on the support stand to screw the furnished screws (17 mm. hexagonal head screw)

in the existing holes on the back of each stand leg.(photo 5 – 6)

photo 3 photo 4

photo 5 photo 6

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels FORNI Four

FORNI

FORNI Gennarino 80 Manuel utilisateur

FORNI

FORNI CLASSICO GAS 110 Manuel utilisateur

FORNI

FORNI Gennarino 100 E Manuel utilisateur

FORNI

FORNI FEM207SC Manuel

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
