Formax Cut-True 31H Manuel utilisateur
Cut-True 31H
Guillotine Cutter
OPERATOR MANUAL
Second Edition
8/2019
Delivery status
(assembly of the tables according to Figure below)
The cutter is supplied by the manufacturer with the disassembled side tables

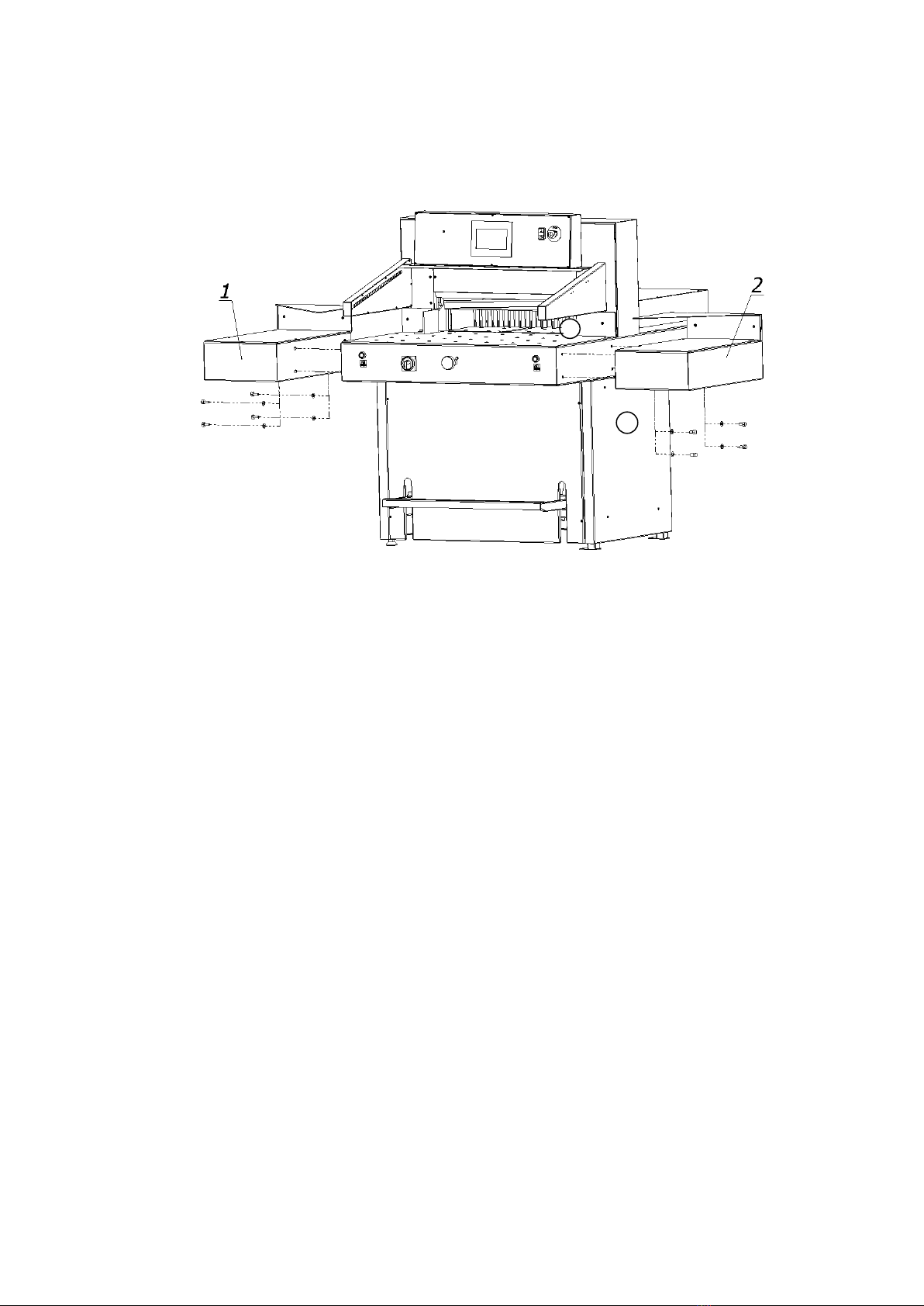

Fig 6. Tightening of side tables
1. Left side table + screw M10x20 (4 pcs) + washer 8 (4 pcs.)
2. Right side table + screw M10x20 (4 pcs) + washer 8 (4 pcs)
Danger!
Protect the power cable from sharp tools, high temperature and oil.
Setting the cutter
Adjusting the cutter setting.
The cutter does not need to be attached to the ground. The correct and safe setting
of the machine is achieved by turning the adjusting foot 1, and locking its position
with the nut 2, as shown on the previous page.

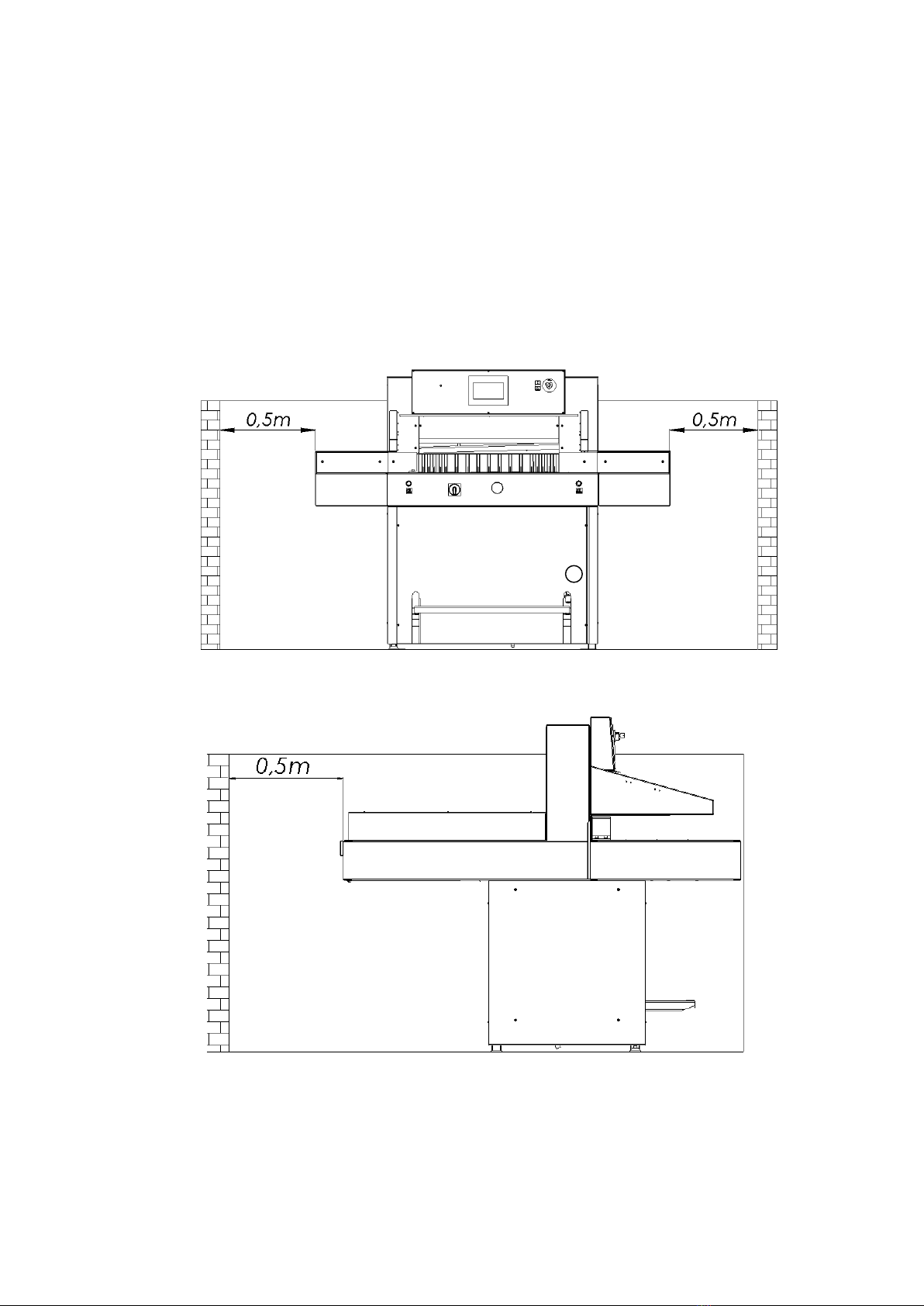

about 0.5 m around the device. (see below)
3.5 Work area
.
4. TECHNICAL CHARACTERISTICS OF THE CUTTER
The cutter is intended for trimming paper, and is primarily used in printing
houses, bookbinding shops, and offices.
Main parameters
Technical data
Maximum stack width
730mm
28.7”
Maximum stack height
100mm
3.9”
Cutting depth
730mm
28.7”
Front table length
640mm
25”
Narrow cut
30mm
1.18”
60mm
2.36”
Noise level
74.6 dB
Backgauge speed
58mm/s
1.9 fps
Side table load
20kg
44 lbs
Machine weight
610kg
1,345 lbs
Technical data –electronics (see following page)
Table 5.
Parameter
Maximum power (kW)
3
Voltage / frequency
(V/Hz)
400/50 - 60
Fuse (A)
3x20
3x30
4.2.3 Technical data- hydraulic system
4.2.3.1 Technical data- hydraulic appratus
Table 6.
Parameter
Motor power (kW)
2.2
47.2 mm²
Voltage / frequency
(V/Hz)
3x400/50
2x220/60
Control of executive elements (VDC)
24
Tank capacity (l)
12
4.2.3.2 Technical data- oil for hydraulics
Table 7.
Parameter
Oil type
HV 46
Quality
ISO 11158 - HV
Viscosity
ISO VG 46
Norm DIN
51524, 46 mm2
(cST).
Kinematic viscosity in temperature (40°C)
The hydraulic system does not require de-aeration, it takes place automatically after
several cuts.
4.2.4 External dimensions
The dimensions of the cutter are shown in Figure 9 and Table 6.
Figure 9. Dimensions of the cutter
DIMENSION
VALUE
(mm/inch)
A
1445 / 57”
B
924 / 36”
C
1754 / 69”
D
1857 / 73”
E
114 / 4.48”
F
658 / 26”
G
376 / 14.8”
H
1,105 / 43.5”
X
640 / 25”
Y program
710 / 27.9”
Y1 manual
730 / 28.7”
Table 6.
5. OPERATION
5.1 Operating safety
5.1.1 Safety instructions
• Before each start-up or start-up on the cutter, the next change should be made to
ensure that the safety components are complete and work properly.
• The cutter can only be operated if all safety components and safeguards such as
detachable covers, emergency stop switches are installed and fully functional.
• In case of a malfunction, stop the cutter immediately and block it.
• All defects must be eliminated immediately.
5.1.2 Warning about special hazards
You should refrain from performing any actions that violate safety in the machine.
In particular, it is prohibited to:
• Putting your hands into the field of knife and clamp.
• Put your hands into the field between the clamping and infeed bars.
• Exercise extreme caution when handling the knife! Use the transport brackets
when installing / removing / carrying the knife.
• Use only undamaged and sharp knives!
• The knife can only be changed by trained personnel.
• When cutting on the work table, there must be no objects (such as keys,
screwdrivers)
5.2 Control system
Danger!
The cutter cannot be operated with defective photocells forming the safety
curtain!

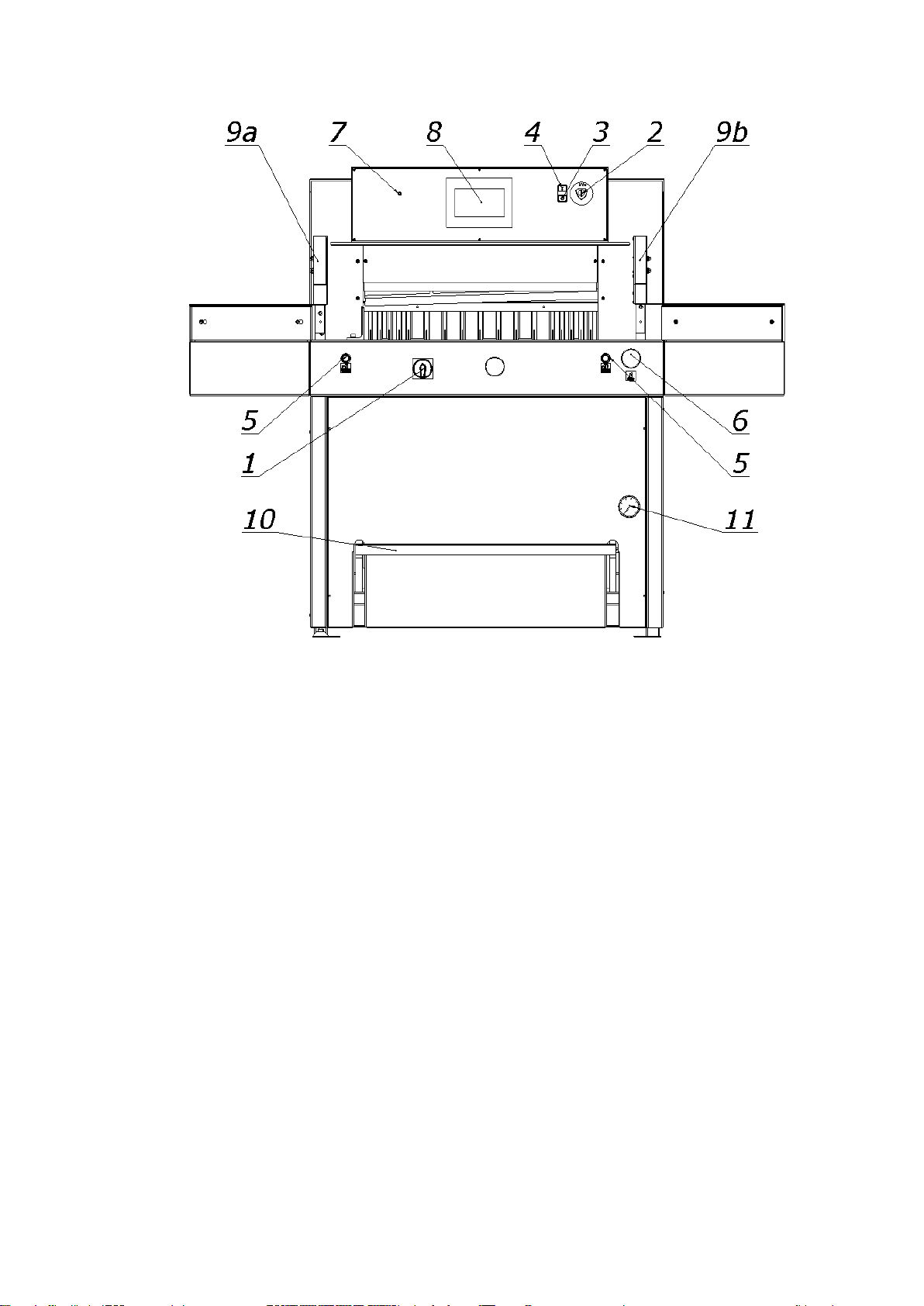

Figure 10. Control and signaling elements of the Cut-True 31H
1. Main switch
2. Palm button, (emergency stop)
3. Locking button of the control system
4. Button that activates the control system.
5. Buttons enabling the cutting cycle (two-handed cutting start-up system)
6. Hydraulic pressure adjustment crank
- turn right - pressure increase
- turn left - pressure decrease
7. Two-color signal lamp.
- red, signals the power supply to the control system
- green, signals the activation of the control system
8. program unit
9. Light curtain (non-contact protection device)
9a. Transmitter
9b. Receiver
10. Foot pedal (mechanical determination of the cutting line)
