Forging Mount FM4532 Manuel utilisateur

32”

MAX

19.8LBS

DUAL MONITOR DESK MOUNT

INSTALLATION MANUAL

Thanks for choosing our product! We strive to provide the best quality and services

for our customers. Would you kindly share your experience on Amazon if you are

satisfied? If you have any questions, please feel free contact us.

Email: [email protected]

We're ready to help!

Model：FM4532

MAX

75*75mm

100*100mm

IMPORTANT SAFETY INFORMATION

Read the entire instruction manual before you start installation and assembly.

If you have any questions regarding any of the instructions or warnings, please

！BE CAREFUL

CAUTION: Exceeding the weight capacity can result in serious personal injury or damage to

equipment!

1. Mounts must be attached as speciﬁed in assembly instructions. Improper installation may result

in damage or serious personal injury.

2. Safety gear and proper tools must be used. This product should only be installed by professionals.

3. Make sure that the supporting surface will safely support the combined weight of the equipment

and all attached hardware and components.

4. Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.

5. This product contains small items that could be a choking hazard if swallowed. Keep these items

away from children.

6. This product is intended for indoor use only. Using this product outdoors could lead to product

failure and personal injury.

IMPORTANT:

Ensure that you have received all parts according to the component checklist prior to installation.

If any parts are missing or faulty, can contact us via: [email protected].

MAINTENANCE:

Check that the bracket is secure and safe to use at regular intervals. (at least every three months)

WEIGHT RESTRICTIONS

19.8

LBS

Holds up to

DO NOT exceed the maximum weight indicated. This

mounting system is intended for use only with the

maximum weights indicated. Use with products

heavier than the maximum weights indicated may

result in failure of the mount and its accessories,

causing possible damage and or injury.

WARNING

！

PACKING LIST

4MM（×1）

M4×10（×8）

M5×10（×8）

B（×8）

5MM（×1）

2（×1） 3（×1）1（×1）

5（×1）4（×1） 6（×2）

7（×2） 8（×1）

Bracket

Bolt

Upper Arm Anti-slip Pad

Base Lower Arm

Clip Plate Long Bolt

Installation Method 1 Clamp Installation

1a-1 1a-2

1.18-3.15in

(30-80mm)

0.39-1.18in

(10-30mm)

If your desk thickness is 0.39-1.18", please use clip plate（2）.

If your desk thickness is 1.18-3.15", remove the clip plate（2）and install directly.

To protect your desk：

Method 2 Grommet Base Installation

1b-1

Start by screwing the panel to the correct angle for easy placement of the monitor

Connect with Monitor

Use a spanner（E） to screw the screws （A/B）and washers （C）into the two holes on the

upper back of the display, and then screw the VESA plate into the two holes on the lower end

. Avoid excessive tightening screws damage the monitor.

0.39"-1.97"

(10-50mm)

Tips: Grommet mount please tighten the screw（3）from top to bottom.

A/B

A/B C

Press the arm to keep it in horizontal position and then use the Allen Key to adjust the screw

on the arm. Turn counter-clockwise(”+ ” direction) to increase gas spring tension till can hold

the weight of your monitor.

Note: You may need to turn the screw by many circles to tighten the arm.

fall down

pop up

Case 1：Monitor/Arm fall down (after install your monitor)

Case 2：Monitor/Arm pops up (after install your monitor)

Press the arm to make it keep it in horizontal position and then use the Allen Key to adjust

the screw on the arm.Turn clockwise(”- ” direction) to reduce gas spring tension till can

stay the position .

Note: You may need to turn the screw by many circles to tighten the arm.

If the pitching angle too tight or too loose

when adjusting the mount, please adjust the screw

Turn clockwise to tighten

Turn counterclockwise to loose

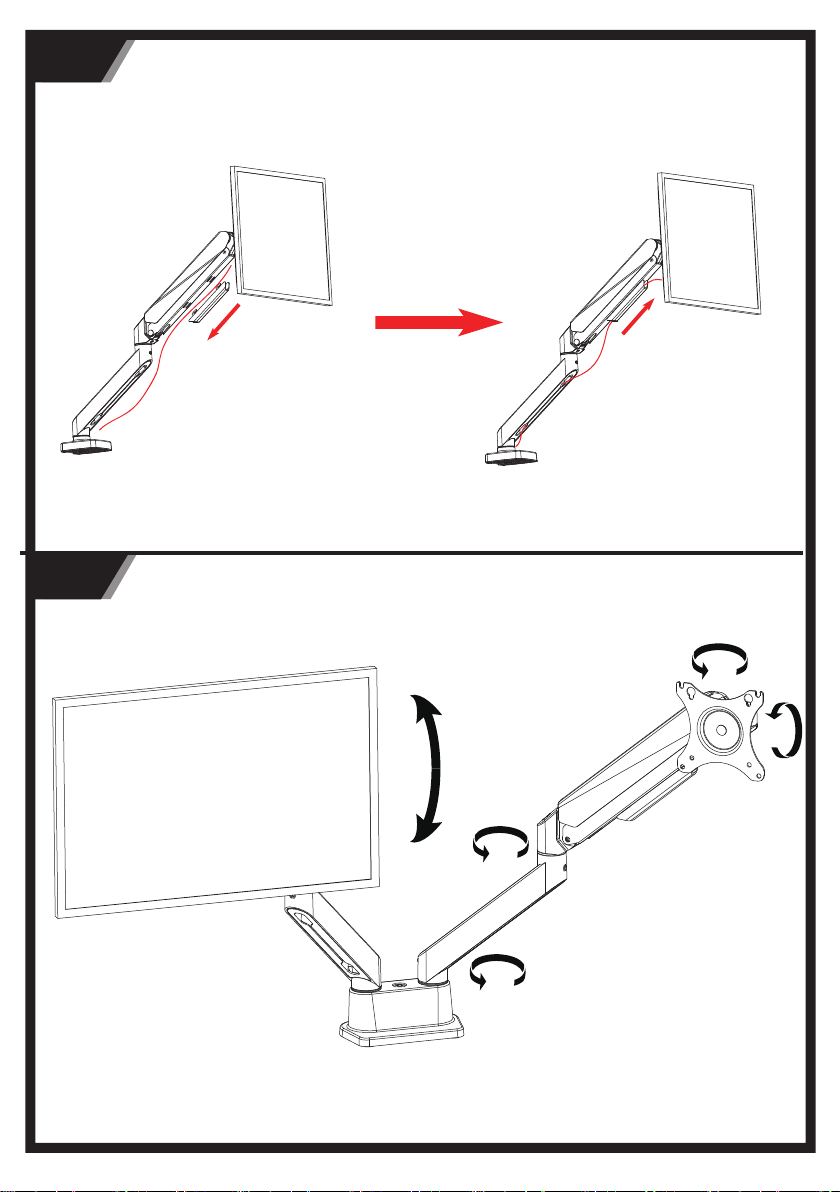

Adjust Flexiblity

6Cable Management

Adjustable Instruction

180°

360°

+90°

-45°

360°

Thank you again

for choosing this forgingmount product!
