Forging Mount HY4111 Manuel utilisateur

Instruction Manual

Universal TV Stand

Thank you for choosing our product! We strive to provide the best quality

and services for our customers. Would you kindly share your experience

on Amazon if you are satisﬁed? If you have any questions, please feel

free contact us.

Email：[email protected]

We’re ready to help!

HY4111

•Carefully open the carton, remove contents and lay out on cardbard or other protective

surface to avoid damage.

•Check to assure that all components were received undamaged. Do not use damaged or

defective parts.lf you require replacement parts, contact customer service at

[email protected]

•Carefully read all instructions before attempting installation.

UNPACKING INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

•Install and operate this product with care. Please read this instruction before beginning the

installation, and carefully follow all instructions contained herein. Use proper tools during

installation.

•

If you do not understand the instructions or have any concerns or questions, please contact

customer service at

[email protected]

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment!

over resulting in death or serious injury!

This product contains small items that could be a choking hazard if swallowed.

Keep these items away from yong children

It is the installer’s responsibility to make sure the combined weight of HY4111 and the display

does not exceed 88 ibs(40kg).Use with heavier televisions may result in instability causing tip

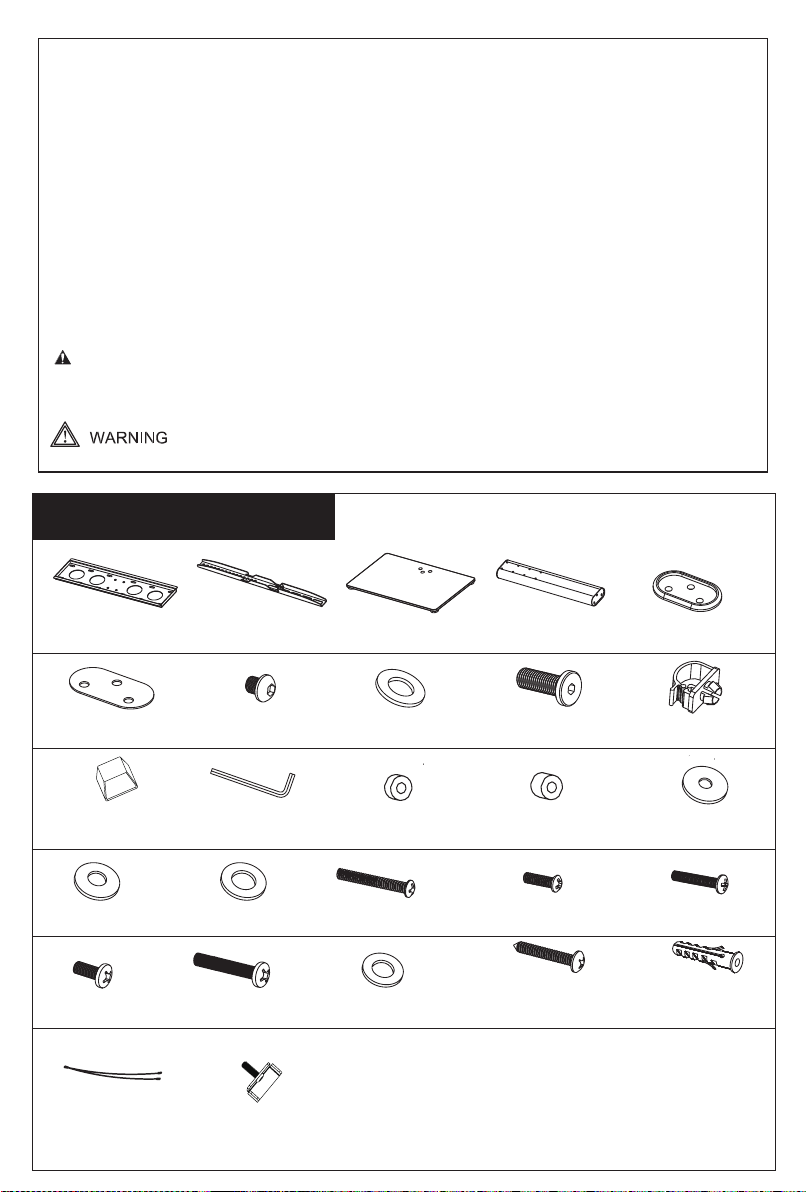

Supplied Parts List

10x60mm

Concrete Anchor

M (x1)

ST 1/4”* 60mm

Lag Bolt

L (x1)

Lag Bolt Washer

K (x1)

Tempered Glass

(x1)

M8x15 Bolt

I (x4)

B (x8)

Rubber Pad

(x4)

M6x10 Bolt

(x4)

Secuity Wire

N (x1)

Support Pillar

(x1)

M4x30 Bolt

F (x4)

M4 Washer

C (x4)

Allen Key

(x1)

Metal Washer

(x4)

M6x15 Bolt

G (x4)

M8x45 Bolt

J (x4)

M6 Washer

D (x4)

TV Plate

(x1)

M8x25 Bolt

(x3)

Plastic Cover

(x1)

M6x35 Bolt

H (x4)

M8 Washer

E (x4)

A (x8)

Monitor Bracket

(x2)

Wire Clip

(x2)

Gasket

(x1)

(01)

SRQ

(04)

(03)(02)

Safety lock

￠8.5x18x 5 mm Spacer ￠8.5x18x 10 mm Spacer

O (X2)

Connecting the TV Plate to Support Pillar

Step 2

If you ﬁnd the support column (04) is not in the correct direction, please see ﬁgure

below. Loosen M8x25 screws(T), adjust the support to the correct direction then

tighten screws again.

3 positions

Put 03 (Tempered Glass) on the table. Put Q(Gasket) and T

(M8x25 Bolt) under 03. Turn Y (Plastic Cover) and 04(Support

Pillar) upside down under 03 to install and then tighten screws.

Step 1 Connecting the Support Pillar(04) to Tempered Glass(03)

Place foot pads(V) on the bottom

of the tempered glass base(03)

at the four corners

Support Pillar(04)

Plastic Cover(P)

M8x25 Bolt(T)

Gasket(Q)

Allen Key (W)

1.2

Rubber pad

Tempered Glass

1.3

TV Plate (01）

Allen Key (W)

M6x10 Bolt (R)

Metal Washer (S)

Wire Clip (U)

2.1 2.2

Height

Adjustable

Inserting wire clips(U)

TV Plate can be installed on wall alternatively,

wall mounting hardware not included

Please select the proper screw length for your

TV by hand tightening to check your ﬂat panel

thread depth.

When attaching brackets to the flat screen,

Too Short Too Long

Correct Correct

First, make sure the diameter of the bolt(F-J) fits your TV. Then, please see the diagram above.

You will need to thread the bolt into the TV using the correct washer (C,D,E) and spacer (A or B) if

necessary with a screwdriver(Not included). Please make sure the monitor brackets(02) are

vertically centered and level with each other.

C D E

Step 3 Mounting the Monitor Brackets(02) to your TV

be careful not to over tighten screws

and be sure that screws do not bottom

out in the mounting holes

3.1

A B F H J

C D E G I

3.2

Attaching TV to TV Plate and Managing the WiresStep 4

4.1

Safety lock(O)

CAUTION: Avoid potential personal injury or property damage!

Make sure your locking screws are tightened BEHIND the mounting plate

so the TV is securely fastened in place.

screwdriver

(Not included)

Height adjustable vertical bracket

first choice

second choice

If you find your TV set is too close to the base, please take off the TV from the stand.

Then, change to the second choice to allow more space between TV and

the tempered glass base (03).

First choice Second choice

cable management

4.2

5.1 5.2

5.3 5.4

2.75in(70mm)

0.15in(4mm)

Wall

Attaching the Security Steel Wire to the TV

Step 5

If your TV is located nearby the wall as the 5.1, then a steel wire can be attached for additional security.

Using screw (F to J) through washer (C to E), the end of security wire(N), bracket hole and TV VESA hole in

sequence. By tightening the screw, the security wire(N) is attached to the TV.

Diagram 5.3, 5.4 and 5.5.

Wood Stud Wall Concrete & Brick Wall

LKLK

Secuity Wire (N)

2.2in(60mm)

2.75in(70mm)

0.375in(10mm)

F to J

C to E

Security wire(N)

Secuity Wire (N)

according to your wall type shown in

Drill 2.75”(70mm) deep holes using a 5/32”

(or 4mm) drill bit . Secure with screws and washers.

Drill 2.75”(70mm) deep holes using a 3/8” (or 10mm)

drill bit, and press anchors into holes. Secure with

screws and washers.

5.5

Now your TV is standing steadfastly and securely！

Step 5

Thank you for choosing our products.

Now enjoy your TV with FORGING MOUNT TV stand!

FORGING MOUNT Make Your Life Better
