Forging Mount FM4501 Manuel utilisateur

Instruction Manual

MAX

22LBS FM4501

Thank you for choosing our product! We strive to provide the best quality

and services for our customers. Would you kindly share your experience

on Amazon if you are satisﬁed? If you have any questions, please feel

free contact us.

Email：[email protected]

We’re ready to help!

Dual Monitor Desk Mount

SKU :

Safety Caution

-1-

•Carefully open the carton, remove contents and lay out on cardbard or other protective

surface to avoid damage.

•Check to assure that all components were received undamaged. Do not use damaged or

defective parts.lf you require replacement parts, contact customer service at

[email protected]

•Carefully read all instructions before attempting installation.

UNPACKING INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

•Install and operate this product with care. Please read this instruction before beginning the

installation, and carefully follow all instructions contained herein. Use proper tools during

installation.

•

If you do not understand the instructions or have any concerns or questions, please contact

customer service at

[email protected]

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment!

over resulting in death or serious injury!

This product contains small items that could be a choking hazard if swallowed.

Keep these items away from yong children

It is the installer’s responsibility to make sure the combined weight of FM4501 and the display

does not exceed 22 ibs(10kg).Use with heavier result in instability causing tip

Supplied parts

Wrench

Spacer

Allen key

Wire clip

7D1

8 a D1

8 b

Grommet base plate

Pole

Clamp

Clamp Brace

Support Plate

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

Swivel Arm

VESA Plate

Nut

Bolt

monitor may

ASSEMBLY STEPS

STEP 1A Install the Base(C Clamp Mount Option)

1. Install the clamp brace (5) to the pole (1) using x3 M5x16 bolts (C). See Figure 1.

2. 8a) to the clamp brace (5) , see Figure 2.

3. Install the clamp (4) to the pole assembly according to the thickness of the desktop. The

thickness can be changed to 2 positions. Connect using x2 M8x12 bolts (B) and tighten using the

Allen key (K). Tighten the clamp to the desktop using the plastic knob. See Figure 3.

Figure 1

8a Figure 2

Figure 3

8a 1

Clamp Brace

Clamp

Pole

Allem key

soft pad

ASSEMBLY STEPS

STEP 1B Install the Base( Grommet Mount Option)

Option B: Grommet Base with Existing Hole If existing grommet hole comes with a plastic protector, remove it to ensure a flat surface

before installing the desk mount.

1. Install grommet base plate ( 7) to the pole (1) using x3 M5x16 bolts ( C). See Figure 4.

2. 8b) to the grommet base plate (7) , see Figure 5.

3. Position pole (1) on the mounting sur fa ce and secure using the support plate ( 6),

15/64 in.(6mm)

1/8 in.(3mm)

Remove part [a]

from part [4]

Secure the mount

to the desktop

Figure 4 8b Figure 5

Tighten the clamp to the desktop using the plastic knob(part a). See Figure 7.

Figure 6 Figure 7

Grommet base

Pole

soft pad

Allen key

Knob

Support plate

Allen key

STEP 2 Assemble Arms and wire clips

Install swivel arm (2) to the pole (1). Fasten the bolt with supplied Allen key (K). Attach the wire clip

( I , J ) to the pole (1) and swivel arm (2).

STEP 3-1

OPTION A: Flat Back Monitor

Attach the VESA plate ( 3) to the monitor with

M4x12 bolts ( D).

NOTE: Hand tighten screws to avoid over

tightening.

OPTION B: Curved Back Monitor

Attach the VESA plate ( 3) to the monitor with M4x30

bolts (E) and M4 spacers ( F).

NOTE: Hand tighten screws to avoid over

tightening.

Attach the Monitor VESA Plate to the Monitors

Slide the monitor onto the head of swivel arm (2).

STEP 3-2

Install the security nut ( A). Make sure the security

nut is installed before you rotate the monitor. For

minor height adjustment, use Allen key (P).

M4x30

M4x12

spacer

VESA plate

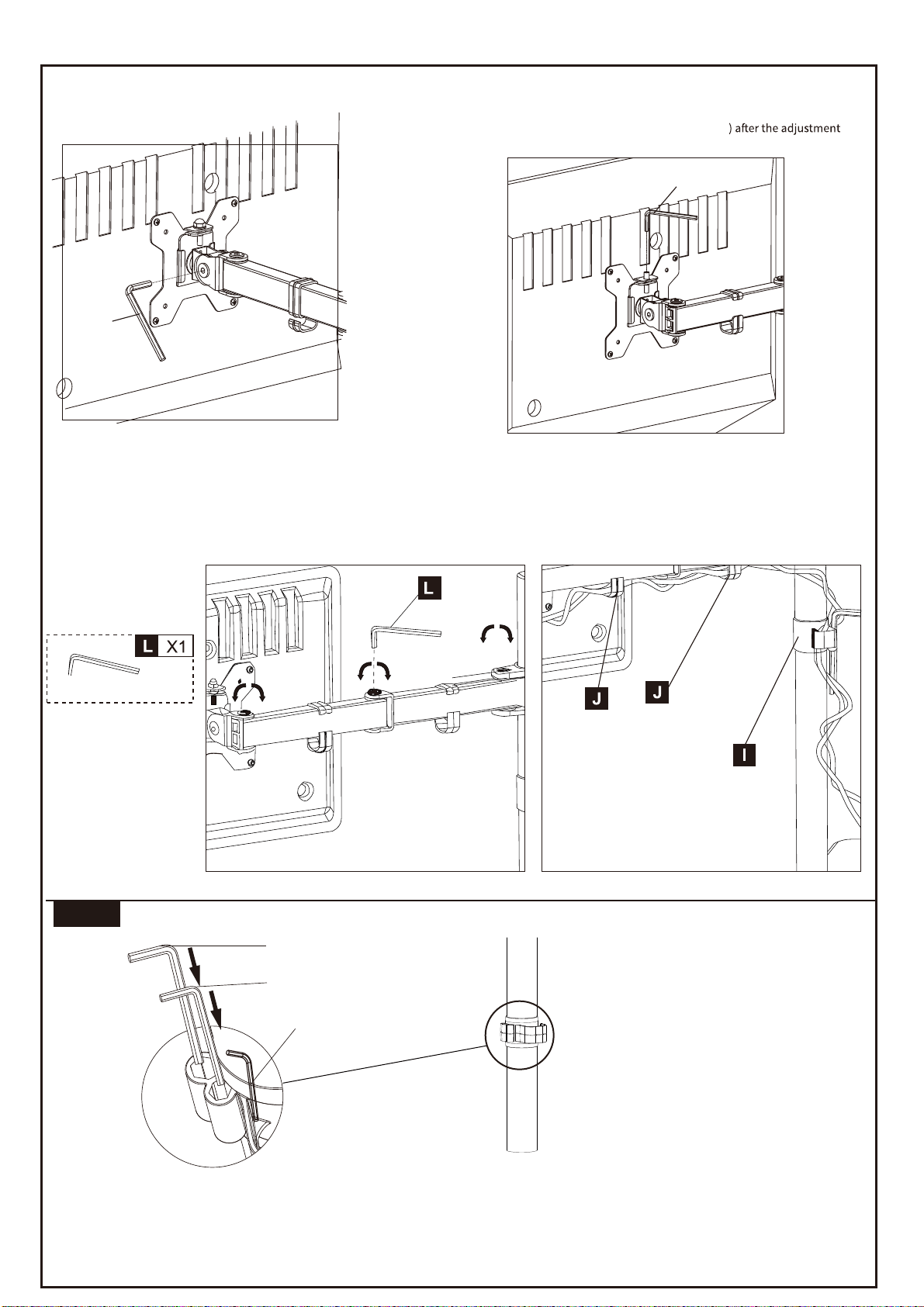

To level the monitors, remove the nut (A) and turn the bolt with the Allen key

M) to raise or lower the monitor. Replace nut (H

STEP 5 Adjustments

Tighten the bolt with the supplied Allen key (K) to fix the tilt angle.

Store Allen Keys into the Cable Clip

Step 6

K 15/64 in.(6mm)

M 1/8 in.(3mm)

Use the supplied Allen key set (L) to make any necessary adjustments for arms. Manage cables and store Allen

keys (O) in wire clip ( I) for future use.

L 3/16 in.(5mm)

K 15/64 in.(6mm)

M 1/8 in.(3mm)

L 3/16 in.(5mm)

for future use.
