Follett Symphony Plus Manuel utilisateur
Order parts online:
www.follettice.com
01089820R01
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Installation Instructions
Symphony Plus™ Pressurized Water
Sanitizing Kit
P/N 01089580
For use with systems with no lter
ATTENTION!
These instructions are for Symphony Plus dispensers only.
Instructions for sanitizing Symphony Series dispensers are
located on the reverse side of this document.
Description
Periodic cleaning/descaling and sanitizing of Follett’s ice and water dispenser and ice machine system is required
to ensure peak performance and delivery of clean, sanitary ice. Immediately perform Cleaning/Sanitizing procedure
(according to instructions shipped with dispenser) when this Pressurized Water Sanitizing procedure is completed.
If you experience any problems during the installation process, please call Follett Technical Service toll-free at
(877) 612-5086 or +1(610)252-7301 for assistance.
Materials Required
§(1) 1.5 Gallon (or larger) plastic bucket
§Sanitary gloves
§Safety glasses
§1.6 oz of Nu-Calgon IMS-II Sanitizer (P/N 00979674 - 16 . oz bottle)
Materials Supplied
(1) Pre-lter bowl
(1) Filter head and bracket
(1) Dip tube
(1) 3/8" ID john guest tubing, 12' (3.6 m)
(2) 1/2" NPT x 3/8" john guest tting
(1) 3/8" to 3/8" compression tting
2 Symphony Plus Pressurized Water Sanitizing Kit - No Filter
Sanitizing
CAUTION!
§Immediately perform Cleaning/Sanitizing procedure (according to instructions shipped with
dispenser) when Pressurized Water Sanitizing procedure is completed.
§Only qualied technicians should attempt to service or maintain this equipment.
§Wear rubber gloves and safety goggles (or face shield) when handling cleaner or sanitizer mixtures.
§Use only Follett approved cleaners.
§It is a violation of Federal law to use Sanitizing solution in a manner inconsistent with its labeling.
§Do not use solvents, abrasive cleaners, metal scrapers or sharp objects to clean any part of the
dispenser.
1. Unplug dispenser.
2. Turn OFF water supply.
3. Depress red pressure release button to
relieve pressure.

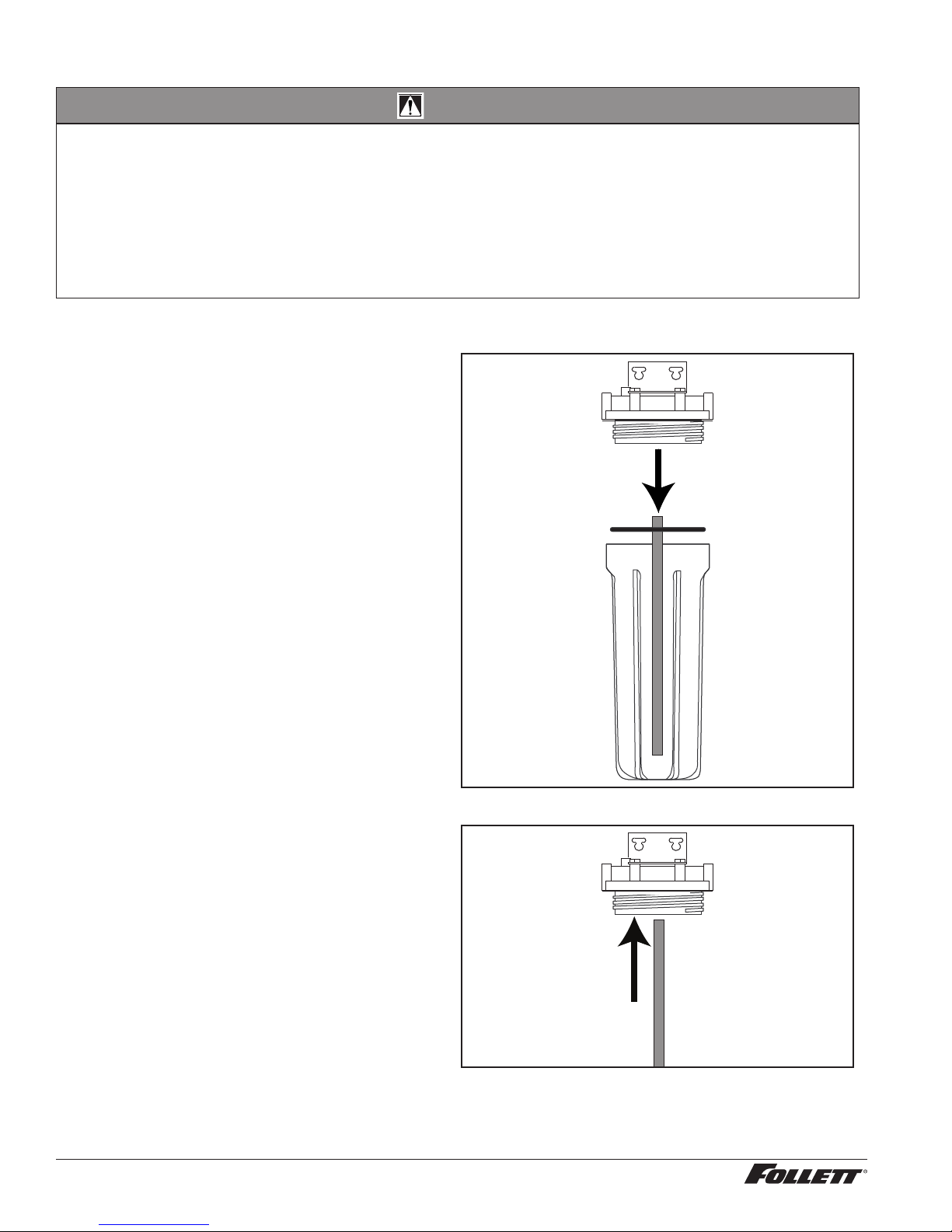

4. Remove pre-lter bowl.
Fig. 1
5. Install dip tube (Fig. 2).Fig. 2
Symphony Plus Pressurized Water Sanitizing Kit - No Filter 3
6. Mix a 200 ppm active quaternary sanitizing
solution of 1 gal. (3.8 L) 100F (38 C)
water and 1.6 oz (47 ml) Nu-Calgon IMS-II
Sanitizer (P/N 00979674).
7. Fill pre-lter bowl to just below the o-ring
with sanitizing solution (Fig. 3).
Fig. 3
8. Re-install pre-lter bowl (Fig. 4). Fig. 4
4 Symphony Plus Pressurized Water Sanitizing Kit - No Filter
9. Turn ON water supply.
10. Plug in dispenser.

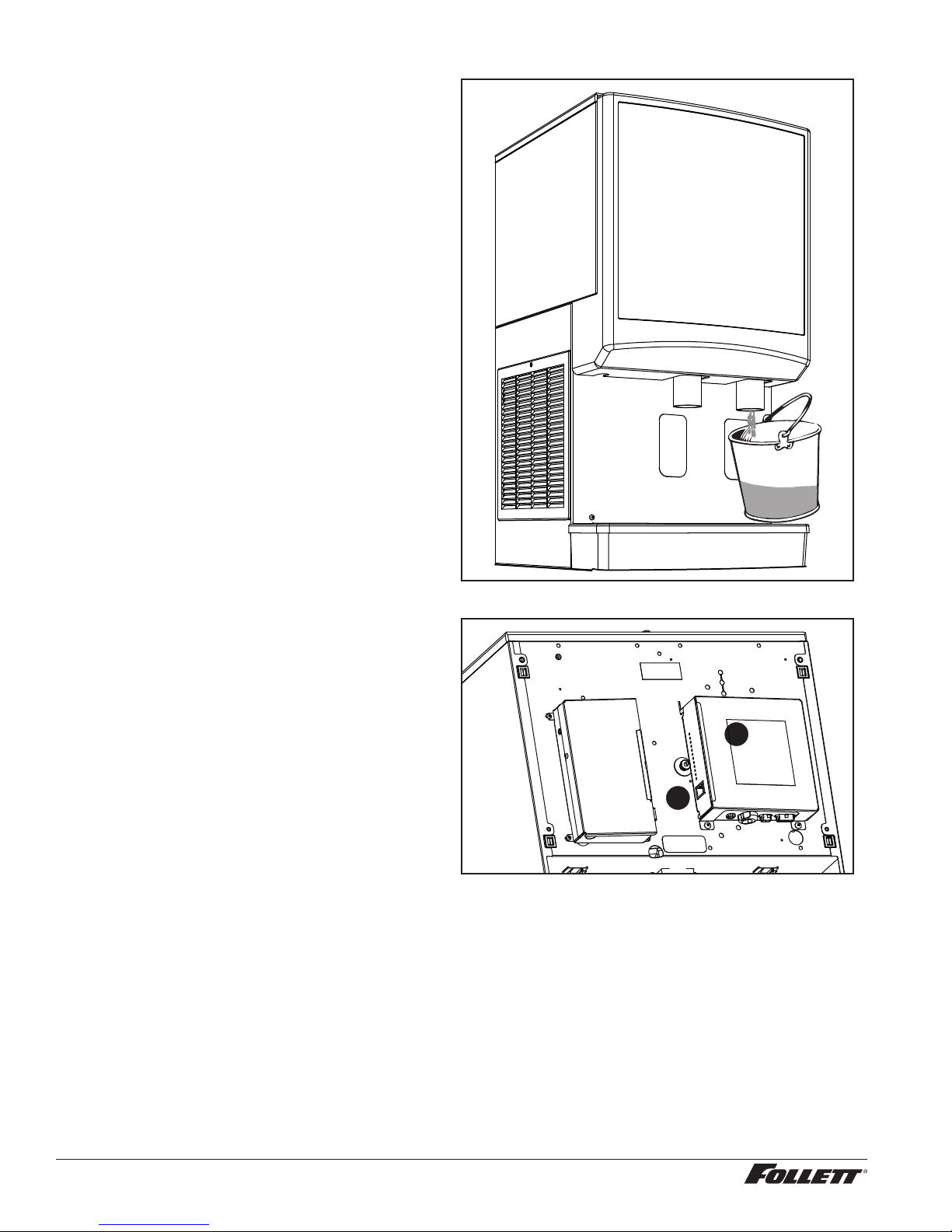

11. Dispense 3 cups (24 oz) of water into a
container (Fig.5). Sanitizer will ll the
dispenser water lines.
Note: Maximum length of water line between
dispenser and lter system must not exceed
30ft.(9 m).
12. Discard water collected in container.
Fig. 5
3 cups
13. Remove the front cover and set aside.
14. Locate the ice machine electrical box
(Fig.6.1) and press CLEAN switch
(Fig.6.2). The MAINTENANCE light will turn
on and the machine will drain.
15. Wait for the LOW WATER light to turn on.
16. Locate the dispenser electrical box and
ensure that the BIN SIGNAL switch is ON.
1 7. Unplug the dispenser, wait 5 seconds and
plug back in.
18. Ice machine will resume ice making mode
(wait for MAKING ICE light to turn on) and
sanitizer will ll the ice machine water lines
and also the water reservoir.
Fig. 6
1
2
Symphony Plus Pressurized Water Sanitizing Kit - No Filter 5
19. Unplug unit and allow sanitizer to remain in
water lines and water reservoir for at least
5minutes.
20. Turn OFF water supply.
2 1. Depress red pressure release button to
relieve pressure.

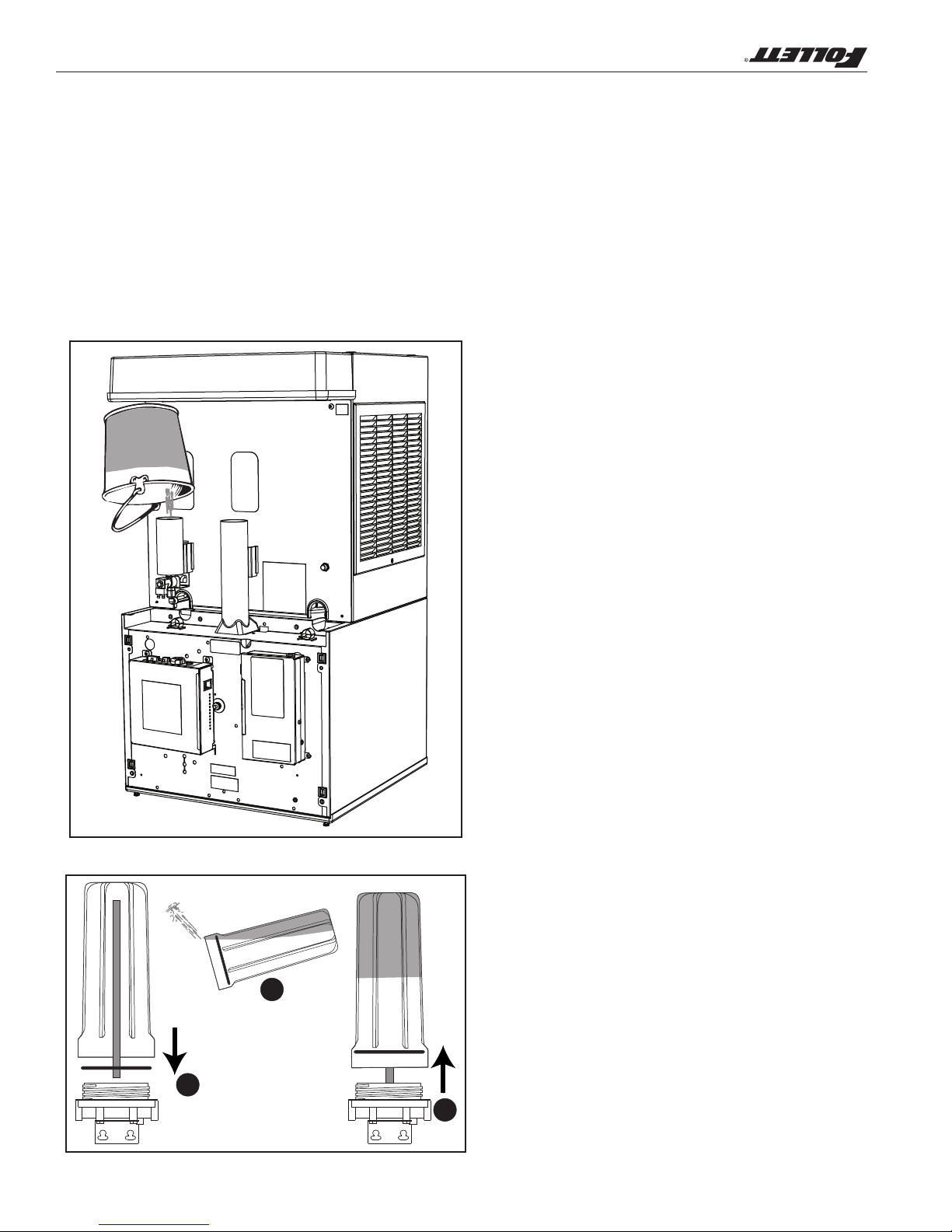

22. Remove pre-lter bowl (Fig.7.1), discard
sanitizer (Fig.7.2), rinse with potable water,
and re-install (Fig.7.3).
Fig. 7
1
2
3
23. Turn ON water supply.
24. Plug in dispenser and dispense water into
a container for 30 seconds (Fig.8) to ush
sanitizer from the dispenser water lines.
25. Discard water collected in container.
26. Press the CLEAN switch to purge sanitizer
from the water reservoir.
2 7. Wait for the LOW WATER light to turn on.
28. Unplug the dispenser, wait 5 seconds and
plug back in.
29. Ice machine will resume ice making mode
(wait for MAKING ICE light to turn on) and
ush water reservoir lines.
30. Turn OFF the BIN SIGNAL switch.
3 1. Immediately perform Cleaning/Sanitizing
procedure according to instructions shipped
with dispenser.
Fig. 8
30 sec
01089820R01
© Follett Corporation 6/15
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Follett is a registered trademark of Follett Corporation, registered in US.
01089820R01
© Follett Corporation 6/15
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Follett is a registered trademark of Follett Corporation, registered in US.
Symphony Series Pressurized Water Sanitizing Kit - Single Filter 5
1 7. Unplug unit and allow sanitizer to remain in
water lines and water reservoir for at least
5minutes.
18. Turn OFF water supply.
19. Depress red pressure release button to
relieve pressure.
20. Remove pre-lter bowl (Fig.7.1), discard
sanitizer (Fig.7.2), rinse with potable water,
and re-install (Fig.7.3).
Fig. 7
1
2
3
2 1. Turn ON water supply.
22. Plug in dispenser and dispense water into
a container for 30 seconds (Fig.8) to ush
sanitizer from the dispenser water lines.
23. Discard water collected in container.
24. Drain water for 30 seconds from the
water reservoir by releasing evaporator
drain tubefrom oat reservoir bracket,
removing plug from drain tube and releasing
(unclamping) pinch clamp (if equipped).
25. Plug drain hose, replace drain tube in
reservoir bracket.
26. Immediately perform Cleaning/Sanitizing
procedure according to instructions shipped
with dispenser.
Fig. 8
30 sec
4 Symphony Series Pressurized Water Sanitizing Kit - Single Filter
9. Turn ON water supply.
10. Plug in dispenser.
11. Dispense 3 cups (24 oz) of water into a
container (Fig.5). Sanitizer will ll the
dispenser water lines.
Note: Maximum length of water line between
dispenser and lter system must not exceed
30ft.(9 m).
12. Discard water collected in container.
Fig. 5
3 cups

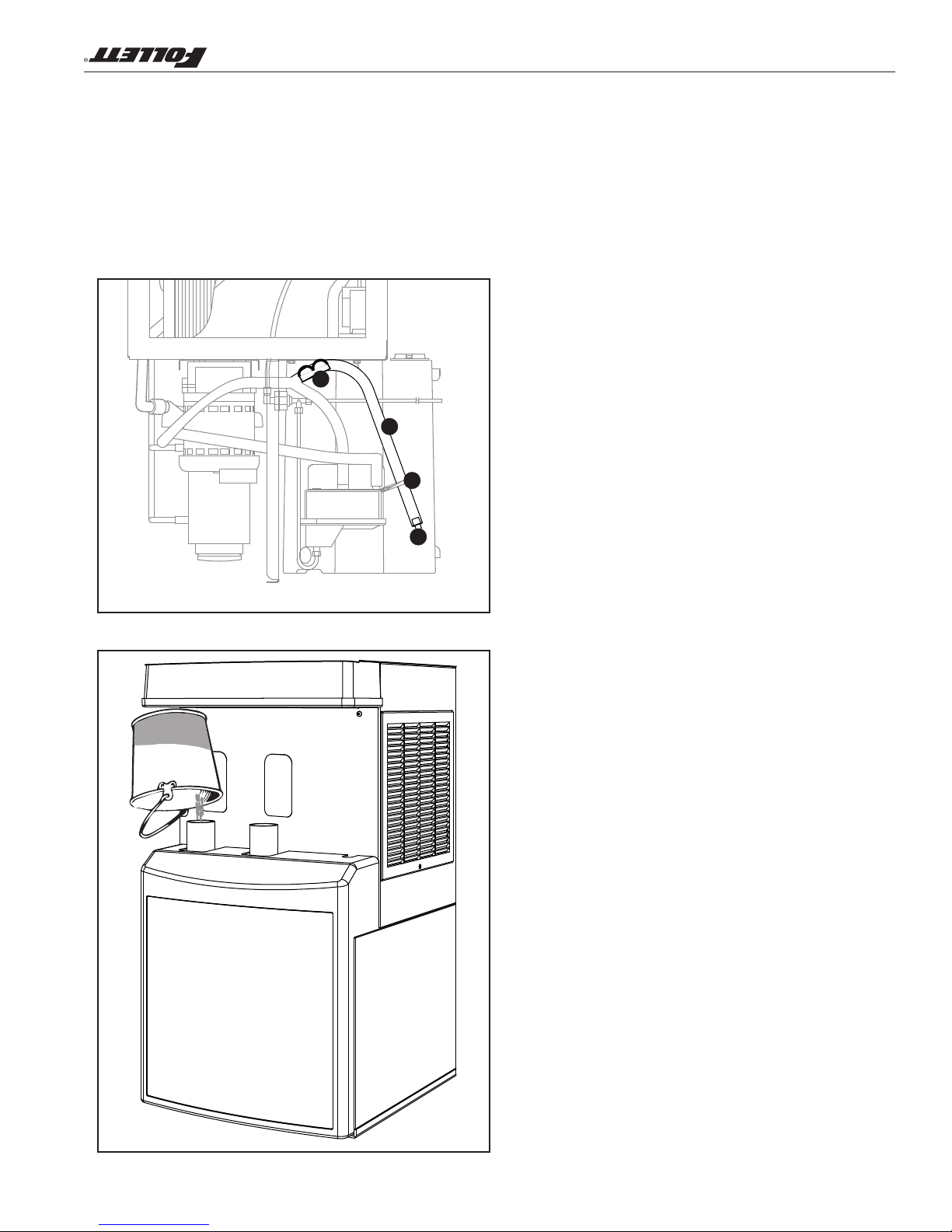

13. Remove any panels required to gain access
to water reservoir, evaporator drain tube, and
compressor switch.
Note: Consult the Operation and Service manual
shipped with your unit.
14. Locate the Compressor Switch and put in the
OFF position.
15. Drain 2 cups (16 oz) of water from the water
reservoir by releasing evaporator drain
tube (Fig.6.1) from oat reservoir bracket
(Fig.6.2), removing plug (Fig.6.3) from drain
tube and releasing (unclamping) pinch clamp
(Fig.6.4) (if equipped).
16. Plug drain hose, replace drain tube in
reservoir bracket.
Fig. 6
1
2
3
4
12CI Shown
Symphony Series Pressurized Water Sanitizing Kit - Single Filter 3
6. Mix a 200 ppm active quaternary sanitizing
solution of 1 gal. (3.8 L) 100F (38 C)
water and 1.6 oz (47 ml) Nu-Calgon IMS-II
Sanitizer (P/N 00979674).
7. Fill pre-lter bowl to just below the o-ring
with sanitizing solution (Fig. 3).
Fig. 3
8. Re-install pre-lter bowl (Fig. 4). Fig. 4
