FLOS F1584018 Manuel utilisateur

REV. 1

DATE 26/07/2021

CLESSIDRA OUTDOOR/INDOOR

F1584018

Flos reserves the right to introduce any changes to its own models, without prior notice.

01.F1582030

–Wall attachment and internal lamp body 40°+40°

02. F1580018

–Deep brown external Clessidra lamp body

03. RF1580100

–Screw and tool kit for Clessidra external lamp body

CLESSIDRA OUTDOOR/INDOOR

F1584018

REV. 1

DATE 26/07/2021

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

F1582030

WALL ATTACHMENT AND INTERNAL LAMP BODY 40°+40°

CLESSIDRA OUTDOOR/INDOOR

F1584018

REV. 1

DATE 26/07/2021

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 1

DATE 26/07/2021

Dismantle the cover (A) unscrewing the screws (B) with the allen key

included.

Fig.1

F1582030

WALL ATTACHMENT AND INTERNAL LAMP BODY 40°+40°

CLESSIDRA OUTDOOR/INDOOR

F1584018

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 1

DATE 26/07/2021

Separate the wall attachment from the (C) body (D) unscrewing the screws

(E).

Fig.2

F1582030

WALL ATTACHMENT AND INTERNAL LAMP BODY 40°+40°

CLESSIDRA OUTDOOR/INDOOR

F1584018

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 1

DATE 26/07/2021

Fix the wall attachment (C) with screws and rawl plugs taking care to put it

the correct way up as indicated by the arrow (F) and passing the power

cables through the correct hole.

NOTE

: Choose screw anchors that are suitable for the surface which shall

be assembled upon.

Fig.3

F1582030

WALL ATTACHMENT AND INTERNAL LAMP BODY 40°+40°

CLESSIDRA OUTDOOR/INDOOR

F1584018

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 1

DATE 26/07/2021

Remount the body (D) onto the wall attachment taking care to pass the

supply cables through the fairlead (G), then make the electrical connections

in the terminal box(H) and to the earth terminal (I).

Fig.4

F1582030

WALL ATTACHMENT AND INTERNAL LAMP BODY 40°+40°

CLESSIDRA OUTDOOR/INDOOR

F1584018

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 1

DATE 26/07/2021

Remount the cover (A); mount the external body (L) onto the internal body

(D) with the screws (M) included taking care to put the washers (N) in the

correct positions. (O).

Fig.5

F1582030

WALL ATTACHMENT AND INTERNAL LAMP BODY 40°+40°

CLESSIDRA OUTDOOR/INDOOR

F1584018

L A

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

F1580018

DEEP BROWN EXTERNAL CLESSIDRA LAMP BODY

REV. 1

DATE 26/07/2021

CLESSIDRA OUTDOOR/INDOOR

F1584018

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 1

DATE 26/07/2021

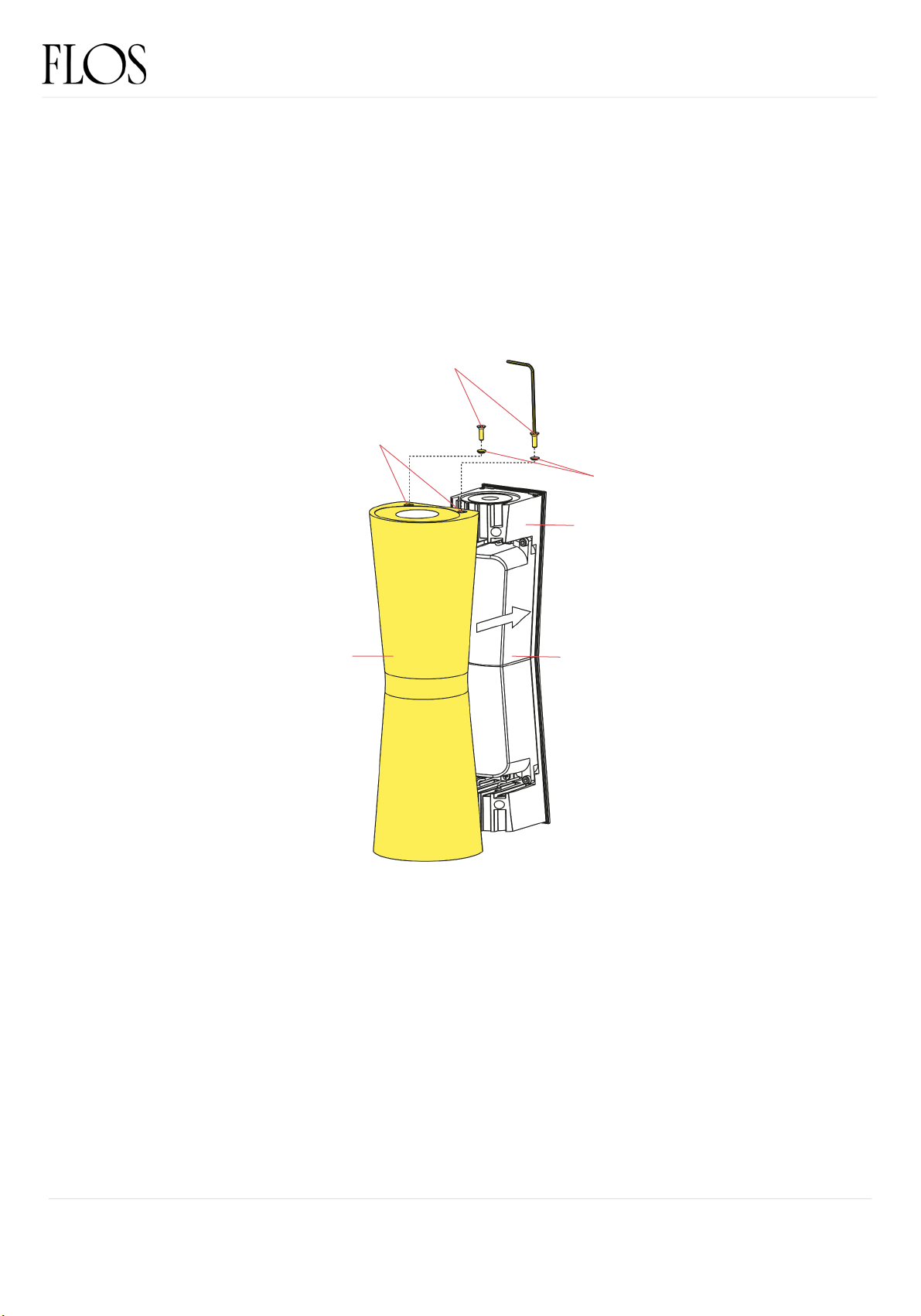

Assemble the external body (L) onto the internal body (D) with the screws

(M) included ensuring to position the washers (N) in the correct positions

(O).

Fig.1

L A

F1580018

DEEP BROWN EXTERNAL CLESSIDRA LAMP BODY

CLESSIDRA OUTDOOR/INDOOR

F1584018
