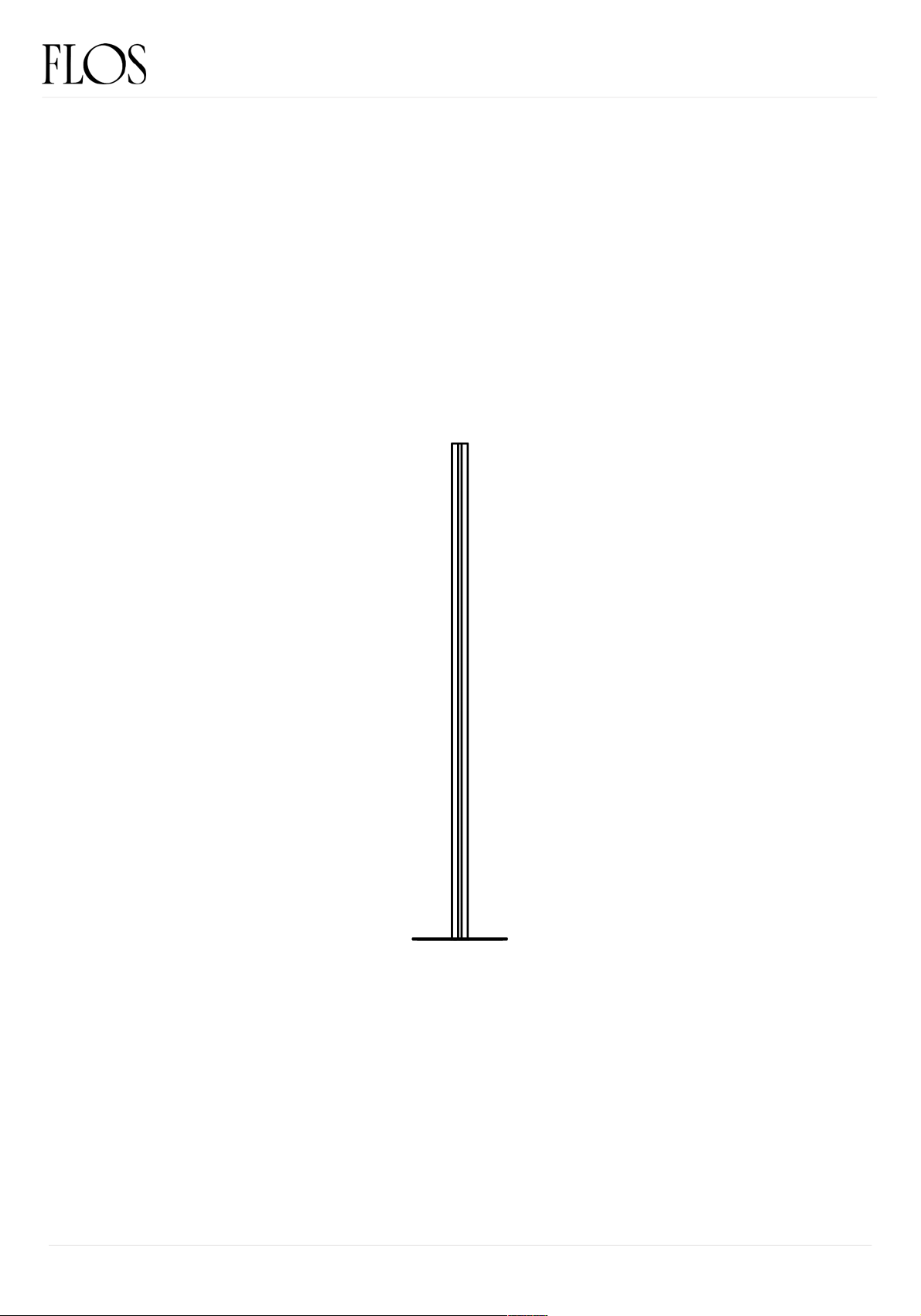

FLOS COORDINATES F Manuel utilisateur

REV. 0

DATE 09/02/2022

COORDINATES F

F1801033

Flos reserves the right to introduce any changes to its own models, without prior notice.

01. RF31068

–Fixing bridge assembly

02. RF1800033

–Body and block assembly

03. RF31826

–Base upper cover

04. RF27549

–Switch dimmer 48V PWM 500 Hz

05. RF3320400

–Black plug kit & Driver

06. RF29554

–Key and screws assembly

COORDINATES F

F1801033

REV. 0

DATE 09/02/2022

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

RF31068

FIXING KIT ASSEMBLY

COORDINATES FF1801033

REV. 0

DATE 09/02/2022

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

RF31068

FIXING KIT ASSEMBLY

REV. 0

DATE 09/02/2022

COORDINATES FF1801033

Fig.1

Remove the fixing kit assembly from the body.

Now assemble the new spare part.

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

RF1800033

BODY AND BLOCK ASSEMBLY

COORDINATES FF1801033

REV. 0

DATE 09/02/2022

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 0

DATE 09/02/2022

COORDINATES FF1801033

RF1800033

BODY AND BLOCK ASSEMBLY

Fig.1

Remove the fixing kit assembly from the body.

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 0

DATE 09/02/2022

COORDINATES FF1801033

RF1800033

BODY AND BLOCK ASSEMBLY

Fig.2

Remove the base upper cover.

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 0

DATE 09/02/2022

COORDINATES FF1801033

RF1800033

BODY AND BLOCK ASSEMBLY

Fig.3

Unfasten the n°4 screws.

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 0

DATE 09/02/2022

COORDINATES FF1801033

RF1800033

BODY AND BLOCK ASSEMBLY

Fig.4

Disconnect the pins.

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

REV. 0

DATE 09/02/2022

COORDINATES FF1801033

RF1800033

BODY AND BLOCK ASSEMBLY

Fig.5

Remove the damaged body and block assembly.

Assemble now the new spare parts.

Position the new body and block assembly (Fig.5).

Connect the pin (Fig.4 page.9)

Fast the n°4 screws (Fig.3 page 8)

Connect the base upper cover (Fig.2 page 7)

Put the fixing kit assembly on the body (Fig.1 page 6).
