FLOS RF23540 Manuel utilisateur

FLOS U.S.A., Inc. 110 York Street, 5th Floor, Brooklyn, NY 11201 | Tel: 718-875-3472 | Email: e-[email protected] | http://usa.flos.com

This document is exclusive property of Flos S.p.A. and its affiliated companies.

RF23540

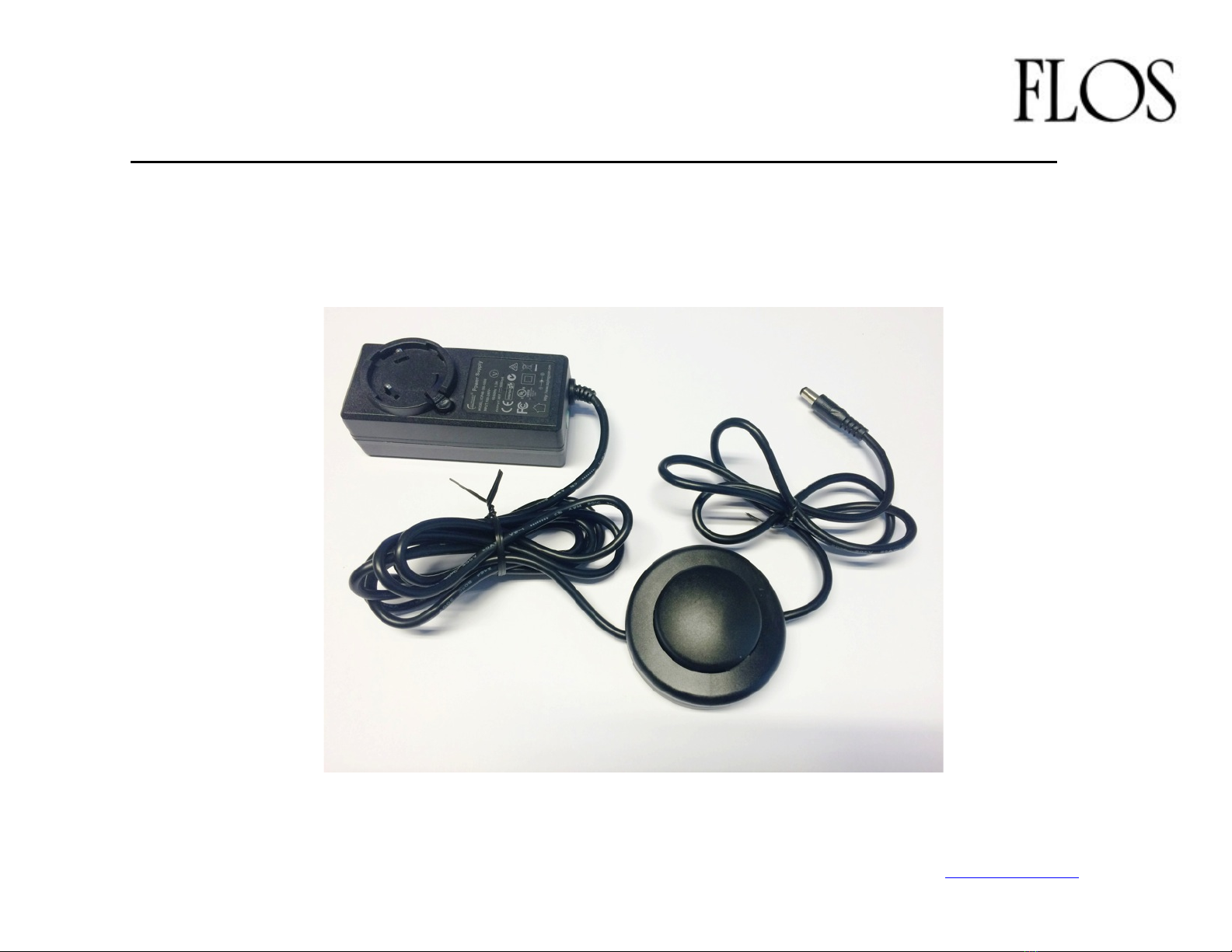

ELECTRICAL ASSEMBLY WITH POWER SUPPLY UNIT

FLOS U.S.A., Inc. 110 York Street, 5th Floor, Brooklyn, NY 11201 | Tel: 718-875-3472 | Email: e-[email protected] | http://usa.flos.com

This document is exclusive property of Flos S.p.A. and its affiliated companies.

Insert the plug (A) into the power unit (B). By

using the guides snap it inside its apposite slot

(use the correct type of plug for the area in

which the device must be installed).

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been

switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

FLOS U.S.A., Inc. 110 York Street, 5th Floor, Brooklyn, NY 11201 | Tel: 718-875-3472 | Email: e-[email protected] | http://usa.flos.com

This document is exclusive property of Flos S.p.A. and its affiliated companies.

Connect the jack (C) inside the insert (D) of the

lamp body.

FLOS U.S.A., Inc. 110 York Street, 5th Floor, Brooklyn, NY 11201 | Tel: 718-875-3472 | Email: e-[email protected] | http://usa.flos.com

This document is exclusive property of Flos S.p.A. and its affiliated companies.

TECHNICAL DATA SHEET

Attention!!!

Dimensions in the present drawing are in mm.

FLOS U.S.A., Inc. 110 York Street, 5th Floor, Brooklyn, NY 11201 | Tel: 718-875-3472 | Email: e-[email protected] | http://usa.flos.com

This document is exclusive property of Flos S.p.A. and its affiliated companies.

WORKING PRINCIPALS

To switch the device on/off push the button (C); light sequence:

MAXIMUM / MINIMUM (50%) / OFF. When the appliance is switched on,

prolonged contact of the button causes a progressive decrease of light

intensity up to 10%. Upon reaching the desired intensity, stop contact

with the button.

The device can also be operated with a remote switch that allows you to

turn on/turn off the device with the last light intensity choice; the

dimmer function can only be activated with the button (C).
